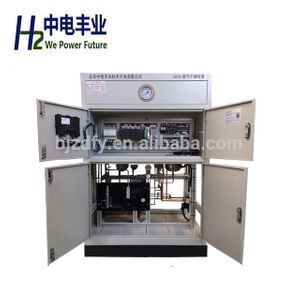

Custom-engineered Desiccant Hydrogen Gas Dryer for Water Ele

Supplier: Beijing Sinohy Energy Co., Ltd.
Region: Beijing, China
Contact: Ms Alice Liu
Price: $40000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	The normal package is wooden box. We can also pack it according to customer's special requirements.;	Payment Terms:	T/T;
Gas dry type:	Adsorpt water to dry gas;	Port:	tian jing new pot;
Place of Origin:	Beijing China (Mainland);	Model Number:	HCD100/1.0 series;
Supply Ability:	100 Set/Sets per Year;	Delivery Detail:	90 days after received the order;
Brand Name:	CEI;

Product Description

Custom-engineered Desiccant Hydrogen Gas Dryer for Water Eletrolysis Generator

Hydrogen which acts as coolant in power generating systems will increase its moisture. This will cause safety problems and will decrease the ef?ciency of power generators. HCD100 is especially designed for the hydrogen dry inside of power generators. The unit is fabricated with high temperature and high moisture ventilators and forms close loop with hydrogen system inside the power generating system.

Main Features

1) Advantages
Low dew point of hydrogen, The dew point hydrogen out of this unit could reach -50℃ which satisfies the power generator’s requirements for hydrogen. Proven Reliability Durable stainless steel process components maximise system life. Demonstrated life span of 30+ years.
2) Simple Installation
Every HCD hydrogen dryer is fully assembled and skid mounted for trouble-free shipping and simple installation.
3) Fully controled and tested
Each unit is thoroughly controlled and factory-tested to meet standards and exceed end users’ requirements.
4) Capacity
Pressure 0.3-0.8Mpa(Match power generators’ requirements）
Capacity of one unit: 50m3/h
5) Customer Engineered Design
Custom-engineered hydrogen drying solutions available.

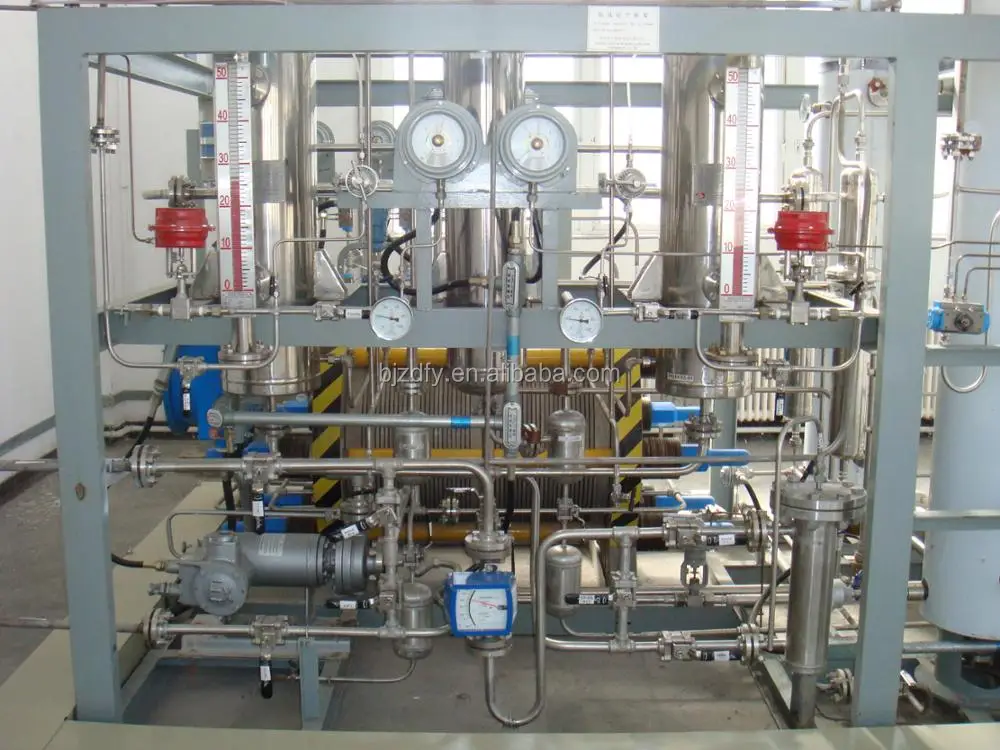

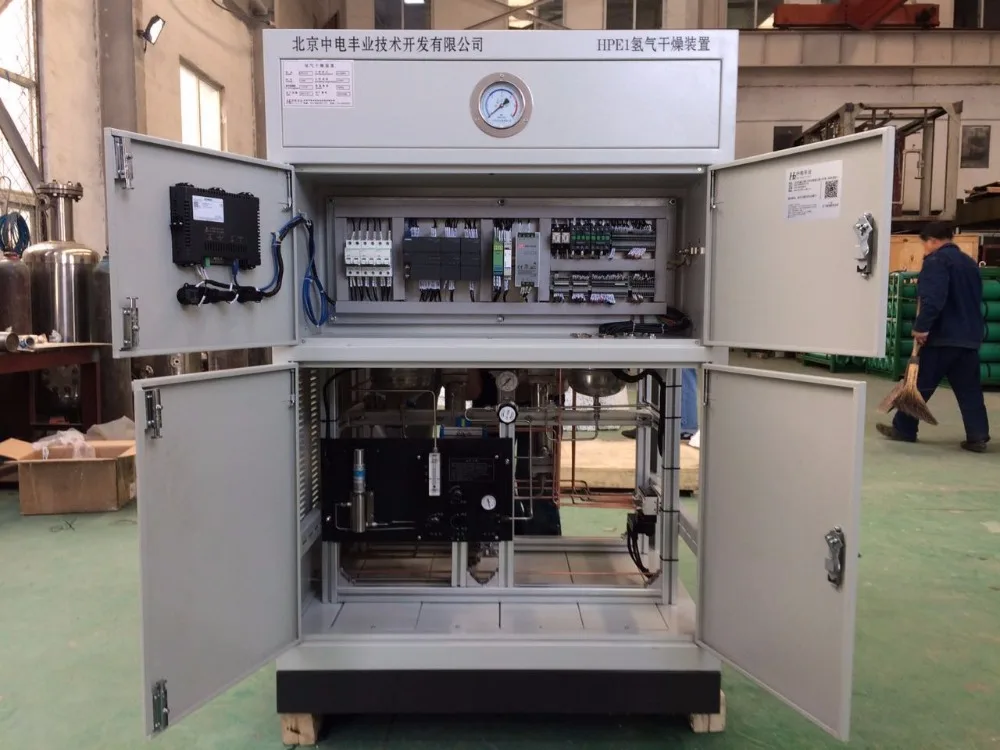

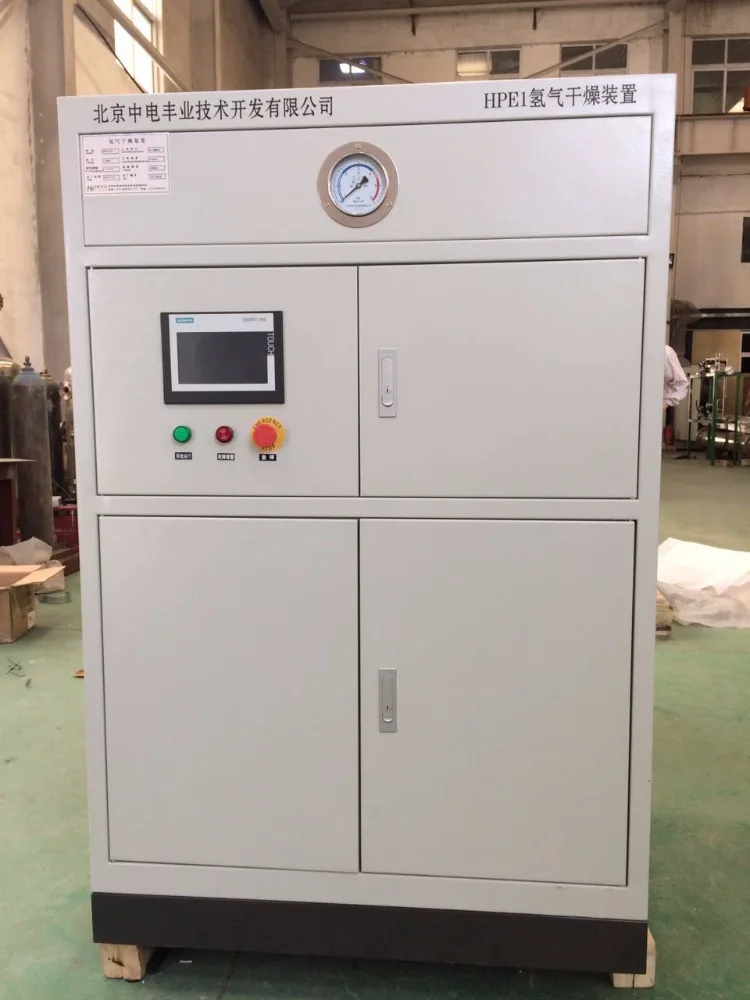

Detailed Images

Main technical specification
· Capacity：20-120Nm3/h。
· Dew point of hydrogen：≤-50℃。
· Working pressure：0.3-1.0MPa(Matching power generators’ requirements.
Ventilators could increase the pressure by about 4MPa)。
· Dimension：1200×1050×2050mm（Cabinet）。
· Weight：600Kg。
· Regenerating：Reuse regenerating gas and without vent.
· Control：PLC+Touch screen, Fully automatic operation。

Technical requirements

· Power：380V, 3 Phases 4 Wires, 50Hz, 4.0kw
· Cooling water: 0.2T/h, (0.15-0.4MPa, ≤45℃)
· Compressed air: 2m3/h, (0.4-0.8MPa)

Main equipment

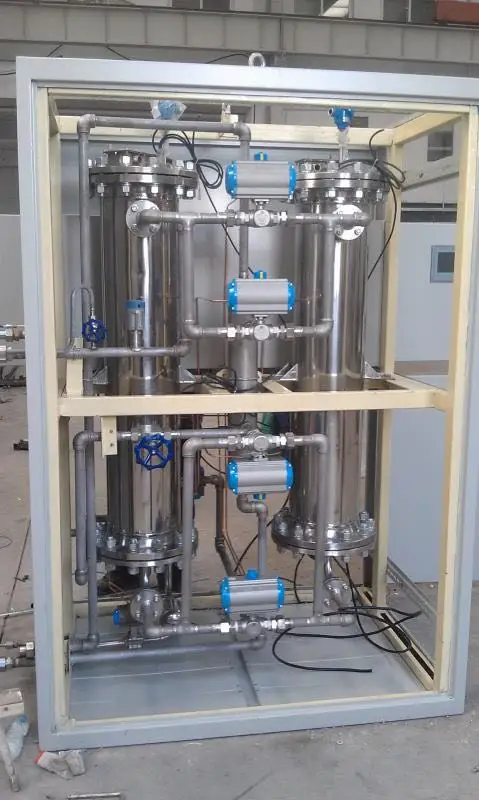

1). Dryers（inner installed ventilators, molecular sieves, heaters）: 2 sets.
2). Regenerating cooler: 1 set.
3). Oil-gas seperators: 1 set.
4). Trap: 1 set.
5). PLC: 1 set.
6). Touch screen: 1 set.

Maintenance： 8hours/year

Unit model：
· HCD100/1.0 basic version（without dew point analyzers）
· HCD100/1.0（Ⅰ）（fabricated with one dew point analyser at outlet. Dew point analyser is manufactured by Pro-chem or Vaisala.）
· HCD100/1.0（Ⅱ）（fabricated with dew point analysers at both inlet and
outlet. Dew point analyser is manufactured by Pro-chem or Vaisala. ）

Scope of supply（HCD100/1.0（Ⅱ））
No.	Name	Specification	Qty
1	Dryers	HCD100/1.0（Ⅱ）	2
1.1	Molecular sieves	13X，φ3-5	80
1.2	Heaters	Spiral，3KW/220V	2
1.3	Innerinstalled ventilators	450W,Water-proof and standing high temperature	2
1.4	Dryer body	HCD100-01-1	2
2	Regenerating cooler	E0.41-0.9-0.8-00/2	1
3	Trap	HCD100-02	1
4	Oil-gas separator	HCD100-03	1
5	2-position 4-way pneumatic ball valve	Media: Hydrogen, inner thread connection, standing 300℃	2
6	2-position 2-way Pneumatic ball valve	Media: Hydrogen, inner thread connection, standing 300℃	2

Certifications

Business License

We are a professional hydrogen electrolyzer manufacturer which is established in 2007.

High-tech Enterprise Certificate

We are a national High-tech enterprise in business of hydrogen electrolyzer manufacture.

ISO Certificate

our management follows ISO 9001:2008.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	21 0(L) * 105 (W) * 205 (D)
Weight	600KGs
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	21 0(L) * 105 (W) * 205 (D)
Weight	600KGs
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
