55sows pig house design pig feeding system design

Pig farm project

What can Mus Agro do for you?

A: Overall layout design of pig farm

B: Overall automation equipment selection

C: Overall equipment manufacturing, supply and commissioning

Pig farms with different rearing stages and houses

1. Farrow to wow: Feeding from the sow, from start to finish

2.Farrow to feeder: from sow feeding, end to grower

3.Farrow to finish: Feeding from the sow, from start to finish

4. Feeder to Finish: From grower feeding, end to finish

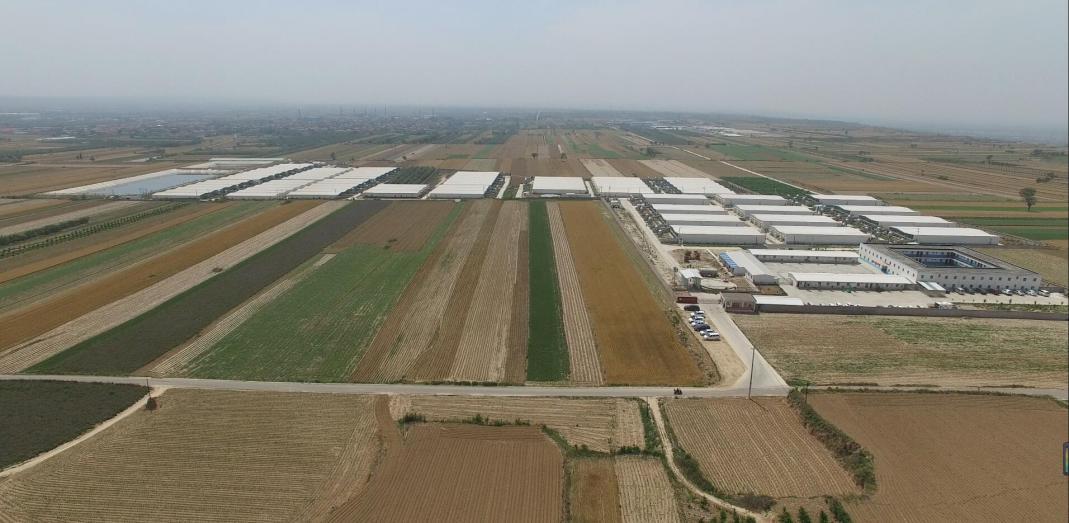

We have many project cases and partners:

Moose Agriculture is well received by customers, and its products are exported to Southeast Asia, Africa, Oceania, the Middle East, South America and other countries and regions. The products and services of large agricultural and animal husbandry enterprises include Zhengda Group, Shuanghui Group, Muyuan Group, Zhengbang Group, Elephant Group, China Sheng Group, etc...

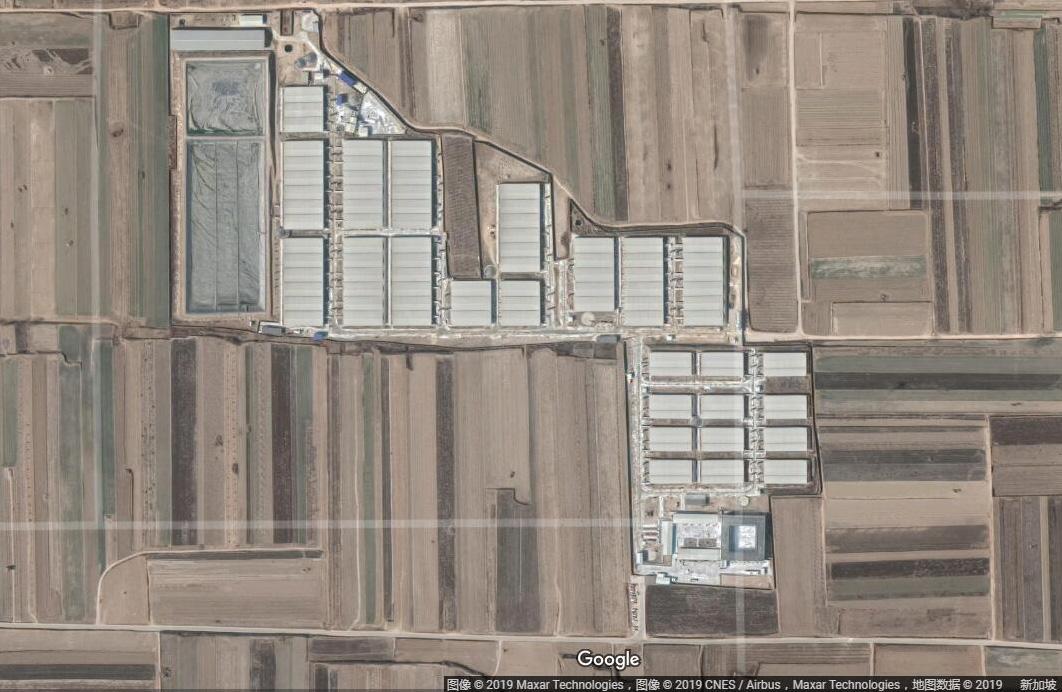

Sample from Farrow to sow farm design

Boar and Gilded Pig Houses

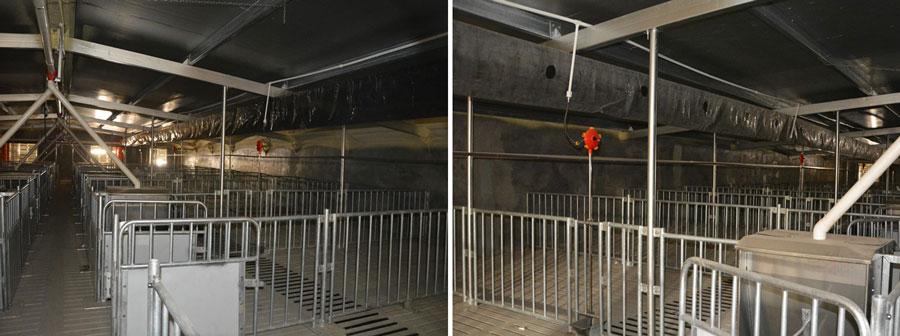

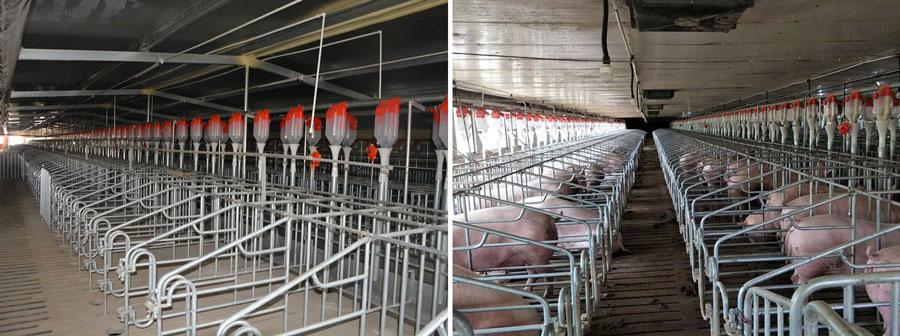

Mating and Pregnancy House

The gestation box is used for empty sows and pregnant sows, which can effectively avoid the pregnant sows fighting for food and biting, which is conducive to the abortion of the sows, and is also convenient for quantitative feeding, watering, cleaning and flushing.

Because feeding, watering and manure disposal are very centralized, the weaner box occupies a small area, generates less sewage, and is easy to mechanize management.

Gestation crates are also designed for boars.

Technical data:

advantage:

1. Robot welding, high crack resistance and high durability

2. The overall galvanized, acid and alkali corrosion resistance, long service life

3. Well processed, smooth appearance without burrs, effectively preventing scratches

4. Double door design, convenient for artificial insemination

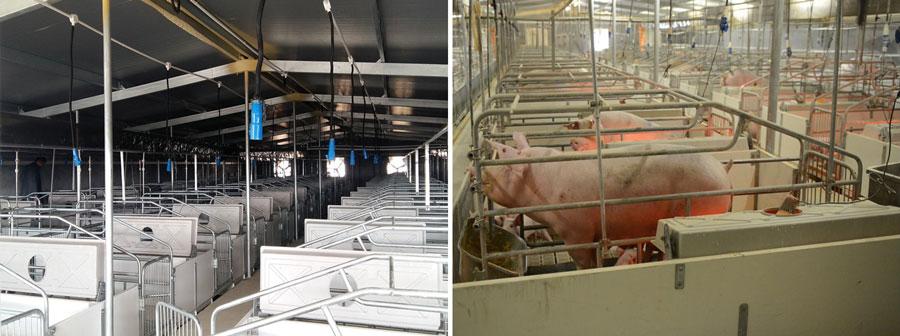

delivery room

The farrowing crate is specially designed for the sow to feed and rear her piglets. It can effectively prevent the sow from stepping on the piglets by mistake.

Additionally, the farrowing crate provides a cooler area for the sow and a warmer area for the young. The floor is designed to keep pigs dry, thereby reducing the spread of intestinal diseases.

The farrowing crate also allows pork producers to assist in the pig birthing process. The farrowing box mainly includes galvanized metal fences, stainless steel troughs, sow drinkers, metal and plastic floors, insulation lamps, insulation covers and other components.

Technical data:

advantage
1. Robot welding, on-site acid and alkali resistance, corrosion resistance, long service life.

2. The sow is easy to enter and leave the cage, and the position of the sow can be adjusted according to the position needs to ensure the smooth production of the sow, and the back door is opened as a whole

3. The width of the sow pen can be adjusted according to the size of the sow to prevent the sow from accidentally stepping on the piglets

4. The rear of the crate is designed with free passage, which is convenient for piglets to move around

5. PVC plastic board fence, smooth surface without burrs, will not scratch piglets, effectively block the spread of bacteria, high mechanical strength, good thermal insulation effect, reduce piglet diarrhea rate

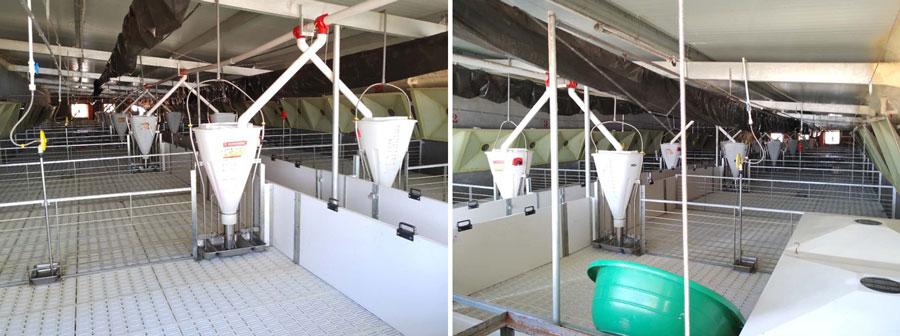

weaning house

Weaning pens, also known as weaning pens, are specially designed for rearing new weaned piglets, and usually littermates stay in the same weaning pen.

A single set of weaning boxes can hold 20 piglets; when the body weight exceeds 35 kg, the piglets will be transferred to the finishing box.

The weaning box is mainly composed of galvanized steel frame, PVC fence, stainless steel feeder, drinking fountain, plastic floor and support beam.

Generally, adjacent areas can share a double-sided stainless steel tank and PVC fence.

Technical data:

advantage
1. Robot welding, overall hot-dip galvanizing treatment, corrosion resistance and long service life.

2. Floor: Semi-slit floor design, no inconvenience, keep the bed dry and hygienic; the semi-slit floor can be used with the floor heating system

3. All PVC guardrail, the length-to-width ratio of the guardrail is 3:2, the column can be opened and closed as a whole, and the PVC guardrail design not only plays the role of heat preservation, but also facilitates disinfection

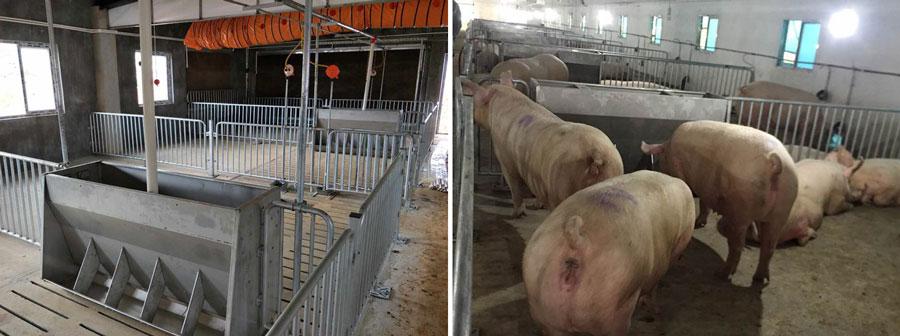

fattening room

The fattening box is specially designed for fattening pigs. The fattening box has the characteristics of high strength and large area due to its large scale and large group.

Technical data:

advantage
1. Robot welding, hot and cold galvanizing inside and outside the pipe, acid and alkali resistance, corrosion resistance, long service life

2. The fattening bed adopts wet and dry trough, and the dry and wet separation is used to supply pig feed and drinking water at the same time.

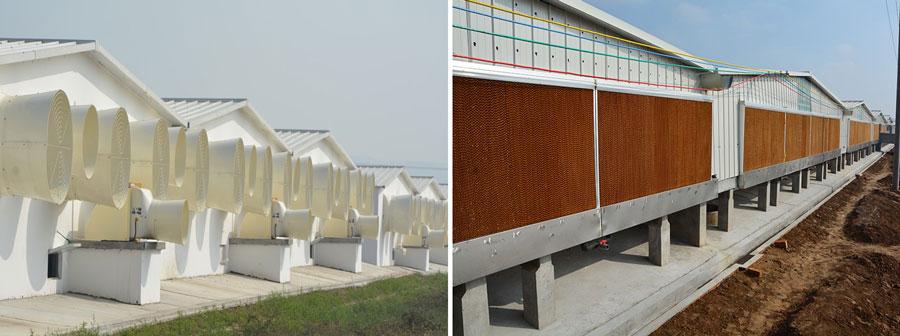

Ventilation and Climate Control Systems

pre-sale service

1) Provide technical advice

2) Design poultry farms according to customer requirements.

3) Select the appropriate equipment.

sale period

1) Provide equipment manufacturing, equipment inspection, arrange delivery, etc.

After-sales service

1) Send an engineer to the site to supervise the installation

2) Help customers to check equipment and debug.

3) Provide equipment operation training
