China Anthracite BBQ Wood Sawdust Charcoal Coke Briquetting Machine

Click here to contact
Product details
Mechanical test report:ifApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Farms, Home, Retail, Energy and Mining
Voltage:380Vport:Qingdao, Tianjin, Lian Yong, Shanghai, China
Warranty:1 yearName:Anthracite briquette machine

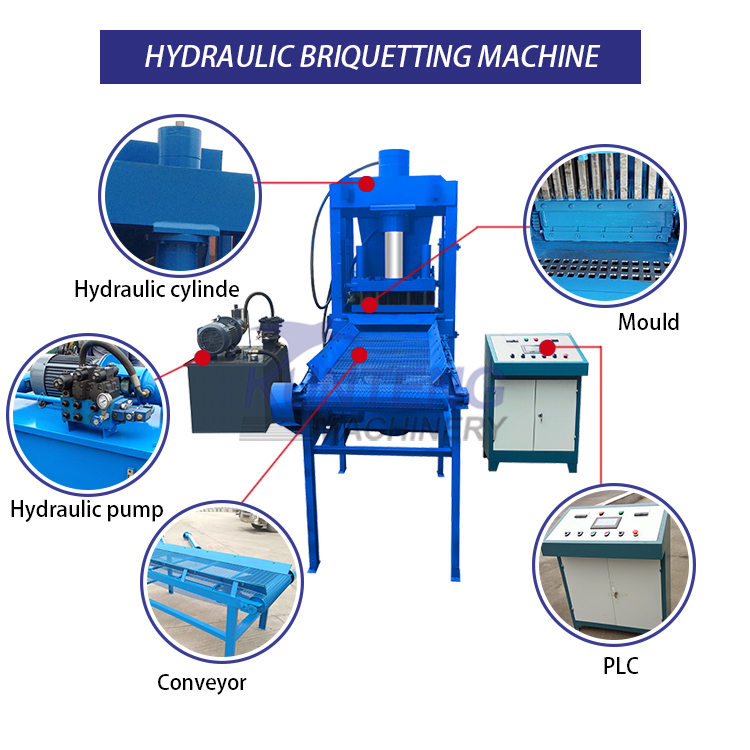

Dimensions (L*W*H):320mm*100mm*260mmCore components:Motor, conveyor belt, PLC, pump, import, mold
application:industryMain selling point:Sustainable
capacity:1-3T/hweight:2000kg
Packaging Details:Anthracite briquette machine packaging: 1. Single machine wooden box packaging. 2. The machines of the entire production line are directly loaded into the container.Core Components Warranty:1 year
Showroom location:Italy, France, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Argentina, South Korea, Chile, United Arab Emirates, Algeriausage:briquetting machine
Supply capacity:Monthly production of 100 anthracite briquette machinesMarketing Type:New Products 2022
Packaging Preview:payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,cash
Function:environmental protectionproduct name:Anthracite briquette machine
Raw materials:Coal, sawdust charcoal, charcoalAfter-sales service provided:Online support
Health status:newplace of origin; place of origin:Henan, China
Key words:Anthracite briquette machinebrand:Kunteng
type:Fully automaticVideo external inspection:if
product description
Customer website
Anthracite briquette forming machine production line for Vietnamese customers
Our team has more than 20 years of experience in the charcoal equipment industry, and has more than 100 formulations of barbecue charcoal, shisha charcoal, shisha charcoal, anthracite charcoal, flammable charcoal, pulverized coal, anthracite, bituminous coal, etc. According to customer needs, plant size, capital situation. We can customize a complete set of production line solutions, teach you how to make high-grade charcoal, and teach you how to make high-grade charcoal.
Details display

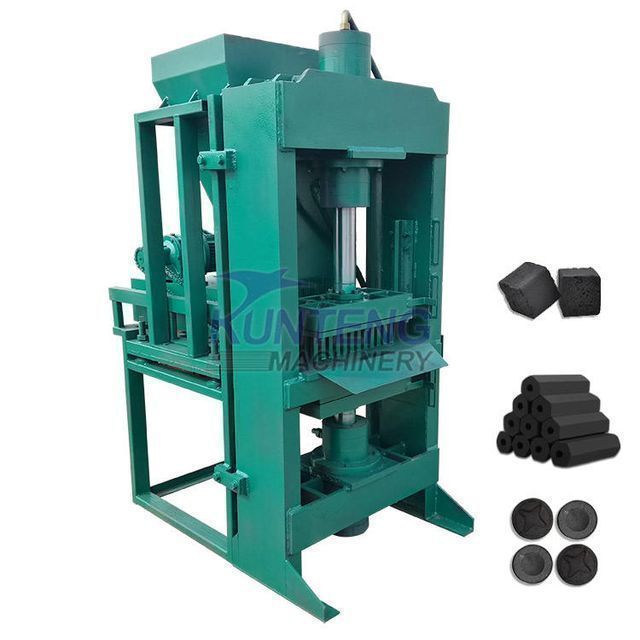

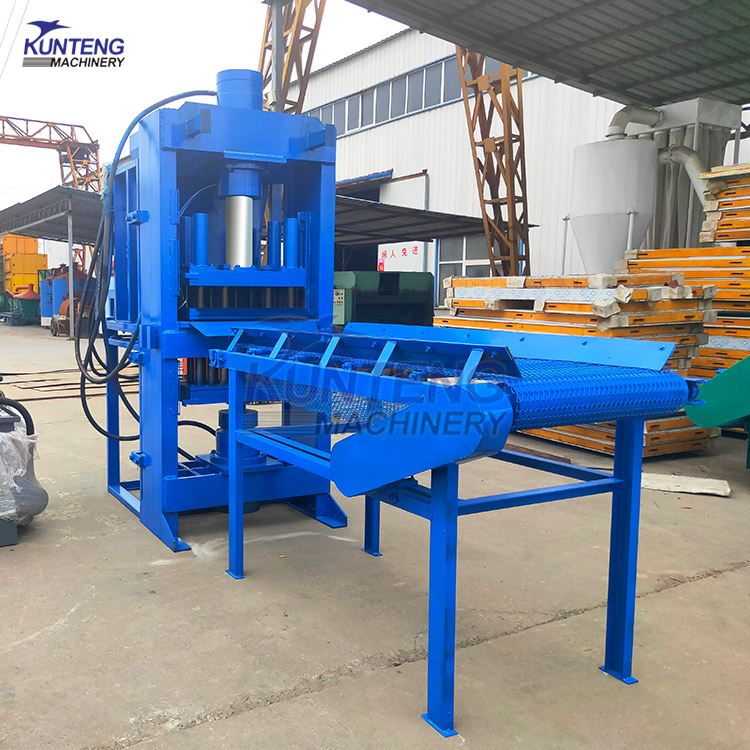

Anthracite briquette machine

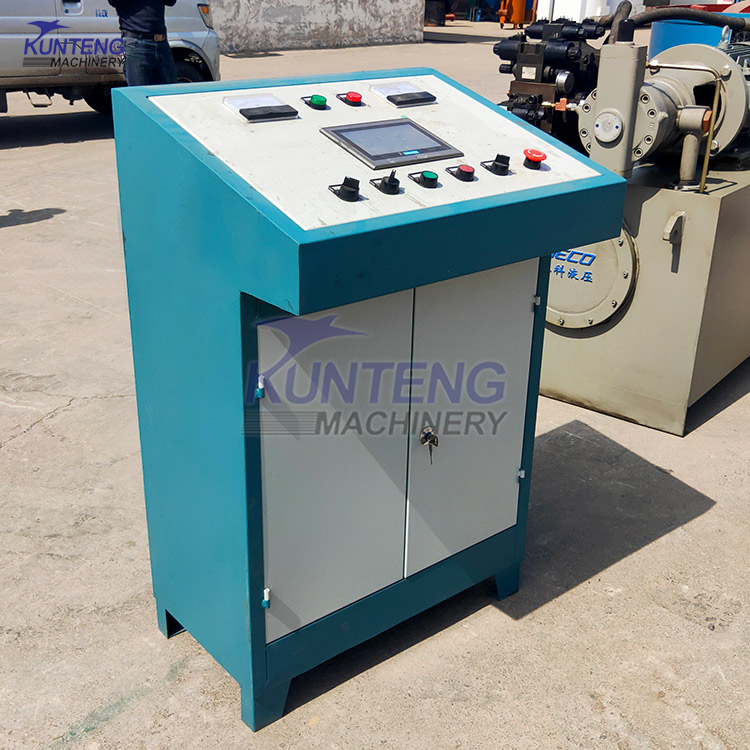

Anthracite briquetting machine, charcoal briquetting machine, barbecue sawdust sawdust briquetting machine adopts power mechanism electrical system, adopts button centralized control, and can realize three working modes: adjustment, manual and semi-automatic. The working pressure, pressing speed and slider stroke of the machine can be adjusted according to the needs of the process, and three process modes of ejection process, non-ejection process and stretching process can be completed. Each process can be selected from two process actions: constant pressure and constant span. The constant pressure forming process has pressure holding, delay and automatic return after pressing.

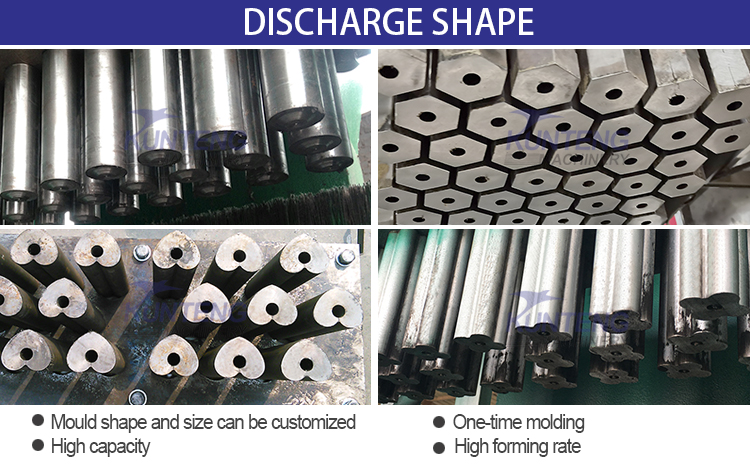

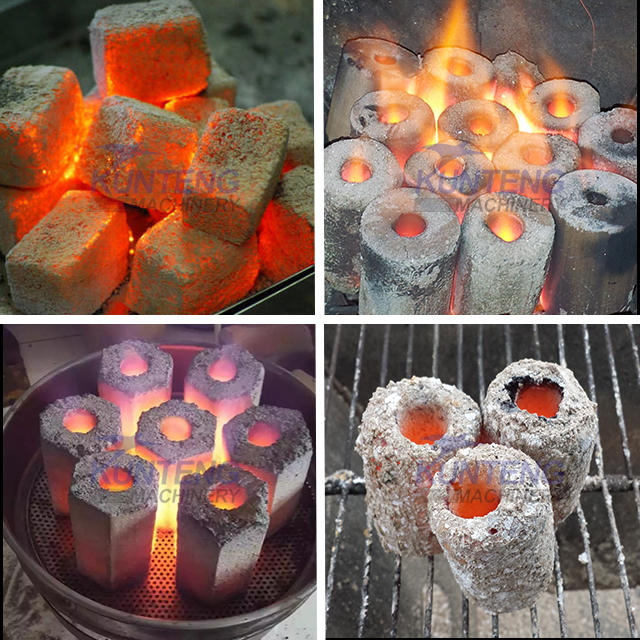

Anthracite briquetting machine, charcoal briquetting machine and barbecue sawdust charcoal briquetting machine can replace supporting molds to produce different shapes of blocks, including honeycomb, square, circle, triangle, perforated or non-porous, etc. We can also design and manufacture special molds according to customer requirements.

The combustion process is odorless, smokeless, high in calorific value, low in noise and less in dust.

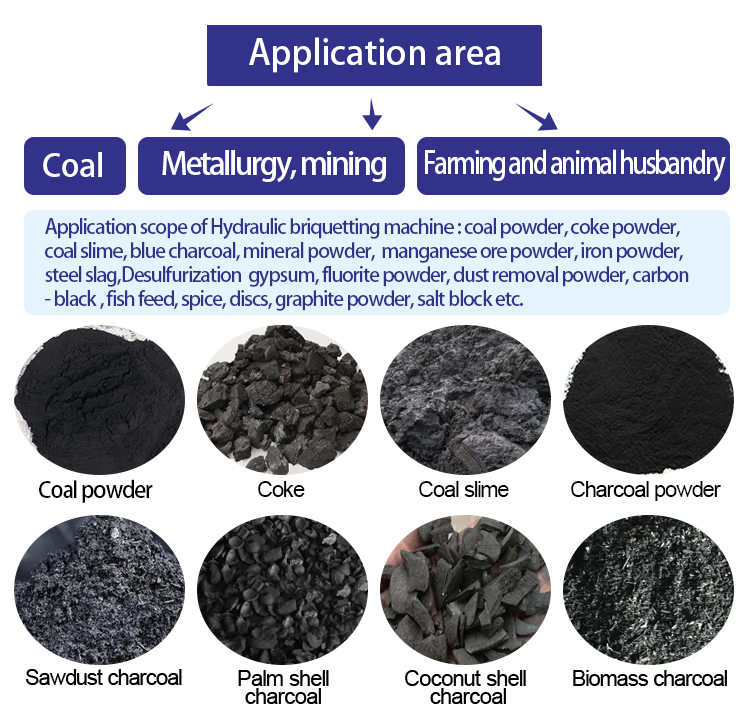

Anthracite coal briquetting machine, charcoal briquetting machine, barbecue sawdust briquetting machine can compress various powder materials such as charcoal powder, coal powder, coke powder, wood powder and other mineral powders into round, square, hexagonal or High-density tablets in other shapes. Especially widely used in the charcoal field of hookah charcoal and barbecue charcoal.
Our team can customize a reasonable and efficient production line according to the customer's site, raw material, output and other requirements.

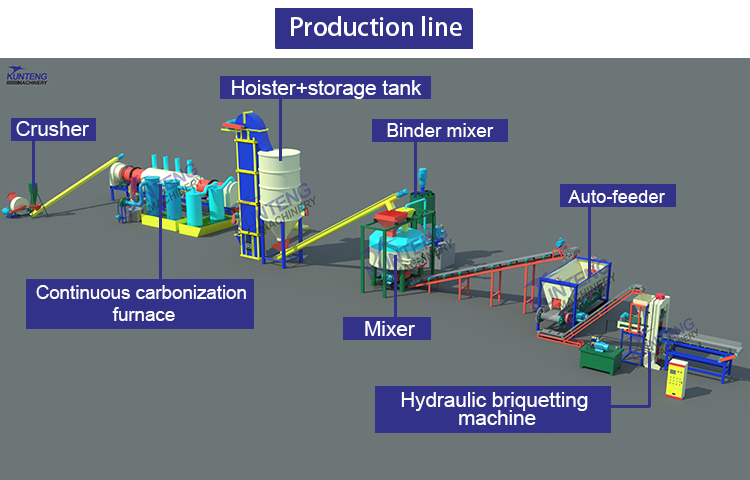

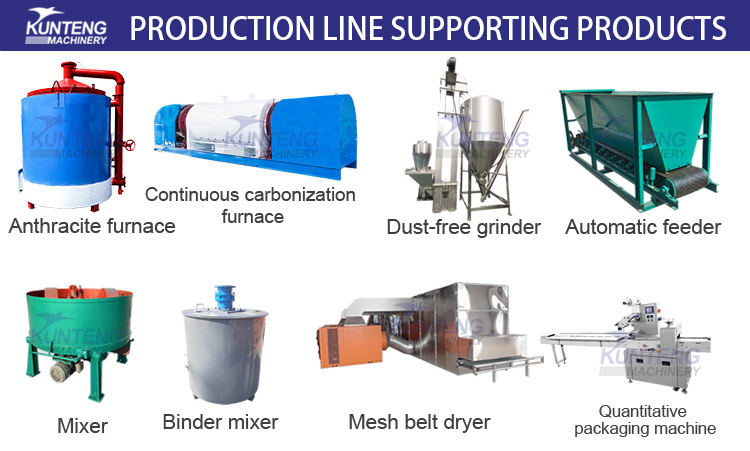

First, wood and other biomass are carbonized into charcoal through a carbonization furnace, which goes into elevators and storage tanks. According to the customer's raw materials, continuous carbonization furnace, horizontal carbonization furnace and hoisting carbonization furnace can be selected. Second, the carbon can be pulverized into carbon powder by a dust-free grinder. (Depending on the shape of the raw material, this step can be ignored.)
Third, the carbon powder is stirred by a twin-shaft mixer and a mixer. (Depending on the shape of the raw material, this step can be ignored.)
Finally, the carbon powder can be shaped by carbon rod equipment and enter the dryer by drying.
The production lines of anthracite briquetting machine, charcoal briquetting machine and barbecue wood sawdust briquetting machine are fully automated.
Product Specifications
Model
JYP-1(Hydraulic)
JYP-2 (hydraulic)
Material
Charcoal dust, coal dust, sawdust, any material in powder form
capacity
19-36 pieces/time 5-7 times/min 5000-8000 pieces/hour
36-48 pieces/time 5-7 times/min 10800-18000 pieces/hour
motor
17.5kW
17.5kW
briquettes height
Within 80mm, the diameter is optional, the briquettes have holes
20, 25, 30 33 35 38 40 mm (round);
20-30 mm (cubic), tablet
feeding
< 1 mm
< 1 mm
briquettes shape
Hexagonal and cylindrical or according to customer requirements
circle and cube
or according to customer requirements
pressure
120 tons
60 tons
total measurement
3200*1200*2650mm (including conveyor)
3500*2000*1800mm (including conveyor)
weight
3500kg
1900KG
our service
Quantum Group Service Projects
Pre-sale
1. According to your needs, choose the model that suits you.
2. According to your special requirements, we will design customized solutions for you and manufacture customized products.
3. Welcome.
Sales
1. Sign the contract, pay the deposit, and arrange production.
2. Product acceptance.
3. Help you formulate a construction plan.
After sales
1. On-site engineers will be assigned for you free of charge.
2. Install the adjustment device and train the operation.
3. After the installation is completed, leave 1-2 technicians to assist you in the on-site production until the customer is satisfied.
