Pneumatic Forming Punch for Plastic Laundry Powder Bags
- 700.00 1 - 4 pieces
- 690.00 5 - 9 pieces
- 680.00 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| model: | Special-shaped punch | Showroom location: | Belgium |
| Packaging Details: | Foam and carton for punching holes | Supply capacity: | 1600 pieces per month |
| Video external inspection: | if | Punching blade: | Die steel material |
| payment terms: | Western Union, Wire Transfer, Paypal | place of origin; place of origin: | Guangdong, China |
| Applicable industries: | manufacturing plant | Hole size: | custom made |
| Weight (kg): | 8 | cylinder: | AirTAC cylinder |
| Warranty: | 3 months | product name: | hole punch |
| Frame Material: | Aluminum alloy | port: | Shenzhen |
| Through slot length: | 60mm, customized | Health status: | new |
| Punching speed: | Up to 150 times/min | brand: | CRJ punch |
| Marketing Type: | normal product | application: | For laundry powder bags |
| Hole shape: | custom made | Energy source: | pneumatic |
| Mechanical test report: | Not available | Packaging Preview: |
Product Description

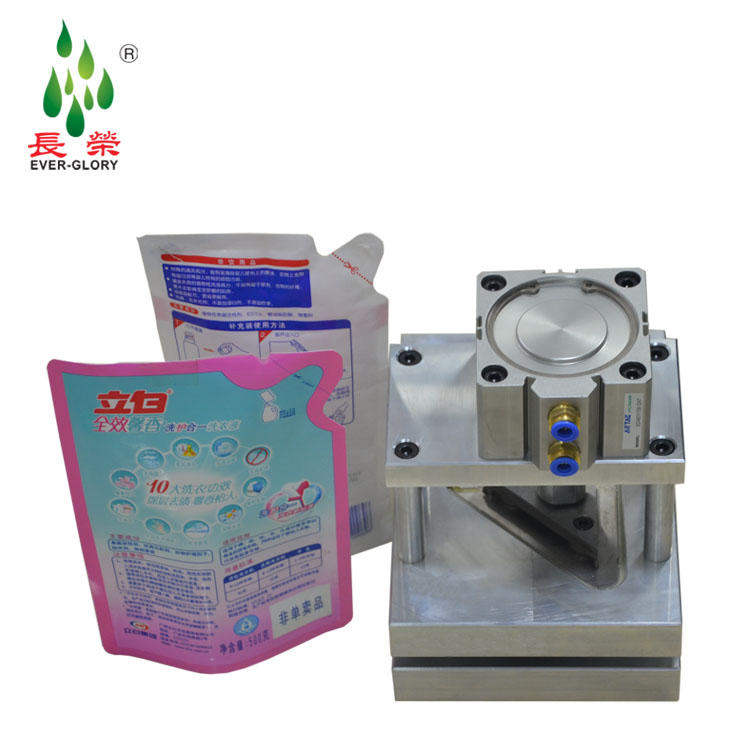

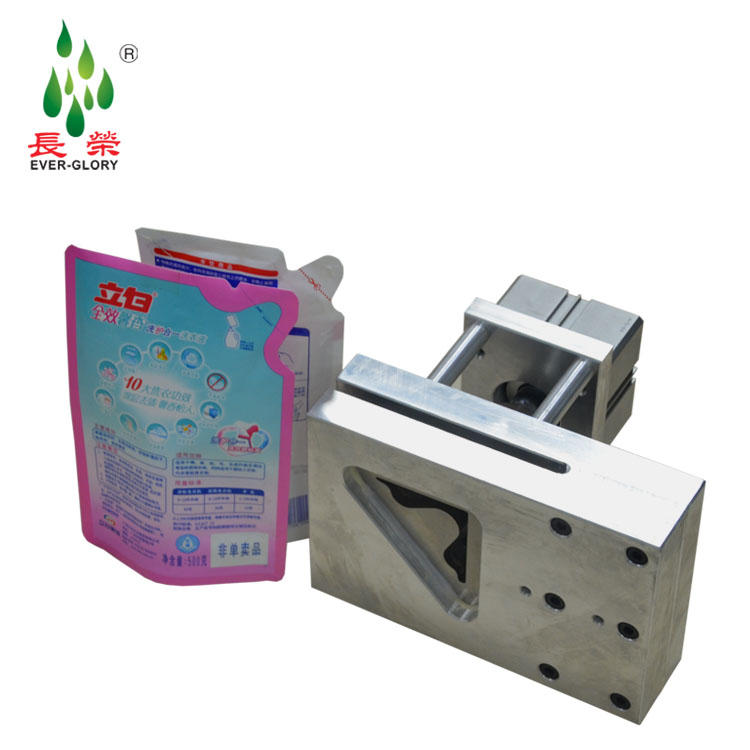

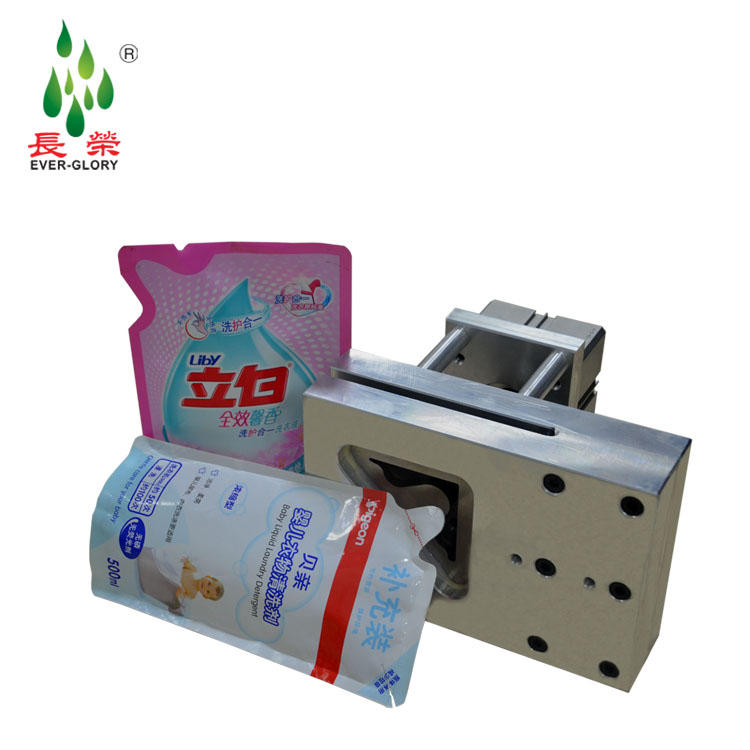

product name:Pneumatic Forming Punch for Plastic Laundry Powder Bags
The punching machine is pneumatic type and should usually be installed on the bag making machine, which can punch holes for plastic bags/paper bags/non-woven bags.
It can cut a specially shaped corner from a plastic laundry detergent bag.
Any hole size and shape can be customized.
operating mode | pneumatic |
end use | Plastic/paper/non-woven bag punching |
hole size | custom made |
hole shape | spout hole, customized |
hole number | single hole, customized |
through slot length | 70mm, customized |
Type of mold base | Type C (Open Type) |
Punching material | Japanese custom die steel |
Mold base material | High quality aluminum alloy |
cylinder | AirTAC cylinder |
Minimum order quantity | 1 |
life | Up to 18,000,000 to 20,000,000 times |
delivery time | 7 working days |
Punching speed | up to 150/min |
Material thickness | down to 15 microns |
final price | Determined by hole size and shape, pass-through slot, order quantity, etc. |
Product display

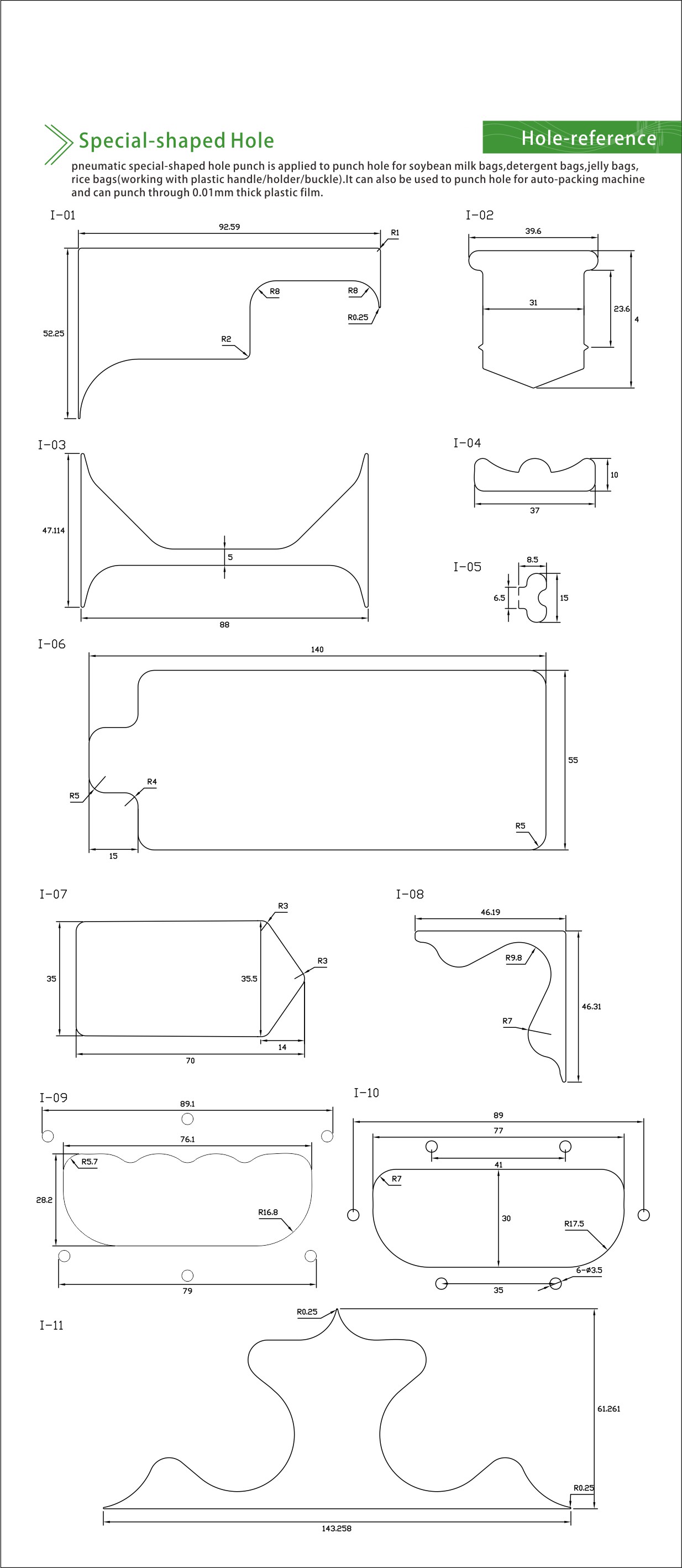

Handle hole catalog for reference:
