China high quality high precision CNC tool vise CNC machine tool accessories machine tool vise
- 77.80 1 - 49 pairs
- 71.50 50 - 299 pairs
- 63.50 >=300 pairs
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Vise Type: | Metal working vise | Marketing Type: | New Products 2021 |
| Jaw face type: | Smooth | model: | LW-M20 |
| Showroom location: | not any | Body material: | Steel, 40CR heat treated |
| Warranty: | 1 year | Applicable industries: | manufacturing plant |
| place of origin; place of origin: | Guangdong, China | Mechanical test report: | Not available |
| Health status: | new | application: | industrial |
| Video external inspection: | Not available | Core components: | other |
| After-sales service provided: | Online support | base type: | Bolt installation |
| type: | bench vice | brand: | Li Wan |
| payment terms: | Letter of Credit, Telegraphic Transfer, MoneyGram | product name: | good vise |
| Drive Mode: | manual | Throat deep: | unlimited |
| size: | 68*70*50 | Weight (kg): | 0.5 |
Product Description
China high quality high precision CNC tool vise CNC machine tool accessories machine tool vise
| product name | good vise |
| model | LW-M20 |
| size | 68*70*50 |
| Maxillofacial Type | Smooth |
| application | industrial |
| basic type | Bolt installation |
| deep throat | unlimited |
| Body material | Steel, 40CR heat treated |
| vise type | Metal working vise |
| Max jaw opening | unlimited |
ok vise is a fixture used to fix the side of the workpiece, mainly suitable for the clamping production of CNC batch parts.
Main performance:
1. Small in size, can clamp as many workpieces as possible and improve machine utilization;

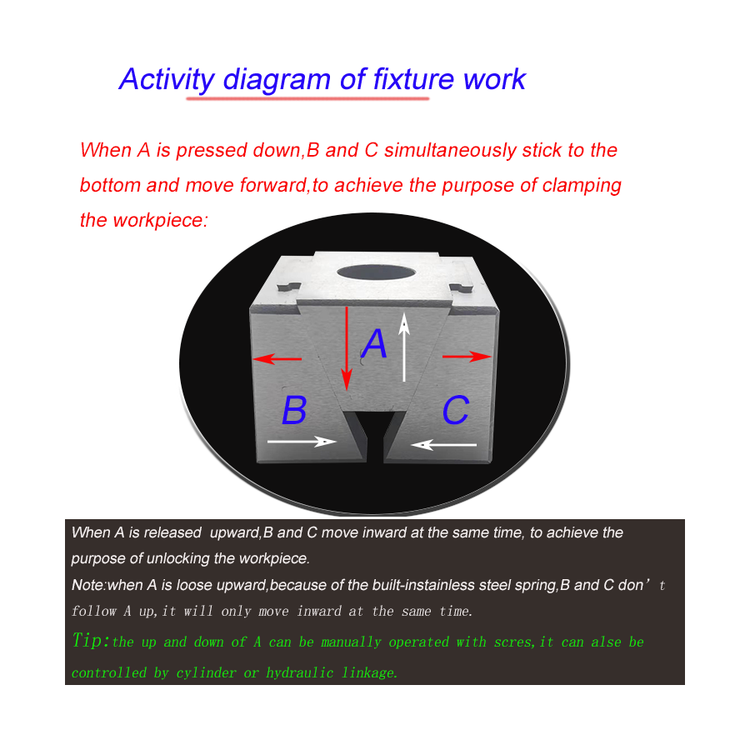

2. The clamping force is forward and downward, and the clamped workpiece will not be upturned, which improves the uniformity and precision of batch products;
3. Support heavy cutting and precision machining
