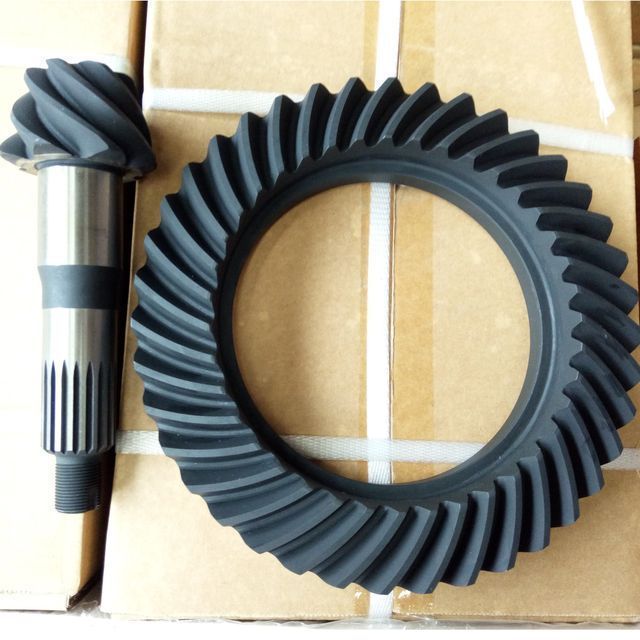

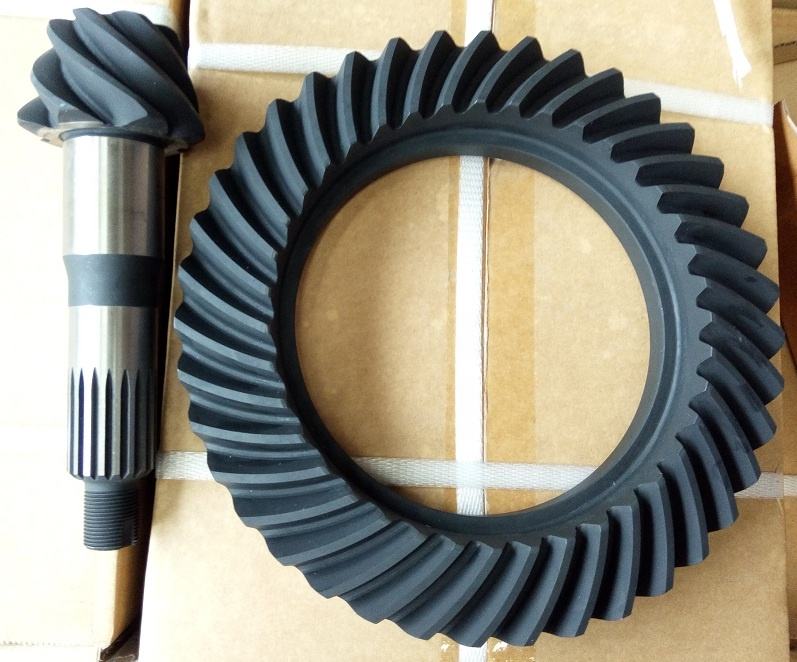

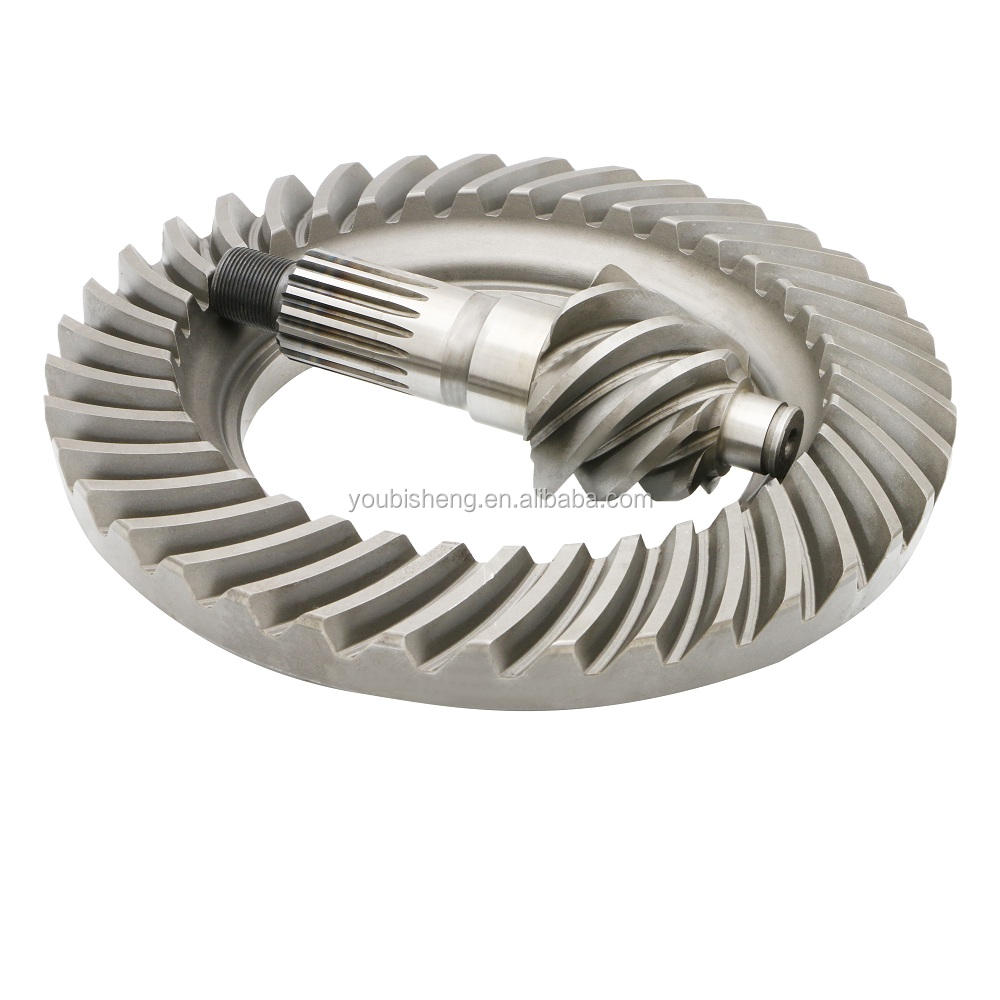

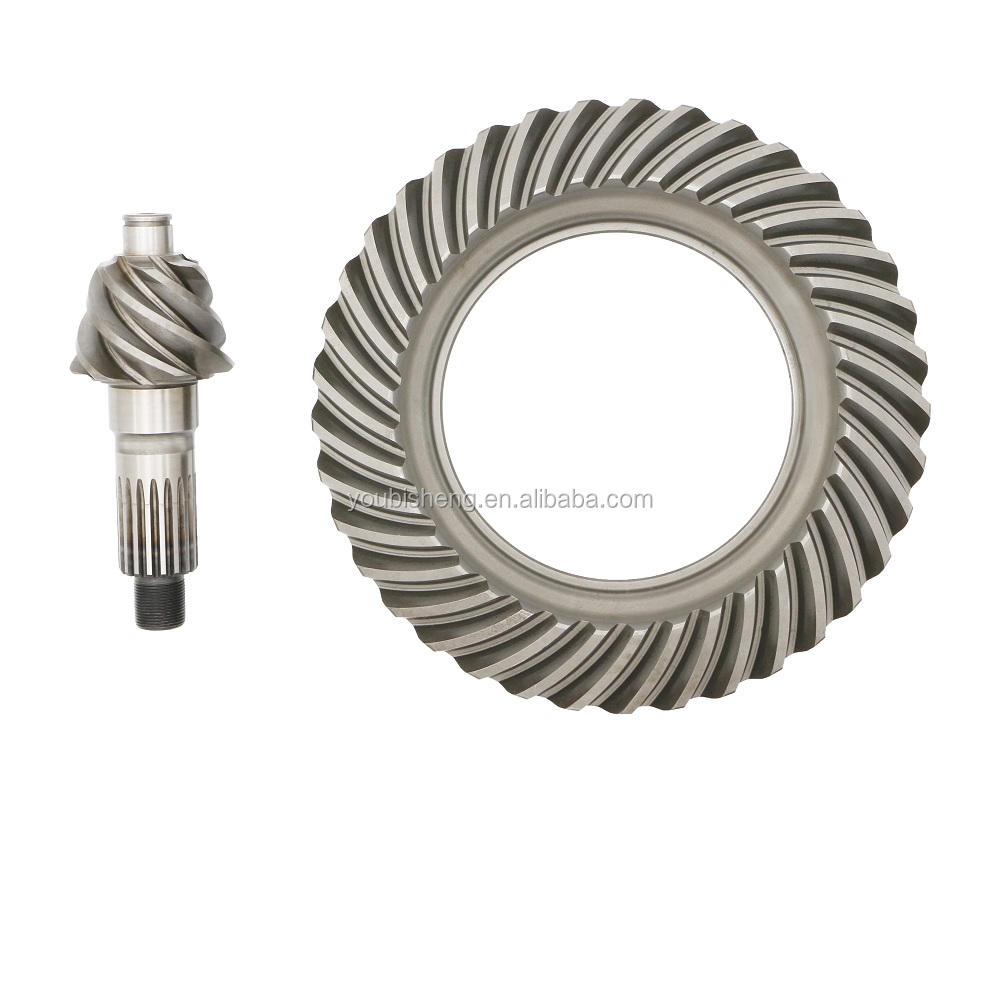

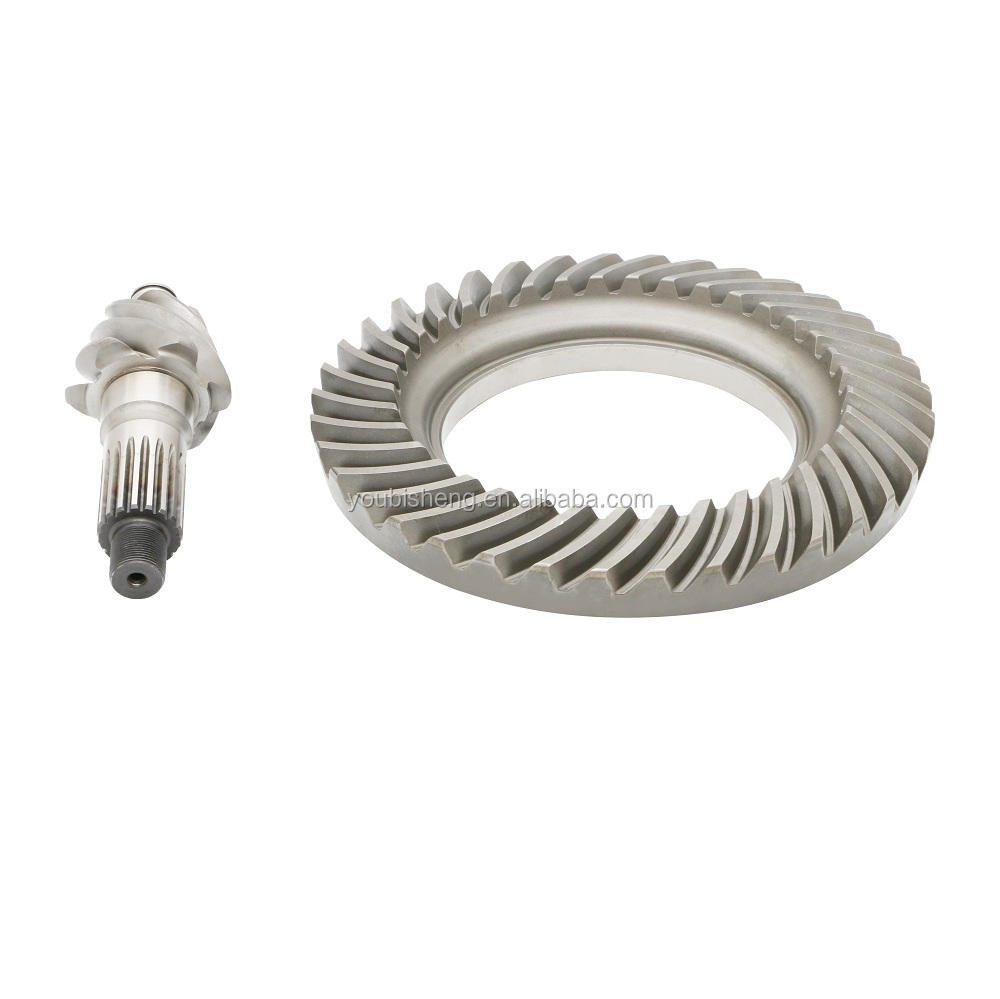

Part No. 41201-39605 167MM OD coaster crown wheel and pinion

Supplier: Youbisheng (Fujian) Machinery Industrial Co., Ltd.
Region: Fujian, China
Contact: Ms CHON HONG
Price: $50.00 / 10 - 99 sets
$45.00 / 100 - 499 sets
$40.00 / >=500 sets
Min. Order: 10 sets

Click here to contact

Product details

Outer diameter:	267mm	equipment:	Spiral grinder
Material:	20CrMnTi	Gross weight per piece:	9.000 kg
shape:	bevel	noise:	Low noise (<72db)
Processing:	forging	Packaging Details:	carton with foam
Speed ratio:	6:35 / 6:37 / 6:38 /6:41 /7:39 /8:39	Local service location:	Thailand
pressure angle:	30	Applicable industries:	truck accessories
Single package size:	25X25X15 cm	Standard or non-standard:	standard
color:	silver or black	Health status:	new
direction:	right hand	Warranty:	one year
Surface treatment:	carbonization	brand:	Sichuan
Sales unit:	single product	Packaging Preview:
place of origin; place of origin:	Fujian China	Tooth profile:	helical gear
Showroom location:	Thailand	product name:	Crown wheel pinion
describe:	Differential 20CrMnTi Spiral Bevel Gear	Warranty:	6 months
car model:	Toyota roller coaster	size:	Outer diameter 167mm
After Warranty Service:	Online support

Product Description

1. It is forged with 20CrMnTi material and carburized to ensure its hardness is 58-62HRC and the depth is 1.1-1.4mm. 2. Processing technology: forging blank - normalizing - roughing - precision turning - carburizing - low temperature tempering - gear honing & running-in. 3. The gears run smoothly and the noise is low; the bearing capacity is large; the higher contact area between the ring and the pinion enhances its fatigue stress.

product name	TOYOTA COASTER / HINO 14B-15B CROWN WHEEL AND PINION
ID	167mm
outer diameter	267mm
weight	9KG
Available ratios	6:35; 6:37; 6:38; 6:39; 6:41; 7:39; 8:39; 8:41.
hardness	58-62HRC
