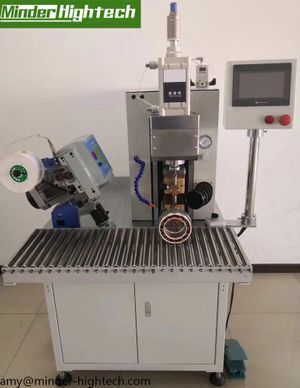

thermocompression machine for enamel litz wire and related c

Product details
Delivery Detail:within 15 working days after receiving the payment;Dimensions:800*800*1750H mm;
Welding Pressure:max 1000kg;condition:new;
Warranty:1 year;After-sales Service Provided:Engineers available to service machinery overseas;
Supply Ability:50 Set/Sets per Month;Place of Origin:Guangdong China (Mainland);
Packaging Detail:standard export wooden case packing;Weight:1000kg;
Model Number:MD-RYJ;Payment Terms:T/T;
Color:Multicolor;Input Voltage:3*380V 50-60Hz;
Gross Power:40kw;Brand Name:Minder;
Usage:lug and enamel wire litz;Port:guangzhou/shenzhen/hongkong;

Application: section area <=75 sqmm enamel litz wire and related crimp lug. Principle:First, the current goes through the lug, By the heat generated from the lug, the enamel on the wire has been melt and removed, and under the heat and pressure, the wire and lug has been compacted and crimped, so we get good electrical connection between the wires and the crimp lug.

As this need not operator remove the enamel by mechanical or chemical method before compacting, but do it directly at one time, this take good advance efficiency and quality.



Specification:
1. input power:3*380V 50-60Hz
2. air source:0.6 Mpa >=19L/min
3. welding temperature: 600C
4. program number:60
5. diameter of electrode:6-35mm(outer size) 6, Max power:65 kva (50% duty cycle)
7. working temperature: 10-40C
8. welding force: max 1000kg.
9. welding time:3-20S.

10. dimension: 800*800*1750H mm.



Operation process:
1. put the lug with wire (fixture if needed) to the welding area.
2. manually align the lug to the electrode.
3. push the foot switch, the upper electrode goes down to lock the lug, we can check the position right or not.
4. push the start button, the machine will start welding.
5. after weld, the upper electrode goes back. then repeat from 1.

Suggested optionals: water chiller, fume absorber, lifting table etc. Lug customize survice provided:

As our experience, sometimes, it is very hard in the market to find a lug to match the wire diameter, it makes us very hard to fill the wire into the lug.
see picture, we think the lug with the air path is better than without.

so, we ordered many types of lugs from lug factory according our requirement, this will help a lot.
