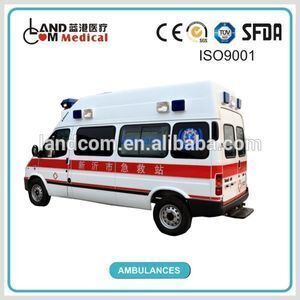

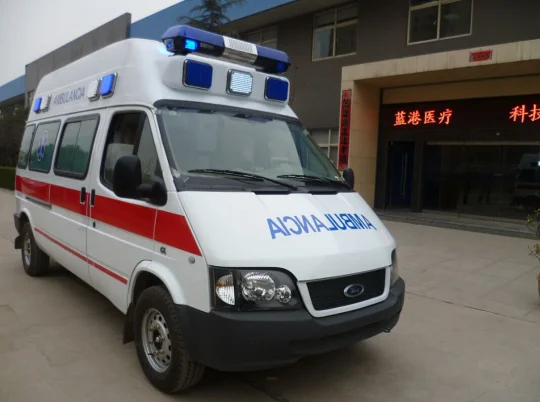

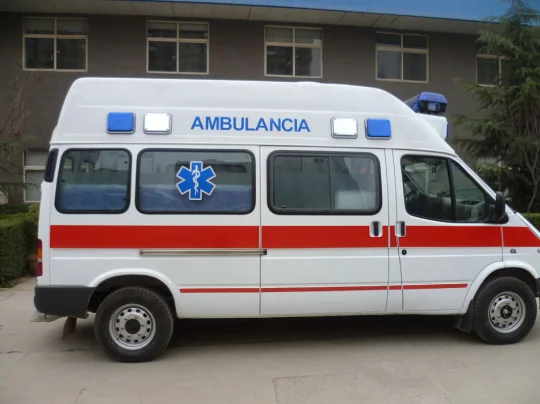

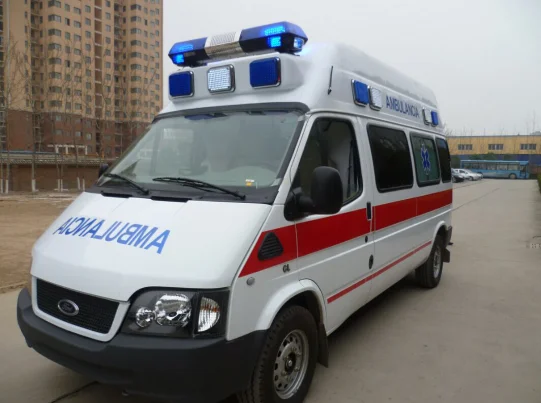

FORD Transit Emergency Ambulance for sale
-
Supplier: Xi'an Landcom Digital Medical Science & Technology Co., Ltd. -
Region: Shaanxi, China -
Contact: Mr Andy Ke -
Price: $28200.00 /unit -
Min. Order: 1 unit
| Brand Name: | Landcom; | Length (m): | 3 - 8m; |
| Place of Origin: | Shaanxi China (Mainland); | Medical Equipment: | Yes; |
| Fuel Type: | Gasoline; | Condition: | New; |
| Supply Ability: | 100 Piece/Pieces per Month; | Packaging Detail: | sea export packing; |
| Model Number: | XLG5030XJH5; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union; |
| Transmission Type: | Manual; | Port: | Tianjin; |
| Colour: | White; | Emission Standard: | Euro 4; |
| Delivery Detail: | 30 working days upon receipt of payment; |
ambulance for sale
A | Technical specs of vehicle | Quantity | |
| Dimensions and masses |
| |
| Wheelbase (mm):3570 |
| |
| Wheel tread (mm): 1692/ 1700 (front/rear) |
| |
| Minimum ground clearance (mm):165 |
| |
| Turning diameter(m):13.8 |
| |
| Overall dimensions (mm): 5618×1974×2700 |
| |
| Dimension of Patient's compartment (mm):3000×1700×1850 |
| |
| Complete vehicle curb mass:(kg):2440 |
| |
| GVW (kg):3300 |
| |
| Number of seats: 7 seats |
| |
Engine: 4G69S4N(petrol) |
| ||
| Fuel type: Petrol |
| |
| Fuel consumption:9L/100km |
| |
| Working manner: in-line, 4 cylinders, 4 strokes, water-cooled Single overhead camshaft, electronically controlled multi-point fuel injection gasoline engine |
| |
| Displacement (ml.):2378 |
| |
| Emission standard:GB18352.5-2013 CHINA V |
| |
| Maximum power:100kw |
| |
| Max. torque: 200N.m |
| |
| Gearbox:MT-75 5 speed, mechanical |
| |
| Chassis :JX6541PA-M5 |
| |
| Front / Rear overhang:945/1103 |
| |
| Brake: Front disc rear drum, power-assisted brake |
| |
| Max. speed (Km/h):130 |
| |
| Steering system: gear, rack power-assisted steering |
| |
| Tire:225/70R15LT |
| |
| Fuel tank capacity(L):68 |
| |
B | Standard configuration of vehicle |
| |
1 | Manual side mirror |
| |
2 | Power window |
| |
3 | Vehicle-mounted radio |
| |
4 | Central control door lock |
| |
5 | Hand-free Intercom system between driver's cab and Patient's compartment |
| |

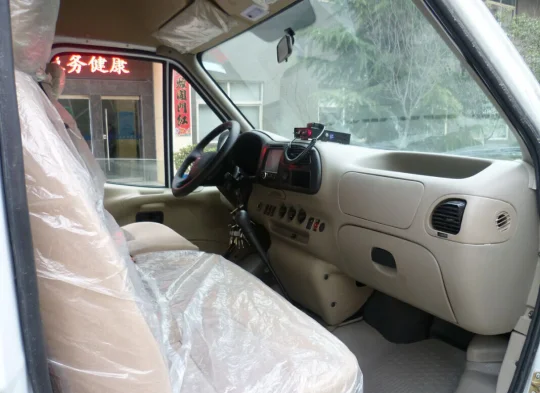

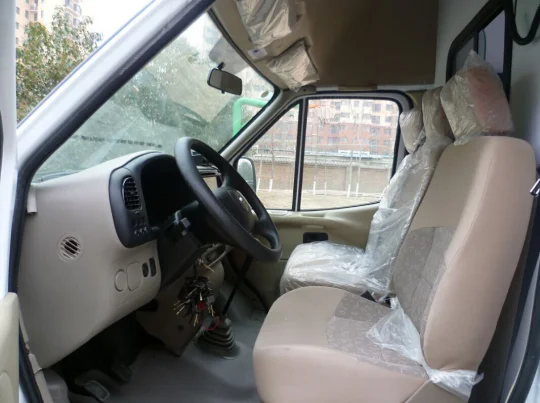

6 | 3 seats in driver's cab |
| |

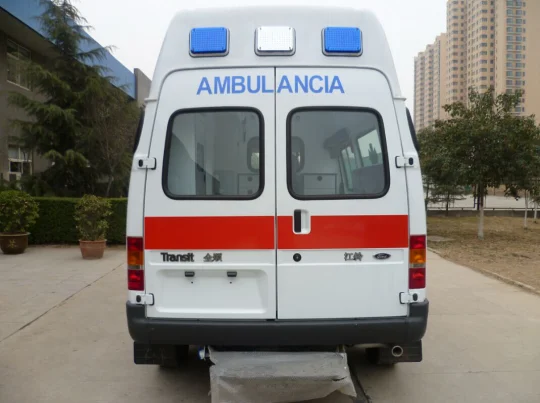

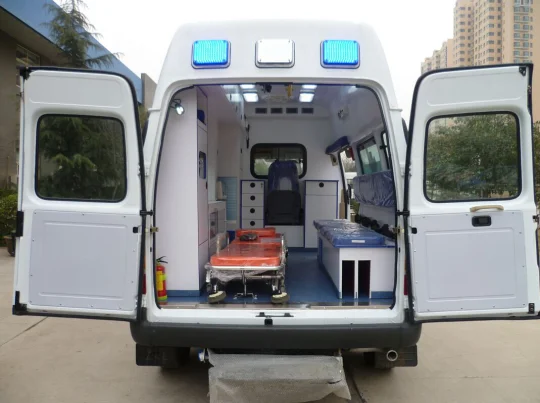

7 | Double open rear door |
| |
8 | Foot pedal in rear door |
| |
C | Air conditioner and lighting system |
| |
1 | Vehicle-mounted air conditioner in driver's cab | 1 | |
2 | Vehicle-mounted air conditioner in Patient's compartment | 1 | |
3 | Ventilation fan mounted on the roof of Patient's compartment | 1 | |
4 | 2 illumination lights each side of vehicle outside | 4 | |
5 | 1 illumination light rear side of vehicle outside | 1 | |
6 | illumination light front side of vehicle outside | 1 | |
7 | LED illumination light in Patient's compartment | 6 | |
8 | spotlight lights inner roof of Patient's compartment | 1 | |
9 | Ultraviolet radiation disinfector light | 1 | |
D | Central power supply distribution system |
| |
1 | Automatic charging system | 1 | |
2 | 10m mobile cable | 1 | |
3 | 12V outlets in Patient's compartment | 3 | |
4 | 220V outlets in Patient's compartment | 3 | |
5 | 230V/16A waterproof outside outlet with protection cover | 1 | |
6 | 12V DC power-supply system | 1 | |
7 | Intelligent inverted power supply system(12V -220V) | 1 | |
8 | Central control system | 1 | |
E | Emergency alarm system |
| |

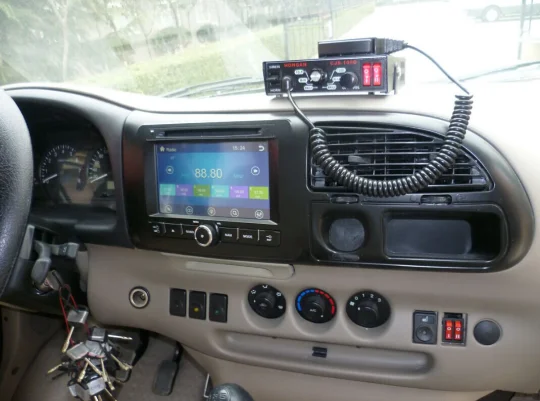

1 | Control plate of siren and alarm lamp mounted in driver's cab | 1 | |
2 | Adjustable volume alarm apparatus | 1 | |
3 | 100W loud speaker | 1 | |

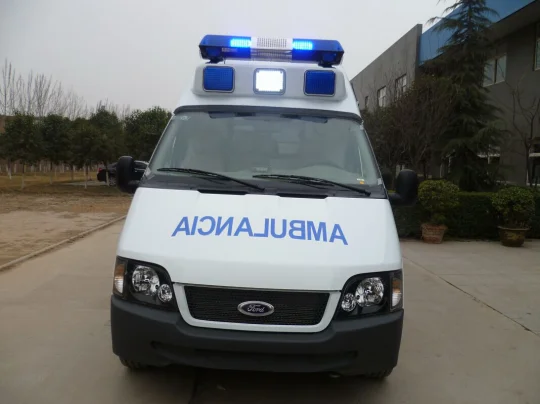

4 | Blue Flashing alarm light bar mounted on the front roof of vehicle | 1 | |
5 | blue flashing alarm lamps four sides of vehicle outside roof | 8 | |

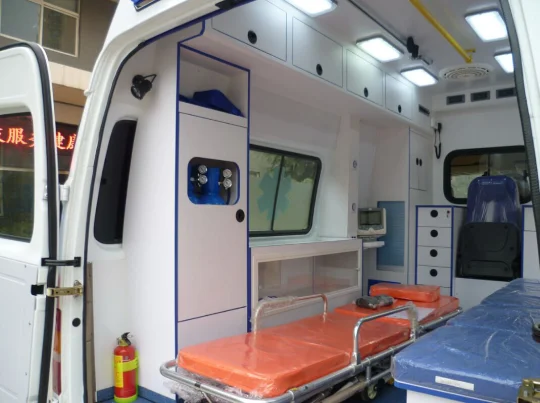

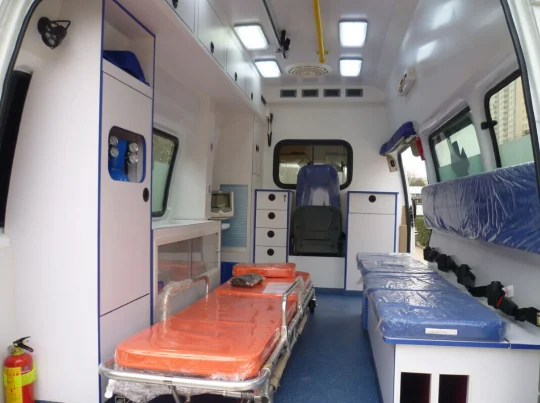

F | Patient's compartment |
| |
1. | Composite material roof , mounted in driver's cab |
| |
2. | Compartment wall with PVC panel between driver's cab and Patient's compartment , a glass window in wall to make observation(push-pull window) |
| |
3. | A foldable doctor seat(with safe belt) covered with red(or blue)leather, mounted to floor near to compartment wall | 1 | |

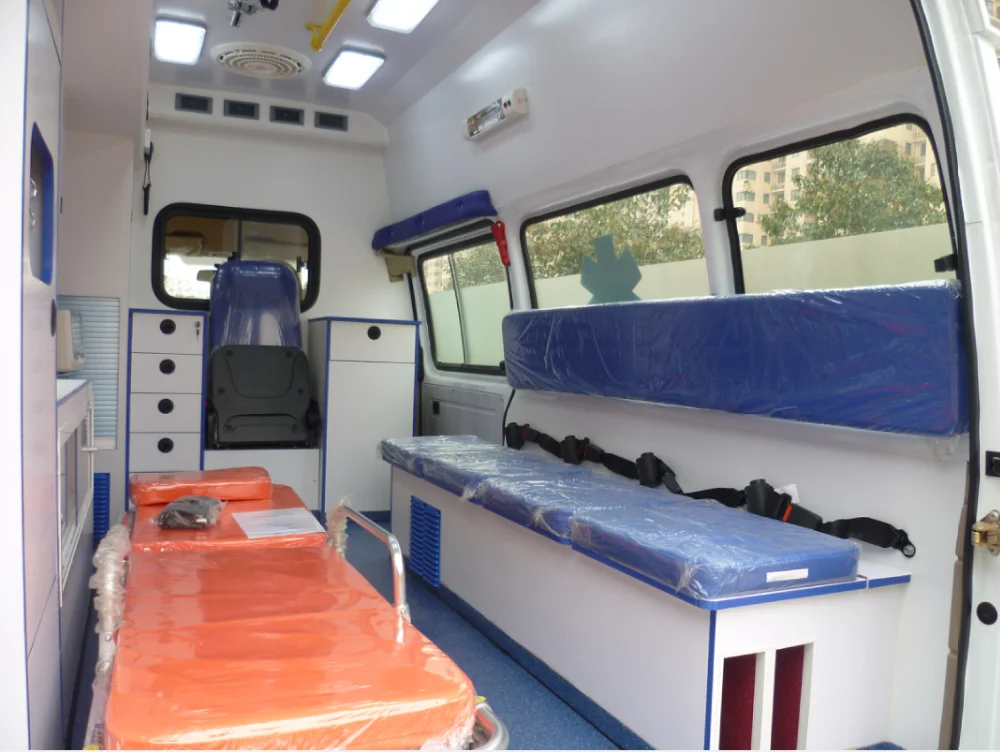

4. | PVC cabinet bench (suitable for 3 people) with safe belts, the seat cushion and the back of a chair are covered with leather, mounted in right side of Patient's compartment | 1 | |
5. | Wall, door and roof of Patient's compartment, adopting aluminous plastic panel material |
| |
6. | Oxygen bottle (10L×2) ,mounted in left side of vehicle |
| |
7. | Oxygen flow and pressure controller | 1 | |
8. | Medicine cabinet made of high polymer material, mounted in Patient's compartment |
| |
9. | Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static. |
| |
10. | perimeter embossing edge wrapping of Patient's compartment , dust-proof, anti-skidding, washable |
| |
11. | transfusion hanging bracket mounted in the roof of Patient's compartment | 1 | |
12. | Ventilation fan mounted in the interior roof of Patient's compartment | 1 | |

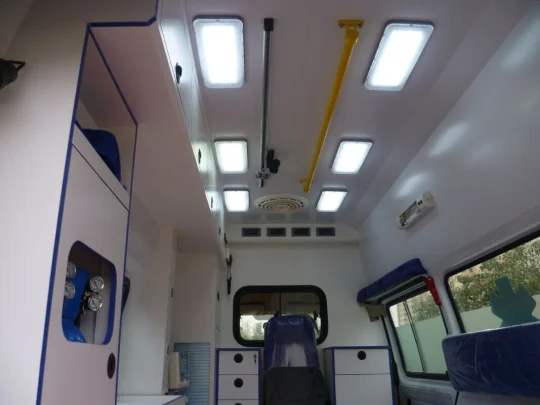

13. | LED illumination lamps mounted in the roof of Patient's compartment | 6 | |

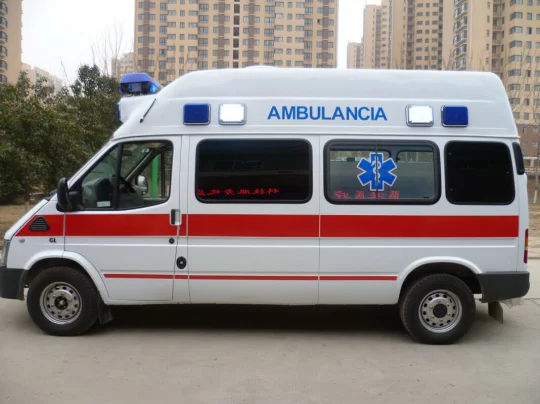

14. | Strong blue or red reflective strip in waist of body |
| |
15. | Safety armrests installed in patient compartment |
| |
16. | The medicine box installed the middle of medical equipment cabinet ,behind the partition, lower for draw-out type medicine box partition can be adjusted freely |
| |
17. | One set of PVC Medical equipment cabinet, mounted in left side of Patient's compartment | 1 | |
18. | Mobile Self-lifting stretcher Mounted in Patient's compartment |
| |
19. | Adjustable shovel Stretcher Mounted to the interior left side of rear door. |
| |
20. | 220V outside power supply |
| |
G | Collision avoidance head restraint mounted in the door of Patient's compartment |
| |
Standard Configuration
1) Ford Transit chassis (high roof, gasoline engine) : 1 unit
2) Emergency room non-slip floor: 1 set
3) Integrated interior decoration: 1set
4) Partition(sliding toughened glass Windows): 1set
5) Emergency room lighting: 1 set
6) Medical equipment cabinet: 1 set
7) Cabinet bench: 1 set
8) Safety handrails: 1 set
9) Oxygen supply system: 1set
10) Mobile Self-lifting stretcher: 1set
11) Foldable shovel Stretcher: 1set
12) Inverter: 1set
13) External power supply: 1set
14) Ultraviolet radiation disinfector system: 1set
15) Blue and white marking lights: 1set
16) Long line of warning light: 1 set
17) Forced ventilation system: 1 set
18) Doctor chair: 1set
19) operation panel: 1set
20) Fire extinguisher: 2sets
21) Anti-Collision Head restrain: 1set
22) Waste can: 1set
23) Intercom system: 1set
Optional equipments:
1) Spine board
2) ABS
3) GPS
4) Fiber laryngoscope
5) Head immobilizer
6) Cervical collar
7) Patient monitor
8) Defibrillator monitor
9) Suction unit
10) Respirator
11) First-aid kit
After-Sale Guarantee of Exported Special Vehicles
1)Warranty period: 2 years or 50000km (whichever comes first).
2) The Seller guarantees the availability of all spare parts required for maintenance or
repairs. Within the warranty period, the Buyer shall only be required to pay the actual cost
of the spare parts and reasonable travel expenses of the technician to provide the
necessary service on site (including air tickets, room and visa). After the warranty period,
the Buyer shall pay an extra service fee of USD100-USD200 per person per day since the
date of air tickets.
3) In the event that the quality of any spare parts of the Equipment is (in the Buyer’s
opinion) affected, the Seller will provide replacement parts at no cost to the Buyer.
4) The Seller will provide the production license for the Equipment and one set of User
Manual for the Equipment and Special Vehicle in English
5) According to the official order quantity and actual situation of importing country, we can
also build an after-sale service station in importing country to supply all maintenance or
repairs of our special vehicles. Landcom company will supply after-sale warranty in
accordance with the international conventions.
SPARE PARTS:
The Seller agrees to supply the Buyer a recommended spare parts list for the Equipment.
The Seller agrees for a minimum period of 5 years, to sell to the Buyer at prevailing
delivery and payment terms, all necessary spare parts required for maintenance of the
Equipment, at a mutually agreed consistently lowest price as the Seller can provide.
Further, the Seller agrees to use its best efforts to provide emergency spare parts within a
twenty-four hour period after receipt of an emergency order from the Buyer. The attached
spare-parts list will be delivered together with the Equipment.
TECHNICAL SUPPORTS :
The Seller agrees to provide technical and consulting support directly by the team in its
China factory through remote methods (including by phone and by mail) to assist the
operation, maintenance, troubleshooting and repair instruction etc. of the Equipment. The
Seller shall also provide field technical instruction and training to the Buyer upon the
Buyer’s request, and Buyer will bear all costs for the training or technical instruction or
repairs on site.
According to your needs, we can refit all kinds of ambulances, such as Ford, Benz, Iveco and etc
-
