VSG-12 Series Medium Voltage Vacuum Circuit Breaker

Supplier: Yueqing Weisen Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Vincent Wang
Price: $995.00 / 1 - 99 pieces
$970.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

place of origin; place of origin:	Zhejiang, China	product name:	Indoor vacuum circuit breaker
port of loading:	Ningbo/Shanghai	payment terms:	L/C,Western Union,T/T,MoneyGram
application:	Medium Voltage Switchgear	pack:	Fumigation wooden box
Rated frequency:	50 Hz	Rated current:	630A/1250A/16000A/2000A/3150A/4000A
brand:	Wesson	Packaging Details:	Fumigation wooden box
Breaking capacity:	25AK, 31.5KA, 40KA	Rated voltage:	12KV
Rated breaking capacity:	25KA/31.5KA/40KA	model:	VSG-12
Rated current:	630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A	Rated voltage:	12KV
Phase space:	150mm/210mm/275mm	port:	Ningbo or Shanghai Port
Supply capacity:	1000 pieces per month	Mechanical life:	20000 times

Please contact us for more details

Product Description

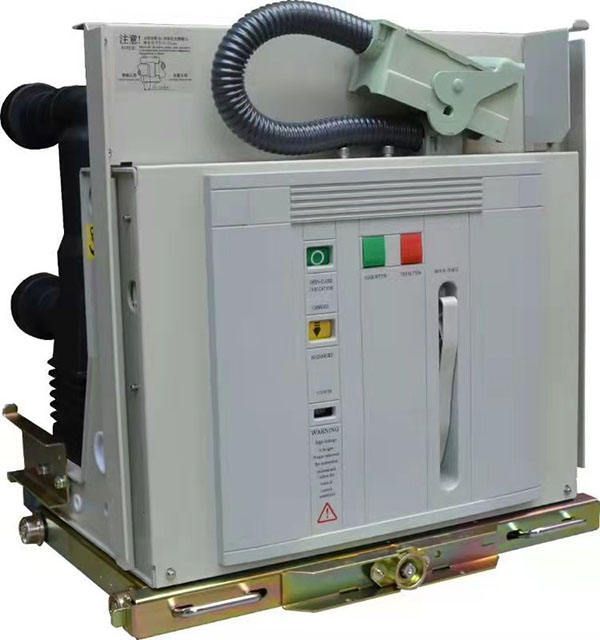

product name	VSG-12 Indoor Vacuum Circuit Breaker
application	Medium Voltage Switchgear
pack	Fumigation wooden box

VSG-12

vacuum circuit breaker

VSG type indoor AC high-voltage vacuum circuit breaker is a kind of integrally sealed high-voltage switchgear with small size and compact structure. It is suitable for power systems with rated voltage of 12kV and three-phase AC 50/60Hz, used to control and protect frequently operated electrical equipment and circuits.

environmental conditions

1. Altitude: ≤1000m 2. Ambient temperature: -15°C~+40°C
3. Relative humidity: daily average ≤95%, monthly average ≤90%
4. Earthquake intensity: ≤8 degrees
5. Applicable occasions should be free of flammable, explosive, corrosive and violent vibration.

technical parameter

thing	unit	date		date
Rated voltage	kV	12		12
Rated short-time PF withstand voltage (1min)			42		42
Rated lightning impulse withstand voltage (peak)			75		75
Rated frequency	hertz	50		50
Rated current	One	630A 630/1250 1250/1600 1250 1600/2000 2000/2500 2500/3150 3150		630A 1250
Rated short-circuit breaking current	Ka	25 31.5 40		31.5
Rated short-time withstand current	Ka		25 31.5 40		31.5
Rated peak withstand current	Ka	63 80 100		80
Rated short-circuit making current	Ka		63 80 100		80
Secondary circuit PF withstand voltage (1min)	five	2000
Rated breaking current of back-to-back capacitor bank	One	630/400 (40kA 800/400)		10000
business hours	millisecond	20~50		50/60
Closing time	millisecond		35~70		630
Mechanical life	era	20000
Electrical life		Class E2
Closing action rated voltage	five	AC 110 AC 220 DC 110 DC 220
Open rated voltage
Rated voltage of energy storage motor
Rated power of energy storage motor	W	90
Energy storage time	small	≤15
Contact space	mm	9±1
Overtravel	mm		3±1
Three-phase opening and closing synchronization	Miss	≤2
Nominal Operation Sequence		O-0.3s-CO-180s-CO

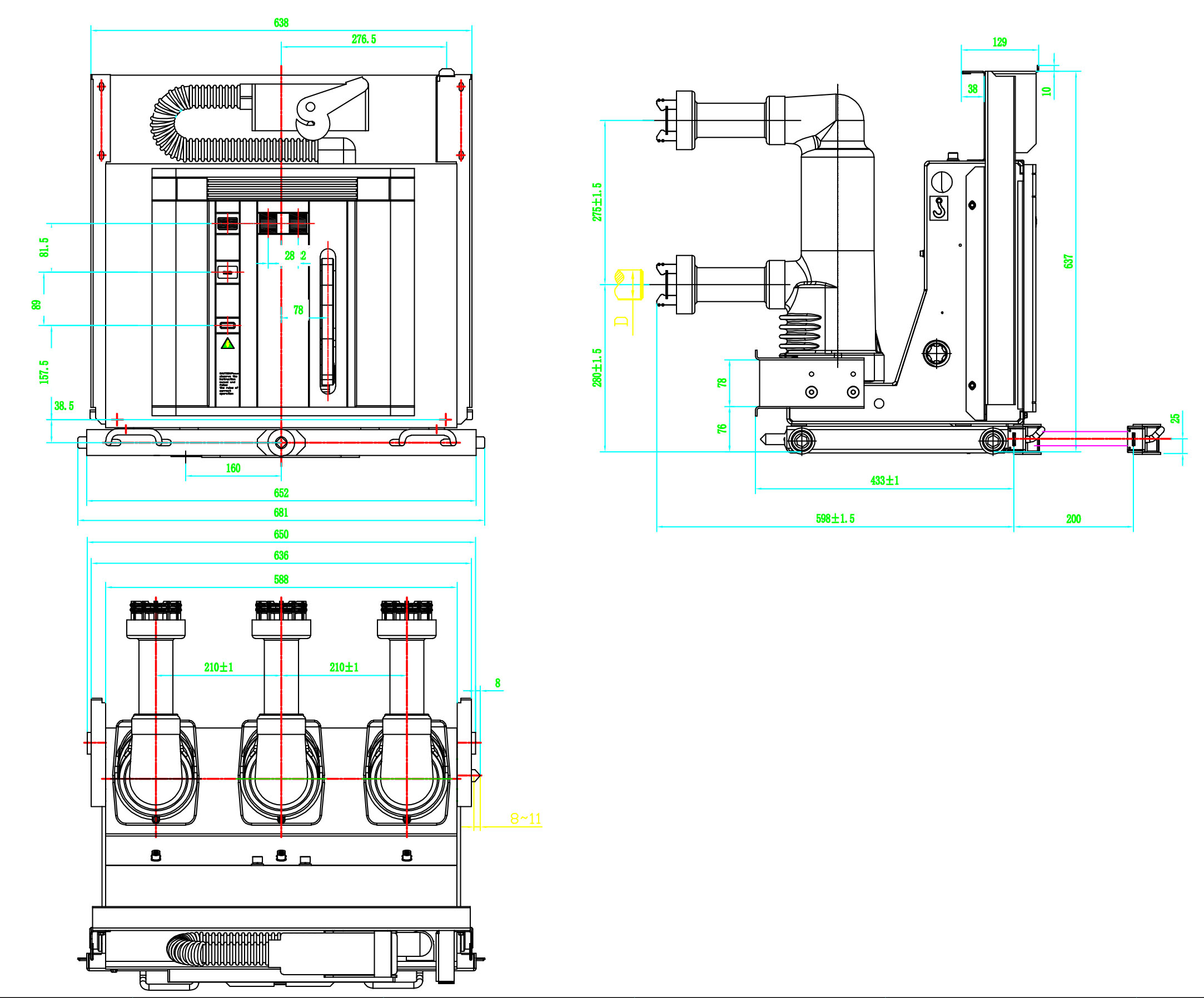

Dimensions (630A/1250A/1600A)

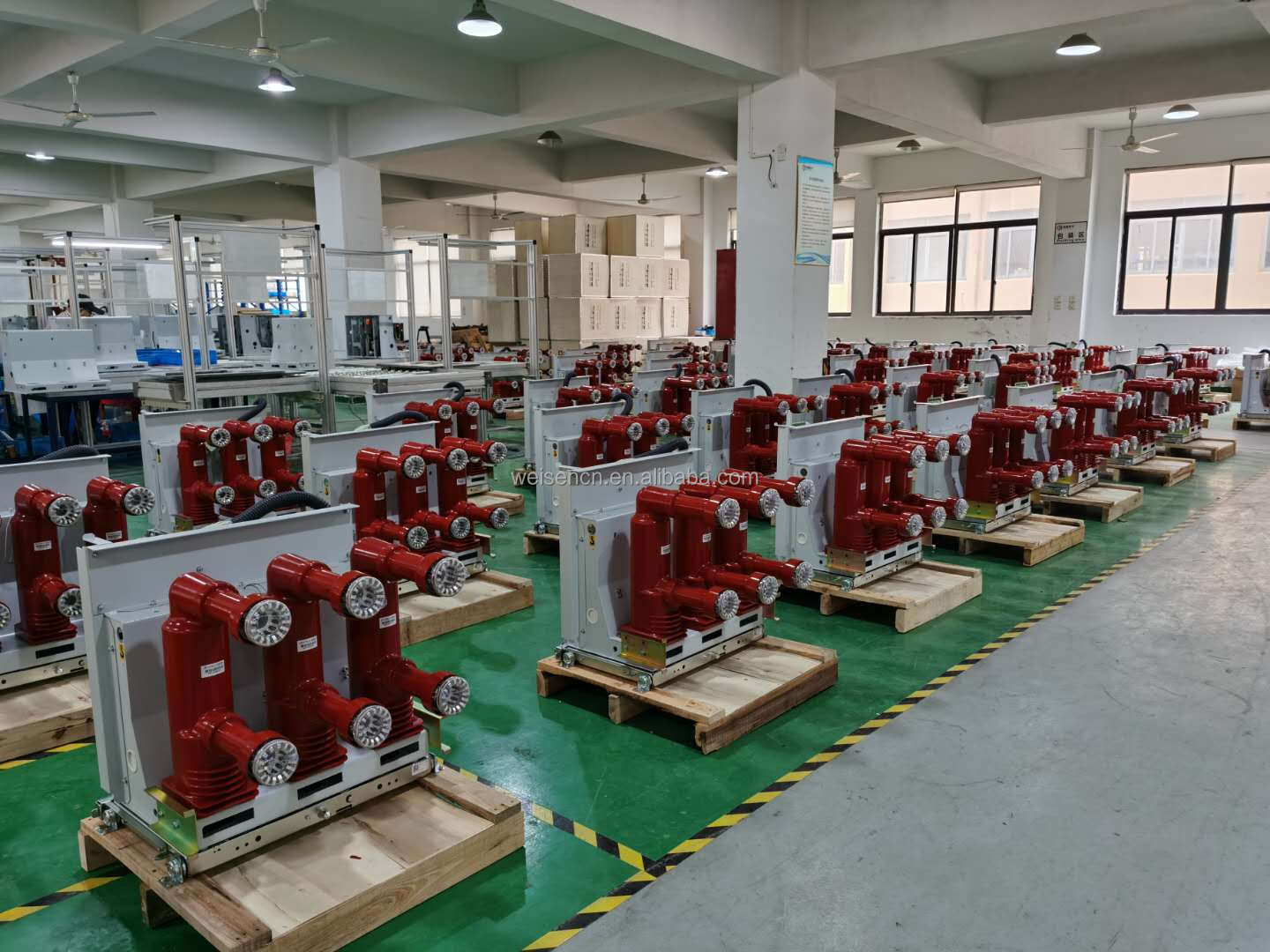

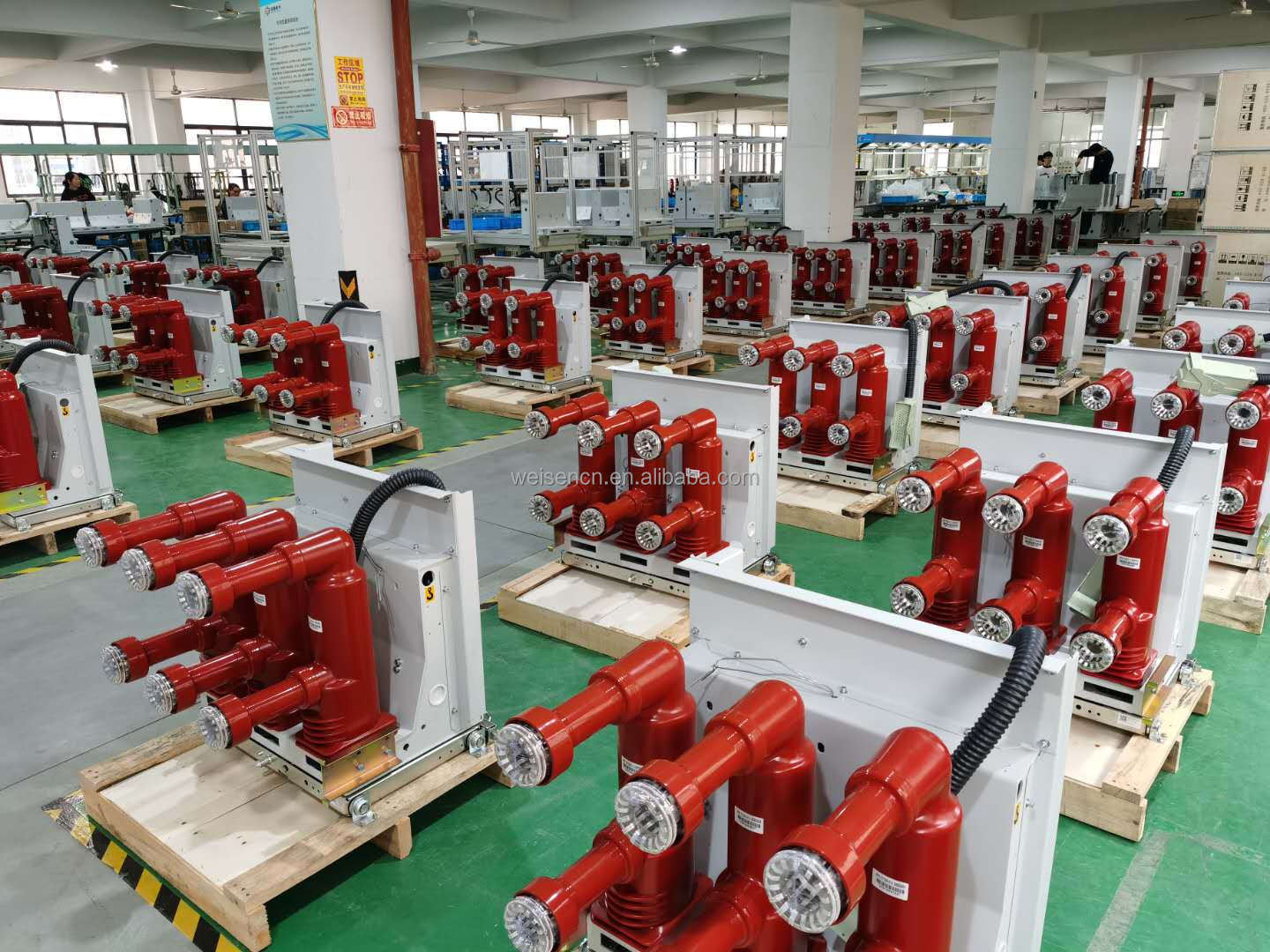

Workshop display
