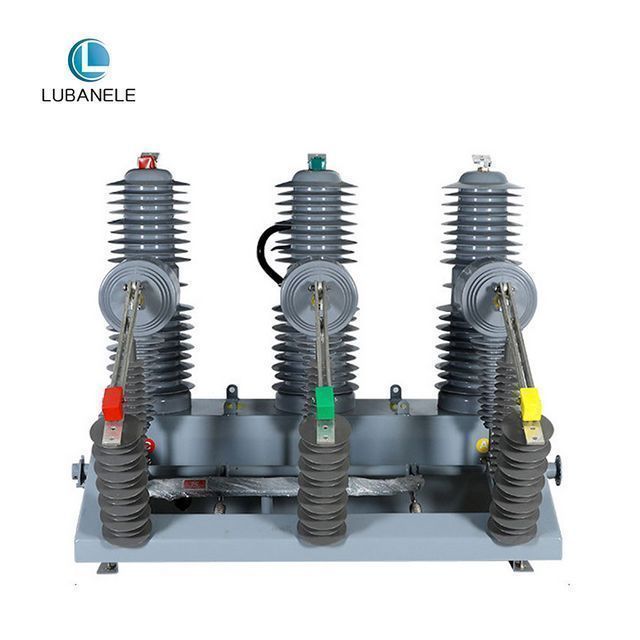

40.5 outdoor vacuum circuit breaker With insulation ZW32-40.5 40.5KV hv outdoor vacuum circuit breaker 33kv vcb
- 2000.00 1 - 9 units
- 1800.00 10 - 49 units
- 1500.00 >=50 units
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Supply capacity: | 500 units per month | port: | Wenzhou |
| Mechanical life: | 10000 times | product name: | Outdoor high voltage vacuum circuit breaker |
| Rated current: | 1250A, 1600A | Breaking capacity: | 185KV |
| Rated voltage: | 40.5KV | Rated voltage: | 40.5KV |
| Packaging Details: | wooden box | Breaking capacity: | 31.5KA |
| Warranty: | 1 year | Rated current: | 1250A, 1600A |
| brand: | Luban | place of origin; place of origin: | Zhejiang, China |
| Rated short-circuit breaking current: | 185KV | payment terms: | L/C,Western Union,T/T,MoneyGram |
| application: | Urban and rural 10KV overhead distribution lines | model: | Zw32-40.5G |
| Material: | iron shell | Install: | outdoor |
Product Description
model | ZW32-40.5G |
Rated voltage | 40.5KV |
Rated frequency | 50 Hz |
Rated current | 630A |
Rated short-circuit breaking current | 20KA |
Rated peak withstand current (peak) | 50KA |
Rated short-time withstand current | 20KA |
Rated short-circuit making current (peak) | 50KA |
Mechanical life | 10000 times |
Rated short-circuit breaking current breaking times | 30 times |
Power frequency withstand voltage (1min): (wet) (dry) alternately, to the ground/to the fracture | 42/48KV |
Lightning impulse withstand voltage (peak value) phase-to-phase, to ground/to fracture | 75/85KV |
Secondary circuit 1min power frequency withstand voltage | 2KV |
