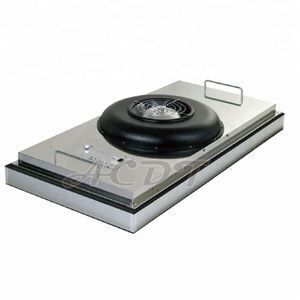

CE Low Noise Stainless Steel Thin DC FFU unit for Cleanroom

Click here to contact

Product details

Supply Ability:	50 Set/Sets per Week;	Efficiency:	99.99~99.9995%;
Payment Terms:	L/C,T/T;	Port:	TWTXG;
WARRANTY:	1 YEAR;	Function:	Purification Filter;
Name-1:	CE Low Noise Stainless Steel Thin DC FFU unit for Cleanroom;	After-sales Service Provided:	Engineers available to service machinery overseas;
Place of Origin:	Taiwan;	Name-2:	Stainless Steel Thin FFU Filter FFU;
Name-3:	for Clean Room;	After-sales Service Provided:	Online support;
Certification:	CE Certification;	Material:	SUS 430;
POWER SUPPLY:	AC110/220V 10%;	Applicable Industries:	Manufacturing Plant,Electronics, opto-electronics, & semiconductor;
Warranty:	1 Year;	Packaging Detail:	PALLET / CRATE;
Brand Name:	ACDT;

CE Low Noise Stainless Steel Thin DC FFU unit for Cleanroom

Product Description

FFU manufacture

MS - S (AC type)

AC Type
Item		MS-S220S	MS-S320S	MS-S420S	MS-S430S	MS-S440S
Outside Dimension	W	570	920	1175	1175	1175
	D	570	570	575	875	1175
	H	180	180	180	180	180
Body Construction		SUS430 & AL-Zn
HEPA ULPA	Features	Aluminum Frame, Filtration Effciency 99.99%,0.3um / 99.999%,0.1~0.12um
HEPA ULPA	Dimension	570×570	915×570	1170×570	1170×870	1170×1170
Air Velocity (m/s)		0.5
Air Volume (CMM)		9	15	20	30	40
Power consumption (W)		96	164	165	300	264
Total Weight (Kg)		11	17	21	40	47.5
Power Supply		AC 1Ø 220V 60Hz

MS - SD (DC type)

FFU motor is with DC brushless frequency converter motor. So that, it is with superior features of energy save and low noise level as well.
Power supply: AC220V, single phase, 50/60HZ.

DC Type
ltem		MS-SD220S	MS-SD320S	MS-SD420S	MS-SD430S	MS-SD440S
Outside Dimension	W	570	920	1175	1175	1175
	D	570	570	575	875	1175
	H	180	180	180	180	180
Body Construction		SUS430 & AL-Zn
HEPA ULPA	Features	Aluminum Frame,Filtration Effciency 99.99%,0.3um / 99.999%,0.1~0.12um
HEPA ULPA	Dimension	570×570	915×570	1170×570	1170×870	1170×1170
Air Velocity (m/s)		0.5
Air Volume (CMM)		9	15	20	30	40
Power consumption (W)		60	90	117	180	230
Total Weight (Kg)		11	17	21	40	47.5
Power Supply		AC 1Ø 220V 60Hz

* Customized size and specification are available to meet customer's requirements.

Certifications

Packaging & Shipping

* We Only Use High Quality Packing Material and Method

* Variety Of Shipping Transportation To Meet Your Requirement
