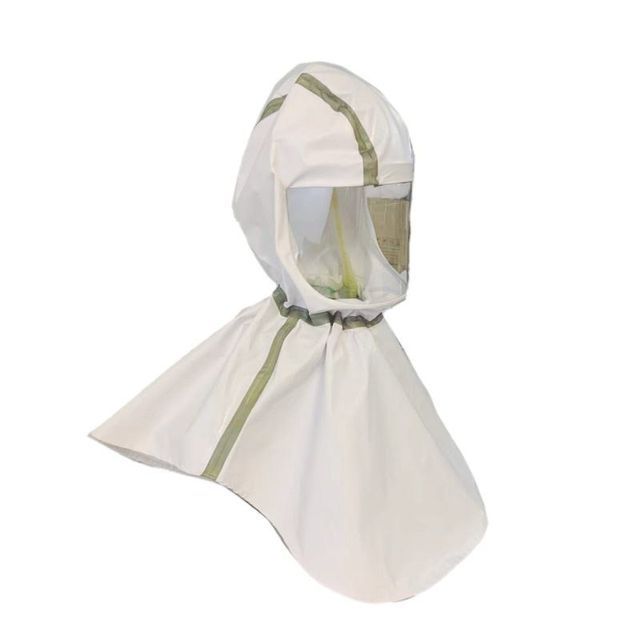

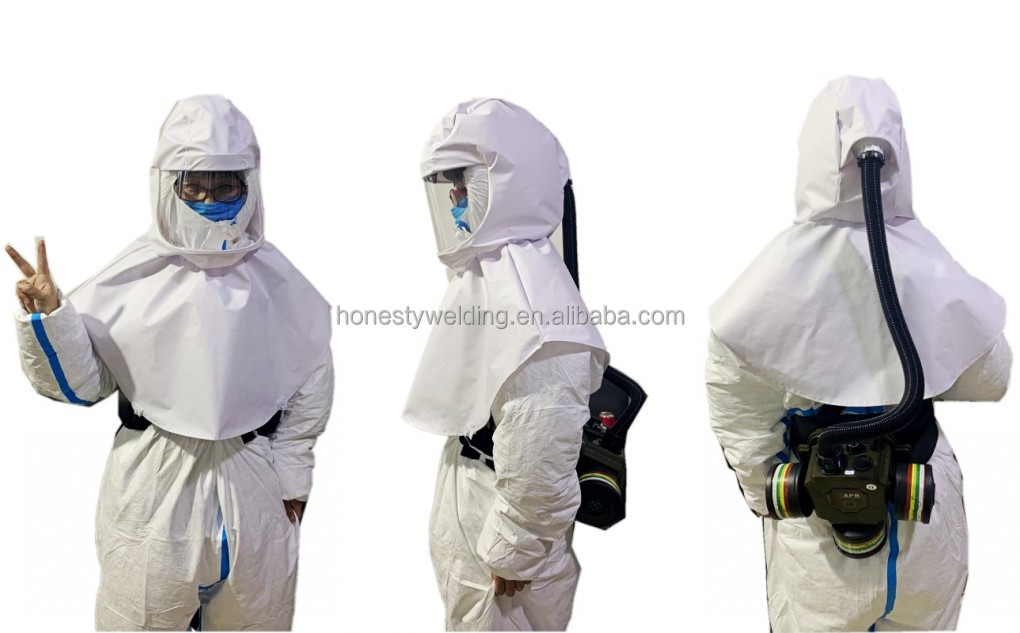

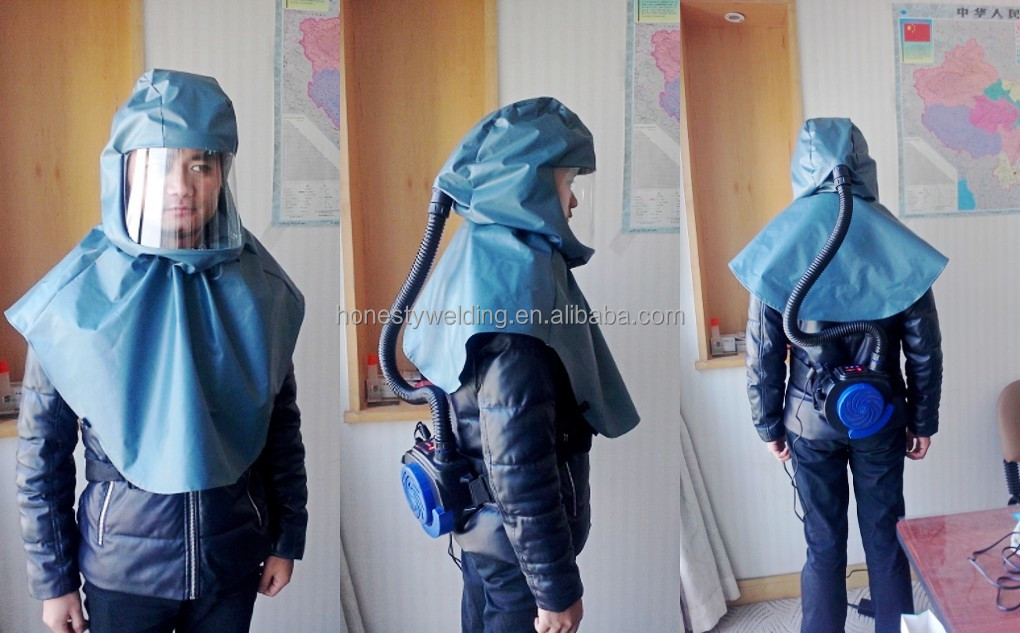

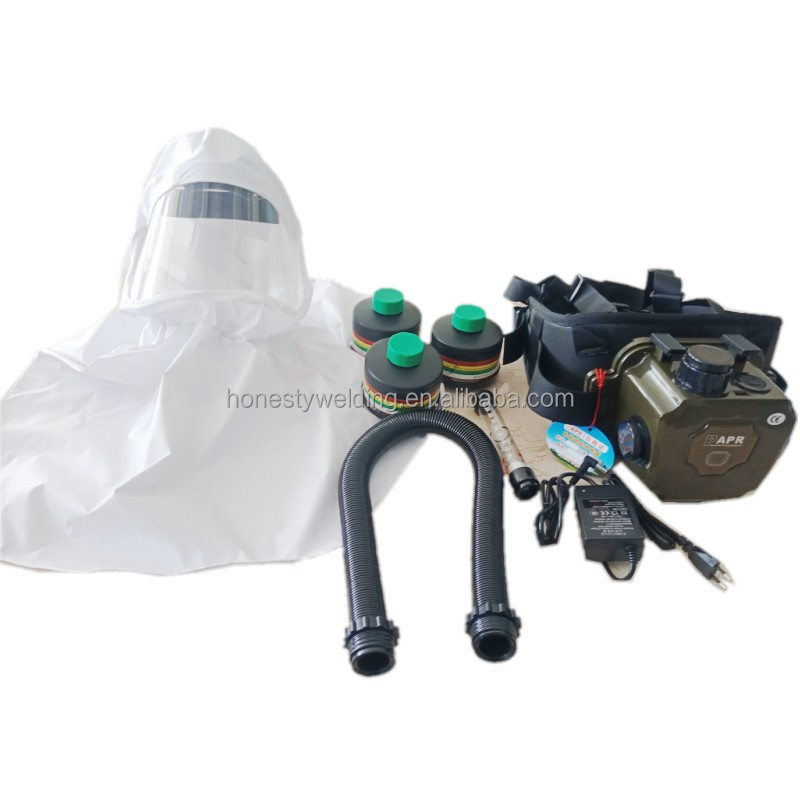

Powered Air Purifying Respirator-s PAPR hood for dust fume gas

Powered air purifying respirators offer a waterproof body design that can withstand rigorous cleaning and disinfection. The three-slot design determines that the respirator will be suitable for different working environments, and you can choose to use one or two or three slots at the same time. The respirator is light in weight, comfortable to wear, ergonomically designed, uniform in weight distribution, easy to operate, has significant positive pressure, service life, airtight and filtration functions, filtration accuracy of 0.3μm, and filtration efficiency of 99.97%. Its air volume is adjustable, adjust the air volume clockwise, and vice versa. Respirators enable people to work comfortably in conditions with excessive concentrations and/or hazardous compounds. Powered air-purifying respirators are the best option for providing protection against occupational diseases.

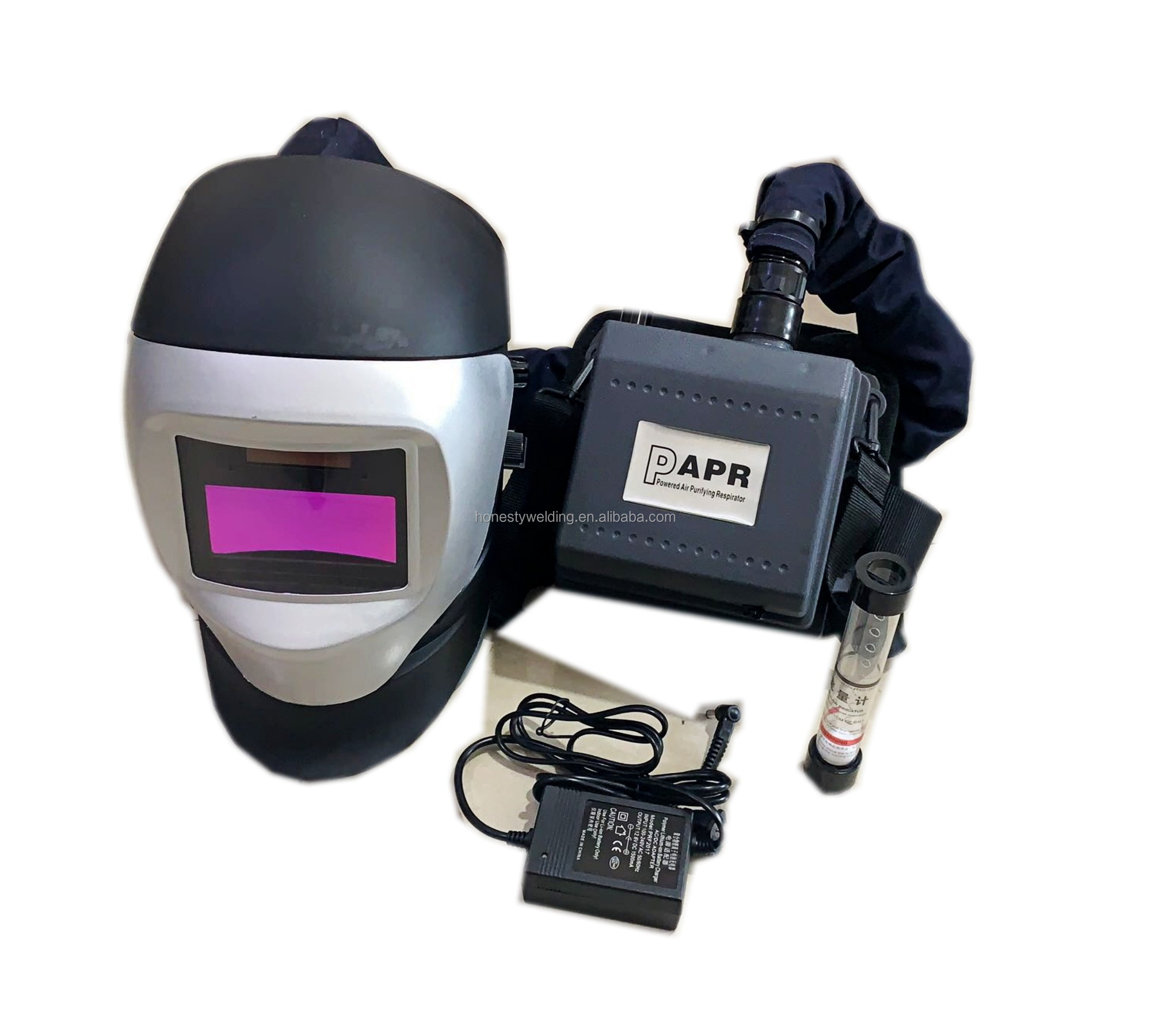

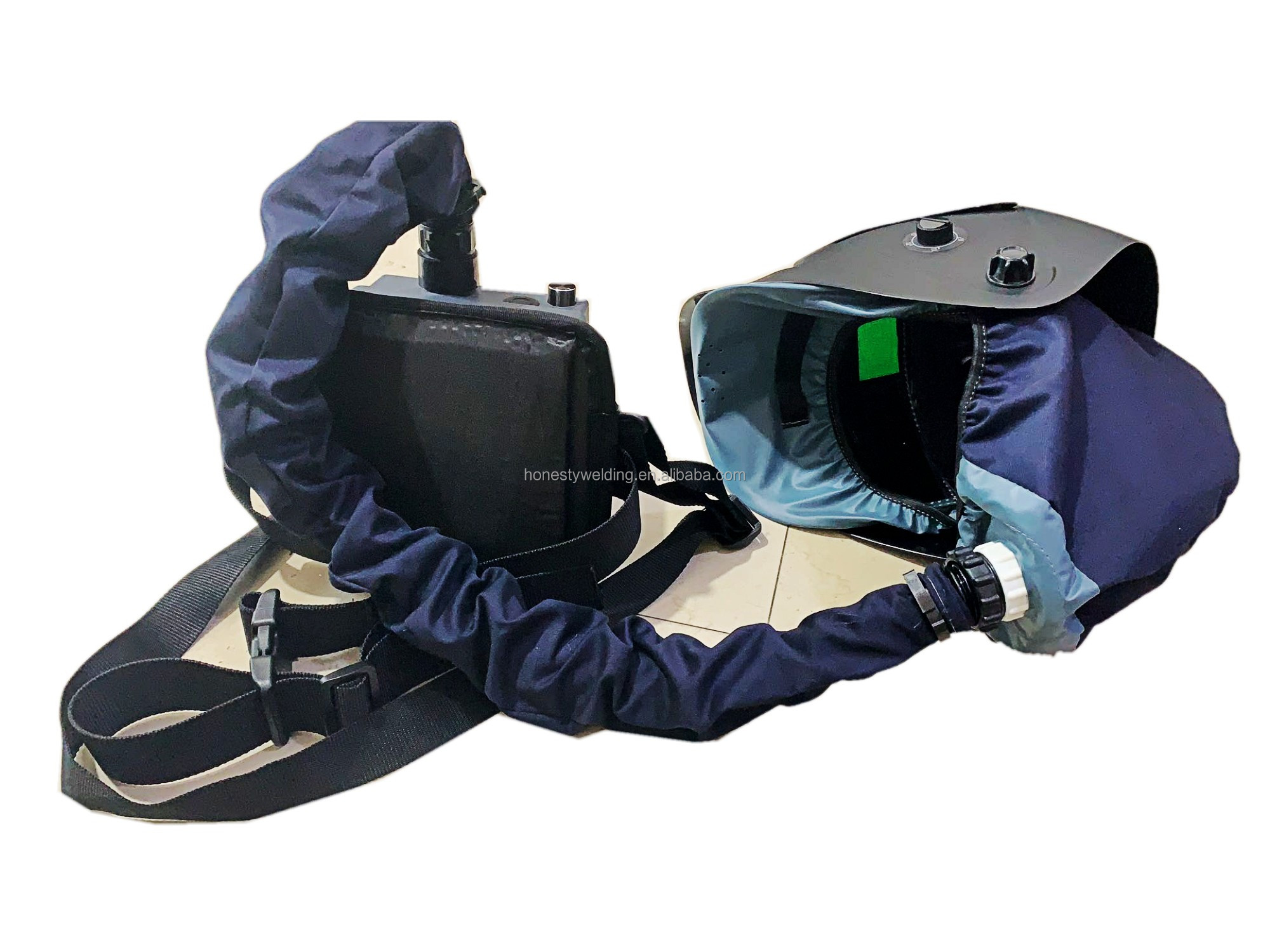

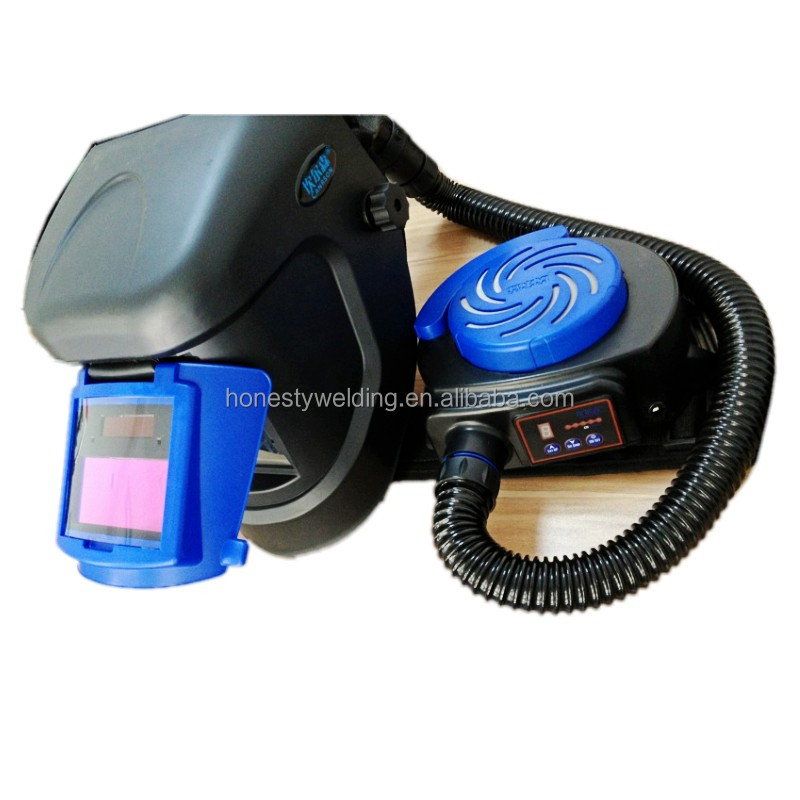

Welding helmet with PAPR

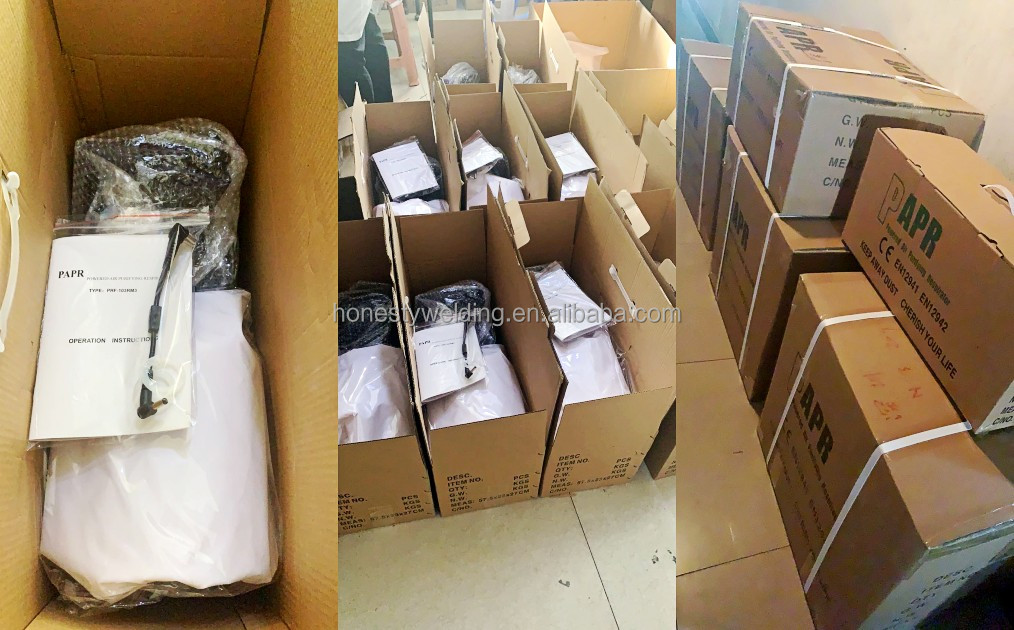

pack

1. Carton packaging

A, 1 pack 1 box 57.5x23x27cm Net weight: 2.2kg Gross weight: 4.5kg

B. 6 pieces in 1 large carton 59x48x55cm Net weight: 12.5kg Gross weight: 25kg

 2. Suitcases

A, 1 pack of 1 57x23x27cm

B, 4 pieces in 1 large carton 59x48x55cm

how to use

1.1 Connection

1. Connect the belt and the engine as shown in Figure 2. Pin them at the waist. Adjust the tightness according to your personal situation. Connect the helmet and the engine with the air supply hose as shown in Figure 1. Adjust the headrest inside the helmet to the proper position. Power up the engine, adjust the airflow to a comfortable level (0-5), and you're ready to go. When the battery power is low and the fan does not work, you need to plug in the power adapter. During charging, the indicator light is red. When charging is complete, the indicator light is blue. The entire charging time is about 10 hours. Plug in the power adapter and you can use it directly.

1.2 Notification

1.2.1 This product should be used after the battery is fully charged. Do not short-circuit the battery. Batteries must be kept away from sources of ignition. The KCM-DZ-S engine can work for 6-8 hours when fully charged, if the working time exceeds 6 hours, a backup battery is required. It also works with the power adapter plugged in, in which case the hours of operation are unlimited.

1.2.2 Put on the helmet and press the bottom of the back of the head frame while rotating left and right. Adjust the tightness according to your individual situation until the helmet is securely on your head. Turn on the power to the engine and walk into the polish.

1.2.3 The air flat tube is on the head frame. This tube supplies fresh air into the helmet. While fresh air flows into the helmet, the mask and face will be separated by the airflow. The helmet between the black flame retardant lining and the head blows excess air out, keeping dust and fumes out.

1.2.4 After the welding work is completed, the helmet needs to be inspected. In case of stains, wipe with a soft cloth or wash with a neutral detergent. Don't clean it with a rough/hard cloth or similar to avoid scratching the glass and helmet surface.

1.3 Replacing filters and seals

1.3.1 High-efficiency particulate filter: The engine is running well, but the airflow is insufficient, and the filter may be full of dust. In this case, you can remove the filter and pat it until the dust is separated, then wipe it with a soft cloth. Or directly wash the black coarse sponge on the filter, and put it back after the sponge is completely dry. Do not use the sponge in the presence of water. The filter should be replaced with repeated use. The filter is a consumable with a service life of about 20 days, and the specific service life is determined by the working conditions.

1.3.2 When replacing the filter, try not to let dust fall into the engine cavity. If dust falls into the cavity, it should be cleaned up immediately, otherwise the purification effect will be affected. It is important to make sure that the front engine cover is firmly seated with the new filter.

1.3.3 The engine case and filter are clean or new. If the breathing tube is dusty or smelly, check the engine or filter seal. If the sealing strip is damaged, please replace it in time.

1.3.4 The filter should be kept away from water. If the filter is damp, please replace it in time.

1.4 Charges

The hole next to the charging speed control board is the power support and charging hole. Use the DC 12V power adapter to charge. This product is rechargeable, and the engine has a built-in intelligent protection circuit, so it will not be overcharged.

Main components and parameters

2.1 Helmet

Material: plexiglass

The thickness is 3mm, can withstand 4 bar impact force, and there is a buckle inside to connect the flame retardant lining.

2.1.1 Headstock

Adjustable tightness; comfortable to wear

2.1.3 Interlining

Made of black flame retardant fabric; comfortable to wear; flame retardant; easy to disassemble and clean; prevent polishing/cutting slag and sparks from entering the helmet.

2.2 Air supply hose

Material: PU;

High temperature resistance; low temperature remains soft; long working life.

2.3 Air-supplied engine

Weight: 1074g (including battery); 803g (excluding battery); one year warranty.

The engine surface has a stainless steel screen to isolate welding slag and sparks.

2.3.1 Filters

Weight: 91g;

Material: HEPA;

Covered with coarse filter sponge. Filters are consumables and have no warranty.

2.3.2 Electric blower

There are 5 levels of airflow, adjustable through the bottom. Three-year warranty.

2.3.3 Battery

The engine is powered by 12V, 4.8AH lithium battery, the continuous power supply time is about 8 hours, and the charge and discharge life is about 500 times.

2.4 Power Adapter

The input voltage is 36V-220V AC. The output voltage is 12V 4A DC. Use on-line power or with battery when fully charged.

2.5 Belt

Snap connection; Comfortable to wear; Adjustable tightness.

Engine (non-human damage) warranty for one year.

Equipment warranty for one year. Consumables are not covered under warranty.
