CAPSTAN WINCH Manual Wire Rope Hoist and Cable Hoist Winch Tractor
- 106.00 5 - 49 sets
- 95.40 50 - 99 sets
- 81.27 100 - 499 sets
- 76.32 >=500 sets
Registered Supplier
Direct Contact
Inquiry via Message

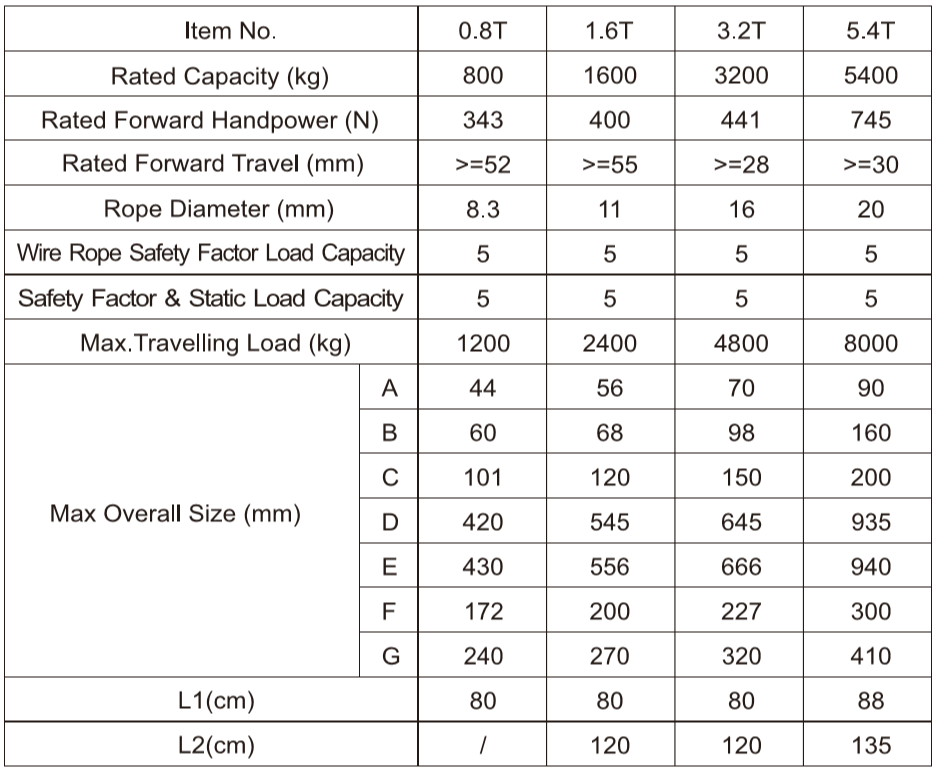

Product Details
| port: | Shanghai Port or Ningbo Port | Body material: | Aluminum alloy steel |
| Custom Support: | OEM,ODM,OBM,0.8t,1.6 | Packaging Details: | carton + pallet |
| Supply capacity: | 10000 sets per month | Packaging Preview: | |
| Rated Capacity: | 1 ton | Rate forward (mm): | 55mm |
| Warranty: | 1 year | place of origin; place of origin: | Zhejiang, China |
| cable length: | 20m | Mac. Travel Load (kg): | 2400kg |
| application: | Building materials store, forestry | payment terms: | wire transfer, RMB |
| Mechanical test report: | if | color: | Red |
| brand: | Dele | Rope diameter: | 11mm |
Product Description

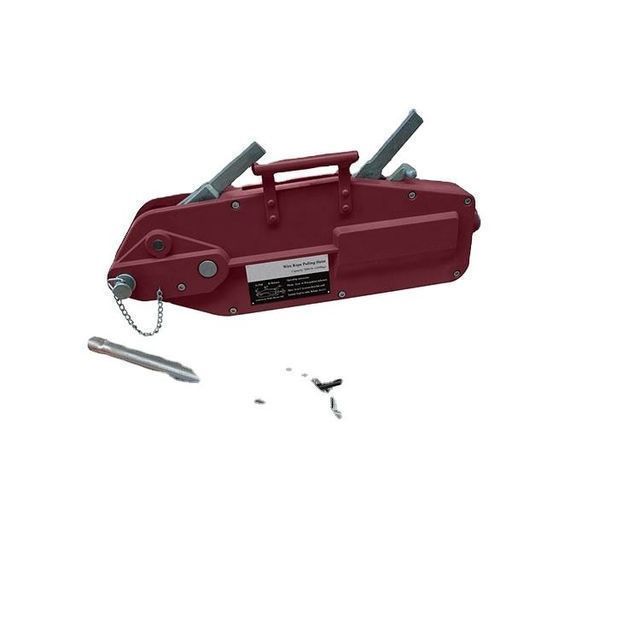

Wire rope pulley machine
The wire rope traction hoist newly produced by our factory is a new type, efficient, safe and durable hoist. It has three main prominent capabilities: lifting, pulling and tensioning. Wider range of use and better for work than other old-fashioned chain pullers. Can be used for linear and non-linear lifting, pulling and tensioning depending on the appropriate rope length. Equipped with special accessories such as fixed or movable pulleys, it is not only convenient to change the operating position and move the load, but also the capacity of the machine can be multiplied. For heavy loads, multiple machines can be used in parallel.Scope of application
Machines are widely used in the following fields:
factory:Install or transfer equipment
At the mine:Construct or restore pit props.
On construction sites:Work on the walls, oh floating tall buildings
A crane without any scaffolding.
In railway construction:Adjust or remove rails, dig tunnels or culverts.
When building bridges:Lay bridges or maintain piers.
Irrigation Construction:Install or erect towers, or tension power cables
transportation:Load and unload heavy and bulky cargo, out of danger
For vehicles present, clear obstacles
Agricultural machinery, and in special cases rescue livestock.
forestry:In fallen trees, use a machine to pull the tree down.
In military engineering:Move the cannon to the shade, build
Temporary simple suspension bridge or floating
Bridge or install other military engineering projects.
Civil use:Raise or lower any household items in high-rise buildings
or clean up old houses
In urban construction:Laying water pipes, installing lighting equipment or erecting
Electric poles, etc. with increasing awareness of characteristics and knowledge
The principle of our product, you will operate it in a wider range of applications.
