Top 3D Soldering Station Manufacturer with Fixture Fixtures Products from Botou Kaicheng Mechanical Equipment Co., Ltd.

Product Details

standard:	JB/T7974-99	place of origin; place of origin:	Hebei china
product name:	3D welded plate	Supply capacity:	10000 pieces/year
usage:	±0.1mm	size:	OEM
Whether it is a standard part:	Yes	brand:	open-hearted
Structure:	Box steel plate	port:	Tianjin Qingdao
Material:	cast iron/steel	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
application:	industrial	model:	KC-b1

Product Specifications

Machined by CNC machining center. According to the hole system, it is divided into two series: Φ28 and Φ16. According to the structure, it is divided into two-dimensional flexible combined tooling and three-dimensional flexible combined tooling. The tooling platform is divided into steel platform, cast iron platform and plate platform according to the material. The grid is engraved with corresponding grid lines. According to customer requirements, millimeter scales can be drawn on both sides of the right side of the platform.

Schedule:

3d welding station	Aperture	Gridlines	Hole spacing
D28 series	28mm	100mmx100mm	100mm
D16 series	16mm	50mmx50mm	50mm

origin	Hebei china
Card	open and honest
model	custom
use	Welding Reference Sheet
Material	cast iron/steel
structure	Box steel plate
is a standard part	Yes

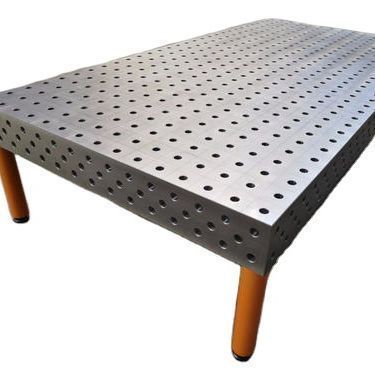

Product display

Product advantages

1. Quickly locate the fixture without tape.

2. The five sides can be realized through modular expansion and expansion.
3. Different products and standards can be reused.

4. The reinforcing ribs at the bottom of the steel plate ensure the stability and
The product is not deformed.
5. Customers can take reasonable support methods according to the actual situation.

The title is here.

Botou Kaicheng Machinery Equipment Co., Ltd. is a professional manufacturer of measuring tools, foundry machine tools, large, medium and small machine tool castings and machine tool accessories. Our company is located in Botou City, Hebei Province, the famous "casting town" in China.
