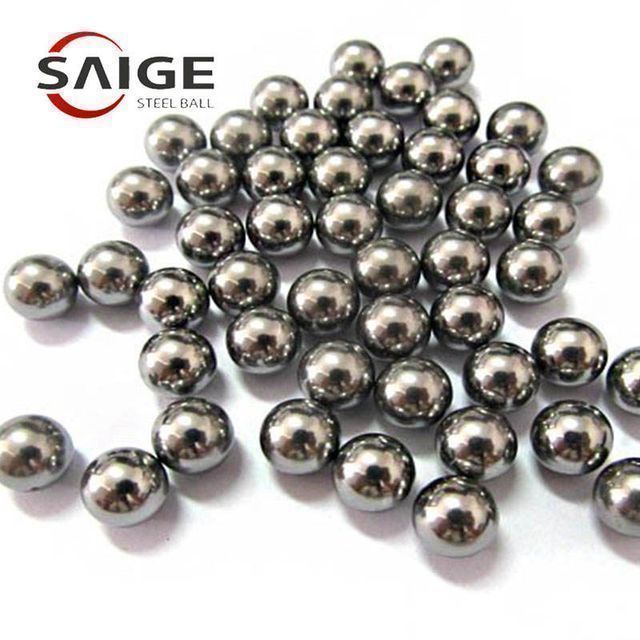

High Precision Quality Small Solid g10 g40 g100 4mm 5mm 6mm 7mm 8mm sus 304 316 420 440 iso 3290 Stainless Steel Bearing Balls Products from Changzhou Feige Steel Ball Co., Ltd.

Product Details

sample:	cost	pack:	plastic bag+carton+wood
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Supply capacity:	20 tons per month
shape:	Solid Round Stainless Steel Ball	Packaging Details:	Four small boxes in 20kg carton with plastic bags + carton + wooden pallet Export carton, steel drum, wooden pallet or according to customer requirements
place of origin; place of origin:	Jiangsu, China	model:	stainless steel ball
surface:	mirror reflection	an examination:	100% sorting
brand:	SEG	feature:	Corrosion resistance
port:	Shanghai FOB	Material:	304 stainless steel, stainless steel
Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops	Serve:	Custom OEM
Certification:	BV, ISO, ROHS	Packaging Preview:
Certification:	ISO 9001:2008,TS 16949:2009

Changzhou Feige Steel Ball Co., Ltd.

is a professional manufacturer of chrome steel balls and stainless steel balls with more than 30 years of experience.

At present, our main steel ball varieties are as follows:

Chrome steel balls:

G10-G1000 AISI52100/Gcr15, 100Cr6 Size: 0.8mm-50.8mm

Stainless Steel Ball:

G100-G1000 AISI304 316/316L Size: 0.8mm-50.8mm

G10-G1000 AISI420 420C AISI440 AISI440C Dimensions: 0.8mm-50.8mm

Carbon steel ball:
G100-G1000 AISI1010/1015 Size: 2mm-25.4mm

Product Description

carbon steel ball

Material:AISI1010/1015 carbon steel.

feature:Usually made of low carbon steel material, unheat treated carbon steel balls are cheaper and have a brighter surface but very low hardness. The heat-treated ball has good hardness and the best precision is G100.diameter:2mm - 25.4mmgrade:G100 - G1000hardness:HRC55-65application:1. General industry for automobile, motorcycle, bicycle manufacturing, special bearings and miniature balls for electronic industry.. 2. High-precision low-noise motor bearings and household appliances bearings 3. High-speed, low-noise special bearings 4. Ball valves are used for liquid and gas etc.

Chrome steel ball

Material:AISI52100 chrome steel.

feature:High hardness, withstand high pressure and friction when working, steel balls made of chrome steel have excellent wear resistance

Good resistance, excellent surface, high hardness and strong bearing capacity.

diameter:0.8mm - 50.8mmgrade:G10 - G1000hardness:HRC60-66application:

They are commonly used in the roller bearing industry and various automotive applications.

High-speed and low-noise bearings, bicycles, motorcycles, automobiles, slide rails, universal balls, luggage, electronic industry, and can also be used for grinding other media.

stainless steel ball

AISI304, 316/316L

Material:AISI304, 316/316L stainless steel.

feature:Good corrosion resistance to sulfuric acid

Acidic compounds.

diameter:0.8mm - 50.8mm

grade:G10 - G1000

hardness:HRC≤26

application:

Valves, perfume bottles, medical devices, nail polish, baby bottles, cosmetic packaging, air conditioners.

AISI420, 420C, 440, 440C

Material:AISI420, 420C, 440, 440C stainless steel.diameter:0.8mm - 50.8mm

grade:G10 - G1000
hardness:HRC52-62
application:
All kinds of precision machinery, bearings, electrical equipment, vehicles, household appliances, parts aviation, aerospace, bearings, motors, high-precision instruments, valves, petroleum.

-------------------------------------------------- -----------------how to choose-------------------------------------------------- ---------------------

1. G10, G16, G20, G40, G60, G100, G500, G1000, the smaller the number, the higher the precision. 2. Confirm material standards (GB, AISI, DIN, SUS, NF, BS, UNI, F0CT)

3. Comparison of other factors

Material	①Carbon steel ball	②chrome steel ball	③Stainless steel ball
price	③>②>①
hardness	②>③Series 4>①>③Series 3
Highest Accuracy (Class)	②=③Series 4>①>③Series 3
Rustproof	③>②>①

Product Details

Product process

-------------------------------------------------- ---------------Testing equipment-------------------------------------------------- --------------

Before packaging, the steel balls are sent for a final audit, where surface roughness, roundness, waviness, batch variation and hardness are checked in a sophisticated laboratory in accordance with a designated control plan and dock audit procedures.

After all requirements are met, a test certificate will be prepared for the client. Our sophisticated laboratories are equipped with high-precision, world-renowned machinery and equipment and are managed by appropriately trained and qualified personnel.
