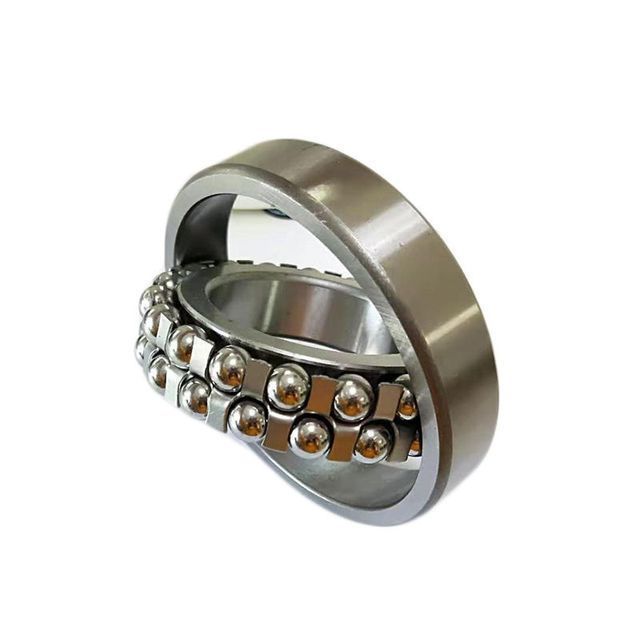

1212 Double Row 60x110x22mm Self-aligning Ball Bearing 1212

Supplier: Shandong Aobo Bearing Co., Ltd.
Region: Shandong, China
Contact: Mr duke cui
Price: $9.00 / 1 - 9 pieces
$6.50 / 10 - 99 pieces
$4.50 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

brand:	AOBO or OEM or ODM	type:	ball
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	structure:	self-alignment
Packaging Preview:		Applicable industries:	Clothing Stores, Building Materials Stores, Manufacturing Plants, Retail, Construction Works
weight:	0.900kg	vibration:	V1 V2 V3 V4
port:	Qingdao, Tianjin, Shanghai, Shenzhen, Guangzhou or customer needs	Supply capacity:	100,000 self-aligning ball bearings per week 1212
cage:	steel cage brass	Clear:	C0 C2 C3 C4 C5
Packaging Details:	1. TT. 30% down payment, balance before shipment. 2. L/C at sight. (Bank charges are high, not recommended, but acceptable) 3. 100% Western Union. (Especially for air or small quantities)	place of origin; place of origin:	Shandong China
Seal Type:	Open	Material:	Chrome Steel GCR15
product name:	Self-aligning ball bearing 1212	Serve:	OEM customized service
feature:	high speed	Rows:	double row
sample:	available	Accuracy class:	P0 P6 P5 P4 P2
size:	60x110x22 mm	model:	1212

1212 Double row 60x110x22mm hot sale self-aligning ball bearing 1212

Product Description

Bearing description:

Spherical roller bearings are two symmetrical spherical rollers, forming a common spherical roller, with two and inner circle inclination angle bearing rolling, with good center, axial force when bending or mounting Heart-shaped bearings with different performance can still be used normally. Mind the bearing size series is different. Generally, the allowable self-aligning angle is 1-2.5 degrees. This type of bearing capacity can withstand axial loads in addition to radial loads. The two-way action, good impact resistance, generally spherical roller bearings allow low-speed work.

feature:

1. The core roller bearing has two roller bearings, which mainly bear radial loads and can also bear axial loads in any direction.
2. Has high radial bearing capacity, especially heavy load or vibration load, but cannot bear pure axial load.
3. The outer ring of this type of bearing has a spherical shape, which has good tuning performance and can compensate for coaxiality errors.
4. The outer side of the outer ring of the outer self-aligning bearing is spherical, which matches with the concave spherical bearing seat. External bearings have better load carrying capacity than internal bearings, but require more radial space.

Application areas:

1. Withstand radial, axial or compound loads.
2. Provide high running accuracy and high speed running
3. It can replace high-speed angular contact ball bearings.

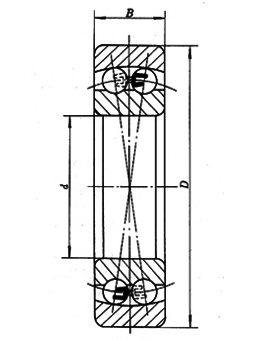

painting:

model		Specification (mm)	Weight (kg)
new	old	d×D×B
1210	1210	50×90×20	0.545
1211	1211	55×100×21	0.722
1212	1212	60×110×22	0.896
1213	1213	65×120×23	0.915
1214	1214	70×125×24	1.29
1215	1215	75×130×25	1.35
1216	1216	80×140×26	1.65
1217	1217	85×150×28	2.1
1218	1218	90×160×30	2.51
1219	1219	95×170×32	3.06
