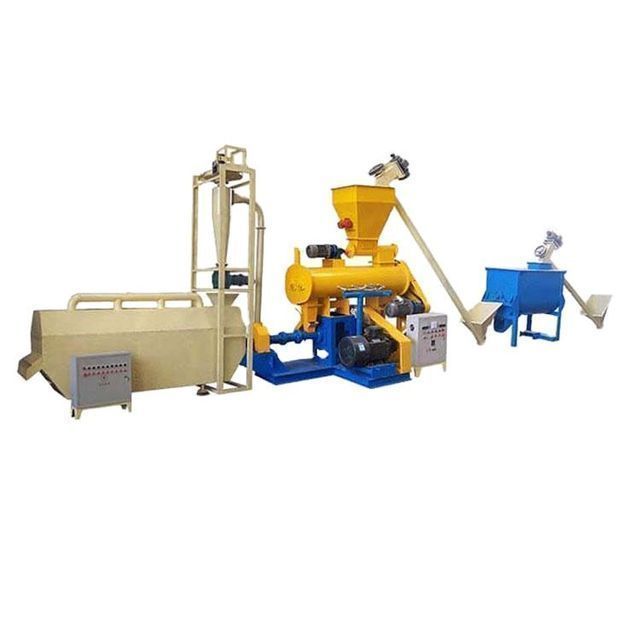

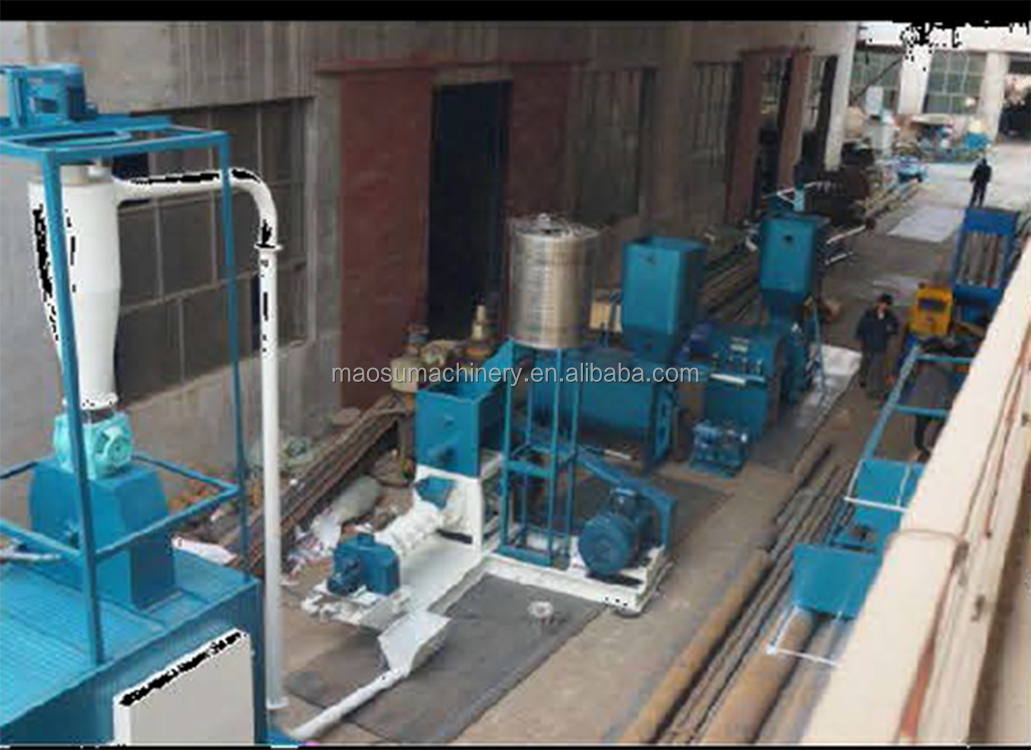

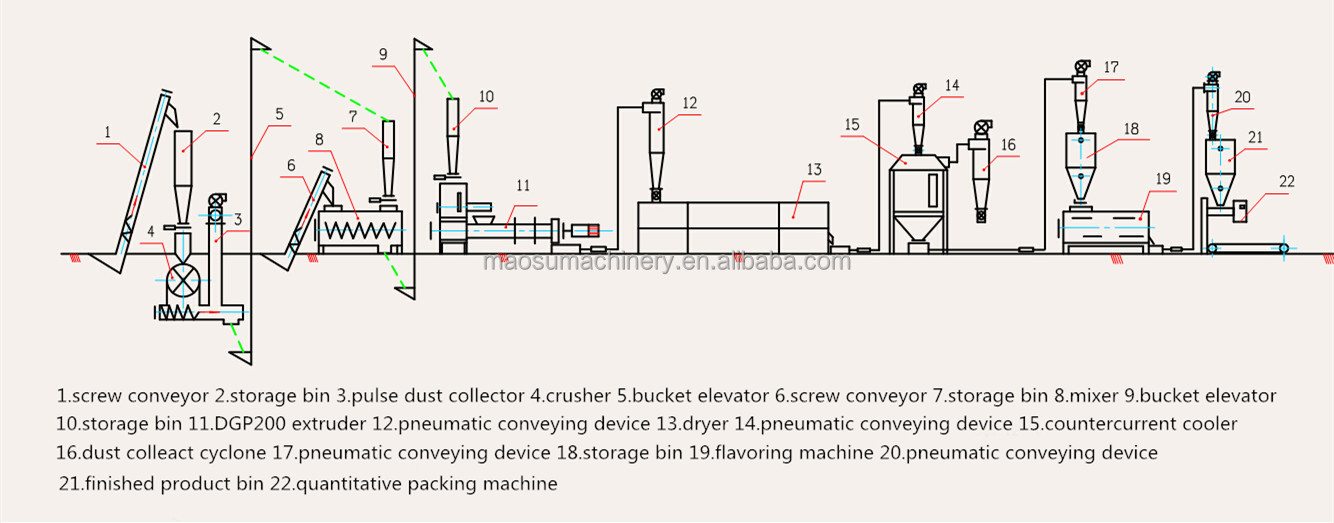

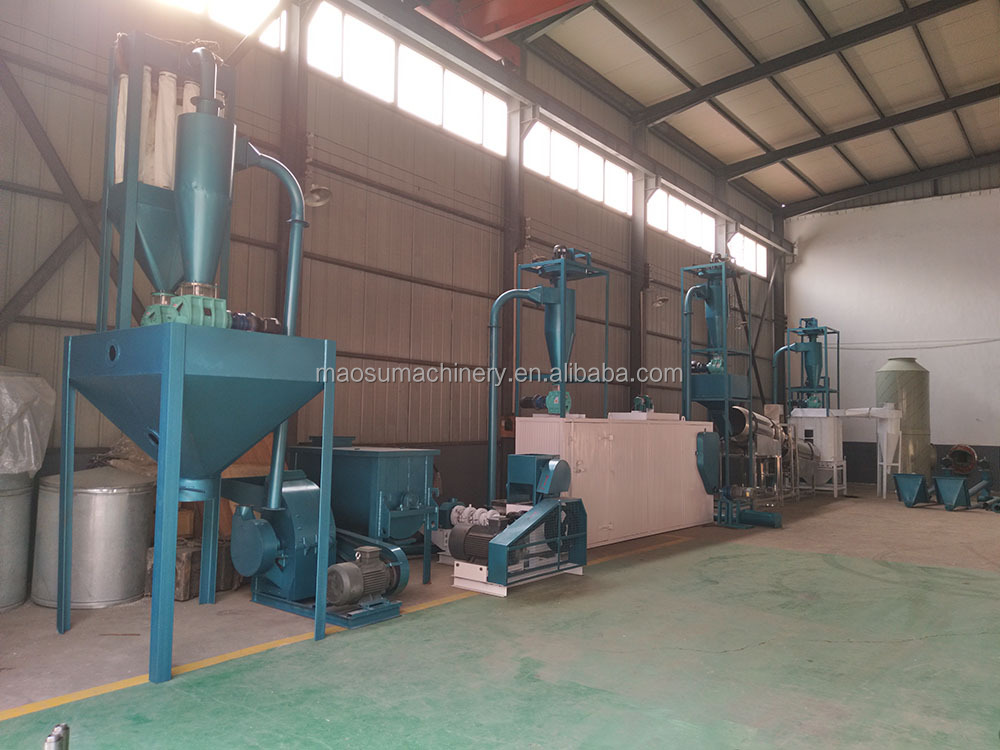

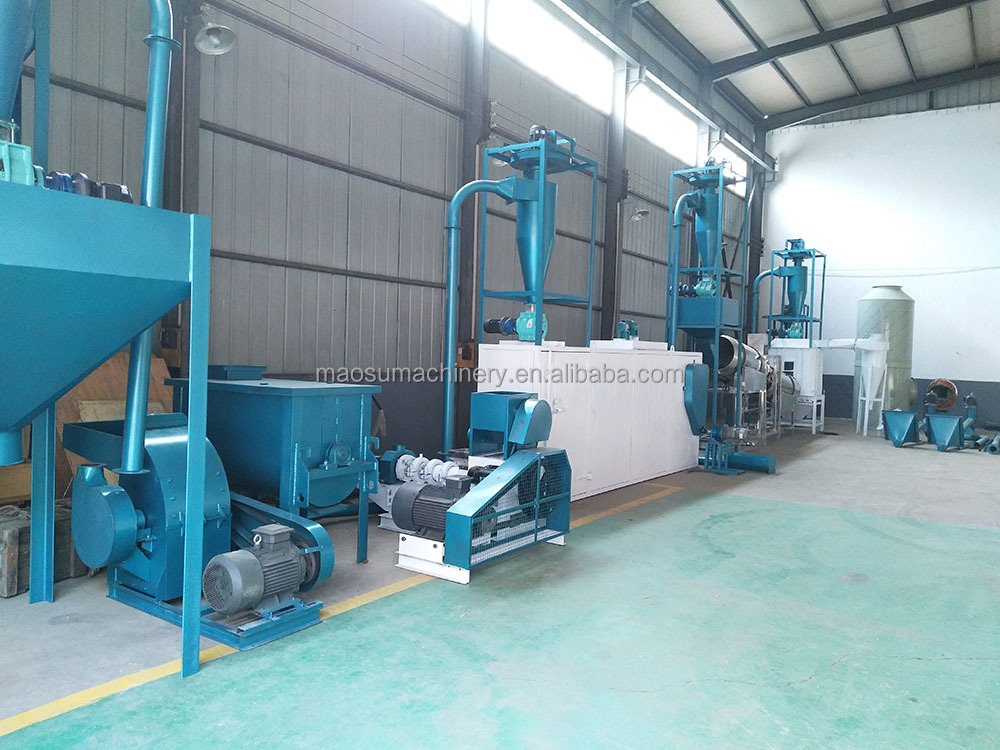

Automatic pet food fish feed pellet processing production line 100-4000kg/hour

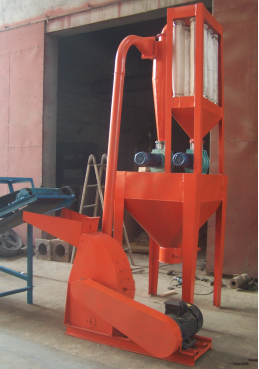

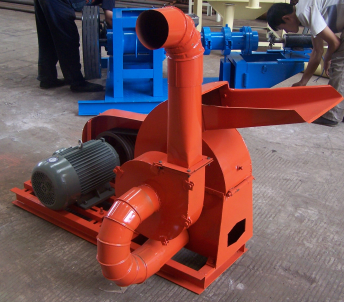

Crusher

The material is crushed by the hammer head continuously rotating and hitting the material in the crushing chamber, and a fan is installed on the side, and the crushed material is discharged through the negative pressure generated by the fan, which improves the crushing efficiency. To crush different fineness, just replace the screen with different aperture.

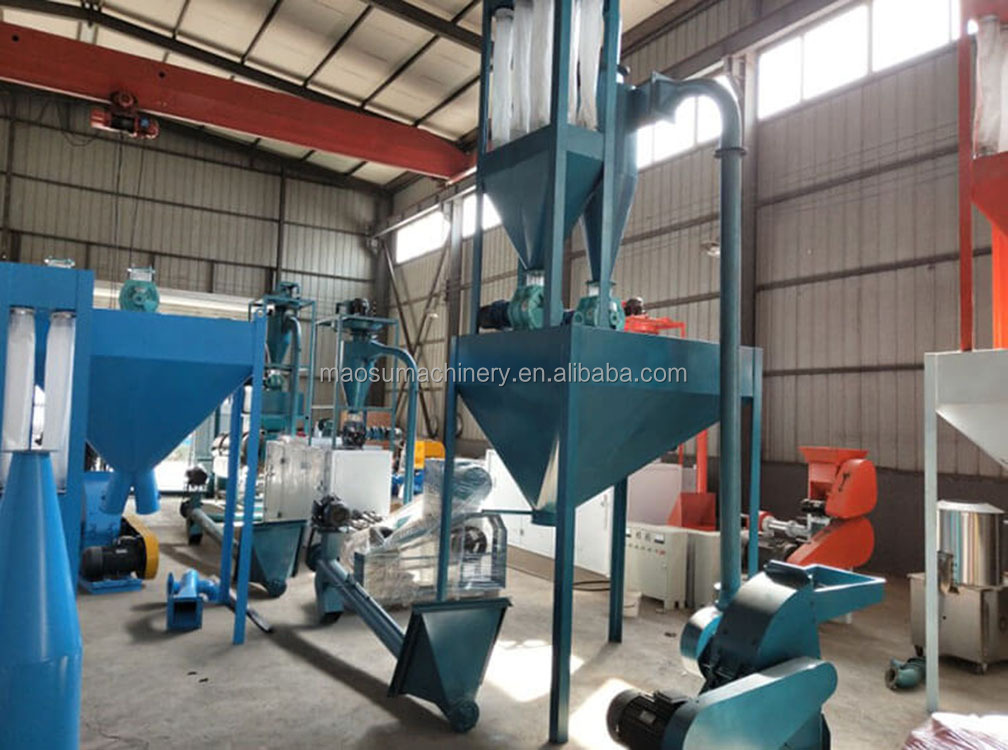

cyclone

The crushed material is pumped out by the fan on the crusher. Most of the material is collected and discharged by the aggregate Shakron. Lighter dust is collected in a baghouse and discharged into a silo through a damper.

mixer

The materials can be fully mixed, and the bottom is designed with a long door, so that there is little residual material in the body. Using batch mixing method, the mixture is more uniform

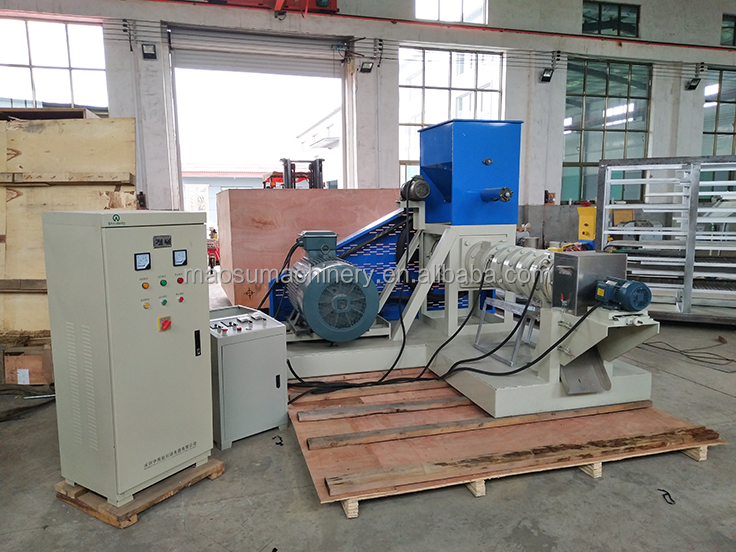

extruder

Pet food extruder is used to process pet food (such as dogs, cats, rabbits, fish, turtles, birds, pigs,
foxes, etc.) and other aquatic products, birds, livestock, etc.
Capture high-tech projects in the developing pet food market and animal husbandry.

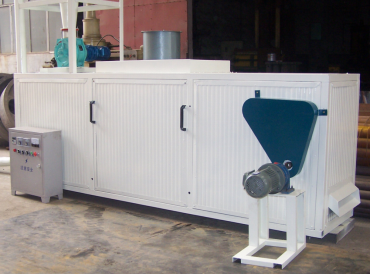

Dryer

The mesh belt is made of stainless steel, which is resistant to high temperature and corrosion. The material is evenly distributed on the mesh belt through the feeding device. The mesh belt rotates at a constant speed. It falls from the first layer to the second layer, and then falls into the bottom layer for discharge. The dryer is equipped with a circulating hot air fan and an exhaust fan to make the material dry more evenly. The mesh belt motor is variable frequency speed regulation, which can be adjusted instantaneously according to the drying effect and particle size to achieve the drying effect.

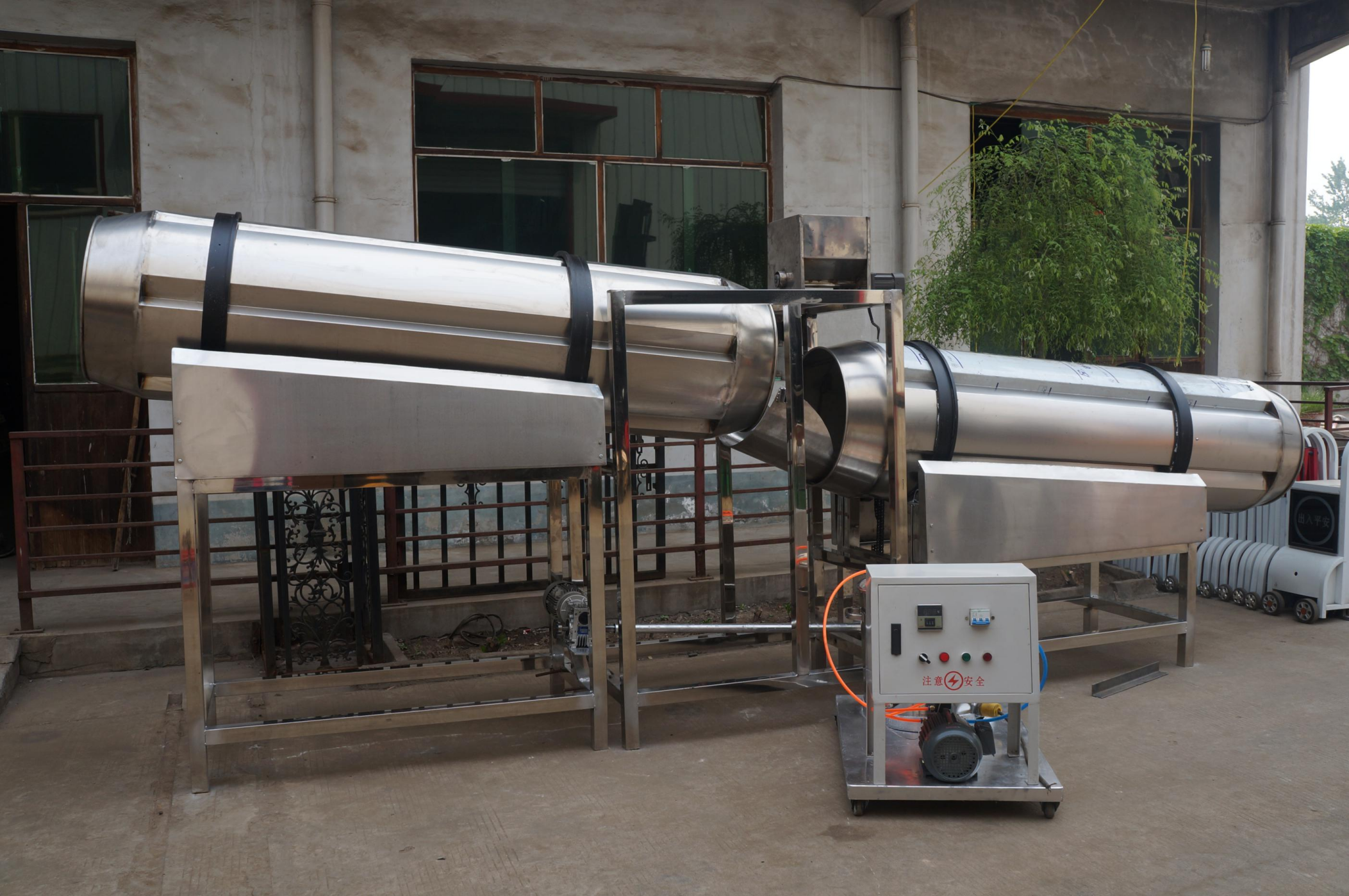

seasoning line

The drum is all stainless steel (the drum is made of stainless steel or carbon steel), which is corrosion-resistant and easy to clean. The material enters from the higher end of the drum, and the liquid grease, attractants, trace elements, etc. are evenly sprayed on the surface of the particles through the built-in nozzle. The other end of the nozzle is connected to the oil pump and the heat preservation oil cylinder. The cylinder has a heating function. Adjust the temperature on the electric control box to keep the additive at a certain temperature. Even if the temperature is lower, it will not solidify and affect the spraying effect.

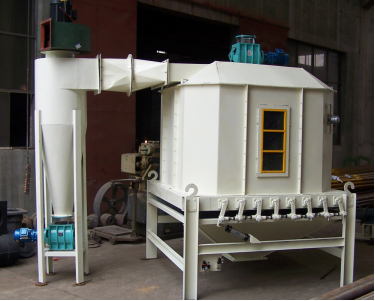

cooler

The material enters the cooling chamber evenly through the closed air device on the pneumatic conveying device, and the fan installed on the Shakeron starts at the same time as the material is fed. Cold air enters from the discharge port at the bottom of the cooler and passes through the material layer, reducing heat and brightness. If the dust is carried away, the dust will fall into the Shakron and can be cleaned regularly. Generally, the cooling time of each batch of materials is about 8-10 minutes. After the cooling time is up, manually open the unloading rod, close it after unloading, and prepare to feed again.

seasoning line

The drum is all stainless steel (the drum is made of stainless steel or carbon steel), which is corrosion-resistant and easy to clean. The material enters from the higher end of the drum, and the liquid grease, attractants, trace elements, etc. are evenly sprayed on the surface of the particles through the built-in nozzle. The other end of the nozzle is connected to the oil pump and the heat preservation oil cylinder. The cylinder has a heating function. Adjust the temperature on the electric control box to keep the additive at a certain temperature. Even if the temperature is lower, it will not solidify and affect the spraying effect.

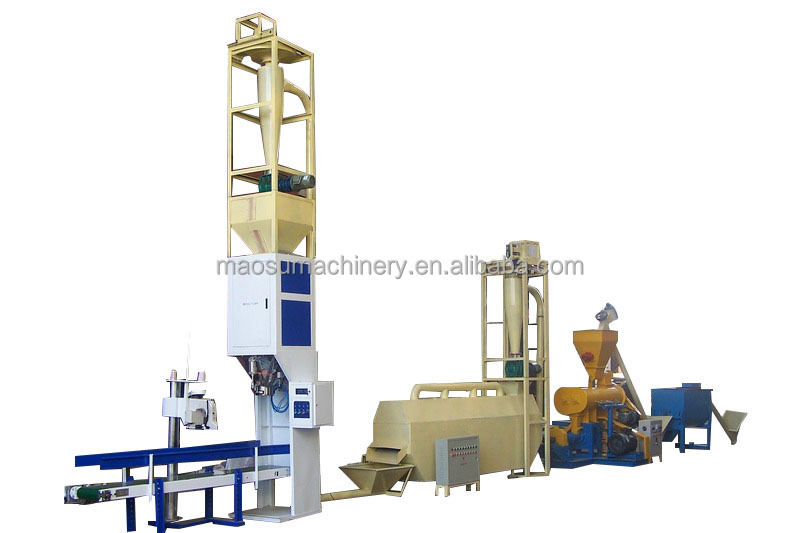

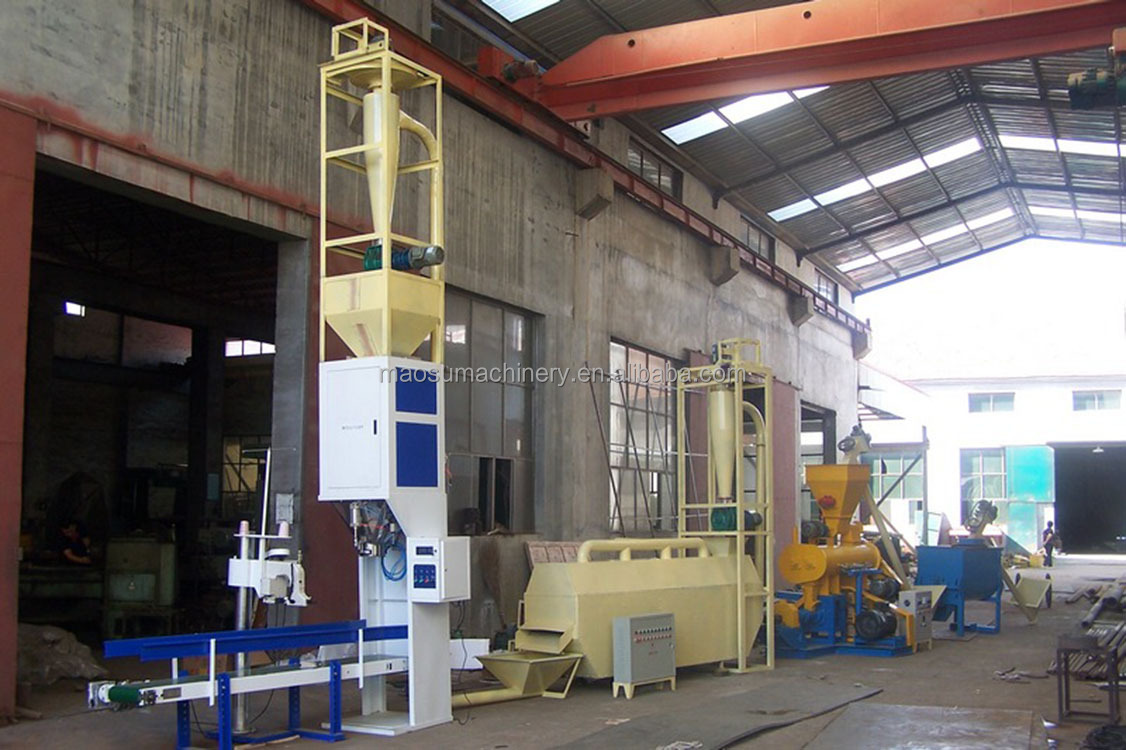

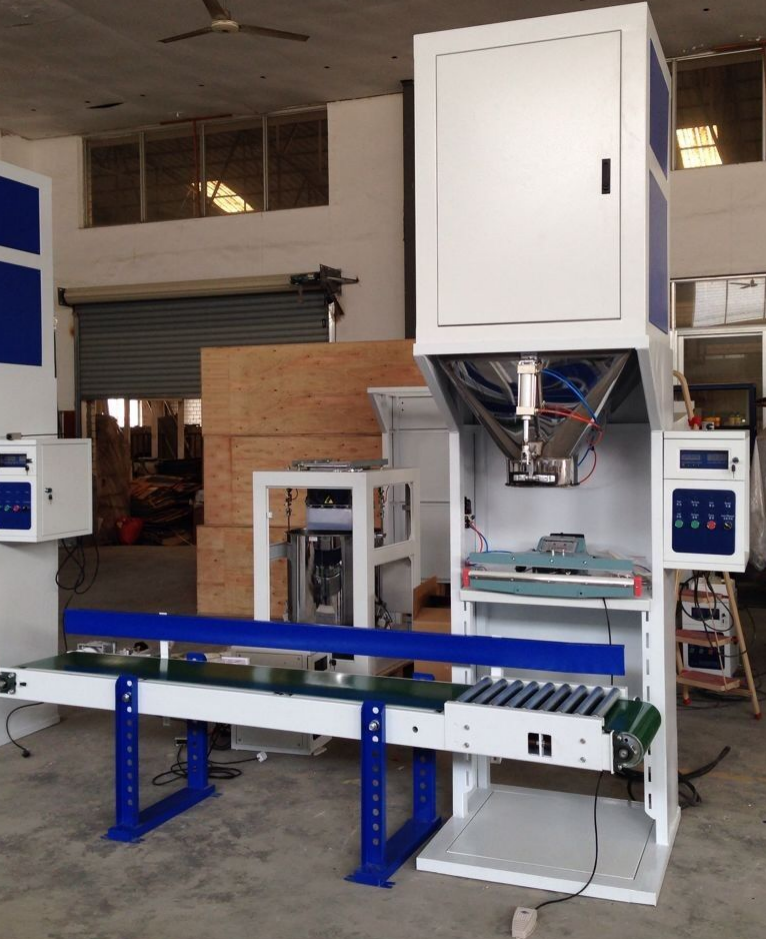

Packing Machine

The automatic quantitative packaging scale adopts a new dual-display instrument with high measurement accuracy and stable performance. It can display the accumulated weight and the number of packages, and the operation is more convenient and fast. Wide quantitative range, high precision, matching with lifting conveying sewing machine or heat sealing machine, one machine has multiple functions and high efficiency. Imported sensors, pneumatic actuators, reliable work, simple maintenance, no pollution. The casing adopts advanced spraying technology, and the parts in contact with the material are made of 304 stainless steel, which is corrosion-resistant and has a long service life of the equipment.
