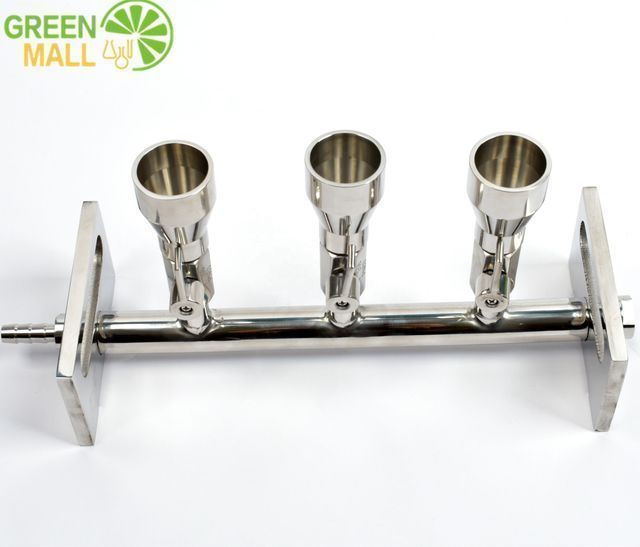

Lab Filter 6 Manifolds Vacuum Filtration Multiple All Stainless Steel VACUUM FILTER HOLDER

brief introduction

  Manifold vacuum filtration is primarily used in microbiological and analytical procedures, including the collection of particulates (bacteria, sediment, etc.) from liquid suspensions. The liquid poured into the funnel passes through a filter, which retains the particles, and the filtrate can be collected directly or through a vacuum manifold into a filter bottle. Applying a vacuum reduces processing time compared to gravity flow. Vacuum filter holders and manifolds are specially designed and produced for filtering multiple samples simultaneously. Since each filter holder has individual control valves, only one vacuum pump is required to support single or multiple manifold filters operating together.

feature:

l Each bracket has a separate control valve

l Flexible use

l Convenient anti-corrosion

l Simultaneous testing of three or six samples

lHigh sensitivity

l Low false positives

l Easy to operate.

application

Widely used in chemical analysis, biochemical-pharmaceutical hygiene testing, environmental testing, water quality analysis, food personnel, beverages and scientific research, etc.

Applicable film:

The choice of membrane filter is the key to obtain the best filtration effect. The properties of the membrane filter must be adapted to the different chemical properties of the filter media. At present, it is mainly PVDF (organic), synthetic fiber resin membrane (water-based) and nylon membrane (water-based and organic). Our company also provides various imported membrane filters, the pore size is usually 0.22, 0.45, 0.8μm, and the suitable diameter is φ47 or φ50.

Element:

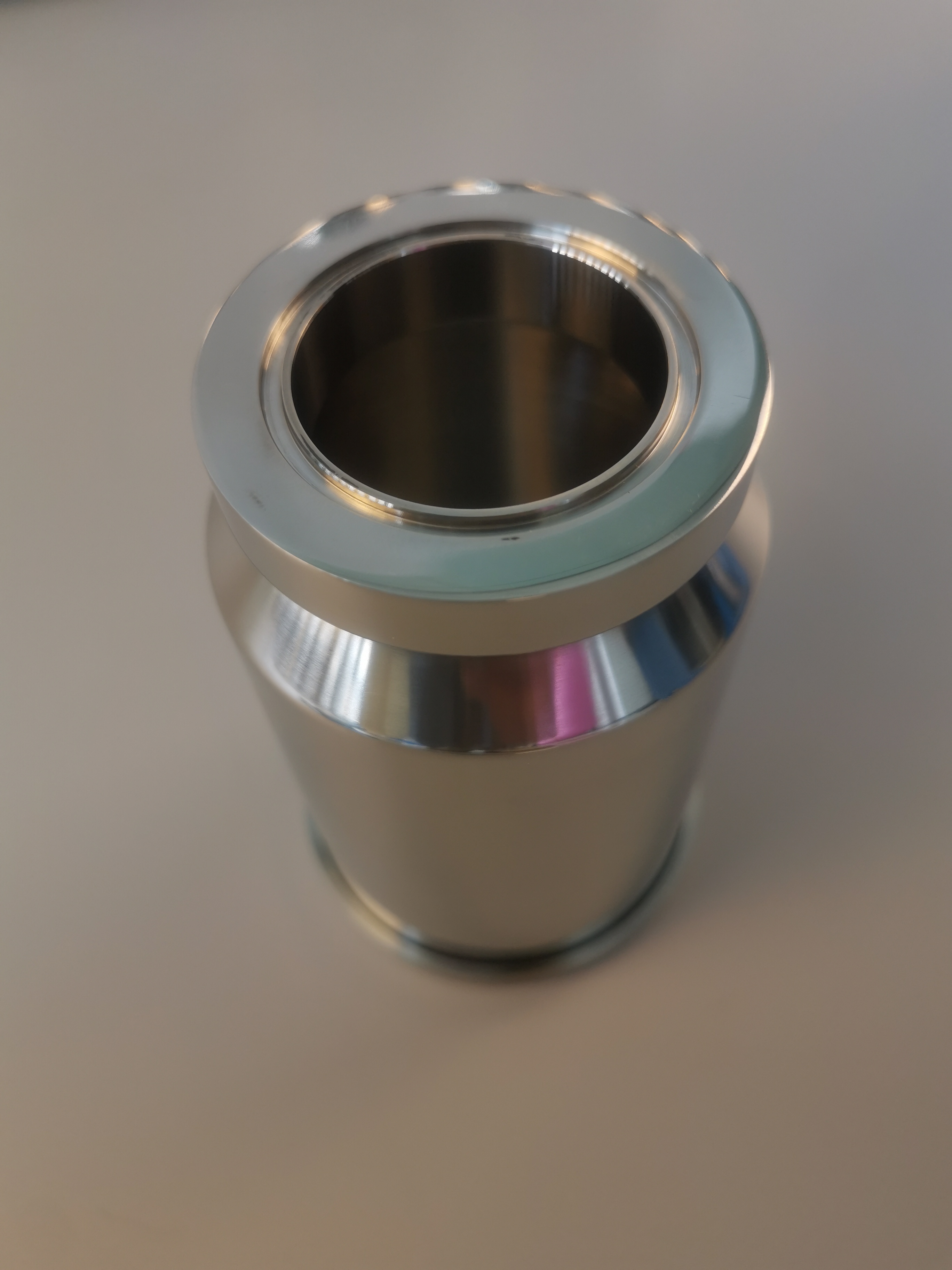

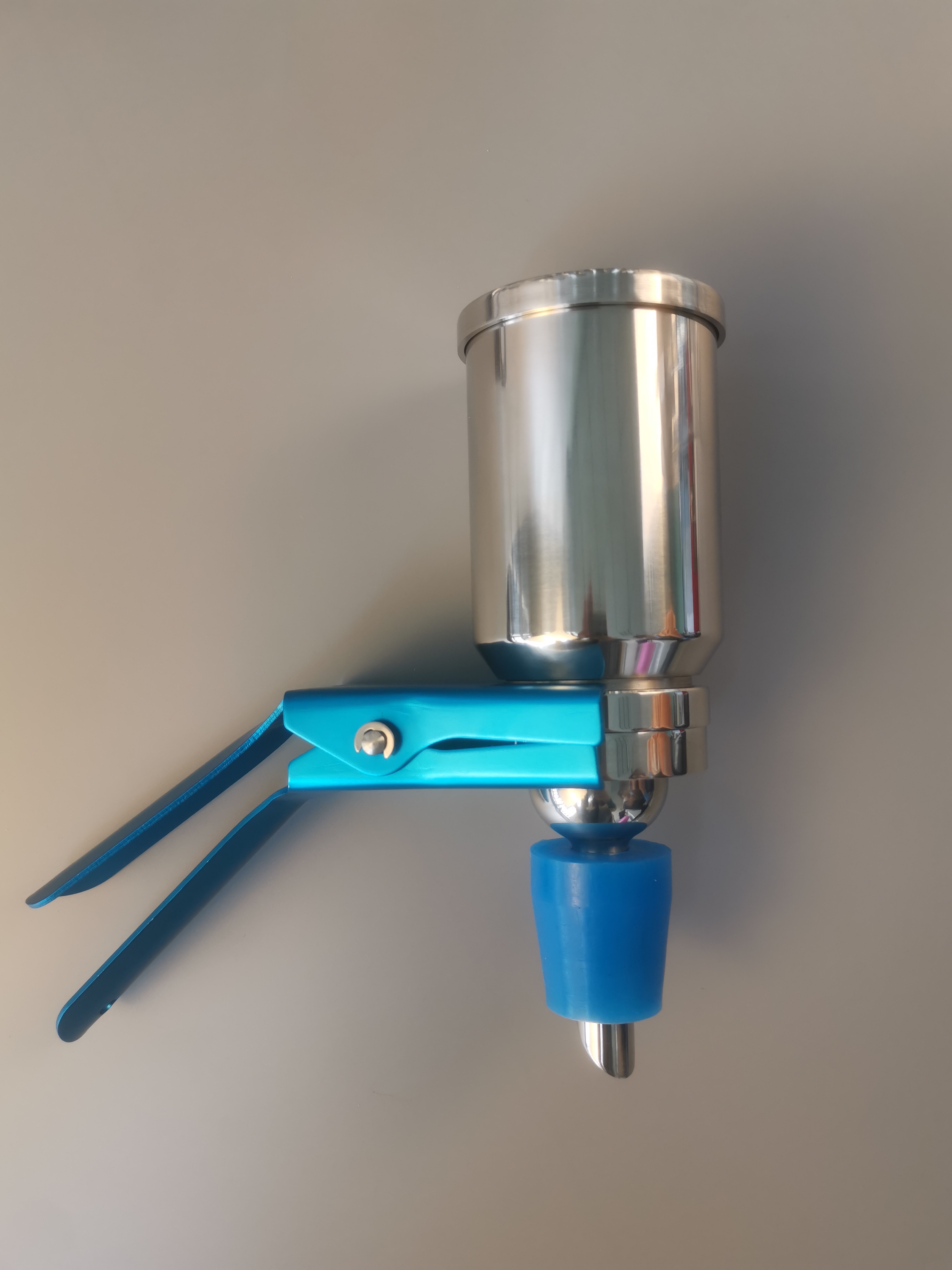

1. All stainless steel funnel (100ml, 300ml or 500ml)

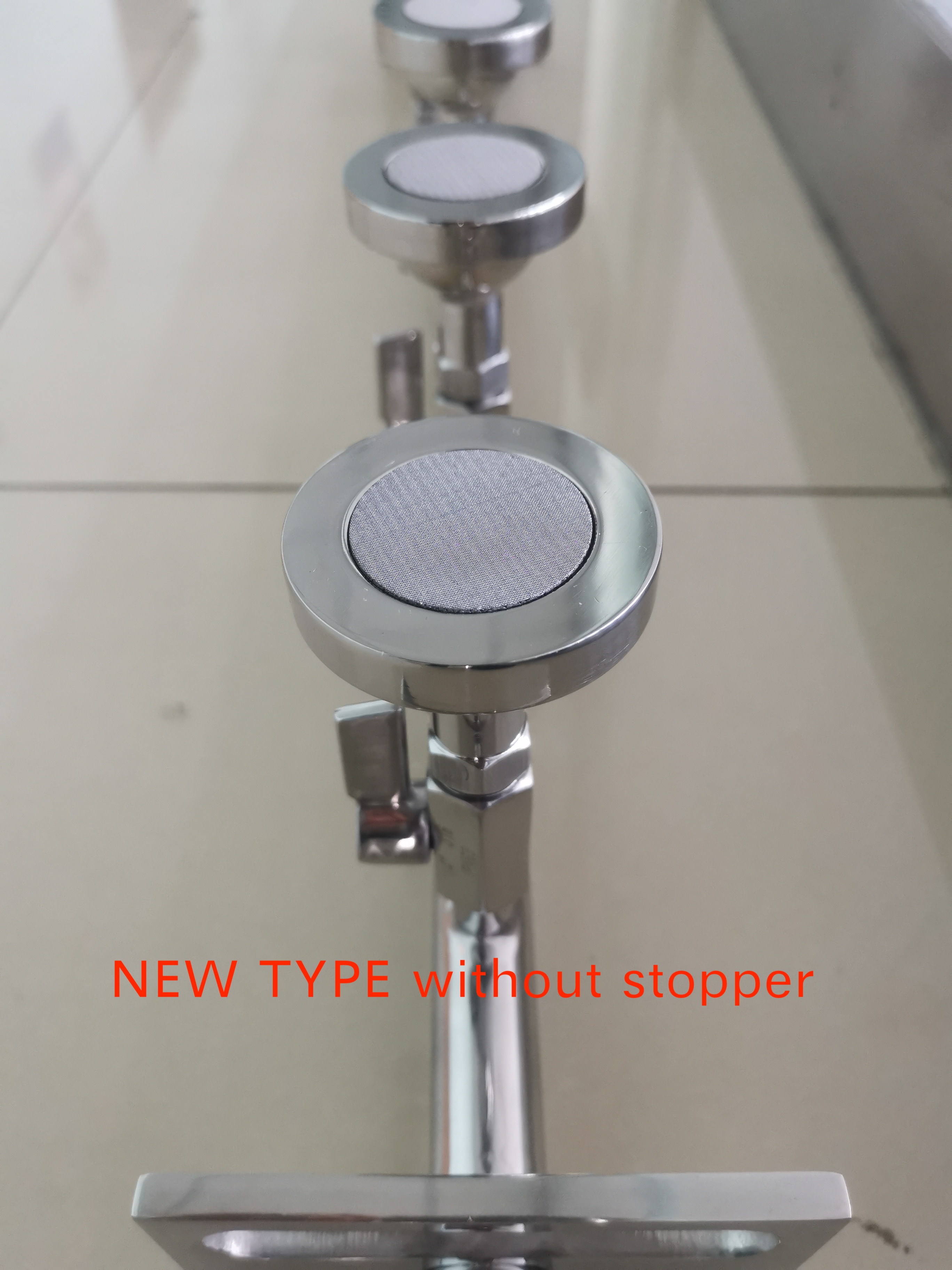

2. SS316L support screen (100μm)

3. Stainless steel bracket (SS316L)

4. Stainless steel 316 valve

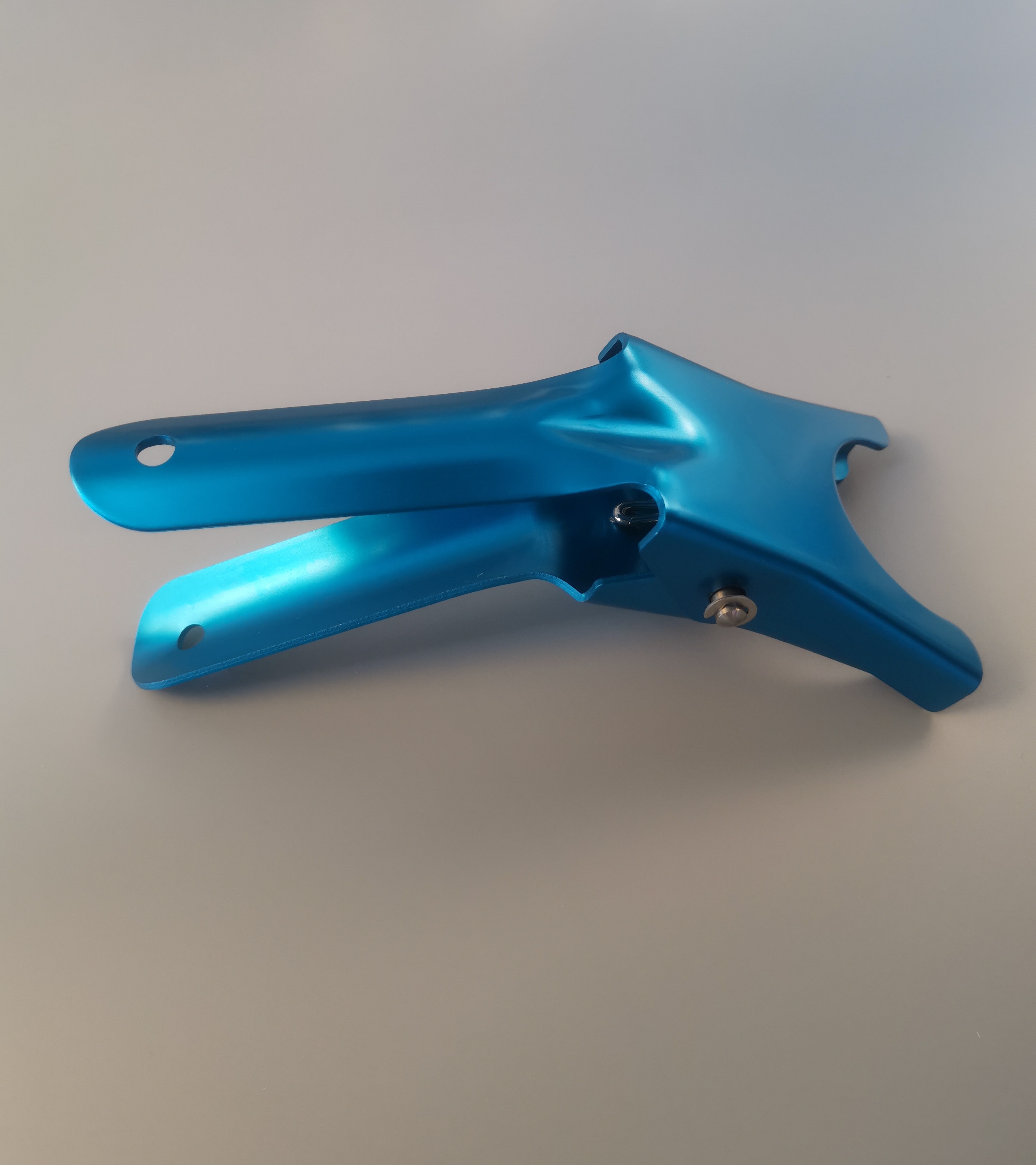

5. Clip (new type with screw connection, without clip)

Ordering Information

Spare parts (included)

Buy now and you can get a free receiving bottle
