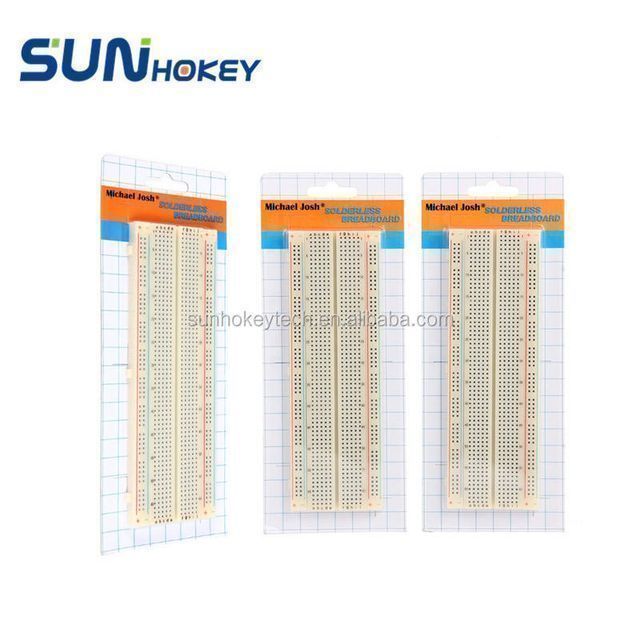

MB-102 Breadboard 830 Point Solderless Prototype PCB Breadboard Kit for Ardu Proto Shield Power Distribution Connection Block

MB-102 Breadboard 830 Point Solderless Prototype PCB Board Kit for Ardu Proto Shield Power Distribution Connection Block

describe:

The Breadboard 830 is a solderless (plug-in) breadboard with 830 connection points (ie 830 wire insertion holes).

It has 4 power rails. Solderless breadboards are great for building and testing new circuits because components can be easily inserted and removed.

They are completely reusable. The BB830 has a 630-point IC circuit area plus four 50-point power rails.

The housing is made of white ABS plastic and the printed legend provides numbers and letters for the columns and rows.

Internal contacts are phosphor bronze with nickel plated finish.

Supplied with peelable tape backing to attach to surfaces and optional metal backing available.

feature:

1) Insert wire size is 21 to 26 AWG, 0.016 to 0.028 in. diameter (0.4 to 0.7 mm in diameter) for use with DuPont patch cord kits
2) A total of 830 tie points. 200 in 2 power rails, 630 in 30 x 10 matrix, white plastic with black legend. Colored power rails with double-sided peelable tape
3) Dimensions: 6.5 x 2.2 x 0.3 inches (165 x 55 x 8.5 mm) Peelable tape backing for attaching to surfaces. Supplied with metal backplate.
4) Suitable for breadboard jumper kit projects and other electrical DIY kits
