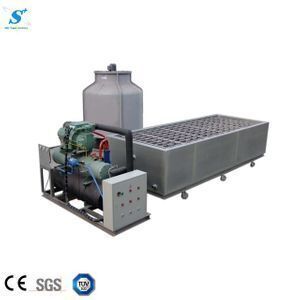

3000kg per day commercial block ice making machine

Supplier: Jiangmen Pro-Taylor Refrigeration Co., Ltd.
Region: Guangdong, China
Contact: Ms Tracy Chan
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Fiber wooden boxes;	Power(W):	11100;
Dimension(LWH):	270017701250mm;	Voltage:	110V/220V;
Supply Ability:	100 Set/Sets per Month;	Ice Shape:	Ice Block;
After-sales Service Provided:	No overseas service provided;	Body material:	Stainless steel;
Weight:	320kgs;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Port:	Jiangmen;	Certification:	CE;
Condition:	New;	Capacity:	3000kgs/day;
Brand Name:	Pro-taylor;	Place of Origin:	Guangdong China (Mainland);
Warranty:	1 year;

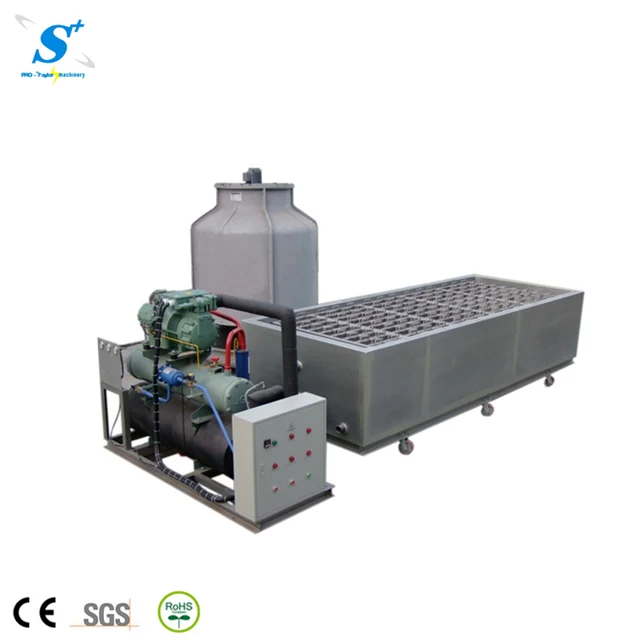

Product Pictures

Product Information

block ice making machine MB-30
Voltage	110V/220V
Frequency	50Hz/60Hz
Rate power	11.1KW
Production	3000kg/day
Dimensions	270017001250(mm)
Temperature range	-10 to -5°C

Product Details

Working Instructions:

Supply power: 380V, 50HZ, 3P or 220-240V, 50HZ, 3P or 220V-240V, 60HZ, 3P or 380V,60HZ, 3P
Standard working conditions:
Evaporating temp:-15
Condenser temp: +40
Ambient: 40
Refrigerant:R22/R404a
Cooling system: Air cooling or Water cooling system

Crane System
Crane system includes crane, water filling equipment, ice falling shaft, ice thawing tank.
Crane system is designed to match with ice block machine to place ice blocks.

Crane Equipment

Equipment Name	Quantity	Material and others
Crane System	1	Channel Steel, I-bar steel, motor and so on single rails
Electrical hoist	1	Crane Capacity:0.9tons, single track
Crane whole dimension	1	13M(L)*4M(H)
Water filling system	1	Stainless steel plate
Ice falling shaft	1	Iron plate
Ice thawing system	1	Stainless steel plate
Crane supporters	8	Channel steel
