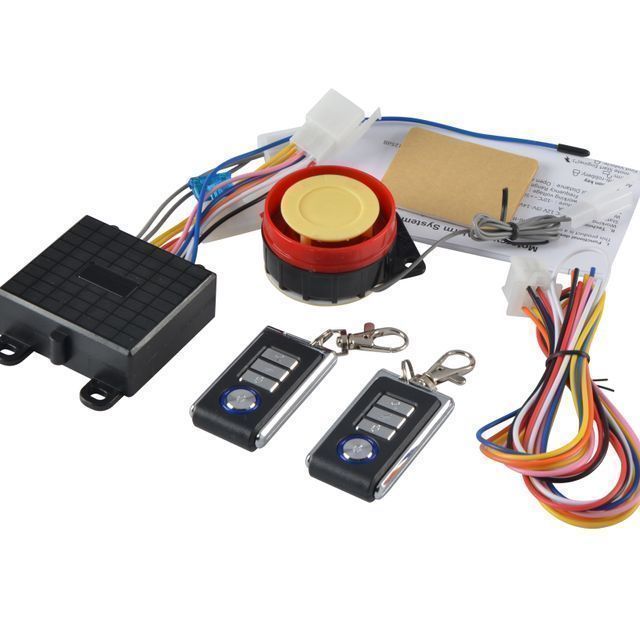

2R5006 Universal anti-shear safety electric motorcycle remote control alarm system with key

Product details
model:commonServing:-20℃~+85℃
Minimum order quantity:200 setspack:1 set color box; 50 or 40 sets in one carton
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramSupply capacity:1000 boxes per day
place of origin; place of origin:Zhejiang, ChinaPackaging Preview:
Material:The product comes with a button batteryOperating Voltage:12V±3V
model:M558-2R5006Packaging Details:Plastic bag sealed packing + carton packing 1pc/pc/box
Warranty:1 yearsize:78*64*24mm
brand:sun wolfAlarm Loudness:120dB-125dB
Product Description

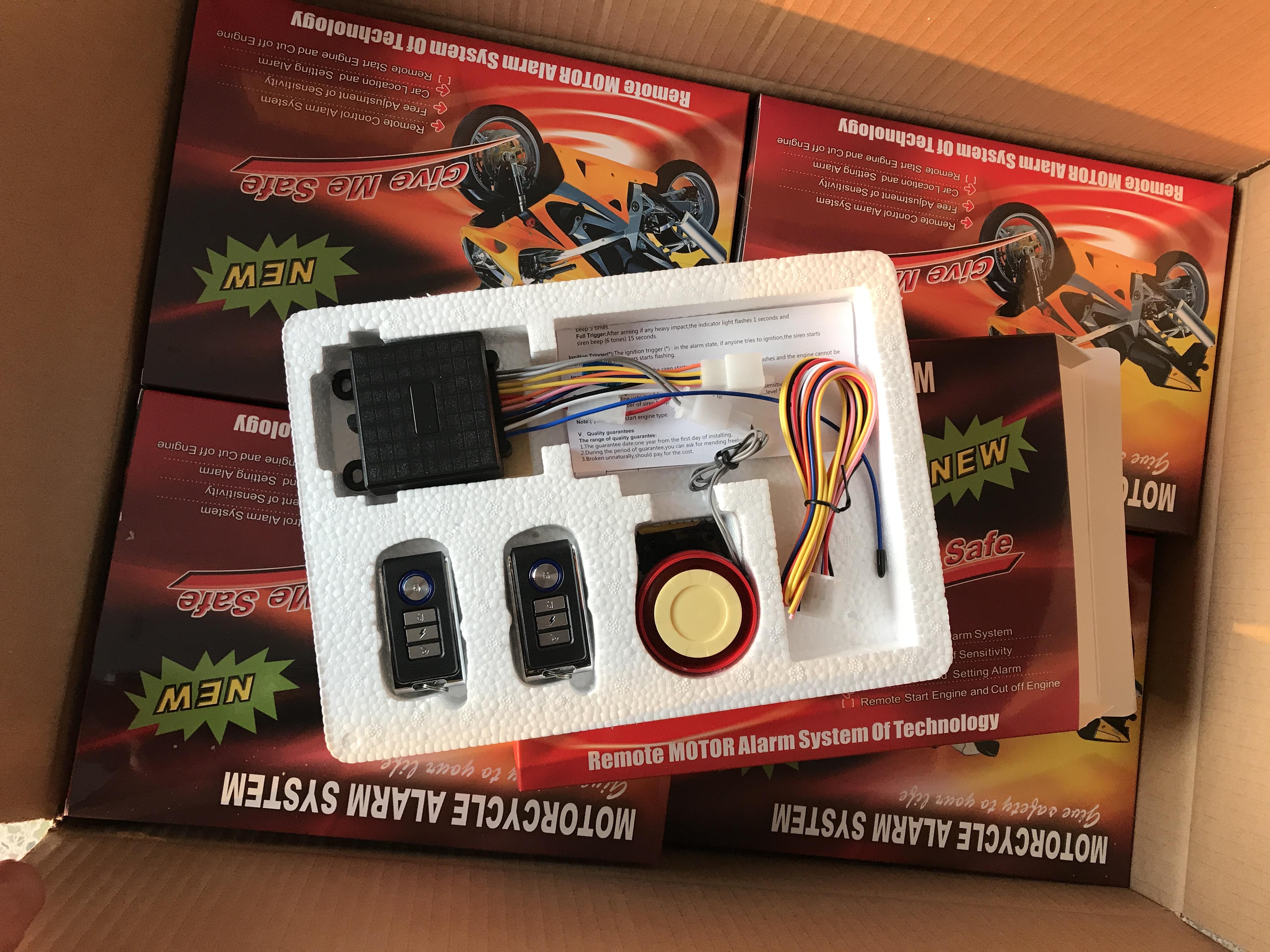

Large color box packaging
Foam inner box + large color box packaging (1 set/box) + 40 boxes/piece
Small color box packaging
Foam inner box + small color box packaging (1 set/box) + 50
box/piece
Motorcycle Alarm System Manual
motorcycle alarm system
Please read this manual carefully before use
This product is a motorcycle anti-theft device to deter thieves and increase the difficulty of theft.
Introduction of remote control function keys
Arm/Anti-theft: Set the sound and light security and anti-theft alarm status.
Disarm: Disarm the fortification, and the remote control engine will turn off.
Remote start engine (optional): remote start, intelligent car warm-up.
Find a car: sound and light to find a car.
technical parameter
Working voltage: DC 12V (9V-14V)
Quiescent current: ≦6mA
Working temperature: -20℃~+70℃
Alarm loudness: 125dB
Remote control battery: 2*CR2025 or 2*CR2016 or 27A Voltage: DC 6V or 9V or 12V;
Remote control frequency range: 315MHz or 433MHz
Remote control distance: open area≧60M
feature
Audible alarm:After parking, short press the button, the direction light flashes, the horn makes a "beep", and it enters the sound and light alert state.Silent anti-theft (optional):After parking, press and hold the button for 3 seconds, the direction light flashes 3 times, and enter the silent alert state. (In this state, if the vibration is triggered, there is no sound alarm, and the direction light flashes)Disarm:Short press the button, the direction light flashes twice, the speaker "Bi, Bi" twice, disarm;Reinforcement hints (options):After parking, if there is no guard within 20 seconds, the horn will make 3 beeps, the direction lights will flash, and the car owner will be automatically reminded to set up security in time.Attack Alert:In the alert state, forced start, sound and light alarm, the engine is powered off.Find a car:Press the button to find the vehicle, the horn will beep, and the direction lights will flash at the same time to inform the location of the vehicle.Remote start ON (option):After connecting, press the button twice to start the engine, or press and hold the button until the start is successful, and you can drive without a key. In the starting state, press the button to stop the engine.Anti-theft (option):In the event of a robbery during driving, press the button, the direction light flashes, and the horn periodically alarms, which acts as a deterrent and calling, and presses the button to stop.LED anti-theft warning (optional):In the state of anti-theft alarm, the LED light flashes to warn.

Vibration sensitivity setting (factory default level 2)Long press the button, the remote control can adjust the induction sensitivity of 1 to 3 levels, and set the level according to the number of siren sounds (level 1 is the lowest, level 2 is moderate, and level 3 is the highest). level, release the button, the speaker is called, the currently selected sensitivity is saved, and the system automatically enters the armed state.
Vibration sensor alarm
Level 1 vibration alarm: the horn 5 times, the direction light flashes 5 times; Level 2 vibration alarm: the horn sounds for 15 seconds, and the direction light flashes for 15 seconds;
Remote learning method (optional)
In the disarmed state, rotate the button from Acc-Off to Acc-On 6 times, the speaker "BIBIBI" enters the learning state, click any button on the remote control, the speaker "BIBI", the learning is successful and automatically exits. Repeat the above operation to learn another remote control, the system can only save two remote control.

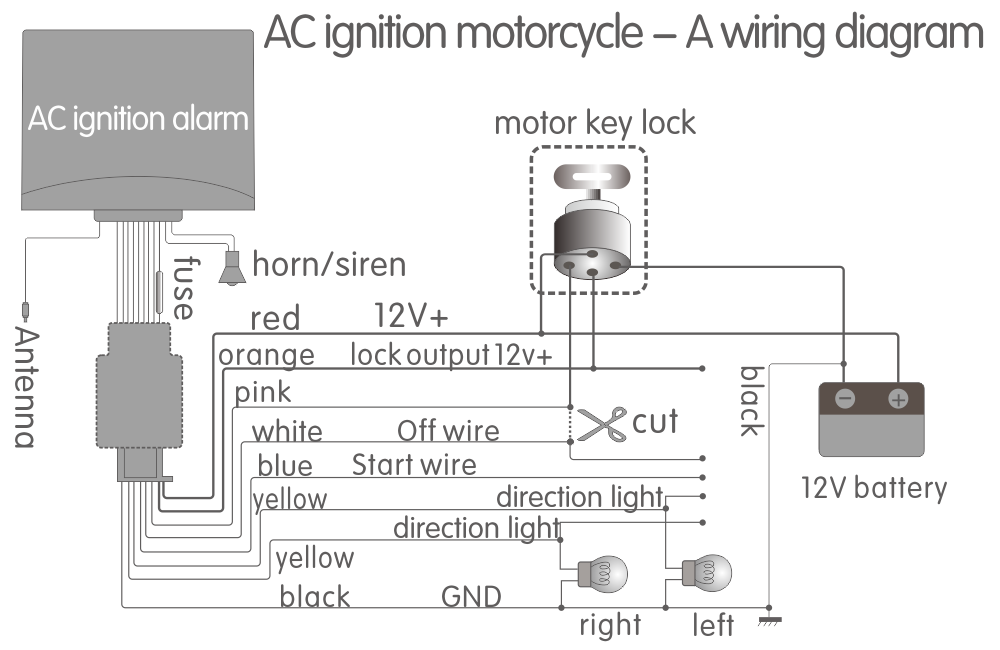

AC ignition alarm
It is recommended to install an "AC ignition alarm" for AC ignition motorcycles, such as the wiring diagram.

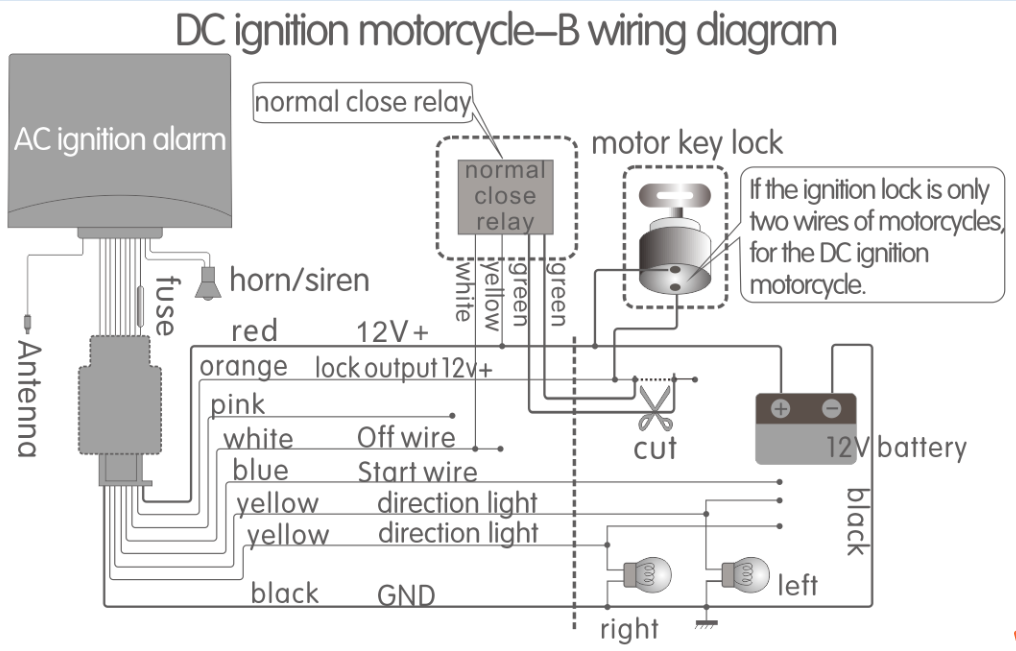

Ignition motorcycle-B wiring diagram
If the ignition lock has only two wires, it is a DC ignition motorcycle. Note: If a motorcycle with DC ignition
To install the "AC ignition alarm", you need to buy a relay, such as the B wiring diagram.
DC ignition alarm

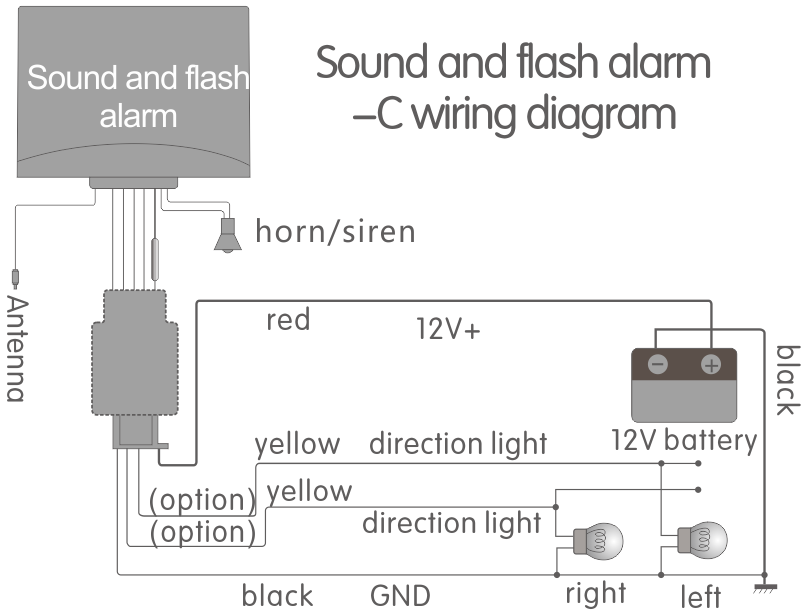

DC ignition motorcycle is recommended to install "DC ignition alarm", such as C wiring diagram.
Host installation
When installing the host, the connection port should face the ground to prevent rainwater from infiltrating. Do not bundle the antenna with wires and try to straighten it away from metal to ensure the best signal reception.
speaker installation
When the speaker is installed, the sound outlet should be slightly downward to prevent the infiltration of rainwater.
Reminder This remote control is made of precision, please do not throw or splash water. When you find that the remote control distance is shortened or the remote control LED is dimmed, replace the battery. The anti-theft device increases the difficulty of theft, acts as a deterrent to thieves and reminds the owner.
product quality assurance
Warranty time: within six months from the first day of installation. Warranty is limited to the product itself, such as malfunction, void, damaged wires. The alarm horn, remote control, and the main unit are out of warranty due to water ingress, battery damage, and self-replacement of circuit components. The battery of the remote control is a consumable item, if it is not installed correctly, it will be burned, and it will not be covered by the warranty.
Specification
thing
value
brand
sun wolf
Material
The product comes with a button battery
model
common
place of origin; place of origin
China
Zhejiang
Warranty
1 year
model:
M558-2R5001
size:
78*64*24mm
Operating Voltage:
12V±3V
Serving
-20℃~+85℃
Alarm Loudness:
120dB-125dB
Minimum order quantity:
200 sets
pack:
1 set in color box; 50 or 40 sets in a carton
