Hot Selling Export European Market 110 PC Thread Cutting Hand Tool Box Tap and Die Set

Supplier: Hangzhou Pangong Tool Co., Ltd.
Region: Zhejiang, China
Contact: Mr Allen Pan
Price: $45.00 / >=500 sets
Min. Order: 500 sets

Click here to contact

Product details

place of origin; place of origin:	Zhejiang, China	standard:	Metric, UNC&UNF, Combination
Packaging Details:	Hot Selling Export European Market 110 PC Thread Cutting Hand Tool Box Tap and Die Set PT110-2 Unit Packing: Metal Case; 3 Sets 1 Box 1 Box Size: 45X34X17cm; Net Weight/GW= 23/24kg	color:	bright or black or gold
Material:	High-speed steel, alloy steel	e-mail:	sales5 (at) global-pan.com
type of packaging:	metal shell	Number of pieces:	110PCS
application:	Thread Cutting and Tapping, Hand Tools	Certificate:	ISO, VPA, TUV, BSCI, etc.
type:	Taps and Dies	HP (Whats app):	0086-15988838812
Original Equipment Manufacturer:	acceptable	port:	Ningbo/Shanghai
Supply capacity:	10000 sets per month	brand:	Tungsten (OEM acceptable)
model:	PT110-2	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Faucets and Dies
Name:	110PC Thread Cutting Hand Tool Box Taps and Dies

Taps and dies are hand cutting tools used to make threads, known as threading. A tap is used to cut the female part of a mating pair (for example, a nut). Dies are used to cut the male part of the mating pair (eg, screws). The process of cutting a thread with a tap is called tapping, while the process of using a die is called threading. Both tools can be used to clean up threads, which is called chasing.

Product Description

Specification

1.OEM:acceptable

2. Logo printing:We can print your logo on the handle and packaging.

3. Free samples: We are willing to provide free samples.

Hot Selling Export European Market 110 PC Thread Cutting Hand Tool Box Tap and Die Set

Metric

35PC mould size: 2×0.4 3×0.5 4×0.7 5×0.8 6×1.0 6×0.75 7×1.0 7×0.75 8×1.25 8×1.0 8×0.75 9×1.25 9×1.0 9×0.75 10×1.5 10 ×1.25 10×1.0 10×0.75 11×1.5 11×1.25 11×1.0 11×0.75 12×1.75 12×1.5 12×1.25 12×1.0 12×0.75 14×2.0 14×1.5 14×1.25 14×1.0 16×2.0 16×1.5 16×1.0 18×1.5
35PC taper and plug tap: same size as die
2PC tap wrench
1PC T-Wrench 1/4" Capacity
1PC Mold handle 1"OD
1PC Die Handle 11/2" OD

American Society of Automotive Engineers

35PC mold size: 4-40 4-36 6-32 6-40 8-32 8-36 10-24 10-32 12-24 12-28 1/4-20 1/4-28 1/4-24 1 /4-40 5/16-18 5/16-24 5/16-32 3/8-16 3/8-24 3/8-32 7/16-14 7/16-20 1/2-10 1 /2-13 1/2-20 9/16-12 9/16-18 5/8-11 5/8-18 11/16-12 11/16-16 3/4-10 3/4-16 1 /8NPT27 1/4NPT18
35PC taper and plug tap: same size as die
2PC tap wrench
1PC T-Wrench 1/4" Capacity
1PC Mold handle 1"OD
1PC Die Handle 1-1/2" OD

combination

35PC die size:
4-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/4"-20, 1/4"-28, 1/4"-24, 1/4"- 40, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13 , 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 6×1.0, 8×1.25, 10×1.5, 10×1.0, 11×1.5, 12×1.25, 12×1.75, 14×1.25, 18×1.5,1/8NPT27,1/4NPT18
35PC taper and plug tap: same size as die
2PC tap wrench
1PC T-Wrench 1/4" Capacity
1PC Mold handle 1"OD
1PC Die Handle 1-1/2" OD

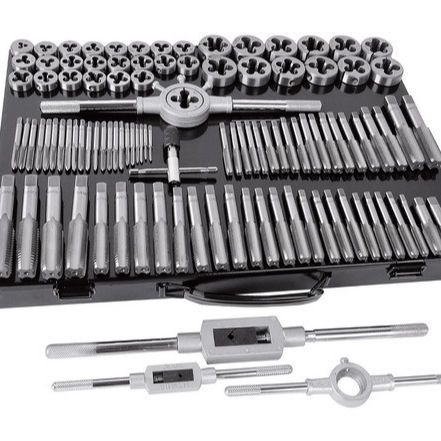

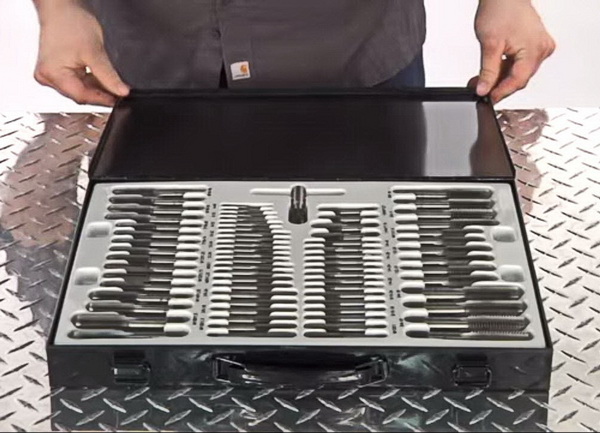

PT110-2 picture

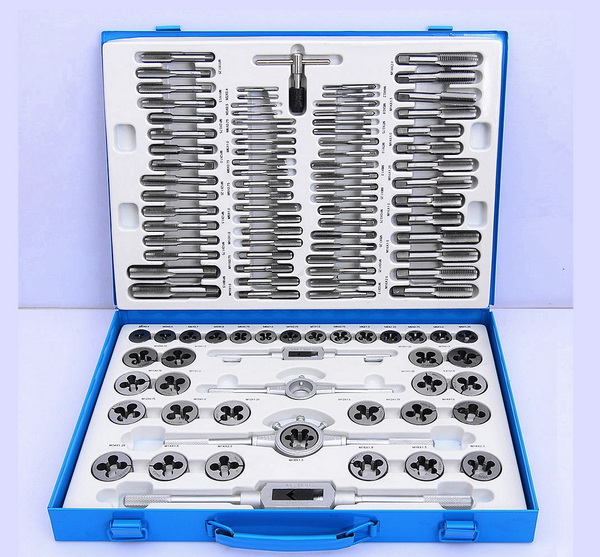

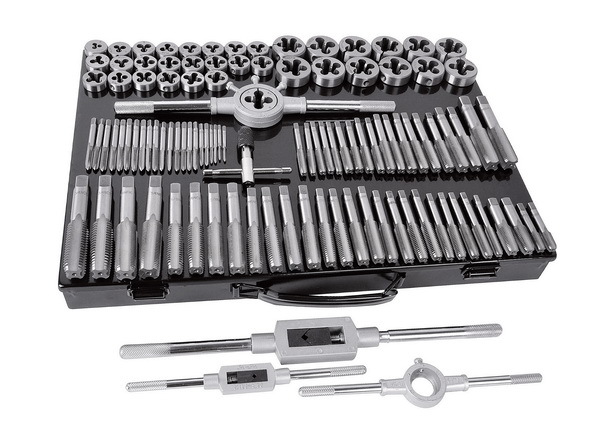

110PC Thread Cutting Tool KitInclude:

70 Taps + 35 Dies + 2 Tap Wrenches + 1 T-Shaped Tap Wrench + 2 Die Handles

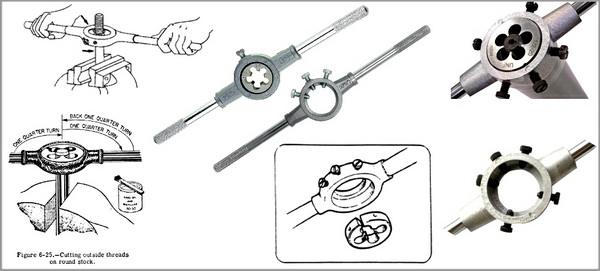

How to create external threads:

1. Select the desired thread diameter and associated pitch.

2. Select the appropriate bolts and fix the appropriate mold in the mold. Before positioning the die on the bolt, deburr the workpiece and file it to a slight taper.

3. Turn the die set back and forth several times to cut off the external threads. Keep the workpiece lubricated with cutting oil. State cutting can only be done from the marked side.

How to Create Internal Threads:

1. Select the desired thread diameter and associated pitch.

2. Drill a pilot hole of suitable diameter.

3. Secure the appropriate tap on the tap wrench. Turn the tapping tool back and forth a few times to cut the thread while pouring cutting oil into the drilled hole.
