Hot Sale 8 Port Video Hot Switches Kvm Switches 4K 30hz Resolution KVM Switch HDmi

Supplier: Shenzhen Hongshi Industrial Co., Ltd.
Region: Guangdong, China
Contact: Ms CoCo Hu
Price: $130.00 / 2 - 99 pieces
$95.00 / 100 - 499 pieces
$89.00 / >=500 pieces
Min. Order: 2 pieces

Click here to contact

Product details

product name:	KVM switch HDMI	place of origin; place of origin:	Shenzhen, China
standard:	HDMI 1.4	Monitor connection:	1 port
Power consumption:	5.5W max	product status:	in stock
Interface Type:	HDMI	support:	3D
Resolution:	4Kx2K@30Hz	Computer connection:	8 ports
brand:	Homeke	Warranty:	1 year free warranty
model:	S7809H	Connector:	HDMI-A interface

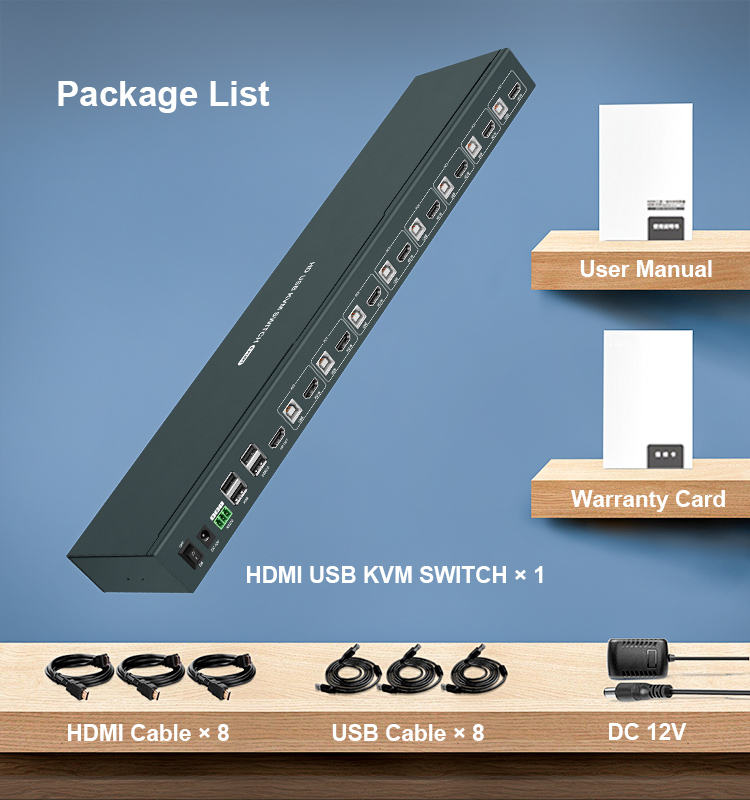

payment terms:	Western Union, D/P, D/A, T/T, MoneyGram	Packaging Details:	Usb Kvm Switch S7809H Size: 402710.5cm Weight: 2.2kg Packing Type: 1, Neutral Box/OEM Box 2, Single Size: 4459535mm 3, Included Accessories: HDMI KVM 81 Switch Host1pcs HDMI cable8pcs RS232 terminal1pcs USB-A to USB-B cable8pcs hardware accessories2pcs power adapter1pcs foot pad8pcs user manual1pcs warranty card1pcs
Supply capacity:	100,000 sets per month	Private model:	Do not
HDMI cable range:	<5M (resolution: 1920*1080@60Hz)	Interface Protocol:	USB1.1(2pcs),USB2.0(2pcs)
Resolution range:	Up to 4Kx2K@30Hz	aspect:	4459535mm
Packaging Preview:

Product Description

HDMI KVM Switch S7809HSelling point:
HDMI KVM SWITCH S7809H switches eight groups of high-definition audio and video sources and USB interfaces to achieve free switching. Adaptive EDID can adapt to various complex application environments. The device supports front panel keys and keyboard hotkeys to control the KVM switch. It has excellent image processing and transmission capabilities, making the output signal more smooth and stable, and is a reliable, high-performance and efficient HDMI USB switching method.

contact us

detailed picture

HDMI KVM Switch S7809Hfeature:

l. Use one set of keyboard, mouse and monitor to control 8 host devices.

2. Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian and other Linux systems.

3.Each input port has an EDID emulator to keep the PC with the correct display information all the time, when the switch is connected to the dual screen, all EDIDs will be updated.

4. Support KVM switch to hot-plug, connect or disconnect devices at any time without shutting down the device.

5. Support front panel keys and keyboard hot keys to control KVM switch.

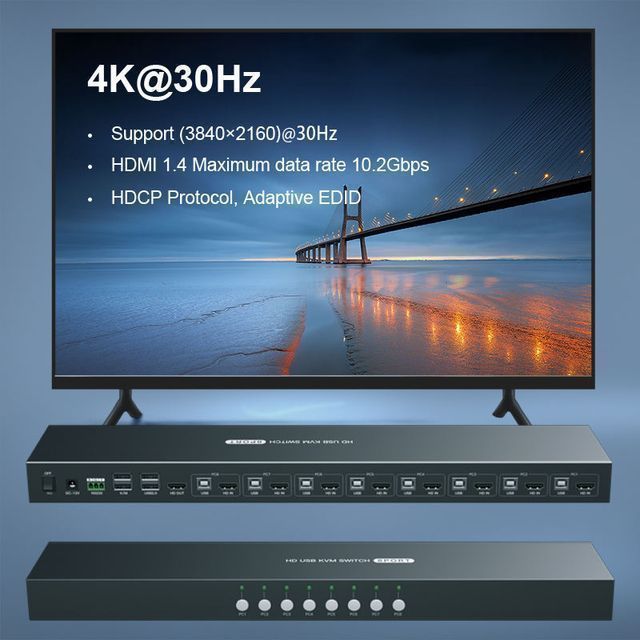

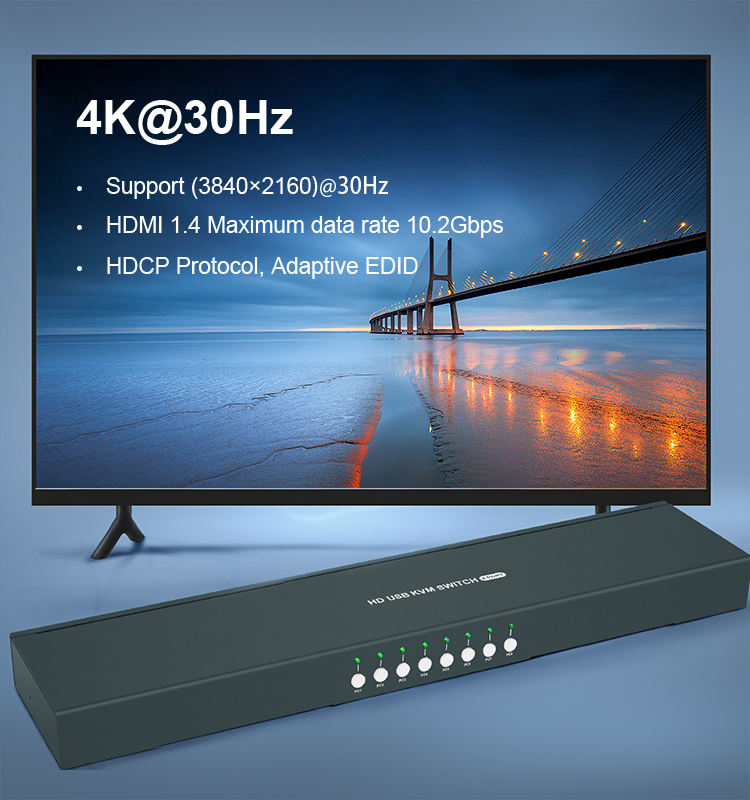

6. Support resolution up to 3840*2160@30Hz.

7. Supports DVI-D single link sources and monitors using an HDMI to DVI adapter.

HDMI KVM Switch S7809HApplication scenarios:

HDMI KVM SWITCH S7809H is widely used in office, video conference, security, finance, multimedia teaching, HDMI signal extension, etc.

Product parameters

Hot Sale 8 Port Hotkey Video Kvm Switch 4K 30hz Resolution KVM Switch Hdmi

scope			describe
video	standard	HDMI 1.4
		Max pixel clock	225MHz
		maximum data rate	10.2Gbps
		Resolution range	Up to 4Kx2K@30Hz, 3D
		Connector	HDMI-A interface
		impedance	100Ω
		HDMI cable range	<5M (resolution: 1920*1080@60Hz)
USB	Interface Protocol	USB1.1 (2), USB2.0 (2)
		PC input interface type	USB-B
		Output interface type	USB-A
other	power supply	Power adapter: DC 12V
		Power consumption	5.5W max
		temperature	Working: -5℃ ~ +70℃
		humidity	Running: 5% ~ 90%
		aspect	4459535mm
		Warranty	1 year free warranty
