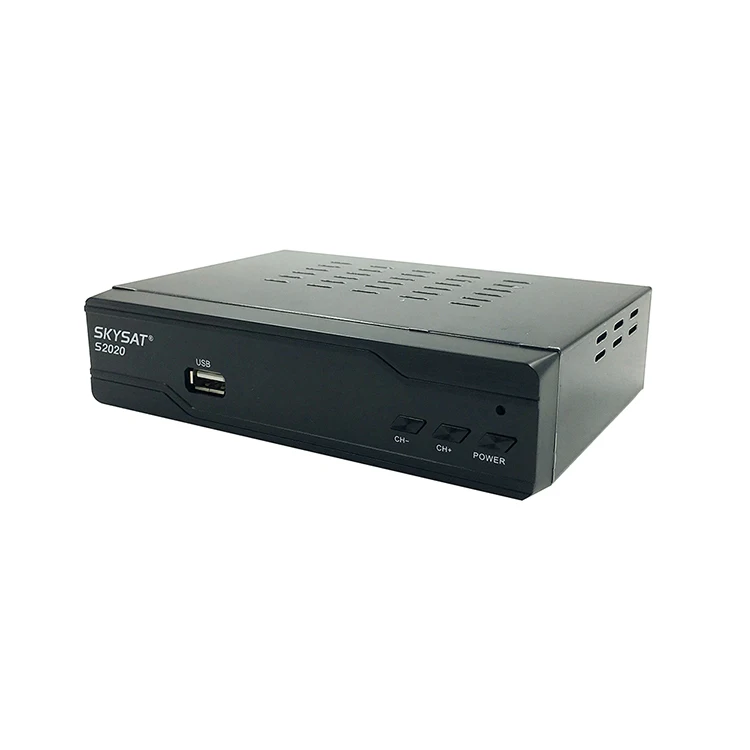

New arrival SKS IKS IPTV HD Satellite Receiver decoders with chipset Ali3526 SKYSAT S2020 for South America

Supplier: Shenzhen Sat-Sources Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Jacky Tsai
Price: $31.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Support iptv.m3u:	Yes;	Package Type:	Gift box size: 23.7x17.1x5.1cm Gift box weight:0.58kg 20pcs/carton Carton size:49x27.6x36.3cm Carton weight:12.5kg;
H.265:	Yes;	Type:	Digital;
FTA(Free To Air):	Yes;	Place of Origin:	Guangdong China (Mainland);
VOD:	Yes;	Delivery Detail:	0 days after payment;
High Definition:	Yes;	Tuner:	Twin Tuner;
Single package size:	24X17X5.1 cm;	Model Number:	S2020;
Brand Name:	SKYSAT;	Full HD 1080P:	Yes;
ACM:	Yes;	Support CCCam/Newcamd:	Yes;
Single gross weight:	0.6 KG;	Selling Units:	Single item;
IKS:	Yes;	VCM:	Yes;
SKS:	Yes;

New arrival SKS IKS IPTV HD Satellite Receiver decoders with chipset Ali3526 SKYSAT S2020 for South America

-Ali3526 chipset

-Support H.265(HEVC),MPEG-4,fully DVB-S2 Compliant

-IKS,SKS via ACM

-SKS Satellite: 30W(ACM),63W(ACM),58W,61W,87.2W,107.3W(ACM), 53W,22W(ACM),15W(ACM)

-Brazil VOD

-Support IPTV,Xtream-codes IPTV,m3u via USB,m3u via internet

-with LAN port, support WiFi,3G,VPN

-USB2.0,PVR Ready

-Support Youtube,Youporn,Redtube,Dailymotion,DLNA,FTP Client,etc

-Support CCCam,Newcamd,Mgcam

-Support Autoroll Powervu,Biss,Tandberg,Viacess,etc

Main Features
-Fully DVB-S/DVB-S2/MPEG-2/MPEG-4/H.264/H.265/AVC Compliant -DiSEqC 1.0/1.1/1.2 and USALS -Twin Tuner(Tuner1,Tuner2) -LAN/Ethernet connector -Aspect ratio adjustment 4:3(16/9 crop),4:3(16/9 letterbox),16:9(4/3 pillar box) -HDMI Video & Audio Output(576i,576p,720p,1080i,1080p) -Dual USB for Multimedia Player(MP3,MP4,OGG,MKV,JPEG,BMP,etc) -Dolby Digital Bitstream Out through S/PDIF(Coaxial) -Multiple Video Output "HDMI OUT,CVBS" -News, Map and Weather Application via IP -8000 TV & Radio Channels Supported -Multi-Language OSD(Spanish, Portuguese, English etc) -PVR Time Shift and Playback Supported -Transportation Stream Recording Supported -NIT Auto Search, Blind Search, Manual Search, TP Search and Multi-Search -7 Days EPG(Electronic Program Guide) -Games Supported -Software Upgrade and Channel Database Update by USB or RS232 -Low Power Consumption Standby
Specification
1. Tuner & Channel	2. MPEG Transport Stream & A/V Decoding
Type 1 ´ F Type, IEC169-24, Female Frequency Rage 950MHz to 2150MHz RF Impedance 75 Ohm unbanlanced Signal Level -65 to -25 dBm LNB Power 13/18Vdc +/- 5%, 0.5Amax, Overload Protected 22KHz Tone Frequency :224KHz +/- 2KHz, 0.6Vpp +/- 0.2V DiSEqC Control Version1.0, 1.2, Tone burst A/B Demodulation QPSK, 8PSK Input Symbol Rate DVB-S QPSK : 1~45 Msps DVB-S2 8PSK/QPSK : 10~30Msps FEC Decoder 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10 in DVB-S2 mode. 1/2, 2/3, 3/4, 5/6 and 7/8 in DVB-S mode.	Transport Stream 13818-1 MPEG-2, H.265/AVC Transport stream Specification Profile Level MPEG-2 MP@ML, MP@HL, MPEG-4 H.264/AVC Input Rate Max. 90Mbit/s Aspect Ratio 4:3, 16:9, Letter Box Frame Rate 25Hz for PAL, 30Hz for NTSC Video Resolution 576i, 576p, 720p, 1080i ,1080P Teletext Through VBI Audio Decoding MPEG-1 Layer 1 & 2, Dolby Downmix Audio Mode Single Channel/Dual Channel Joint Stereo/Stereo Frequency Response 20~20kHz, <+/-2dB
3. System & Memory	4. A/V & Date In/Out
Main Processor Ali3526 Flash Memory 8MB DDR III Memory 2Gb Channel Capacity Digital Channel: 6,000 Front 3-Key(Power), 7-SEGMENT DISPLAY	HDMI Full HD/ Video/Audio Output Data Interface - RS-232, Bit Rate: 115,200baud Connector: 9-pin D-sub Male type USB : USB 2.0, Type A Connector,
5. Power Supply	6. Physical Specification
Input Voltage AC 100V ~ 240V, 50Hz ~ 60Hz Power AC 100V - 240V	Size(WxHxD): 14810234MM Weight:0.32KG
7. Environmental Condition	8. Packing
Operating Temperature 0 °C ~ 40 °C Storage Temperature -10 °C ~ 50 °C Operating Humidity Range 10~85% RH, Non-condensing Storage Humidity Range 5~90% RH, Non-condensing	Gift box size: 23.7x17.1x5.1cm Gift box weight:0.58kg 20pcs/carton Carton size:49x27.6x36.3cm Carton weight:12.5kg
