Powder Metallurgy Save 80% Cost Sintered Metal Mini Inner Ring Spur Gears Sun Planetary Gears
- 0.05 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Warranty: | 3 months | Package: | carton |
| usage: | Toy trains, sports cars, power tool parts, lock parts, etc. | Marketing Type: | New Products 2020 |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | payment terms: | L/C,Western Union,T/T,MoneyGram |
| Showroom location: | not any | size: | customer drawings |
| Weight (kg): | 0.2 | brand: | YXPM |
| Health status: | new | density: | 6.5~7.6 or as your request |
| Applicable industries: | Building Material Stores, Manufacturing Plants, Mechanical Repair Shops, Food and Beverage Plants, Farms, Home Use, Retail, Printing Stores, Construction Works, Energy and Mining, Advertising Agencies, Others | place of origin; place of origin: | Guangdong, China |
| Material: | Stainless steel, iron, brass, copper, aluminum, soft magnetic alloy, stainless steel | Production Process: | powder metallurgy |
| product name: | Sintered Metal Mini Inner Ring Spur Gears Sun Planetary Gears | shape: | branch line |
| Minimum order quantity: | 3000 | Packaging Preview: | |
| Video external inspection: | Not available | Core Components Warranty: | 3 months |
| feature: | High strength and high precision | Supply capacity: | 50000000 pieces/year |
| Mechanical test report: | Not available | Packaging Details: | carton |
| Certificate: | ISO9001:2015 |
product description

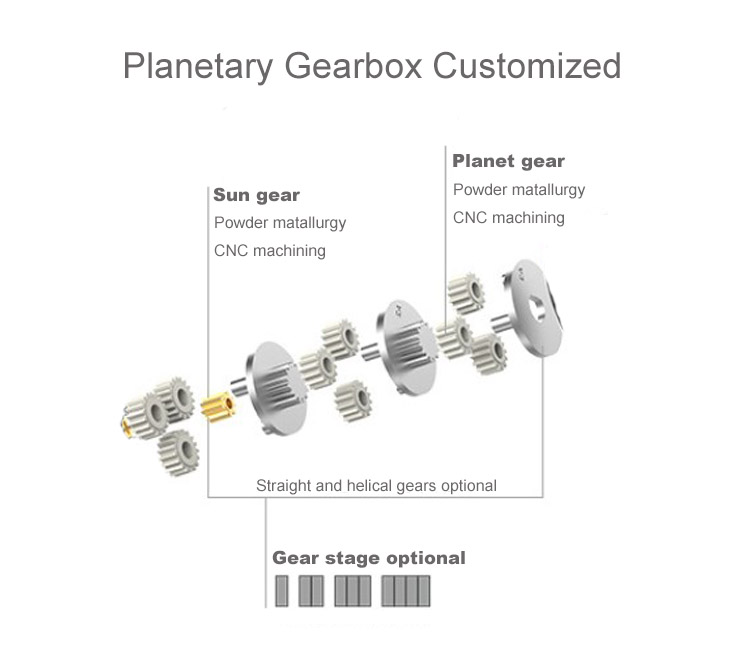

Miniature Planetary Gear Set
We are a manufacturer and exporter of sintered metal parts with 9 years of experience, mainly producing small spur gears, bevel gears, helical gears, pinions,metal bushing,miniaturePlanetary gear sets and othersSintered structural metal parts, any metal part can be customized. according to your drawings.

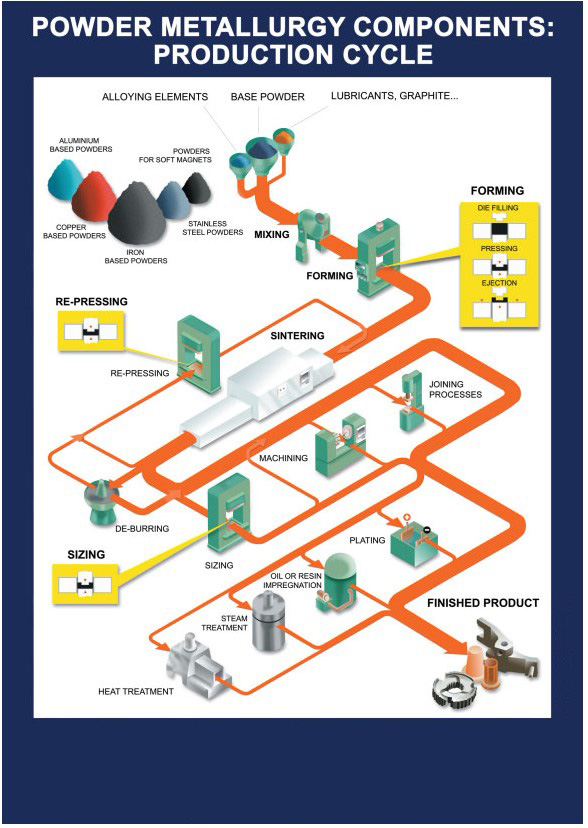

Powder Metallurgy (PM)is a state-of-the-art metal forming process for the production of mesh parts, typically using over 97% of the starting raw material in the finished part. It is basically a "chipless" metalworking process
Function list
Advantages of planetary gear systems
The more planets in the system, the greater the load capacity and the higher the torque density
slow downGet high power density
Small volume and big reduction
Pure Torsion Reactions and Multiaxial Systems
create greater stability
The more planets in the system, the greater the load capacity and the higher the torque density

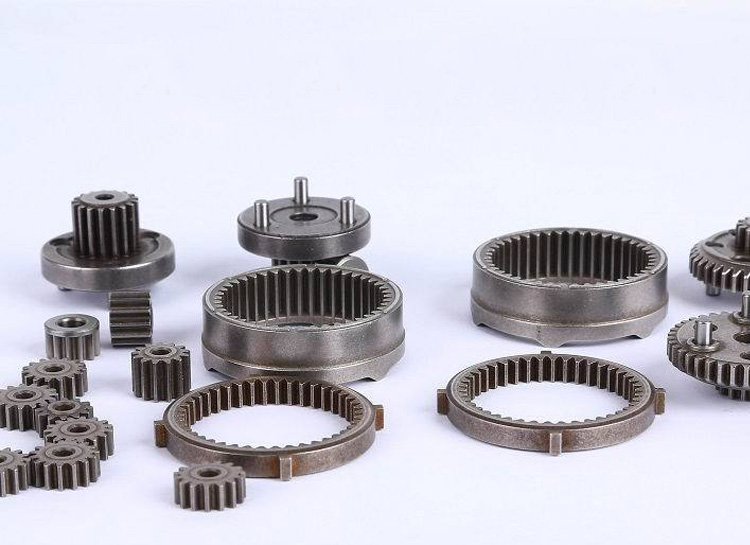

Sintered planetary gear

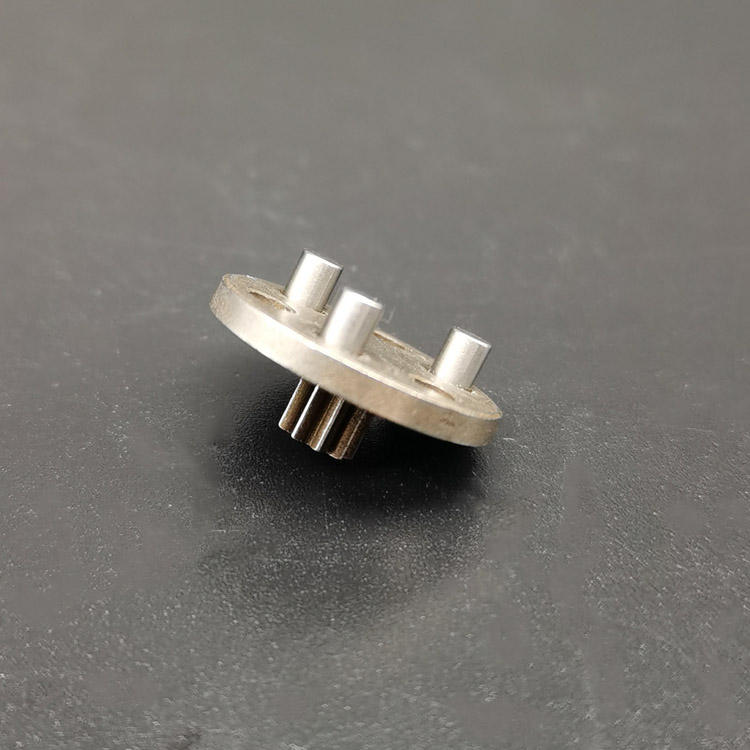

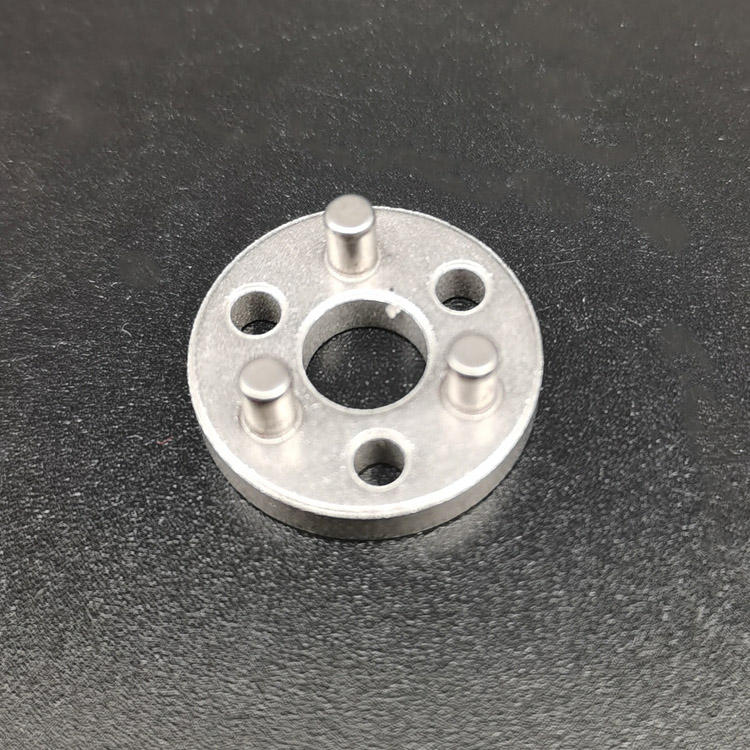

Sintered Planetary Metal Parts

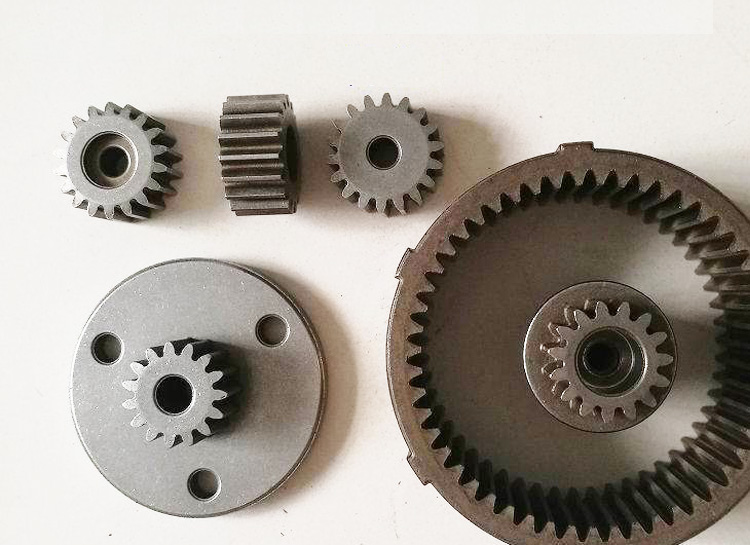

Sintered sun gear
Product Specifications
technology | powder metallurgy |
Material | Stainless steel, mild steel, iron, brass, copper, aluminum, soft magnetic alloys, custom blends |
gear stage | custom made |
density | 6.5~7.6 According to the material and your requirements |
tolerant | ±0.01mm or as your request |
size | Customized service according to your drawings (stp, dwg, igs, pdf), or samples |
sample | usable |
application | medical instruments electrical tools Automobile industry Appliances etc... |

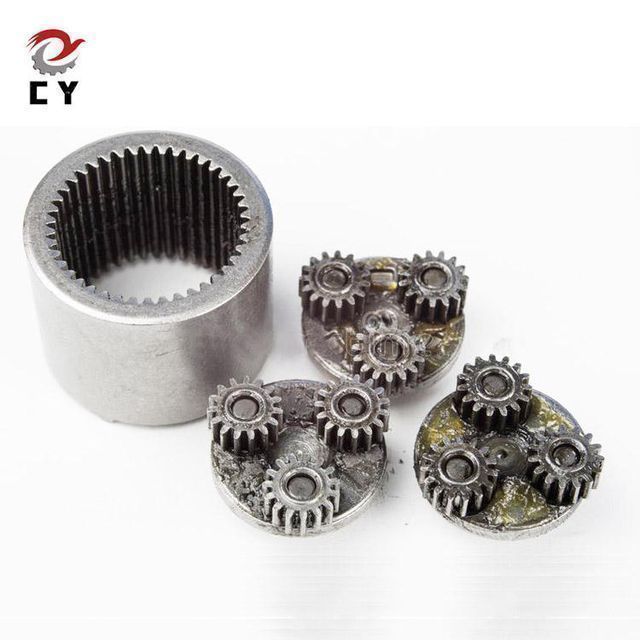

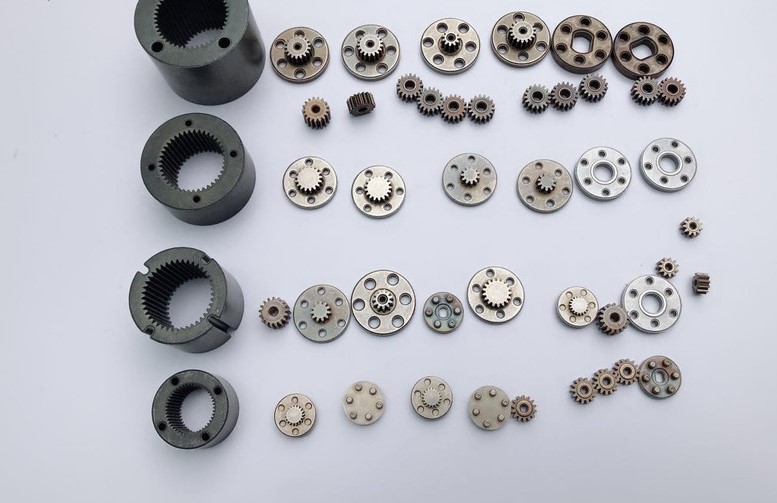

Small planetary gear sets, size and shape are custom
Small planetary gear system with 37mm outer diameter of sintered ring gear
Small planetary gear system, 59.6mm outer diameter sintered ring gear, 1 die gear

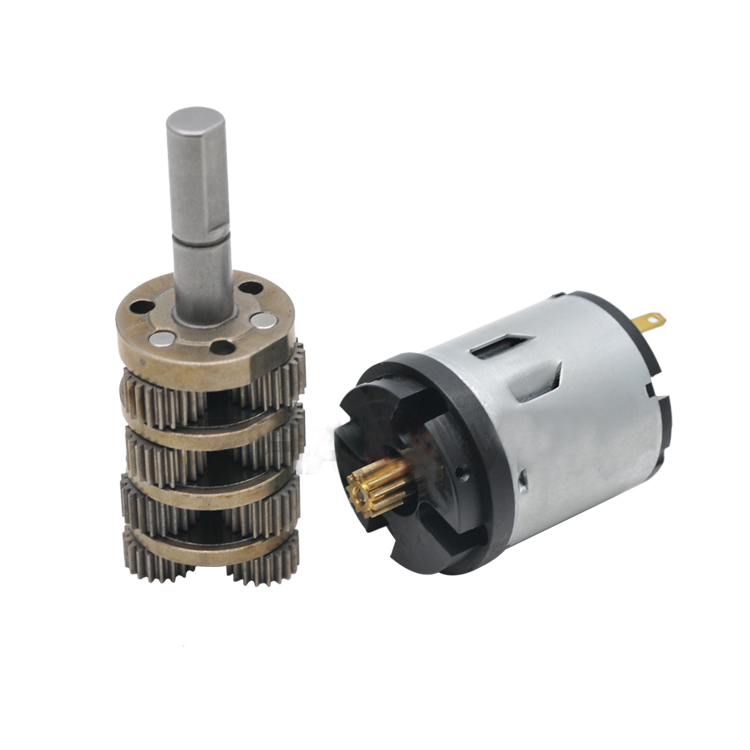

Planetary gearbox sets are used in various motors, used in power tool motors, screwdriver motors, home appliance motors, garden tool motors, industrial machinery motors
Benefits of using PM in gear manufacturing
* Capable of mass production of high-precision components.
*Only use the exact amount of material.
* Net shape production eliminates or minimizes machining.
* GTB's patented process can completely eliminate secondary
Cross holes are machined in some applications to further
Save material and processing.
* Density, or conversely porosity, can be precisely controlled to suit
special requirements.
* Allows to combine materials that cannot be produced in any way
Other methods, including dissimilar metals, non-metals, and
very different characteristics.
* Allows to design self-lubricating properties.
*Only use the exact amount of material.
* Net shape production eliminates or minimizes machining.
* GTB's patented process can completely eliminate secondary
Cross holes are machined in some applications to further
Save material and processing.
* Density, or conversely porosity, can be precisely controlled to suit
special requirements.
* Allows to combine materials that cannot be produced in any way
Other methods, including dissimilar metals, non-metals, and
very different characteristics.
* Allows to design self-lubricating properties.
Metal gears and production process can be customized. For more details or customization please feel free to contact us.
thing | afternoon | Precision casting | machining operations | stamping |
Applicable material range | High | above average | Moderate | Moderate |
Design tolerance | High | High | High | low |
Small size | High | low | High | High |
thickness | High | High | low | High |
Supply capacity | High | Moderate | low | High |
Raw material utilization | High | low | low | low |
property | afternoon | Precision casting |
Surface roughness | Ra1.6 | Ra1.6 |
Minimum thickness | 0.8mm | 2mm |
maximum thickness | 60mm | unlimited |
Minimum diameter | 0.5mm | 2mm |
Diameter tolerance | +/-_0.01mm | +/-_0.2mm |
