Endress Hauser/ Digital pH sensor Orbisint CPS11D-7BA21 CPS11D-7BT21 Memosens glass electrode/pH meter low price

Supplier: Shenzhen Yearstar Intelligent Technology Co., Limited
Region: Guangdong, China
Contact: Ms rosas Jiang
Price: $260.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	carton for a few and wooden box for mass;	Measuring principle:	Gel compact electrode with PTFE ring-diaphragm.;
pH Measuring Principle:	Glass electrode;	Model Number:	CPS11D-7BA21;
Delivery Detail:	3-5 days if it's in stock and 6-8 weeks if it's out of stock;	Port:	shenzhen;
Material:	Glass / PTFE;	Measurement range:	pH 0-14;
Ex certification:	ATEX FM CSA;	Payment Terms:	T/T,Western Union,paypal;
Brand Name:	Endress Hauser;	Supply Ability:	1000 Piece/Pieces per Month;
temperature sensor:	NTC 30k;	Place of Origin:	Jiangsu China (Mainland);
Ingres protection:	IP68;

Digital pH sensor Orbisint CPS11D is Memosens glass electrode for standard applications

CPS11D-7BA21

CPS11D-7BA2G

CPS11D-7BT2G

CPS11D-7AA21

CPS11D-7BT21

CPS11-2BA2ESA

Those are on stock

Orbisint CPS11D is the digital all-rounder for process and environmental technology. It measures reliably even in highly alkaline media or hazardous areas. Designed for low maintenance and a long operating life, the electrode offers you best value for money. Thanks to Memosens digital technology, CPS11D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.

Benefits

Robust electrode requiring low maintenance due to large, dirt-repellent PTFE ring diaphragm
Certified biocompatibility
Long service life due to double junction reference system and thus long electrode poison diffusion path
Process glass for highly alkaline applications available
Application under pressures of up to 16 bar (232 psi)
Maximum process safety through no-contact inductive signal transmission
Easy handling due to storage of sensor-specific data

Field of application

Long-term monitoring and limit monitoring of processes with stable process conditions:
- Paper industry
- Plastics chemistry
- Power plants (e.g. flue gas washers)
- Incineration plants
- Food industry
- Breweries
Water treatment:
- Drinking water
- Cooling water
- Well water

The electrode can be applied in hazardous areas, with ATEX,FM and CSA approval.

Features and specifications

Measuring Principle	Glass electrode
Application	Standard applications in process and environment. Long-term monitoring, processes with little change.
Characteristic	Very robust, heavy-duty version / high pressure, integrated potential matching, flat membrane available.
Measurement range	pH 0-14
Measuring principle	Gel compact electrode with PTFE ring-diaphragm.
Design	- all shaft lengths with temperature sensor, advanced gel technology - digital electrode with Memosens technology
Material	Glass / PTFE
Dimension	Diameter: 12 mm (0.46 inch) shaft length: 120, 225, 360 and 425 mm (4.68, 8.77, 14.04 and 16,57 inch)
Process temperature	max. 135°C (274°F)
Process pressure	max. 16 bar (230 psi)
temperature sensor	NTC 30k
Ex certification	ATEX FM CSA
Connection	Inductive, digital connection head with Memosens technology.
Ingres protection	IP68
Additional Certifications	Also available as Biocompatibility certified SIL version.

Product pictures:

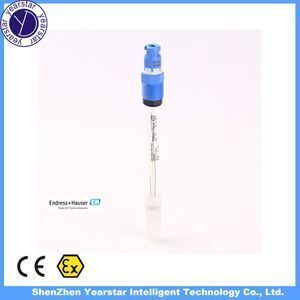

CPS11D

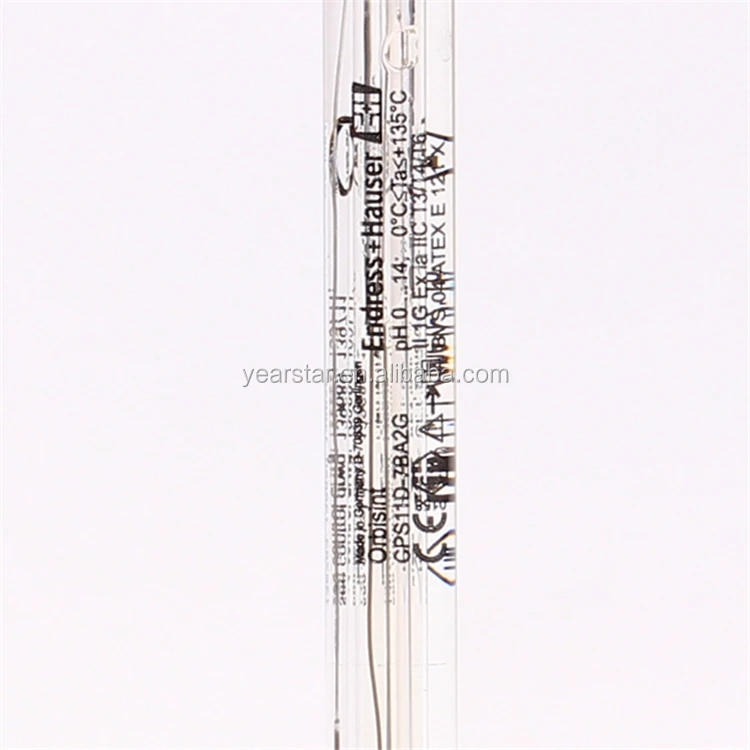

Glass Electrode, dirt-repellent PTFE ring diaphragm

Pack with airbag to reduce pressure during transportation.

Outstanding Case\|	application in Switzerland laragest milk company	\|Emmi

		The Memosens sensors Oxymax COS61D and Orbisint CPS11D monitor oxygen or pH values directly in the SBR (center: a Ceraphant T PTC31 pressure switch)
		Customer benefits:
		• 40–50% energy savings in the wastewater treatment process thanks to precise regulation of the oxygen pumps • Cost savings across the entire process • Emmi's concept of sustainability is backed up by long service intervals and the systems' high degree of stability. • Simultaneous monitoring of multiple measuring points and parameters using multichannel transmitters • The energy-rich sludge can eventuallybe used in the production of biogas.

Packaging & Shipping

Single carton package	Package for special products(following is radiative resource)

Transfer with tray	Shipping with wooden case

Shipment
We ship by DHL,UPS,Fedex,TNT,EMS express,Air Ship,Sea ship and so on at the reasonable time. DHL,UPS,Fedex,TNT usually takes about 4~6 days,EMS usually takes about 4~13days,more or less,if the deliver region is remote, it will be a little longer, if due to buyer's custom reason, it depends on your customs.

company receptionist

Office

Workshop/workers are testing boards

Worshop equipment

Our warehouse

Our Services

Warranty:

If you find any problem with the goods within 7 days since you get them, you could return the goods to us and we will resend a good new one to you after we receive the goods.
Our warranty for the goods is one year and we always test every product cautiously and strictly before sending them out to our customers.
Delivery Term:
Shipment within 2 days after recceiving the payment for sample or there are in stock, the delivery term is 20-30 days for in bulk or OEM.

Contact us:

Shenzhen Yearstar Intelligent Technology Co., Ltd.

Address:East 4th Floor, NO.1 Bldg,Pingshan Minqi Technology Park, Xili, Nanshan District, Shenzhen, China

Tel: + 86 755 2608 6930 ext. 864
Fax: +86 755 2650 2620

Mobile Phone: +86 13244706006 QQ:120554877 Skype:sophie wang

FAQ

1What kind of payment could I choose?

For the moment,T/T,Western Union,Paypal are available.

2.What's the deliver time?(for E+H products only)

If the product is in stock,shipment can be delivered within 2 days after receiving payment.If it's out of stock,.after receiving payment,we'll inform to produce, deliver date depends on producing place,6-8 weeks if it's produced in Suzhou,China ; 8-10 weeks if it's produced on aboard.

3.Express,by sea or by air,what should I choose?

If the gross weight is less than 45KGs, we suggest express,DHL,Fedex,UPS,TNT,EMS express are available;
If the gross weight is more than 45KGs, we suggest to deliver by sea or by air.

4.Due to E+H products need to select typical types according to different application condition, how can I get exact type?

Tell us necessary condition parameters(temperature,tube diameter,pressure,density,flow speed...),we can choose for you;Or you can choose by yourself, we can provide type-choosing materials for you.
