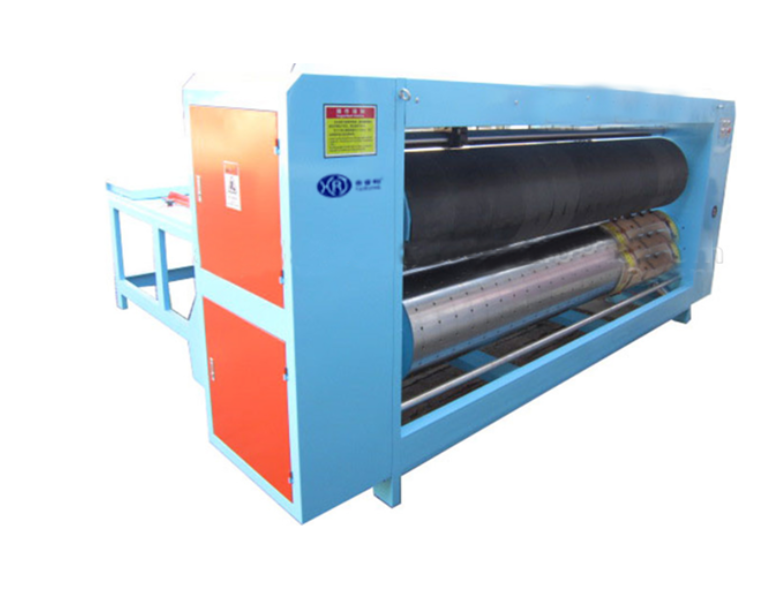

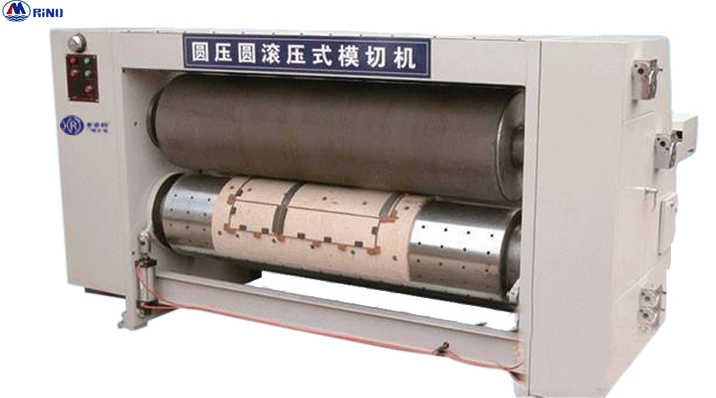

Carton Rotary Die Cutting Machine Die Cutting Machine

Supplier: Shandong Rino International Trade Co., Ltd.
Region: Shandong, China
Contact: Mr Dylan Gao
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimensions (LWH):	410020001850mm	weight:	4.5T
payment terms:	wire transfer	Warranty:	1 year
maximum. Paper size:	2400x1600mm	power supply:	380v/220v/50Hz
type:	Die cutting machine	place of origin; place of origin:	Shandong China
Supply capacity:	88 sets per year	Machine name:	HRT Chain Drive Feed Rotary Die Cutter
Minimum paper size:	300*500mm	brand:	hormone replacement therapy
Voltage:	220V/380V	Computerized:	Yes
Certification:	CE, ISO	speed:	50-70 sheets/min
port:	Tianjin, Qingdao	Function:	Cardboard Die Cutting Machine
application:	paper industry	Health status:	new
After-sales service provided:	Video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, online support, engineers can service machinery overseas	size:	320038001600mm

Product Description

Model	Maximum feed size (mm)	Minimum feed size (mm)	Feed thickness (mm)	Main motor power (kw)
HD3-1600	1600×1350	300×500	1-8mm (3-5 layers)	4.0
HD3-1800	1800×1350	300×600	1-8mm (3-5 layers)	5.5
HD3-2000	2000×1600	400×600	1-10mm (3-7 layers)	7.5
HD3-2200	2200×1600	400×600	1-10mm (3-7 layers)	7.5
HD3-2400	2400×1600	400×700	1-10mm (3-7 layers)	7.5

main feature

The engine transmission gear is made of 45# steel.

1. Cheap.

2. Less investment and low CTU.

3. Operators available everywhere.

4. Simple operation, no additional training required.

detailed image

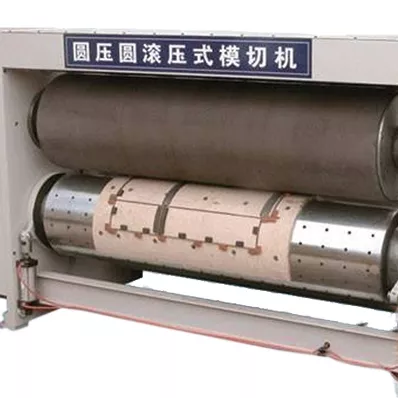

Die cut part

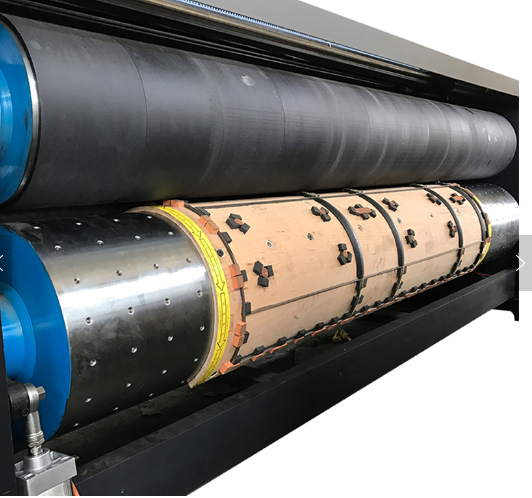

1. Die-cutting roller:
1) Centrifugal casting steel cylinder, computerized dynamic balance correction, surface grinding, hard chrome plating to increase running stability.

2) The spacing between the fixed screw holes of the die-cutting machine is 100*100mm
3) Suitable for die height 25.4 mm
4) Diameter of die-cutting roller: 432mm (excluding wood mold)
5) Die-cutting roller type automatic separation device, pneumatic lifting, time delay, photoelectric, when the cardboard passes, the die-cutting roller will be lifted to reduce rubber wear.

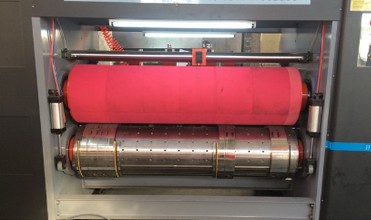

2. Cots:
1) Cast steel material, surface grinding, hard chrome plating
2) Balance correction to increase running stability
3) Rubber thickness is 10mm, width is 230mm or 250mm
4) The diameter of the rubber roller is 434.2mm (without glue)

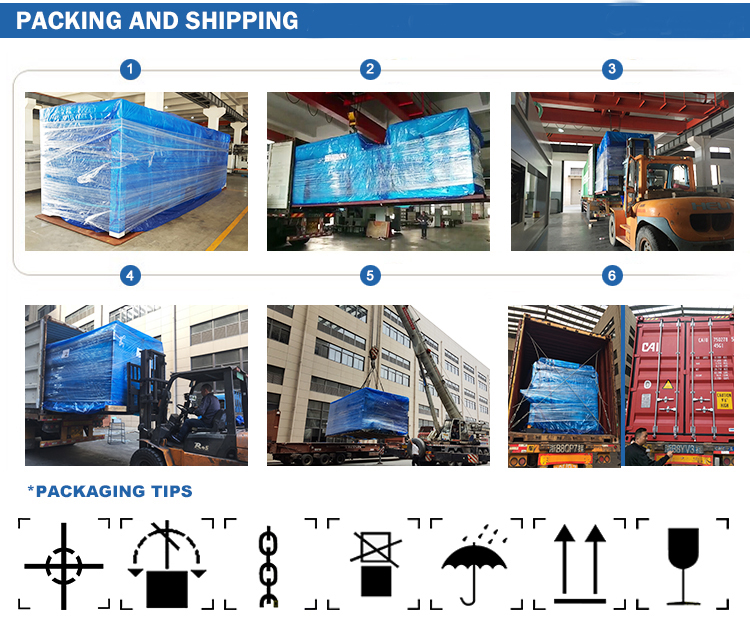

Packaging and Delivery
