Product Details

Packaging Preview:		enlarge:	x2, x3, x4
Key words:	binoculars military night vision	Warranty:	1 year
model:	S750MH	polarity:	white heat/black heat
Exit pupil diameter:	Vehicle 4600m	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Detector field of view:	Standard lens (9°6.75°)/(5.1°3.8°, retractable)	Supply capacity:	100 pieces per month
Image Resolution:	384*288	Certification:	PCOC, IECEE
network:	≤60mk 30℃	port:	Shanghai, Qingdao, Shenzhen
CCD imager:	1/3" CCD, 795(H)*596(V)	brand:	Dali
place of origin; place of origin:	Zhejiang, China	storage:	Over 10,000 photos or 4 hours of video
Detector Type:	Uncooled FPA Microbolometer	Custom Support:	OEM
Packaging Details:	Ordinary carton

product information

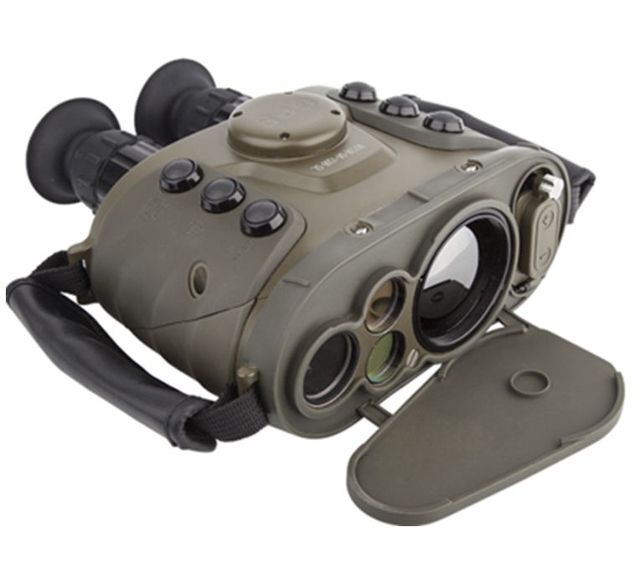

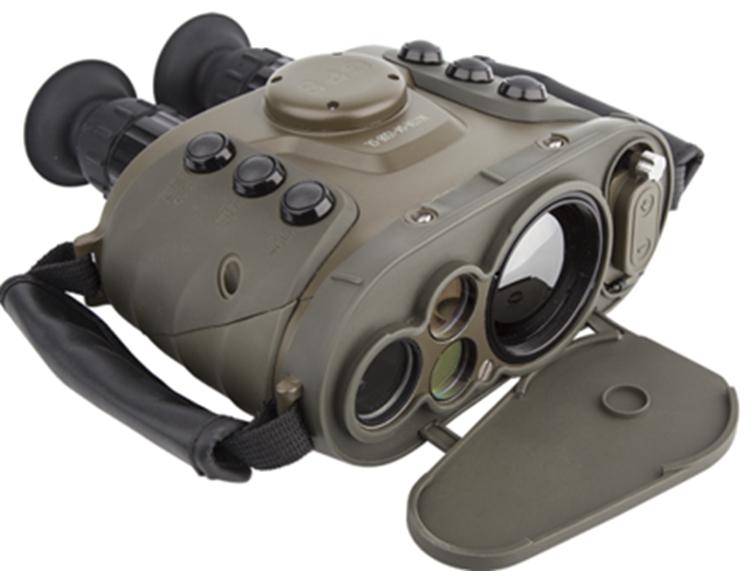

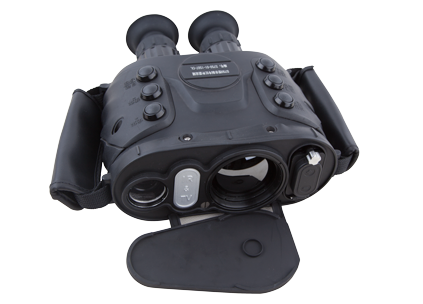

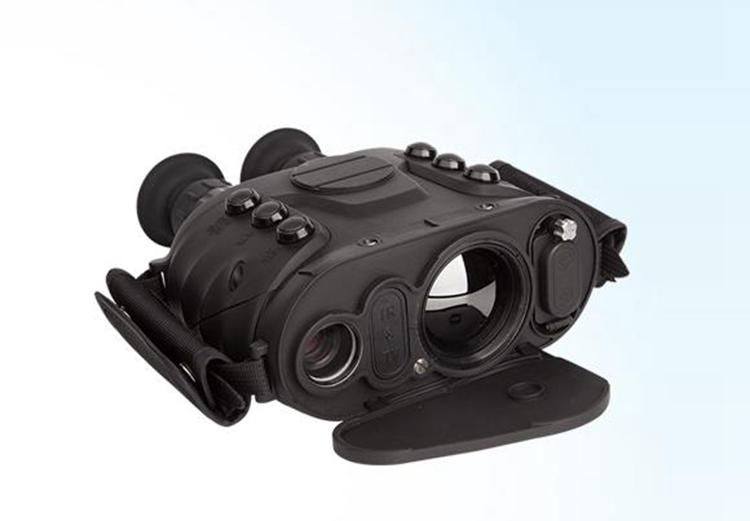

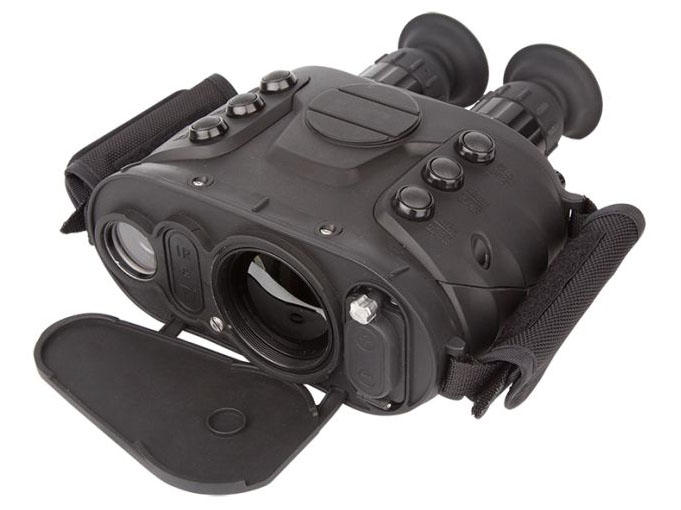

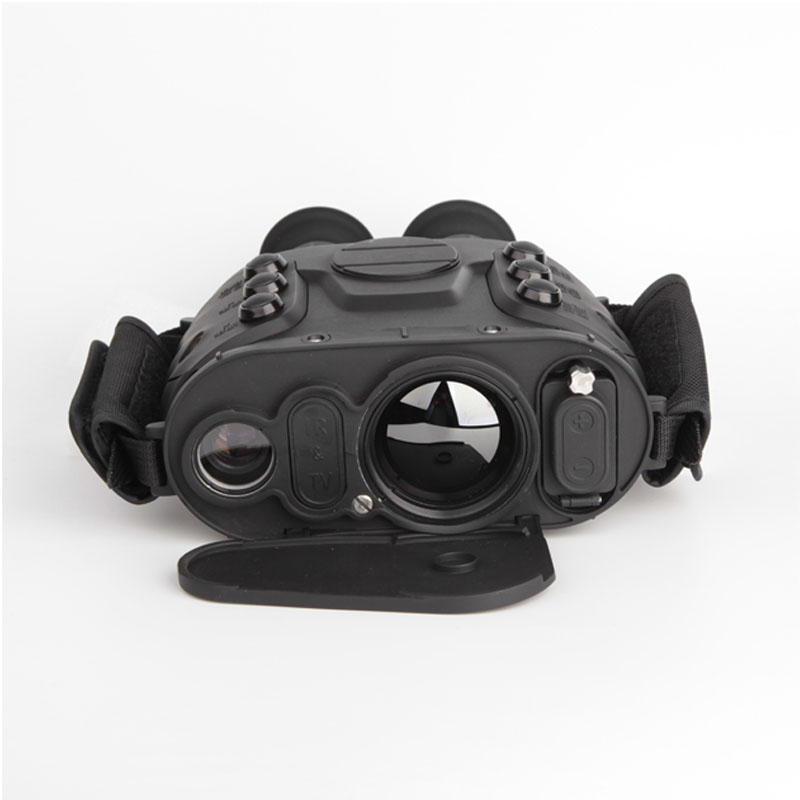

Handheld Uncooled Binoculars S750MH

selling point
• Versatile Handheld 24/7 Day and Night Surveillance Thermal Telescope
• Fast autofocus
• Binoculars OLED display
• Photo and video recording
• Electronic focus

project			S750MH-384	S750MH-640
Detector performance	detector type	Uncooled focal plane microthermal
		wavelength coverage	8 - 14 microns
		Image Resolution	384×288	640×480
		frame rate	50 Hz
		field of view	9°×6.75°/5.1°×3.8°	15.2°×11.4°/8.6°×6.5°
		NETD	≤60mk@30℃
		Focus method	Auto or motorized focus
Image display	display device	HD OLED binocular display, 800×600
		image polarity	white heat/black heat
CCD	Imager	1/3"CCD, pixel 795(H)×596(V)
		field of view	9°×6.75°
Image storage	storage card	internal memory
		storage method	Photo/Video
		file format	BMP/AVI
		Memory Capacity	> (10000 or 8 hours of video)
Function	Brightness/Gain	automatic / manual
		polarity reversal	black hot/white hot
		Electronic variable time	x2, x3, x4
		image enhancement	include
		Image Denoising	include
Power Systems	Battery Type	Rechargeable Lithium Battery
		Battery continuous working time	>5 hours
		href="#/javascript:;" battery charging	special charger
Environmental suitability	Operating temperature	-30℃～50℃
		Storage temperature	-40℃～70℃
environmental value	Humidity	≦90% (non-condensing)
		Protection class	IP67
physical property	weight			≤1.6Kg
		shell color	(specify)
		aspect	220(L)mm × 195(W)mm × 85(H)mm
External interface	External power supply	include
		external video	friend
		USB interface	include
		Installation interface	1/4"-20-UNC
detect distance	Person (1.7×0.5) m	1900m (standard lens)
		Vehicle (2.3×2.3) m	2700m (standard lens)
Recognition distance	Person (1.7×0.5) m	600m (standard lens)
		Vehicle (2.3×2.3) m	900m (standard lens)
