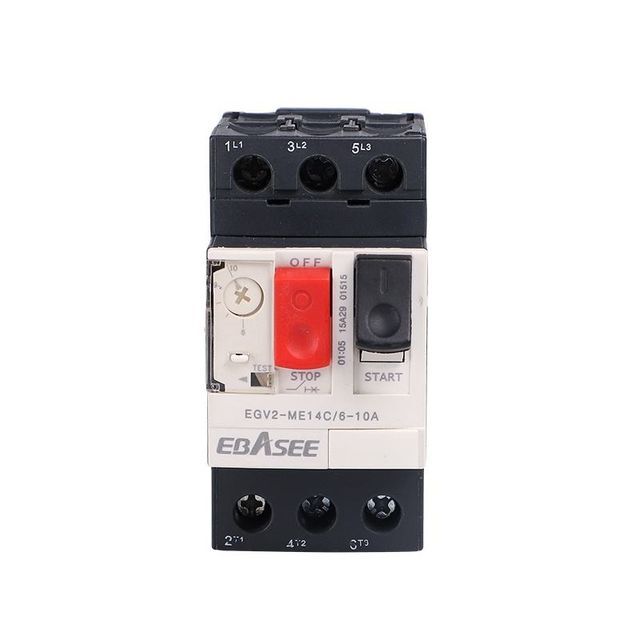

CE,TUV certified motor protection circuit breaker MPCB 15kA 16A
- 3.60 50 - 999 pieces
- 1.75 >=1000 pieces
| model: | EGV2 | standard: | IEC947-2 IEC947-4-1 EN60947.1 |
| strength: | 690VAC | Rated voltage: | up to 660V |
| brand: | EBASEE | place of origin; place of origin: | China Shanghai |
| type: | traditional | Packaging Details: | EGV3:50pcs/ctn Carton size: 47.5cm*25.5cm*18cm GW/NW: 14/13.2kgs |
| Voltage: | 230V | Rated frequency: | AC 50/60HZ |
| Supply capacity: | 50,000 pieces per month | Rated current: | 0.1A-80A |
| Packaging Preview: | Number of auxiliary contacts: | 10/01/11/02/20 | |
| product name: | EGV2 | pole: | 3 poles |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | port: | Shanghai |
| Protection class: | IP20 | Number of poles: | 3 |

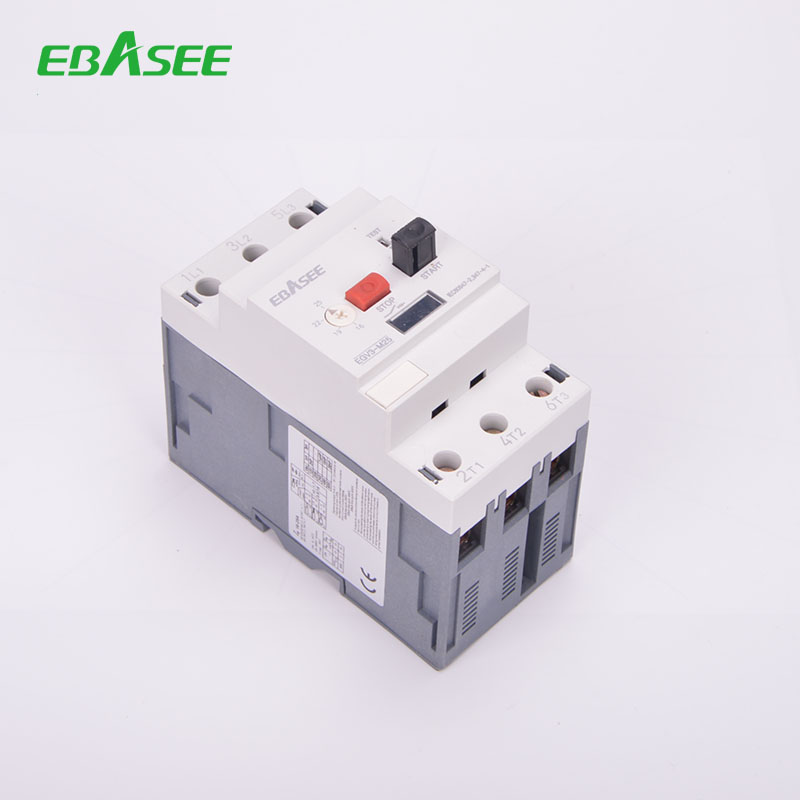

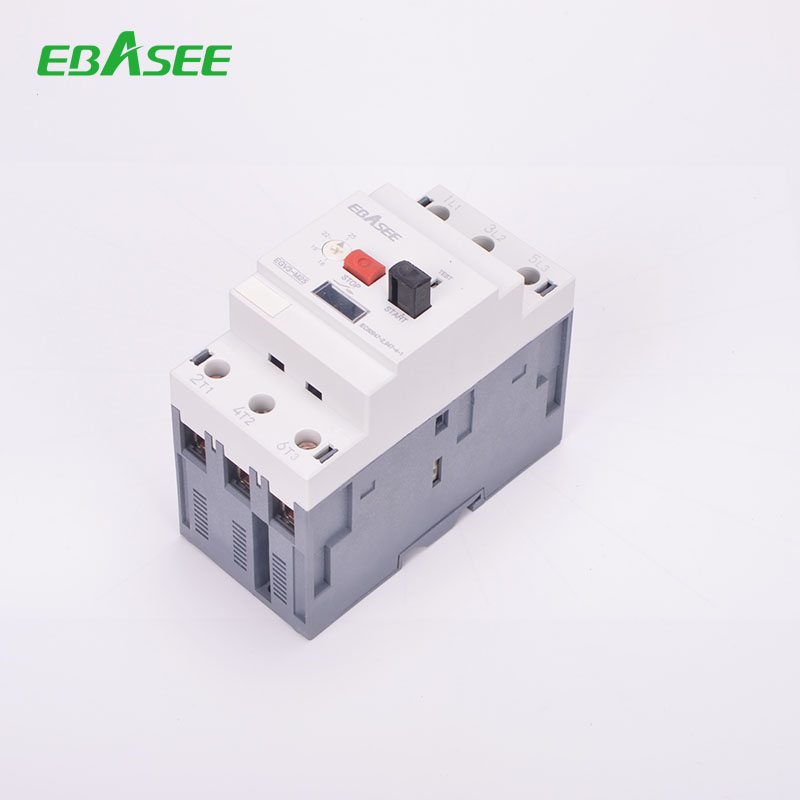

Motor protection circuit breaker
Function

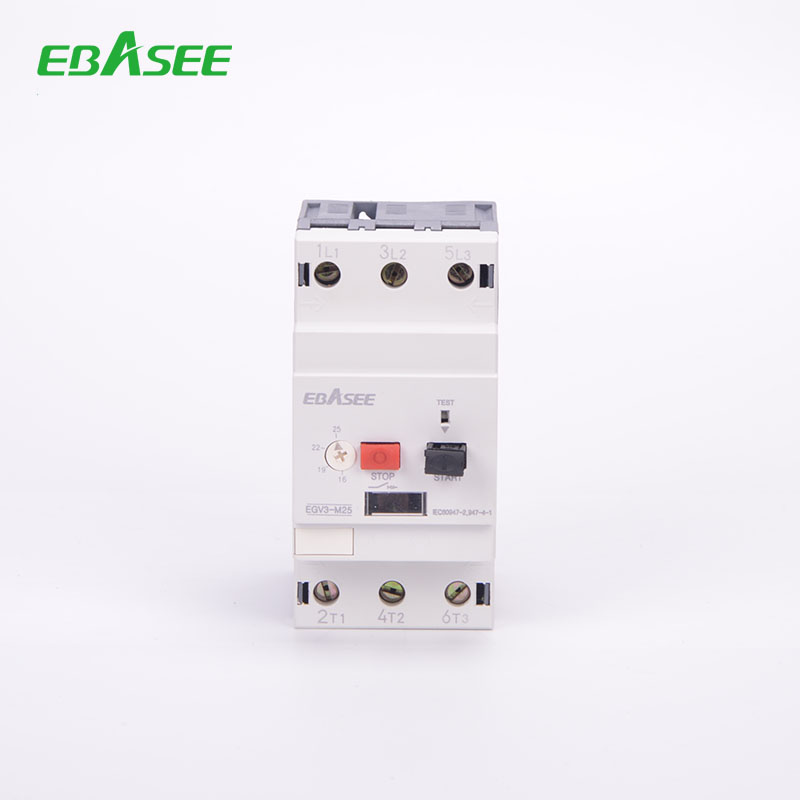

The EGV3 motor protection circuit breaker is suitable for AC voltage up to 690V and current 1-80A. As a three-phase squirrel cage asynchronous motor overload, short circuit protection, phase loss and infrequent start control protection.
technical parameter
|
Model Name |
|
EGV3 Motor Protection GV3-M GV3-ME |
|
standard |
|
IEC947-2 IEC947-4-1 EN60947.1 |
|
Rated current In(A) |
|
01A-80 Amp |
|
Rated voltage Un(V) |
|
up to 660V |
|
Rated frequency |
|
AC 50/60HZ |
|
Number of auxiliary contacts |
|
10/01/11/02/20 |
|
Protection class |
|
IP20 |
feature
n M-button type; ME-new
n Accessories: Instant Assist
n With overload protection, without instantaneous protection
Applicable work
|
ambient temperature |
|
-5~+40℃, the average value within 24h cannot exceed +35℃ |
|
high |
|
≤2,000m |
|
Relative humidity |
|
≤95% |
|
degree of pollution |
|
two, |
