Atlas Copco XAS37 XAS47 XAHS37 XAS57 XAS67 XATS67 XAS97 XAH107 XAS137 Portable Screw Air compressor
-
Supplier: Shanghai Crownwell Import & Export Co., Ltd. -
Region: Shanghai, China -
Contact: Mr Tony Yeung -
Price: $3000.00 /set -
Min. Order: 1 set
| FAD: | 187cfm; | Mute: | Yes; |
| Model Number: | XAS37 XAS47 XAHS37 XAS57 XAS67 XATS67 XAS97 XAH107 XAS137; | Configuration: | Portable; |
| Weight: | 650-1350kg; | Condition: | New; |
| Brand Name: | Atlas Copco; | Delivery Detail: | One week; |
| Warranty: | 3 Years; | Supply Ability: | 500 Set/Sets per Month; |
| Working pressure: | 7bar; | Type: | Screw; |
| Dimension(L*W*H): | 3063*1410*1258mm; | Lubrication Style: | Lubricated; |
| Payment Terms: | L/C,T/T; | Port: | Shanghai; |
| Place of Origin: | Shanghai China (Mainland); | Voltage: | 220V/230V/380V/400V/415V/440V/460V; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Certification: | ISO9001:2008; |
| Packaging Detail: | wooden package or wooden case; | Power Source: | Diesel; |
| Diesel motor: | DEUTZ; |

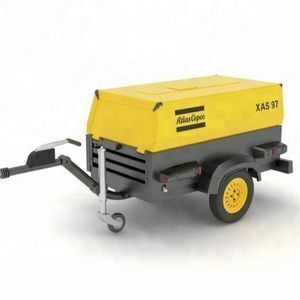

Atlas Copco Portable Screw Air compressor Model XAS97 Dd Atlas Copco Portable Air Compressor (AC compressor)
Product information
At Atlas Copco we understand your requirements in the tough world of industrial drilling, where reliability and easy maintenance are as essential as high-pressure air. Our DrillAir™ portable compressors deliver high capacity, high pressure effectively, reliably and cost-efficiently. You can further enhance their fuel consumption with the innovative FuelXpert™ system, while Oiltronix™ technology enables the components to last longer. Powered by heavy-duty Caterpillar engines, DrillAir™ compressors allow you to drill deeper and larger holes at the fastest penetration rates and with the highest productivity. All models are available in versions that meet the latest exhaust emission and noise directive criteria.
Total customer care
Model XAS97Dd Atlas Copco Portable Air Compressor with Deutz diesel motor (5.3m3/min @7bar)
Compressor Data | XAS97 Dd PE |
Free Air Delivery @ Normal Working Pressure | 89 L/S (5,3 m³/min ) 187cfm |
Normal Working Pressure | 7 bar 102psi |
Minimum / Maximum Unloading Pressure | 4 / 8.5 bar |
Compression Stages | 1 |
Air Receiver Capacity | 16.7L |
Compressor Oil Capacity | 8 L |
Approximate Air Outlet Temperature | 90°C (Standard) |
Typical oil content of compressed air | <5 mg/m³ |
Fuel Tank Capacity | 80L |
Outlet Valve Configuration | 3 x 3/4” G, 1 x 1.5” G |
Nominal working condition | Inlet pressure 1bar,Humidity0%,Temp20 °C |
Sound Pressure Level (ISO2125) | 72 dB(A) +/- 3 |
Maximum Ambient Temperature at sea level | 45 °C |
Maximum Altitude | 5000 m |
Minimum Starting Temperature | -10 °C / -20 °C (with assist) |
Diesel Engine Data | DEUTZF3M2011 |
Horsepower Developed @ Rated Speed | 36 kW |
Cylinders | 3 |
Cooling System | Oil |
Engine Coolant Capacity | -- |
Engine Oil Capacity | 8.5 Liter |
Unloaded Speed / Maximum Loaded Speed | 1850 / 2750RPM |
Fuel Consumption @ 0% Load / 100% Load | 3.6 / 7.2 kg/h |
Dimensions | Standard Towing Speed20 km/h |
Length | 3016 mm ( within towbar ) |
Width | 1410 mm |
Height | 1258 mm |
Weight ( filled with oil & coolant , Initial fuel ) | 890 kg |
