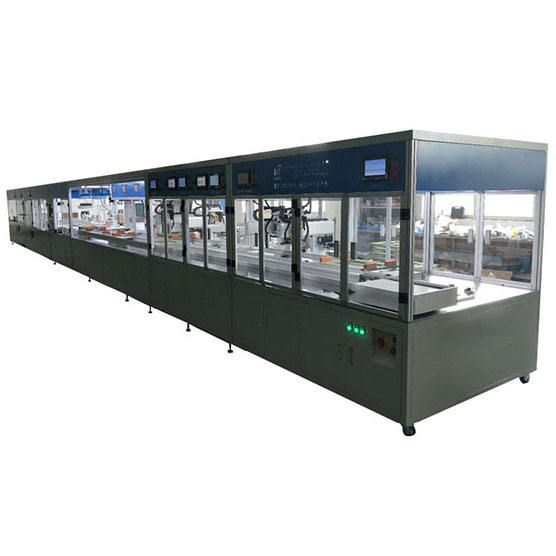

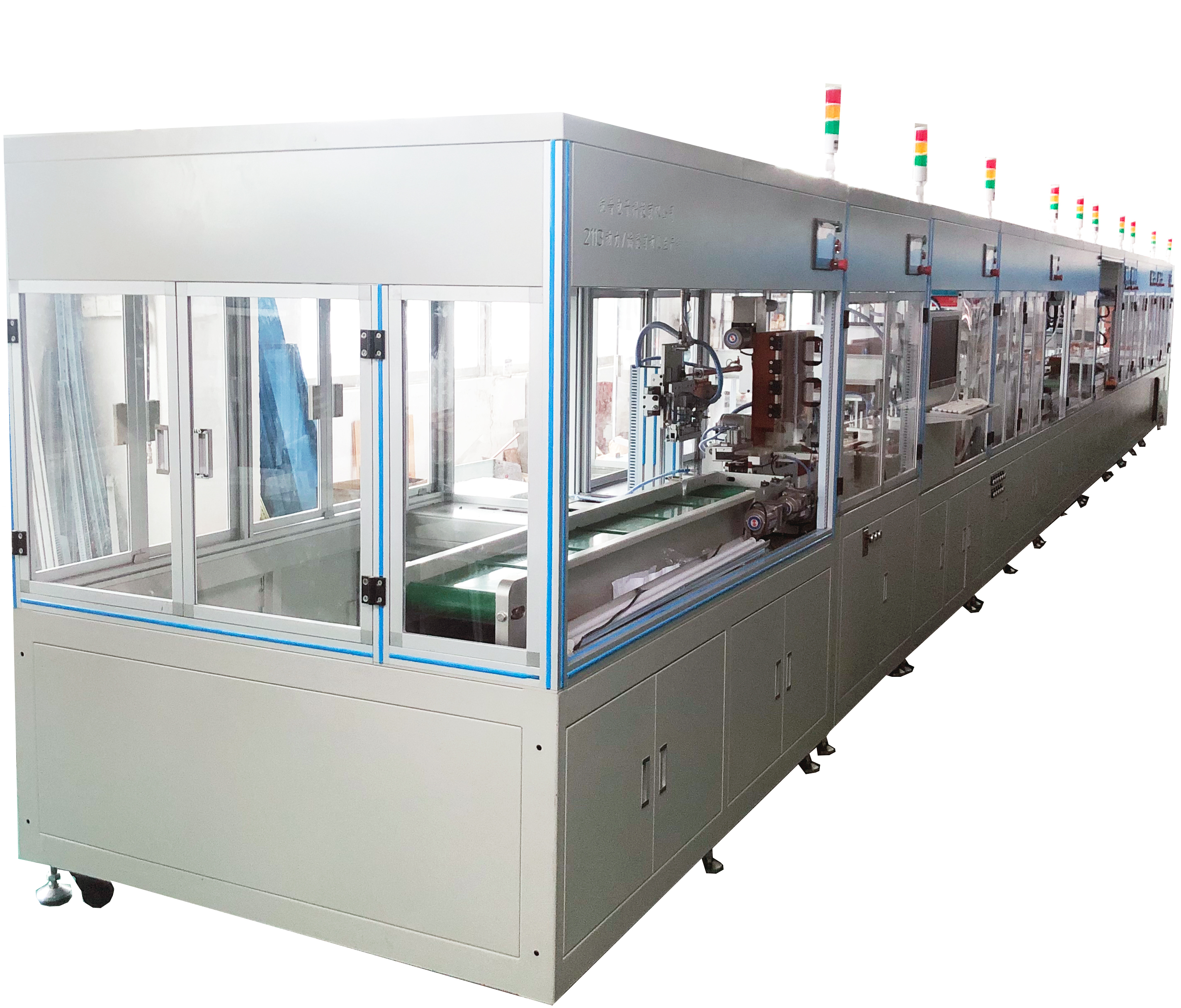

Automatic Lithium Battery Production Line Battery Pack Assembly Machine
- 295000.00 set
| Core components: | programmable logic controller | Health status: | new |
| Ambient temperature: | 10-45℃ | product name: | Lithium-ion battery PACK production line |
| Battery assembly line: | Different product requirements and accessory drawing requirements | place of origin; place of origin: | Guangdong, China |
| brand: | British Telecom | Battery pack assembly design: | L16500MM*W1300MM*H2000MM |
| Packaging Details: | wooden box | Marketing Type: | New Products 2020 |
| power supply: | AC380V±10%, 30KW 50HZ±10% | Applicable industries: | manufacturing plant |
| Packaging Preview: | Video external inspection: | if | |
| environment humidity: | No more than 85R.H (no moisture condensation) | Local service location: | India |
| Mechanical test report: | Not available | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Dimensions: | L16500MM*W1500MM*H1760MM | port: | Shenzhen Port |
| application: | Power batteries, accumulators, battery packs, etc. | Warranty: | 2 years |
| After-sales service provided: | Free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, video technical support, online support | Supply capacity: | 30 sets per month |
| Showroom location: | India | Core Components Warranty: | 2 years |
| Gas source: | 0.4-0.8Mpa, no water mist, no impurities | payment terms: | Letter of Credit, T/T, Western Union, MoneyGram |
| Productivity: | 5000-6000PCS/H |
Applications:
Mainly used in automotive battery modules. Automated production of power batteries, accumulators, and battery packs for power tools and other applications.
Advantage:
1. BT-2113 power/energy storage automatic production line, realize the dream of high-end automatic production factory in the new energy battery industry
2. BT-2113 power/energy storage automatic production line, compatible with battery size, x direction 18650, 21 cores (430mm), y direction 13 cores (270mm)
3. BT-2113 power/energy storage automatic production line, which can be used in sections or in combination
4. BT-2113 power/energy storage automatic production line, compact design, reasonable structure, overall shape size, L16500MM*W1500mm*H1760mm, battery assembly cycle line is L16500MM*W1300mm*H2000mm. It is suitable for large and small factories. There is no need for structural changes between segments to achieve seamless connection

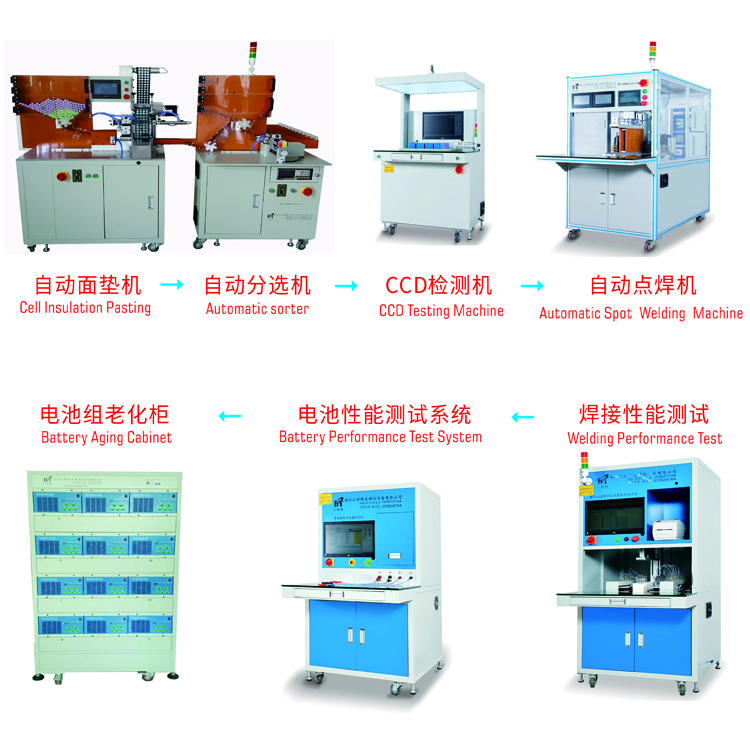

6. Battery product assembly line (spot welding appearance inspection → pasting accessories → protection board connection → forming → comprehensive performance test, etc.): according to different product requirements and accessory drawing requirements
7. The company's fully automatic production line, the efficiency can reach: 5000-600PCS/H (TV core shift balance), stable quality, low failure rate
8. The equipment is highly intelligent, simple to debug, easy to learn and understand
