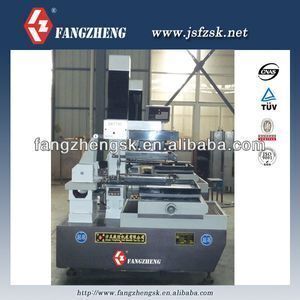

cnc edm wire cut machine price
- 4500.00 set
| Dimension(L*W*H): | 1600x1300x1500mm; | Port: | shanghai; |
| Voltage: | 220V/50Hz, 380V/50Hz; | Place of Origin: | Jiangsu China (Mainland); |
| Warranty: | 12 months; | Delivery Detail: | 30 days; |
| Certification: | ISO9001; | CNC or Not: | CNC; |
| Max.workpiece weight: | 450kg; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Model Number: | DK-7740 cnc edm wire cut price; | Packaging Detail: | Standard export packing, with wooden box.; |
| Power(W): | less than 1000w; | Condition: | New; |
| Weight: | 1350kg; | Supply Ability: | 550 Set/Sets per Month cnc edm wire cut price; |
| Working table size: | 780x540mm; | Brand Name: | Fangzheng cnc edm wire cut price; |
| Stroke(X,Y): | 500X400mm; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union; |
cnc edm wire cut low price !!!
cnc edm wire cut -Features:
1.Large travel , High cutting speed.
2.Four axes independent UV work.
3.Work pieces to 600mm thick.
4.Taper angles up to ± 30°.
5.Standard model is equipped with ± 3° taper attachment.
6.Molybdenum wire diameter 0.12~0.22 mm (down to 0 .08mm).
7.Accuracy: 0.015mm, even 0.01mm.
8.Roughness: Ra 1.6-2.5 µm.
9.Low consumption, material saving.
10.Closed loop glass scales on all four axes for positional accuracy of 0.005mm.
11.Advanced CAD/CAM software with file transfer and translation capabilities.
12.High cutting speed modular is optional.
cnc edm wire cut -Control system ( HL, HF, W-Cut, A-Cut)
A)Microcomputer process control system
B)PC control system.
C)Luxury cabinet control.
Optional:
1.Taper cutting accessory. (± 15°, ± 30°)
2.Linear rail.
3.Protection cover.
4.Higher speed control board, improve the efficiency 30-40%.
5.Middle speed control system.
Model | DK7732 | DK7740 | DK7740J | DK7750 |
Working Table size (mm) | 700*440 | 780*540 | 1000*540 | 1000*650 |
Stroke(X/Y/)(mm) | 400*320 | 500*400 | 630*400 | 630*500 |
Max.Z axis travel(mm) | 400 | 400 | 400 | 600 |
Cutting angle(°/80mm) | 6° 15° | 6° 15° 30° | 6° 15° 30° | 6° 15° 30° |
Max.cutting speed(mm²/min) | ≥90(High speed≥140) | |||
Optimum roughness(m) | ≤2.5(Medium speed≤1.0) | |||
Dia. of molybdenum wire(mm) | 0.1-0.3( recommend 0.18) | |||
Molybdenum wire moving speed(m/s) | 11.5 | |||
Working coolant | DX-1, DX-4, NG-1 | |||
Process accuracy (mm) | 0.01-0.015 | |||
Feeding Pulse equivalent (mm) | 0.001 | |||
Power supply | single phase, 220V/50Hz, three phase, 380V/50Hz | |||
Power consumption( Kw) | <1.0 | |||
Max.workpiece weight(kg) | 300 | 450 | 450 | 700 |
Weight(kg) | 1200 | 1350 | 1400 | 2100 |
Dimension(mm) | 1300x1200x1400 | 1600x1300x1500 | 1600x1300x1500 | 1800x1600x1700 |
Packing size(mm) | 1600x1300x1700 | 1900x1400x1800 | 1900x1400x1800 | 1900x1600x2100 |
