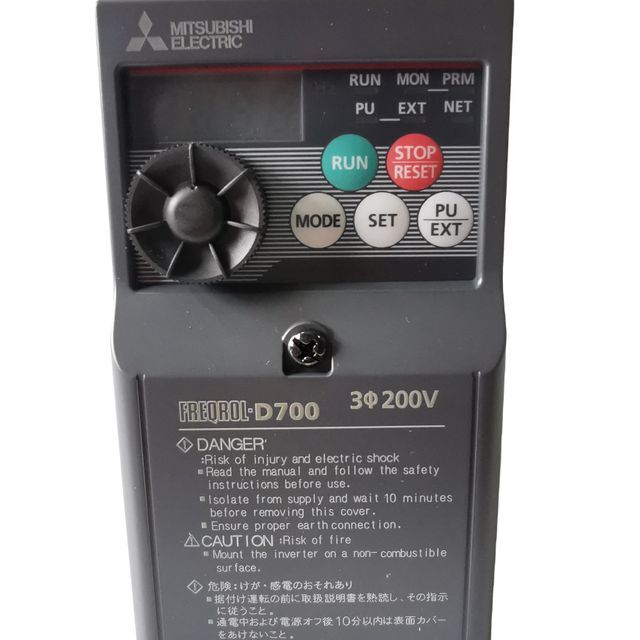

Servo Motor Driver FR-D720-1.5K Factory Supply AC Driver Good Quality High Torque Competitive Servo Motor

Supplier: Shanghai Kuang Jiu Electromechanical Technology Co., Ltd.
Region: Shanghai, China
Contact: Ms Qiong Li
Price: $166.82 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Details:	original packaging	model:	FR-D720-1.5K
Packaging Preview:		brand:	mitsubishi
Rated voltage:	Three-phase AC 170V	Allowed frequency variation:	± 5%
Applicable motor capacity (kW):	1.5	product name:	servo motor
place of origin; place of origin:	China Shanghai	Certification:	Chief Executive
Warranty:	3 months - 1 year	port:	Shanghai Port
payment terms:	D/P, T/T

Product Description

product name	Frequency converter/inverter
Phase	three phase
voltage	[ac200v, AC220V, AC240V]
Power (kW)	1.5

【Control circuit power input】Power frequency: single-phase ac200v - 240V, 50 Hz / 60 Hz Rated current[a]: 0.2 Allowable voltage variation: single-phase ac170v ~ 264v Allowable frequency variation: ±5% Power consumption: 30W Inrush current[a]: 20 ~ 30

[Interface battery] Power frequency: DC24 V ± 10% Power capacity [a]: 0.5 (including CN8 connector signal)

[control method] Sine wave PWM control current control method[dynamic braking] built-in [Communication function] USB: Connect with PC (corresponds to Mr configurator 2) RS-422: Expected support

[Position control method] Maximum input pulse frequency: 4mpps (differential input), 200kpps (open collector input) Positioning feedback pulse: encoder resolution (resolution of one revolution of servo motor): 22bit Command pulse rate: electronic gear A/b times, a= 1 ~ 6777216, B = 1 ~ 6777216, 1 / 10 < A / b < 4000 Positioning pulse width setting: 0pulse ~ 165535pulse (command pulse unit) Large error: ±3 revolutions Torque limit: by parameter setting or external analog input ( dc0v ~ +10V / max torque)

Our company has more models, welcome to consult.

Model	Model
FR-D720-0.1K	FR-D720-3.7K
FR-D720-0.2K	FR-D720-5.5K
FR-D720-0.4K	FR-D720-7.5K
FR-D720-0.75K
FR-D720-1.5K
FR-D720-2.2K
