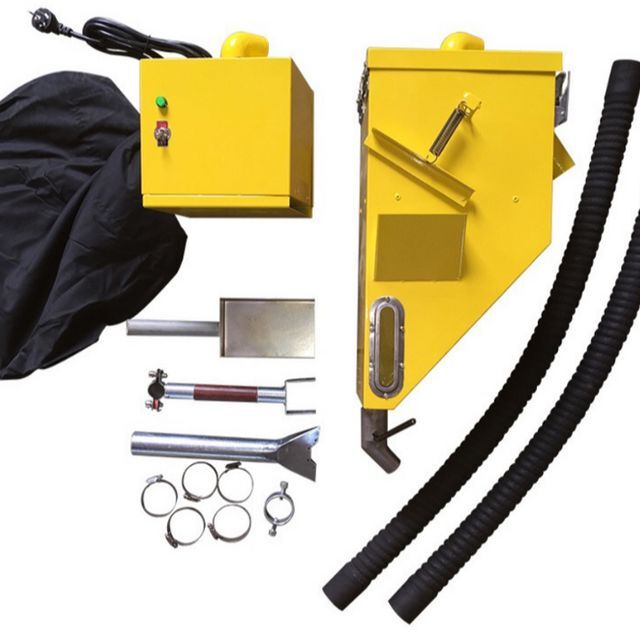

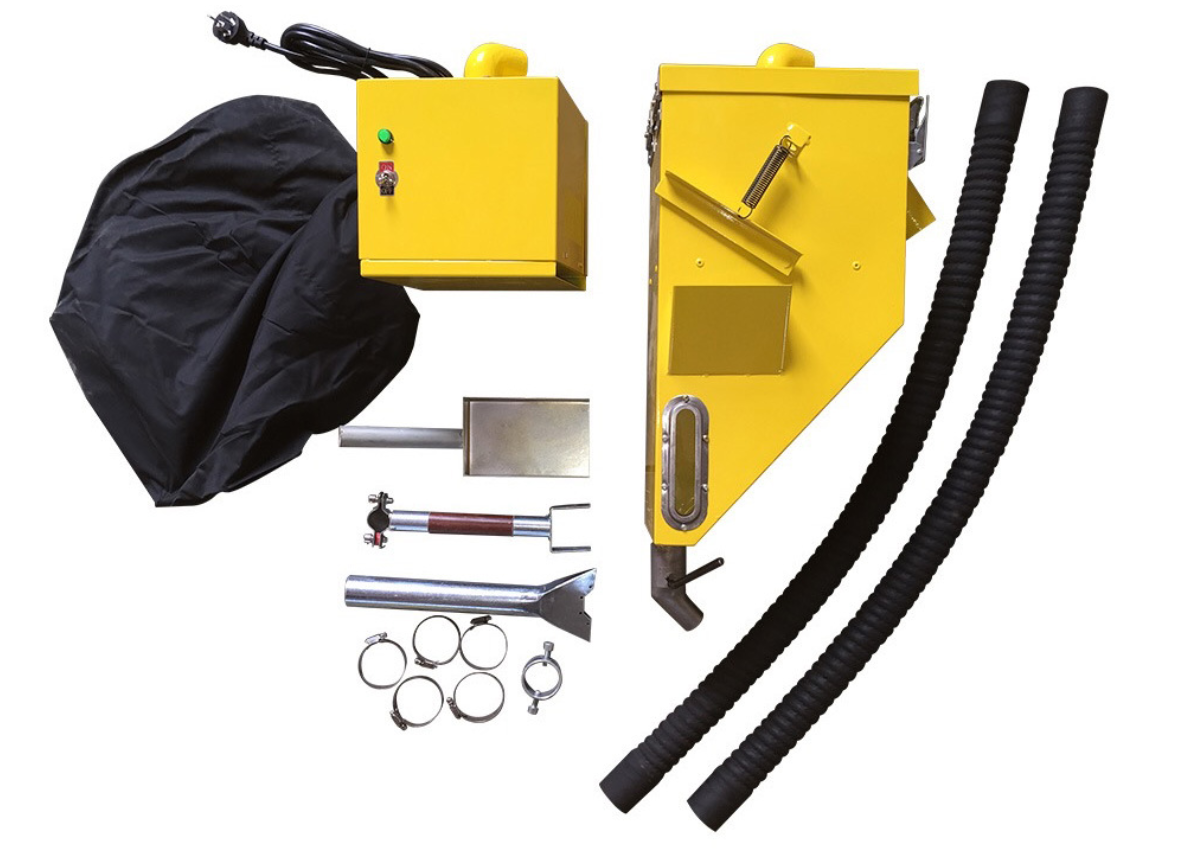

Flux recovery machine for MZ-1250 submerged arc welding machine
- 620.00 1 - 4 units
- 590.00 5 - 9 units
- 580.00 >=10 units
| Weight (kg): | 18kg | place of origin; place of origin: | China Shanghai |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Supply capacity: | 500 units per month |
| aspect: | 260x220x500mm | port: | Shanghai |
| capacity: | 4L | Video external inspection: | Not available |
| Core components: | not any | Warranty: | 1 year, 1 year |
| Packaging Details: | 1pc/carton/80x35x30cm/18kgs | Mechanical test report: | Not available |
| Main selling point: | easy to operate | brand: | Easy to Solder/OEM |
| strength: | 1.1KW | usage: | Flux recovery |
| net weight: | 9.2kg | Voltage: | 220V |
| After-sales service provided: | Online support | Health status: | new |
| Motor Power: | 1.1kw | Applicable industries: | Building material stores, mechanical repair shops, manufacturing plants, construction works |
| Packaging Preview: | Marketing Type: | normal product | |
| Showroom location: | not any | Core Components Warranty: | Not available |
Automatic submerged arc welding machine flux recovery machine

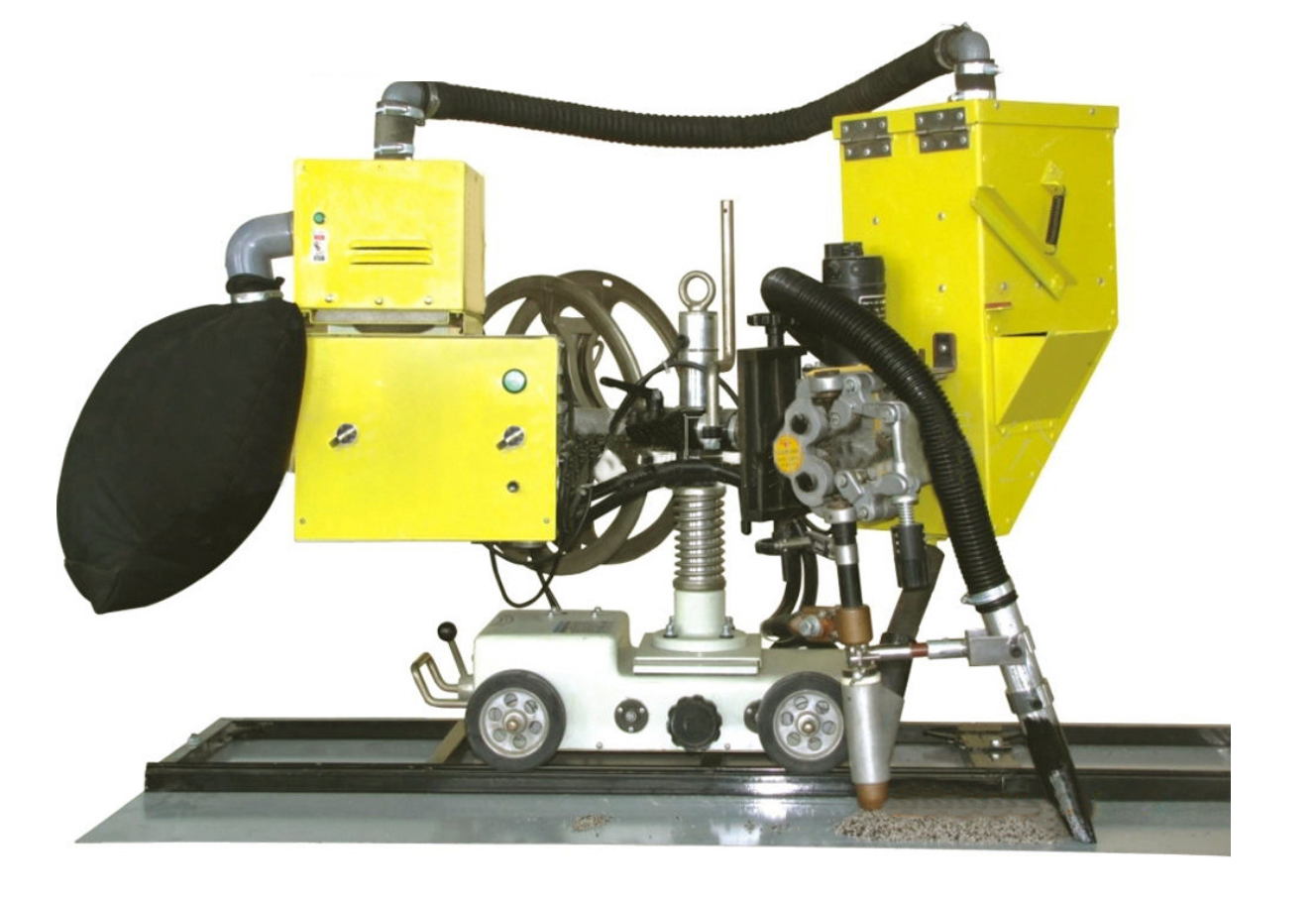

After installation:
Main features
* The split electric chassis can be installed in the electric control box to further reduce the
Weld head bearing. Specifically developed for light duty submerged arc welding vehicles.
* Imported fans have super suction. The effective recovery rate is over 98%.
* Dust and flux can be automatically separated. The filter bag can collect dust and achieve cleanliness
and green effect.
* Flux application can be observed through the viewing window. Feed statement can be fluxed
Ready for welding needs.
* Optional thermal insulation function can be selected; it can maintain a constant temperature of 125 ℃, prevent the flux from cooling water vapor, and ensure the welding quality.
|
technical parameter
|
|||||
|
Model
|
Voltage
|
Motor Power
|
capacity
|
net weight
|
aspect
|
|
LTHJ-Super-B1-2
|
220V
|
1.1KW
|
4L
|
9.2kg
|
260*220*500mm
|
Packing: 1pc/carton/80x35x30cm/18kgs
