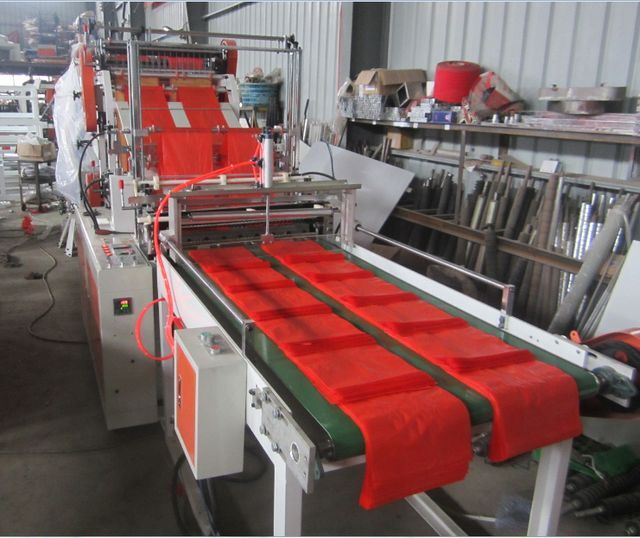

Plastic bag cutting machine with automatic belt conveyor
- 4500.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | packed in wooden box | Video external inspection: | if |
| Type of machine: | Cutting Machine | After-sales service provided: | Engineers can repair machinery overseas |
| Warranty: | 1 year | usage: | plastic bag |
| port: | Wenzhou | Showroom location: | Egypt, Germany, Vietnam, Brazil, Peru, Pakistan, India, Mexico, Russia, Thailand, Kenya, Argentina, Chile, Colombia, Algeria, Romania, Bangladesh, South Africa, Ukraine, Nigeria, Uzbekistan, Malaysia, Morocco |
| servo motor: | Yaskawa, Japan | Bag width: | 200-600mm |
| Voltage: | 220V | Health status: | new |
| After Warranty Service: | Video technical support | Mechanical test report: | if |
| application: | shopping bag | Core Components Warranty: | 5 years |
| payment terms: | L/C,Western Union,T/T,MoneyGram | Material: | plastic |
| Main selling point: | high accuracy | Dimensions (L*W*H): | 4200mm*1350mm*1750mm |
| Bag Type: | shopping bag | place of origin; place of origin: | Zhejiang, China |
| Core components: | Motor, PLC, gearbox | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores |
| Maximum speed: | 120/min | speed: | 140pcs/min one line |
| color: | blue and white | model: | SHXJ-800 |
| feature: | High capacity | brand: | creativity |
| Marketing Type: | normal product | Supply capacity: | 30 sets per month |
| Computerized: | Yes | weight: | 1100kg |
Plastic bag cutting machine is used to produce flat bottom shopping bags.
|
Model |
SHXJ-700 |
SHXJ-800 |
SHXJ-900 |
SHXJ-1000 |
|
|
Cutting line |
Double-layer four-wire |
||||
|
bag width |
600mm×2 300mm×4 |
700mm×2 350mm×4 |
800mm×2 400mm×4 |
900mm×2 450mm×4 |
|
|
bag length |
1000mm |
||||
|
cutting speed |
50-120pcs/min/line |
||||
|
motor |
stepper motor |
||||
|
main motor |
1.5KW |
||||
|
Heating capacity |
4KW |
||||
|
power supply |
220V, 50Hz |
||||
|
Electronics used |
China's top brands |
||||
|
machine weight |
850kg |
900kg |
950kg |
1000kg |
|
|
aspect |
3.2×1.25×1.8M |
3.2×1.35×1.8M |
3.2×1.45×1.8M |
3.2×1.55×1.8M |
|
|
optional equipment |
Servo motor, imported photocell |
||||
