Horizontal cylindrical pressure steam sterilizer autoclave stainless steel disinfection equipment

Supplier: Jiangyin Binjiang Medical Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Coco Huang
Price: $5000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Core Components Warranty:	1 year	Certificate:	ISO9001, CE
Average Calories:	≤±2℃	Model:	WS-300YV
Working pressure:	0.22Mpa	Operating temperature:	134℃
volume:	300L	strength:	AC380V.50Hz/9KW,13kw
Dimensions (LWH):	15208501850mm	Gross/Net Weight:	580/470kg
Video external inspection:	if	Marketing Type:	Hot Products of 2019
Mechanical test report:	Not available	Showroom location:	not any
Shipping Dimensions:	168010802100mm	Packaging Preview:
place of origin; place of origin:	China	Core components:	pressure vessel
Applicable industries:	Catering shops, catering factories, hospitals, chemical and pharmaceutical units	weight:	470
port:	Shanghai	brand:	Jibei
Warranty:	1 year	payment terms:	letter of credit, wire transfer
Weight (kg):	470 kg	Material:	Stainless steel

Product Description

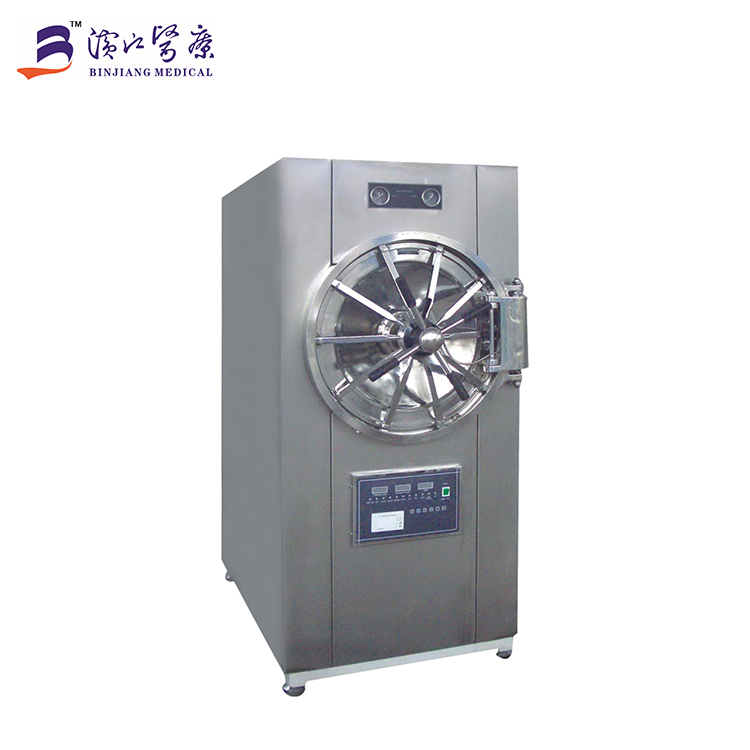

Horizontal pressure steam sterilizer

feature

• The sterilization process is automatically controlled, and the operation is simple.
• With drying function, suitable for drying medical dressings.
• With overheating, overvoltage automatic protection function.
• The door can be opened only after the pressure in the cavity drops to 0.027MPa. If the door does not close properly, the unit will not start.
• When the internal pressure exceeds 0.24MPa, the safety valve opens automatically and the steam is discharged from the water tank.
• Automatically cut off the power supply in case of water shortage, and alarm at the same time.
• All stainless steel construction.
• With printer.

Technical data

Model	WS-150YDD	WS-200YDD	WS-280YDD
Technical data	WS-150YDD	WS-200YDD	WS-280YDD
Sterilization chamber volume (mm)	150L φ440×1000	200L φ515×1000	280L φ600×1000
work pressure	0.22Mpa
Operating temperature	134℃
Temperature adjustment range	40℃-134℃
Sterilization time	0-99 minutes
drying time	0-99 minutes
average calorie	≤±2℃
strength	9kw/380V 50Hz	9kw/380V 50Hz	12kw/380V 50Hz
Dimensions (mm)	1400×650×1600	1400×750×1700	1520×910×1900
Outer packing size (mm)	1560×820×1820	1560×910×1880	1680×1080×2100
GW/net weight	430/340kg	436/350kg	570/462Kg
