Excavator Hydraulic Swivel Log Grapple Set for 20 Ton Excavator

Supplier: Yantai Hemei Hydraulic Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Steven Wang
Price: $6100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	not any	Opening:	2492mm
Supply capacity:	1300 sets per year	Applicable industries:	farm, construction, other
weight:	1630	Warranty:	1 year
product name:	Excavator Hydraulic Swivel Log Grapple Set for 20 Ton Excavator	brand:	buddy
Packaging Details:	Plastic sheeting, stretch film, packing tape, steel tape and wooden boxes provide a wonderful packaging procedure. With plastic and stretch film, it can prevent the product from rusting during long voyages at sea. Packing straps, steel straps and an outer wooden case protect the product from impacts.	payment terms:	L/C,Western Union,T/T,MoneyGram
Packaging Preview:		motor:	Eaton brand
Applicable excavators (tons):	17-25	Mechanical test report:	if
Core components:	Bearings, motors	Oil flow:	100-140L/min
Health status:	new	Video external inspection:	if
Set pressure:	200 kg/cm²	Material:	Q355Mn
high:	2316mm	Applicable excavators:	17-25 tons
Cylinder Force:	9.7*2 tons	model:	HM08
Maximum jaw opening:	2492	place of origin; place of origin:	Shandong China
OEM/ODM service:	usable	Marketing Type:	New product
port:	Qingdao, Yantai, Shanghai

Product Description

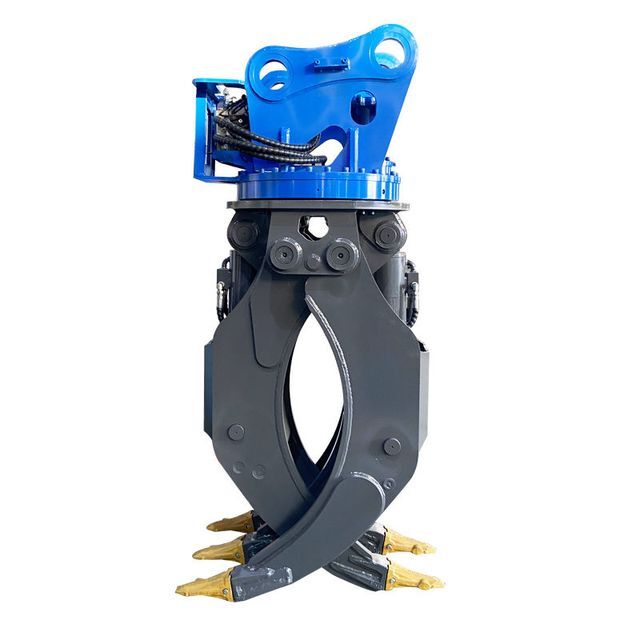

Excavator Hydraulic Swivel Log Grapple Set for 20 Ton Excavator

HOMIE Lumber/Log Grapple is an excavator attachment primarily used for the handling, moving, loading and arranging of lumber, logs, lumber and other large waste.
As one of the leading grapple manufacturers in China, HOMIE has a full range of stone grapples for various brands of excavators.

Specification

Please check the following specifications to select the appropriate grapple model:

category	unit	HM04	HM06	HM08	HM10
weight	Kilogram	430	890	1630	1680
opening ceremony	mm	1371	1539	2492	2492
oil pressure	kg/cm²	120-160	150-170	160-180	160-180
set pressure	kg/cm²	180	190	200	210
oil flow	L/min	50-100	90-110	100-140	130-170
The right excavator	Ton	4-8	9-16	17-25	26-35

feature

main feature:

1. Material: Q355B manganese plate.
2. Original EATON brand motor, Taiwan Winner spool, quick-plug integrated wiring harness.
3. Infinite clockwise and counterclockwise 360° rotating swing bearing system with 3+2, 4+3, 5+4 fingers for your choice.
4. Heat treatment of pins and bushings to increase strength and wear resistance.
5. The brake valve protects it from inertia or accident.

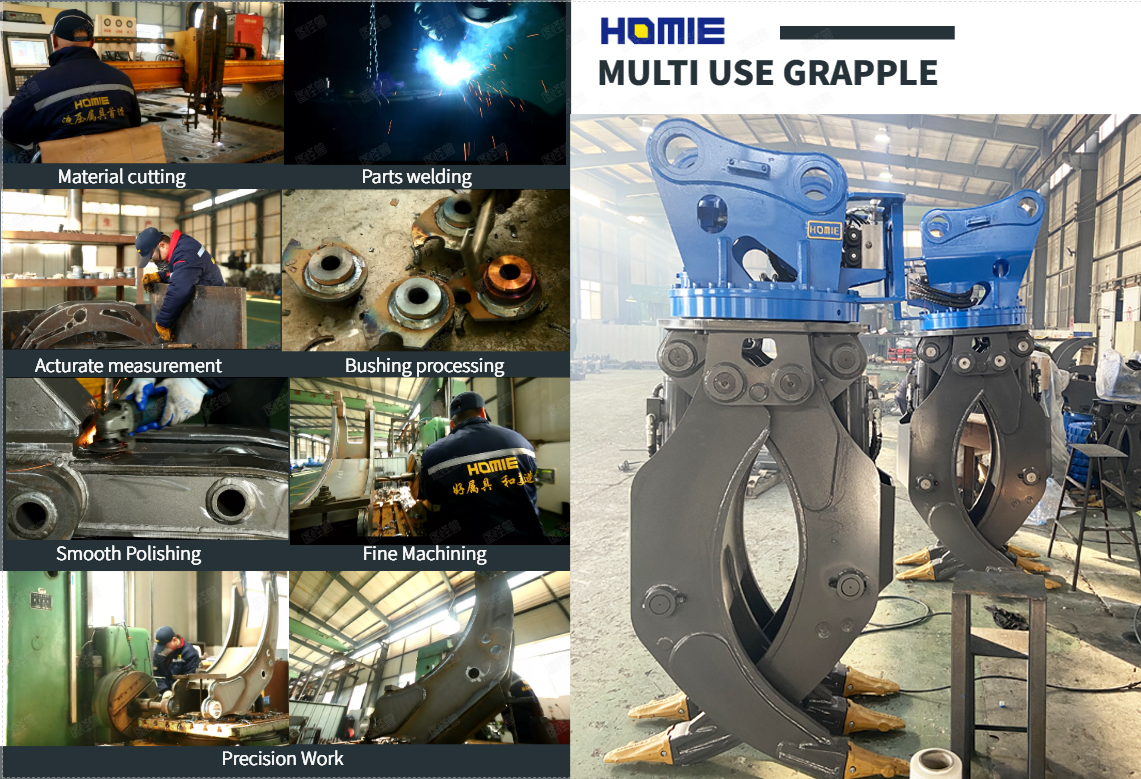

6. Welders have ten years of experience, and the welding process removes hard force and does not cause welding cracks.

detail:

application:

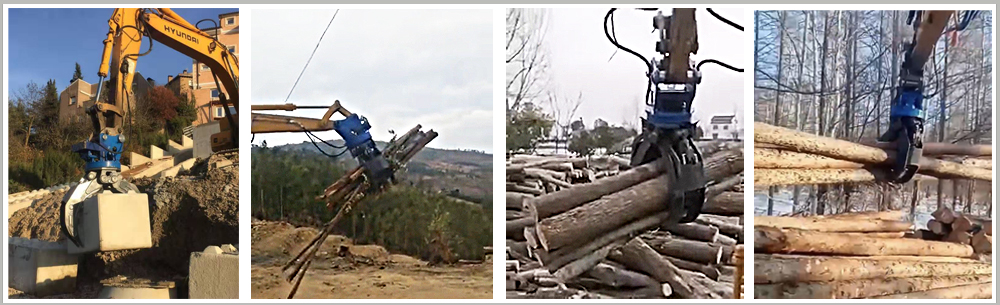

Demolition, scrap handling, cleaning, moving, loading, sorting and organizing of logs, wood, stone, steel and iron filings.
HOMIE hydraulic stone grabber, factory produced, price concessions, direct supply from the factory, minimum order one piece, global delivery.

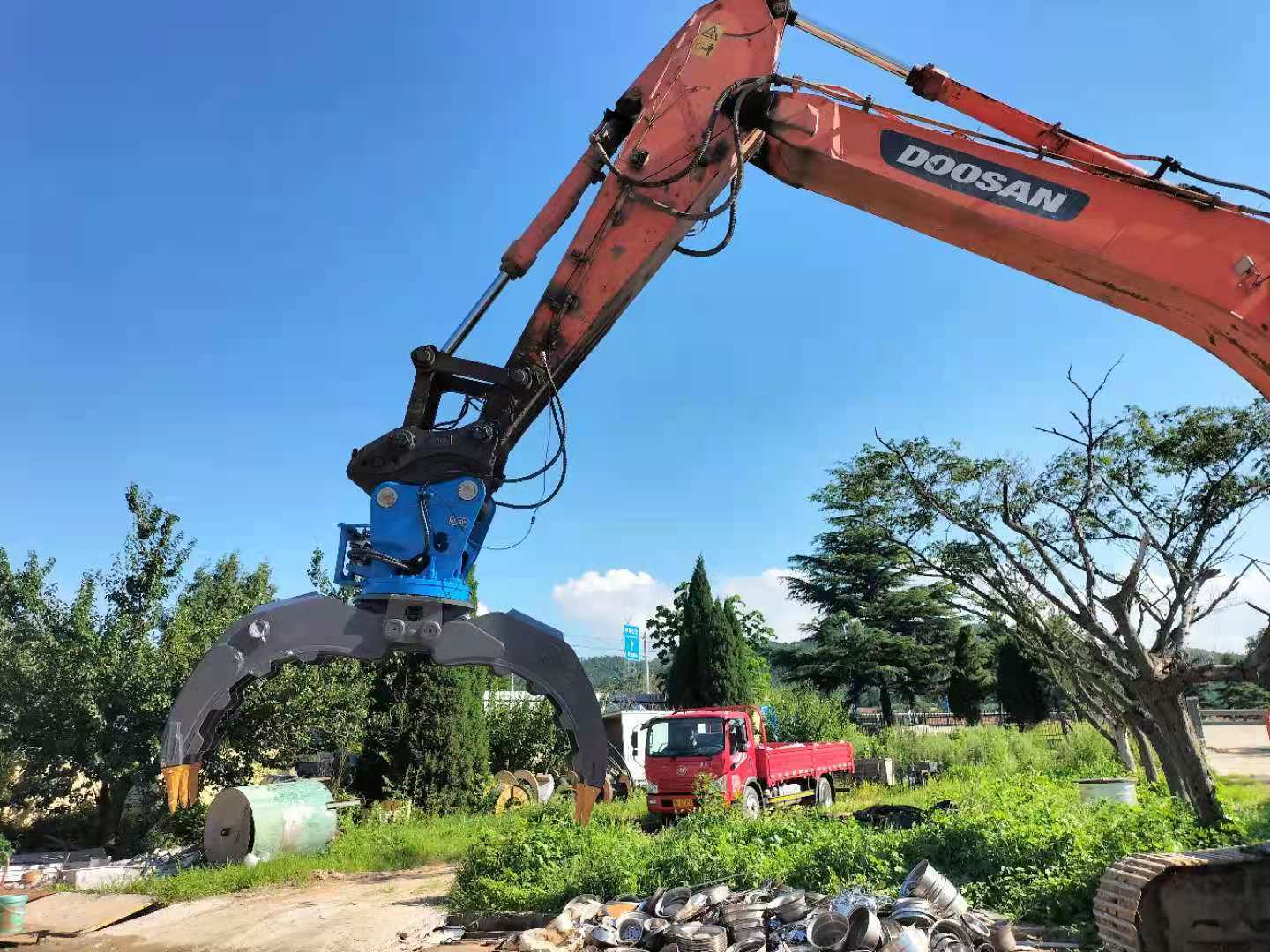

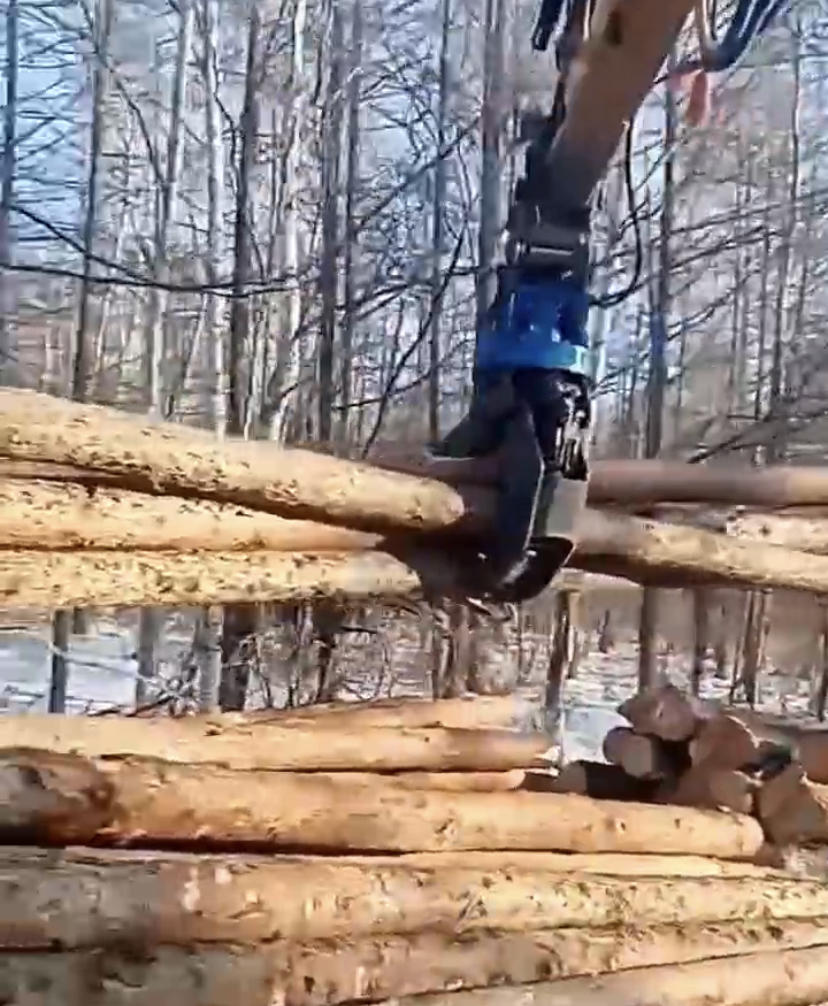

successful project
