H6 digital voice recorder pen with replaceable microphone Products from Guangzhou Hua Liang Photography Equipment Firm

Product Details

Bit depth:	16, 24 (WAV)	title:	Zoom H6 digital voice recorder
Certification:	FCC, CE, RECH	brand:	Zoom H6
Gross weight per piece:	5.000 kg	Packaging Details:	Box packaging, on the basis of reasonable placement, appropriate use of bubble pads, cartons, etc. as fillers for edges and gaps to protect the product well
Single package size:	30X32X40 cm	place of origin; place of origin:	China
color:	Black	Material:	ABS
Sales unit:	single product	exhibit:	2.0-inch full-color LCD (320 x 240 pixels)
model:	Microphone Zoom H6	Equivalent input noise:	-120 dBu or less
Model:	Zoom H6	Function:	recorder
type:	Portable Handheld Voice Recorder	Name:	H6

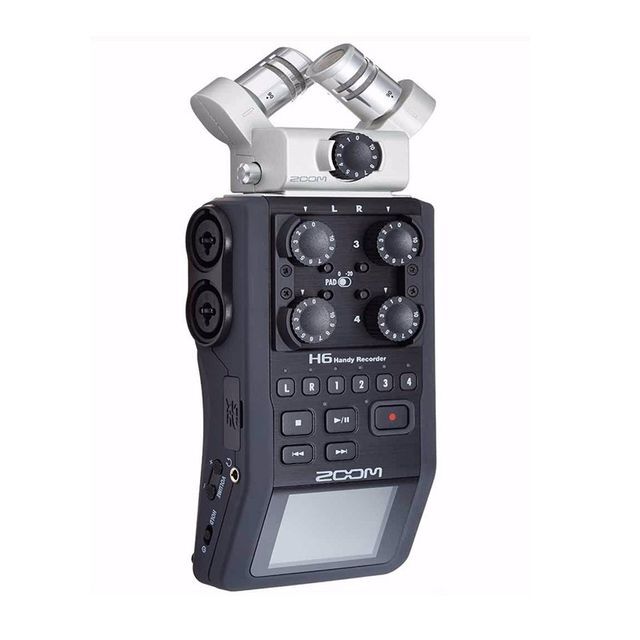

Interchangeable Microphone Portable Handheld Zoom H6 Digital Voice Recorder

Product Description

recording medium	SD card: 16 MB to 2 GB SDHC card: 4 GB to 32 GB SDXC card: 64GB to 128GB
input connection	4 XLR/TRS combo jacks; XLR: pin 2 hot; TRS: cue hot 1x 1/8" Stereo Mini Jack (XYH-6 MIC/LINE IN)
input gain	-∞ to 55.5 dB (PAD off) -∞ to 35.5 dB (PAD on)
input level	-∞ to 46.5 dB (XYH-6 mic/line input)
input resistance	6.8 kΩ (inputs 1 to 4) 2 kΩ (XYH-6 mic/line input)
maximum input level	+22 dBu, PAD ON (inputs 1 to 4)
Phantom power	+12V /+24V /+48V, independent (inputs 1 to 4) 2.5V plug-in power, (XYH-6 MIC/LINE IN)
Equivalent input noise	-120 dBu or less
output connection	1x 1/8" Stereo Mini Jack (LINE OUT) 1x 1/8" Stereo Mini Jack (PHONE OUT)
output level	-10 dBu when the output load impedance is 10 kΩ or higher (LINE OUT) 20 W +20 W into 32 Ω load (PHONE OUT)
Built-in speaker	400mw 8 Ω mono speaker
Recording format	Audio, MP3
Sampling Rate	44.1/48/96 kHz (WAV) 44.1 kHz (MP3)
bit depth	16, 24 (WAV)
bit rate	48/56/64/80/96/112/128/160/192/224/256/320 kbps (MP3)
Maximum simultaneous recording	8 (L/R + INPUT 1 to 4 + L/R backup), backup recording: -12dB below the set L/R input gain (WAV) -or- 2 (MP3)
Record to SD card	Using a 2 GB card: 03:08:00 (44.1 kHz / 16-bit WAV) 34:43:00 (128 kbps MP3)
exhibit	2.0-inch full-color LCD (320 x 240 pixels)
USB port	Mass storage class operations: USB 2.0 High Speed -or- Audio interface operation, multitrack mode: USB 2.0 Hi-Speed, Multitrack or Stereo mode
Power requirements	AA size (LR6) batteries x 4 AC adapter: AD-17 (DC5V/1A/USB-type) (optional) USB bus power
Battery Life	Over 20 hours (with alkaline batteries, continuous recording)
aspect	3 x 6 x 1.9 inches (77.8 x 152.8 x 47.8 mm)
weight	9.9 oz (280 g)

feature:

1. Modular microphone and input system
2. Include XY microphone module
3. Including the middle microphone module
4. Four XLR/TRS inputs
5. Record up to 6 simultaneous channels
6. Record up to 24-bit/96kHz audio
7. Doubles as a USB audio interface
8. Use SDXC memory card
9. Optional microphone and XLR/TRS input
10. Optional hot shoe installation

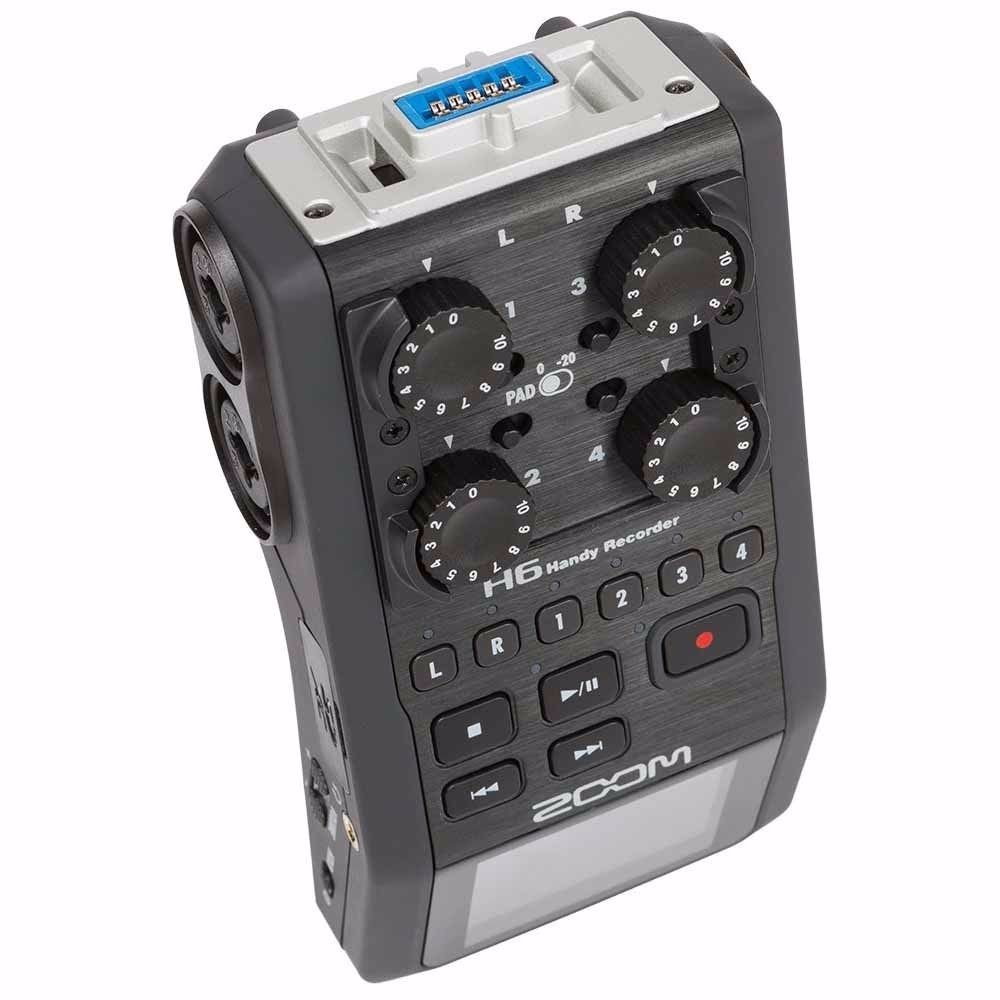

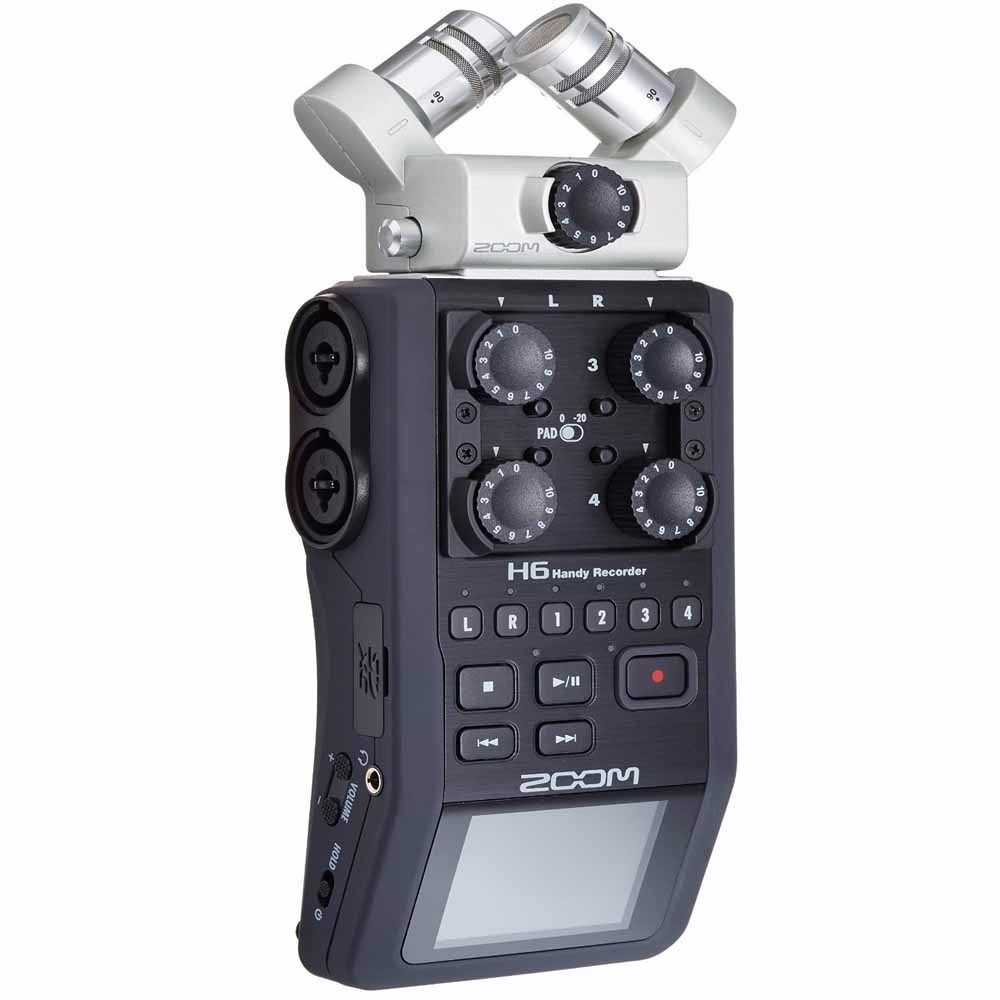

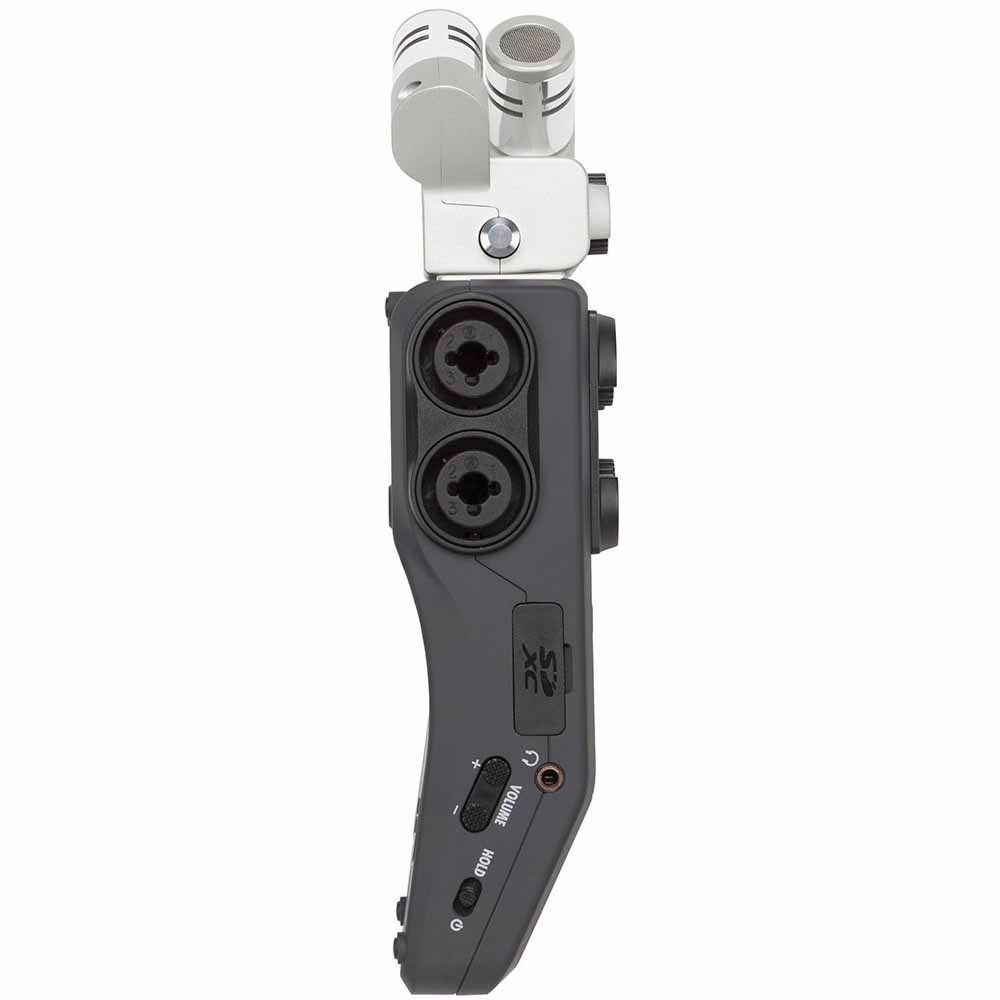

detailed image
