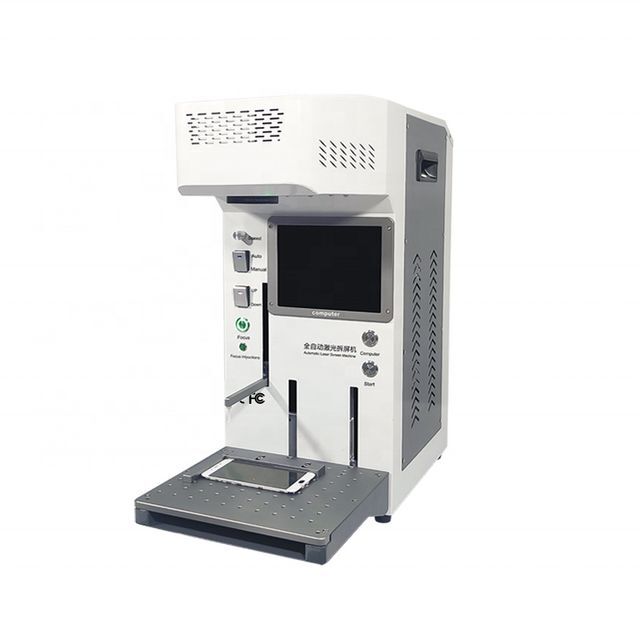

TBK 958b Laser Back Glass Remover for Iphone with Laser Cutting Engraving Marking Printer and Frame Separator

Product details
Core Components Warranty:2 yearsbrand:TBK
Function two:No damage to motherboard and batteryproduct name:tbk mobile phone screen protector laser cutting and engraving machine
Marketing Type:New Products 2020Applicable industries:retail
Function one:No need to open the whole phoneAfter-sales service provided:Video technical support, online support
Core components:motorHealth status:new
Packaging Details:wooden boxFunction four:Works with fume purifiers
Compatible:8 8 Plus X XS XR XS Max 12 12Pro 11promaxFunction:Engraving/removing rear glass
Sales unit:single productMechanical test report:if
After Warranty Service:Video technical supportItem 2:rear glass removal
Item 1:for iphone 8 8 plus x xs xr xsmax 12 12promaxSingle package size:35X62X65 cm
Warranty:2 yearsLocal service location:not any
place of origin; place of origin:Guangdong, ChinaLaser power:6w
Showroom location:not anyGross weight per piece:36.000 kg
deliver goods:2 days after paymentVideo external inspection:if

TBK 958B Laser Back Glass Remover for Iphone with Laser Cutting Engraving Marking Printer and Frame Separator


Product Description


2021 Laser Rear Glass Remover for iPhone 11 X XS Max 8 8+ Mini Engraver

TBK958B Mini Laser Separator

1. Separate back cover and stand frame for all models, including 8 8 Plus X XS XR X Max 11 11 Pro max 12 12mini 12promax is also suitable for other brands of back cover separation. For Samsung Huawei Oppo Vivo Xiaomi LG etc

2. Built-in computer, software and all files, auto focus, no need to measure

3. The laser directly irradiates the mobile phone, without damaging the motherboard and battery, without opening the whole machine

4. Can also engrave letters according to your requirements, support wifi, you can upload photos from your phone directly to the machine

5. Including automatic alignment fixture mode, 100% accurate, no need to adjust the position every time

6. We providetwo years'Warranty, (1 year body warranty + 1 year online support), and any technical issues with this machine. If any part is damaged, we will provide parts repair for free

7. We also provide large hole back glass for iphone models, no need to remove the camera frame

The primary colors are as follows:
8G black and white red gold
8 plus black and white red gold
X black and white
XS black and white gold
XS Max Black Platinum
XR Black Platinum Yellow Blue Pink Red
11 yellow, green, purple, red, white, black
11Pro black, white, gold, dark green
11Pro Max black, white, gold, dark green
12mini : black and white red blue green
12: black and white red blue green
12pro: deep space gray silver gold navy blue
12promax : Space Gray Silver Gold Navy Blue


1. Hundreds of mobile phone back cases and frame data are supported and continuously updated.

2. Laser marking pictures can be carried out on the metal or the back shell of the mobile phone.

3. Print LOGO on your product.



Machine size
after packaging
The machine is the latest model and can be used for cell phone rear glass removal, laser engraving and marking.
Built-in computer and AccuDraw.
Featured high-speed galvanometer.
Sensor autofocus.
One-key start, simple operation


How to use it.


1. Plug in the power cord and turn on the power switch;
2. Remove the lens cover of the high-speed galvanometer;
3. Turn on the computer switch (computer key);
4. Call out the corresponding drawings;
5. Place the mobile phone along the fixed fixture;
6. Press the Focus button to automatically adjust the focus;
7. Turn on the red light indicator, aim at the red light, and adjust the parameters;
8. Start marking button to start marking;
9. After the marking is completed, take out the mobile phone and disassemble it.

Note: This product does not have a matching mold. If you need a mold set, please contact our customer service to buy it separately.
