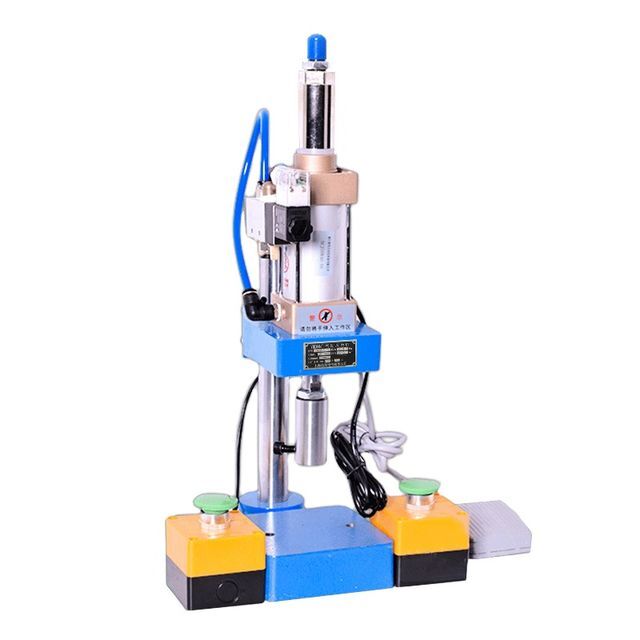

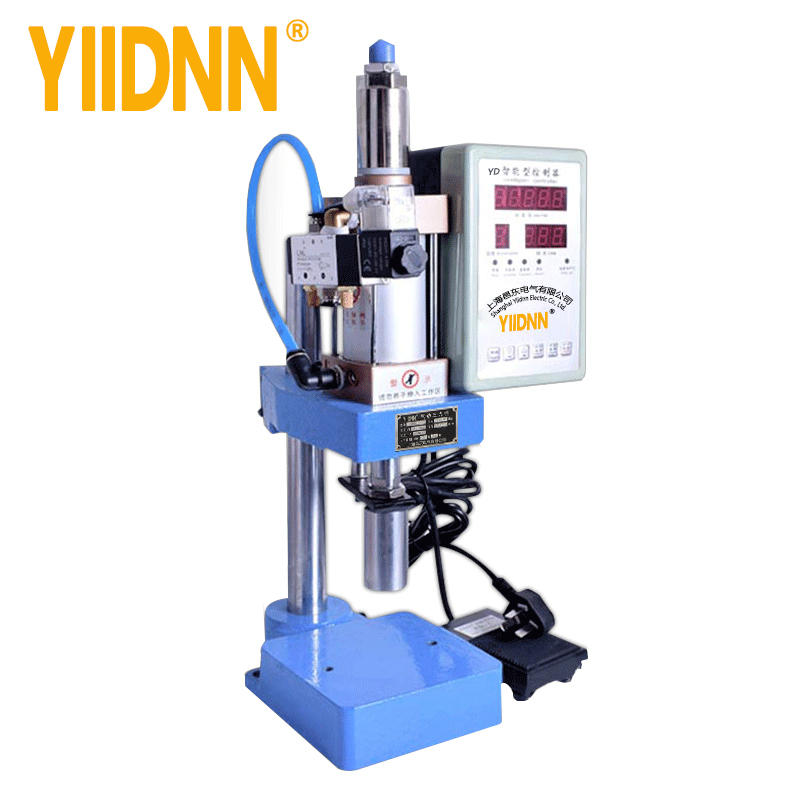

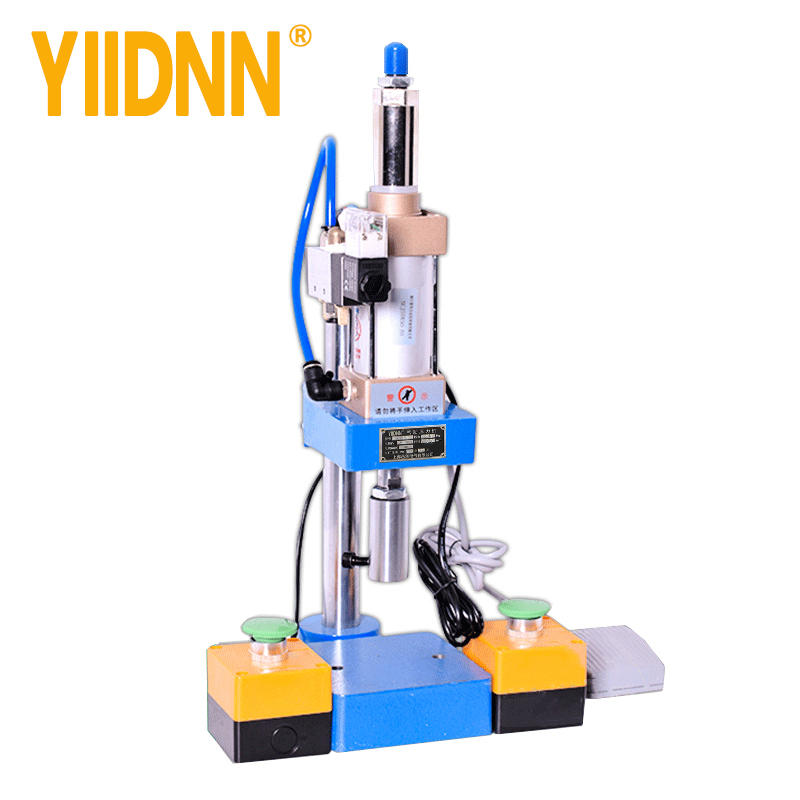

YIIDNN Brand CE Small Pneumatic Punch Press with Controller and Double Button Stamping Punch

Supplier: Shanghai YIIDNN Industrial Co.,Ltd.
Region: Zhejiang, China
Contact: Ms Ailsa gui
Price: $60.92 /piece
Min. Order: 1 piece

Click here to contact

Product details

Showroom location:	not any	Energy source:	pneumatic
working desk size:	125*125mm	Warranty:	1 year
Cylinder stroke:	50mm	Bore:	50mm
Type of machine:	boxing machine	Voltage:	110V220V
model:	YD-50	Video external inspection:	if
Packaging Details:	wooden box	Mechanical test report:	if
Health status:	new	Main selling point:	easy to operate
Sliding stroke (mm):	50	Core components:	other
brand:	Eaton	Column size:	D30*350
Core Components Warranty:	1 year	Single package size:	14X24X70 cm
Gross weight per piece:	14.000 kg	Applicable industries:	Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Food and Beverage Plants, Retail, Printing Stores, Construction Engineering, Energy and Mining, Advertising Agencies
CNC or not:	normal	Weight (tons):	0.014
Marketing Type:	New Products 2020	place of origin; place of origin:	Zhejiang, China
strength:	pneumatic	Sales unit:	single product

Product Description

Please read the following tips before purchasing. If you have any questions, please feel free to contact us.

1. Please leave us a message in the order to remind us what kind of voltage and plug electrical equipment you need. As you know, different countries use different standard plugs and different voltages.

2. If you choose "Seller Shipping Method", please note that this shipping fee is only applicable to some parts of the country, so after you pay, please contact us, we will confirm with you.

3. When the package arrives at your local customs, please pay the tax and take away the package, we will not take any responsibilityCustoms duties or import duties, we will not refund any money if the goods are returned or destroyed due to the buyer's failure in customs clearance.

If you choose "Seller Shipping Method", we will choose the corresponding shipping method according to the region. When shipping a shipment by sea, the status of the shipment is not updated. After arriving locally, the product status will be updated. Please contact customer service for details.

Note: If your address is in a remote area, we will contact you, you need to add an additional delivery service fee of $35, but if you don't reply to us and pay in time, we will choose another shipping method for you free of charge, I think you can understand. For example: Canary Islands in Spain; most of Lithuania; Philippines - Bohol Carmen; Greece, Crete, etc.

4. For general products, we use express, such as DHL, UPS, TNT, EMS, FedEx.

If you are a Russian customer, we will also ship by express channel (tax included).

If you are a customer from other countries, we can also ship by sea/air + express.

For heavy cargo, we can also ship by sea or air. But this is not a door-to-door service and requires customs clearance and customs duties.

technical parameter
Model	YD-50
Connector (adjustable)	190mm
maximum working height	200mm
Cylinder Specifications	SCJ50×50mm
Adjustable cylinder stroke	50mm
table area	125×125mm
strength	AC110/220V 50-60Hz
operational pressure	0.4-0.7MPa

operational pressure					theoretical pressure	weight
MPa	kg/cm²	psi	n	Kilogram	14 kg
0.4	4	110	1121	185
0.5	5	120	1402	231
0.6	6	130	1682	278
0.7	7	140	1962	200
The actual yield is about 80% of the theoretical yield.

Product number	YD-63 type	YD-63A type	YD-80 type	YD-80A type
pressure	200kg	200kg	300kg	300kg
Cylinder Specifications	63×75-50	63×75-50	80×100-50	80×100-50
working desk size	150×135mm	150×150mm	150×150mm	200×200mm
maximum working height	200mm	230mm	240mm	250mm
punching	φ16mm	φ16mm	φ20mm	φ20mm
Intake pipe	8×5	8×5	10×6.5	10×6.5
weight	17kg	28kg	32 kg	40kg
control method	Pneumatic electric control	Pneumatic electric control	Pneumatic electric control	Pneumatic electric control

Product number	YD-100 type	YD-125 type	YD-125 Double cylinder type	YD-160 type
pressure	500kg	800kg	1600kg	1300kg
Cylinder Specifications	100×100-50	125×100-50	125×100-50	160×100-50
working desk size	200×200mm	260×260mm	260×260mm	260×260mm
maximum working height	250mm	250mm	250mm	250mm
punching	φ20mm	φ25mm	φ25mm	φ25mm
Intake pipe	10×6.5	12×8	12×8	12×8
weight	48kg	80kg	90kg	95kg
control method	Pneumatic electric control	Pneumatic electric control	Pneumatic electric control	Pneumatic electric control

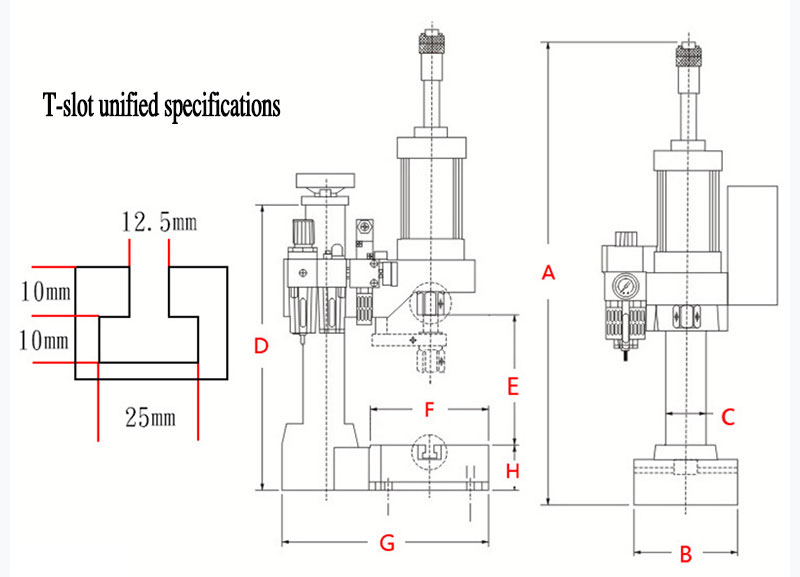

Product number	One	Second	C	D	Second	F	G	H
YD-63 type	690	135	φ30	350	135-215	150	230	35
YD-63A type	690	135	φ30	350	135-215	150	230	35
YD-80 type	750	160	φ45	400	140-220	150	280	75
YD-80A type	750	160	φ45	400	140-220	150	280	75
YD-100 type	950	200	φ60	450	240-320	200	380	75
YD-125 type	980	260	φ70	500	240-320	260	460	75
YD-160 type	980	260	φ70	500	240-320	260	460	75
