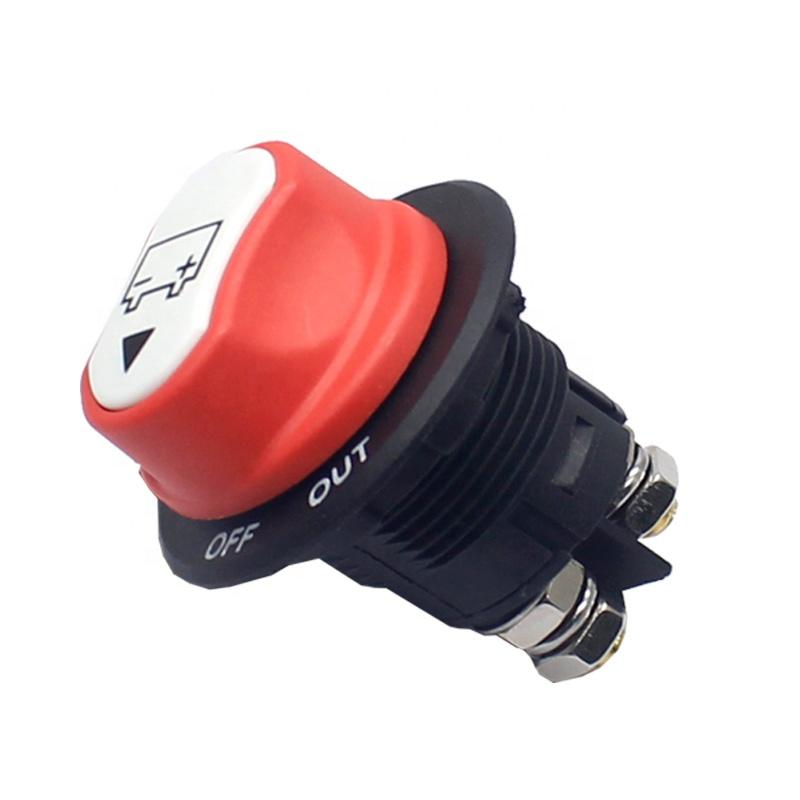

Battery Switch 100A Main Isolator Dual Battery Disconnect Car Waterproof Switch
- 4.80 10 - 99 pieces
- 4.60 100 - 499 pieces
- 4.50 500 - 1999 pieces
- 4.45 >=2000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Gross weight per piece: | 0.056 kg | type: | turn signal switch |
| model: | YC101590 | Single package size: | 6X6X6 cm |
| Name: | battery disconnect switch | Voltage: | 12-48VDC |
| Packaging Details: | TP-17 ZW-54 | place of origin; place of origin: | Guangdong, China |
| Original serial number: | 01 | Sales unit: | single product |
| Intermittent scoring: | 75 amps | Key words: | battery switch |
| ampere: | 100 amps | car brand: | Motorcycles and cars, trucks, cars, RVs |
| Warranty: | 1 year | Insulation resistance: | DC 500V 100M ohm minimum |
| Package: | carton |
Specification
thing | value |
Original number | 01 |
type | turn signal switch |
Warranty | 1 year |
place of origin; place of origin | China |
Guangdong | |
model | YC101590 |
Car manufacturer | truck, car, RV |
Car manufacturer | motorcycles and cars |
Voltage | 12-48VDC |
intermittent scoring | 75 amps |
start level | 100 Amps max 32 VDC |
application | battery switch |
Insulation resistance | DC 500V 100M ohm minimum |
Dielectric strength | AC 1000V 1 minute, DC 2000V 1 minute |

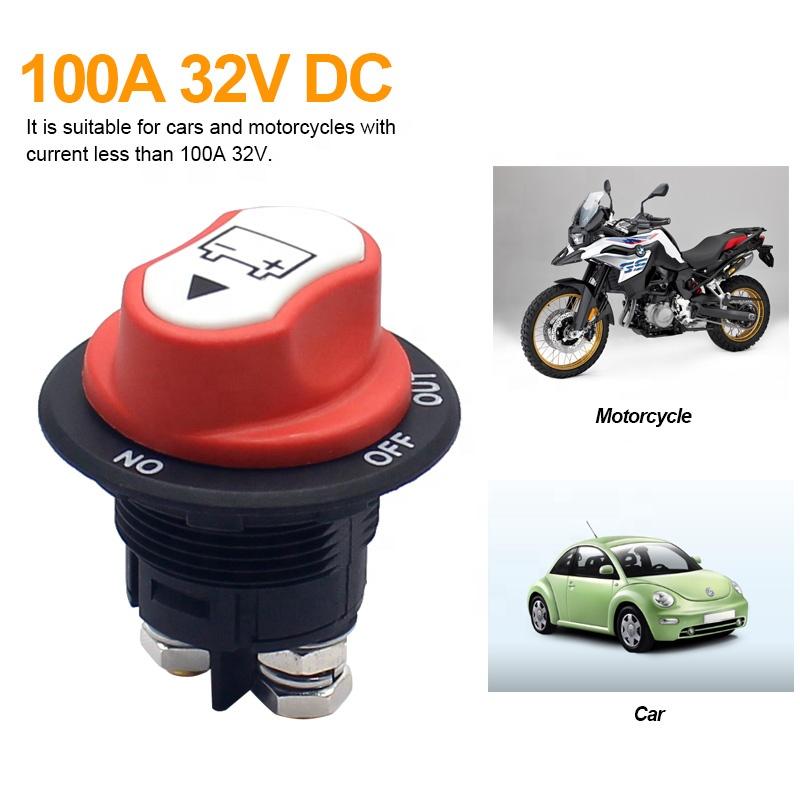

Suitable for cars and motorcycles with general current less than 100A and 32V
Continuous rating | 100 Amps max 32 VDC |
Rated starting current | 500A, 5 seconds |
Intermittent rated current | 150A |
Contact resistance | 50mΩ max |
color | black red |
Operating temperature | -30℃ ~ +60℃ |

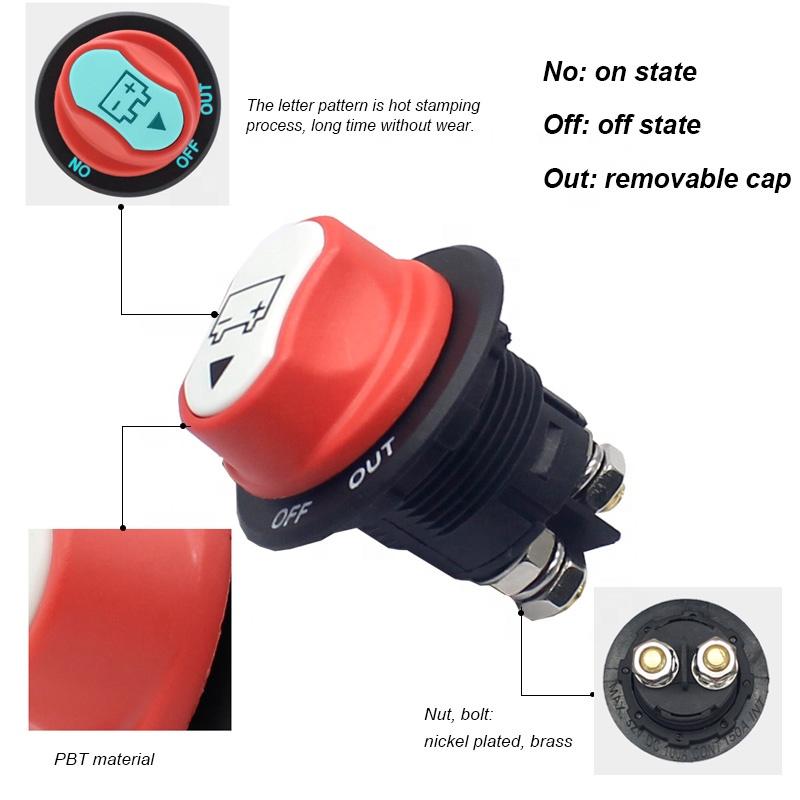

Material | ABS+Metal |
Product Description
