Steamed bun filling mixer/dumpling mixer/meat filling mixer

Product details
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramPackaging Details:Bun stuffing mixer in wooden box
Core Components Warranty:1 yearport:Ningbo Qingdao Tianjin
Local service location:not anyMechanical test report:if
brand:Flourishplace of origin; place of origin:China
Warranty:2 yearsAfter Warranty Service:Online support
Certification:ISO CEVoltage:220V
Dimensions (L*W*H):1580*600*920Health status:new
Marketing Type:New Products 2020Video external inspection:if
Production capacity:600kgApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies
Core components:motorstrength:1.5kW
Showroom location:not anyweight:180kg
After-sales service provided:Provide overseas service center, online supportSupply capacity:10 sets per day



Steamed bun filling mixer/dumpling mixer/

meat blender











Product Description



Introduction of Baozi Stuffing Mixer



The steamed bun filling mixer has high efficiency and simple operation.

Steamed bun stuffing mixer is the preferred equipment, more suitable for drying sausage products, slime mixed sausage products, meatball products, etc.

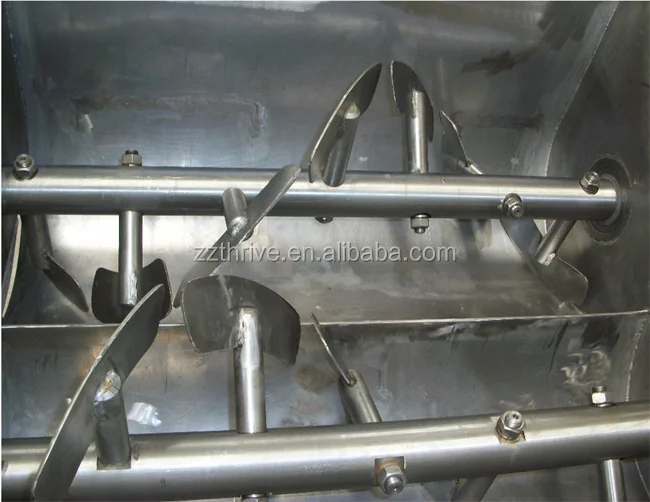

The mixing shaft of the steamed bun filling mixer adopts the mixing method of imported equipment, and the fan-shaped mixing law is used. After mixing, the product becomes more viscous, elastic, and the meat is more tender.

The main shaft adopts double bearing structure, which improves the stirring efficiency and effect.

Forward and reverse control, the meat material is automatically discharged.











The function and principle of bun stuffing mixer

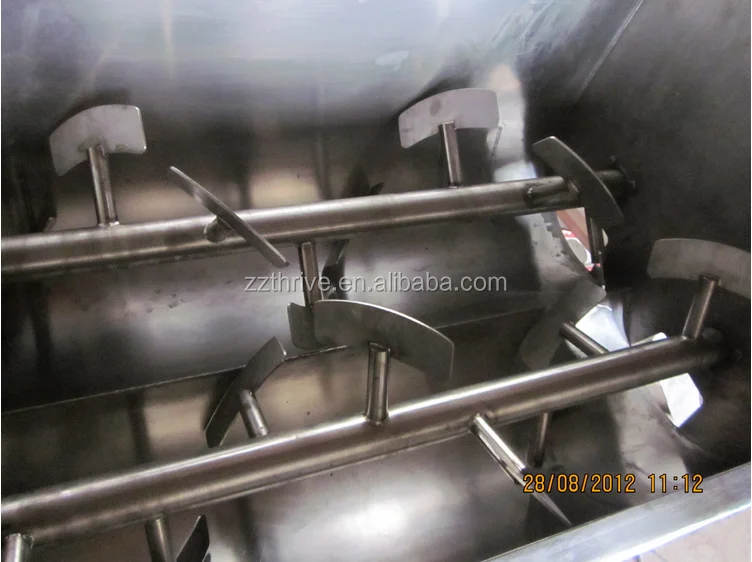

Under vacuum conditions, rotating the twin-screw multi-blade structure stirring shaft makes the material move back and forth clockwise and counterclockwise, so that the meat raw material is mixed with starch, salt and spices evenly; in this case, the protein can be extracted to the maximum extent; meat quality After the raw materials are mixed, it has the characteristics of tight meat, no bubbles, bright color and good elasticity.













Ingredients for Baozi Stuffing Mixer



1.304 stainless steel material, bottom bucket plate thickness 12mm, web thickness 6mm, all stainless steel structure.



2. Imported bearings and sealing elements.











Features of Baozi Stuffing Mixer

1. Multifunctional, various types (according to the difference of raw meat, the meat filling mixer can be divided into dumpling filling mixer, ordinary filling mixer, vacuum type filling mixer, two-axis two-speed filling mixer, variable frequency filling mixer Wait)

2. Energy saving and environmental protection, reliable operation

3. Frequency conversion speed regulation, simple operation and high efficiency













Technical parameters of bun stuffing mixer



Model

TH-200

TH-350

TH-600

TH-700

strength

220v/380v

220v/380v

220v/380v

220V/380V

Rotating speed

43/70(r/min)

52/84(r/min)

52/84(r/min)

60/90(r/min)

Motor Power

1.5/2.2(kw)

2.2/2.8(kw)

3.0/4.0(kw)

4.5/6 (kW)

Dimensions (mm)

1480*650*1170

1390*880*1180

1820*1500*1800

1930*1500*1900

Capacity(Kg/h)

150

250

300/400

400/600

Volume (L)

300

350

600

700











Application of Baozi Stuffing Mixer



1. Meat processing plants, frozen food plants, hotels

2. Sausages, hot dogs, meatballs, all kinds of meat stuffing, such as dumpling stuffing, bun stuffing, wonton stuffing, etc.

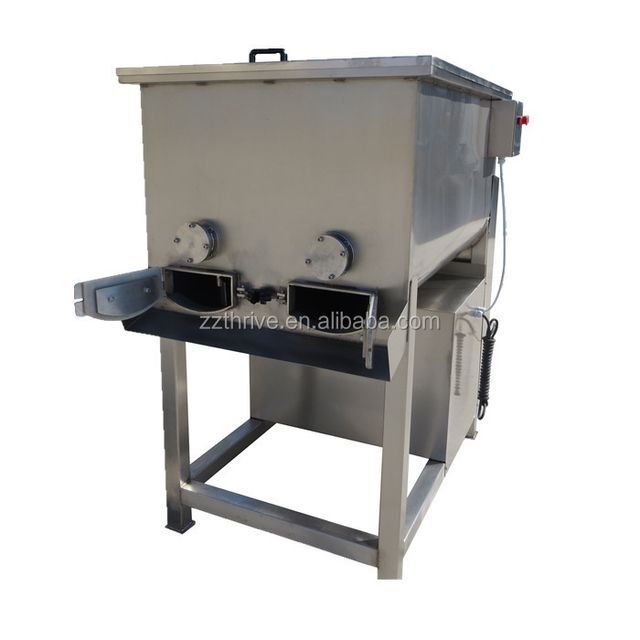

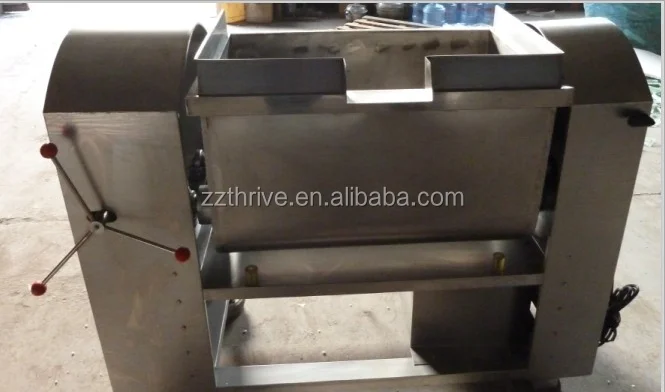

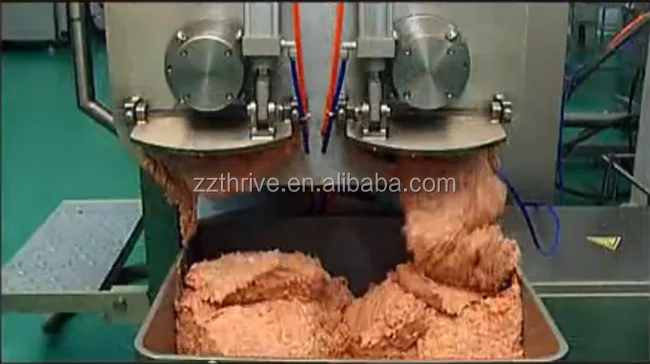

Baozi filling mixer display





















Packaging and Shipping

Packaging of Baozi Stuffing Mixer



All our meat blenders are packed in wooden cases or according to your requirements.





bun filling mixer delivery



All bun filling mixers ship 15 days after the first payment.

There are three delivery methods, please make sure my port of destination when you send us your enquiry.

We will choose the best agent for you.









our service



1. Pre-sale bun stuffing mixer

We will advise you on project design, process design and selection of machinery and equipment suitable for you

According to your special requirements, we design and manufacture products for you and train technical operators



2. Bun stuffing mixer sold

We will accompany you to complete the acceptance of the equipment, and assist in drafting the construction plan and detailed process



3. Aftermarket Baozi Stuffing Mixer

Our company will send technicians to the site to guide the installation of the equipment, and to debug and train the operators.

One year later based on their prime cost, we offer mince blender parts at factory prices







All bun filling mixers can be designed according to your requirements!











If you have any questions about the bun filling mixer, please feel free to contact me!
