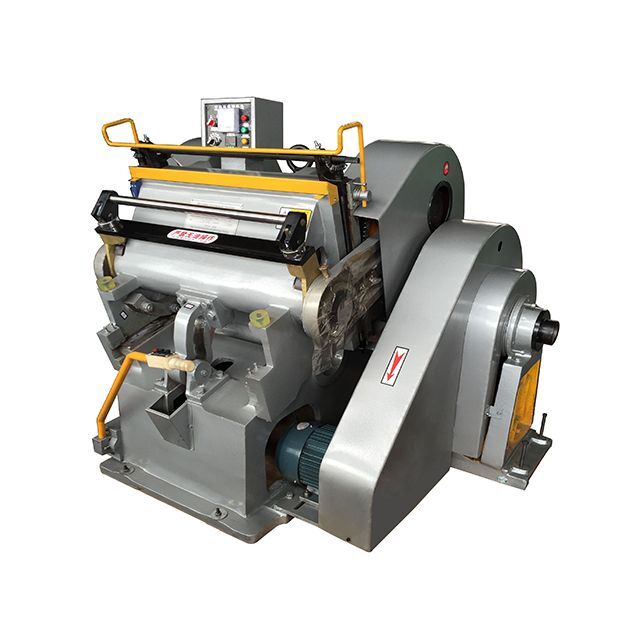

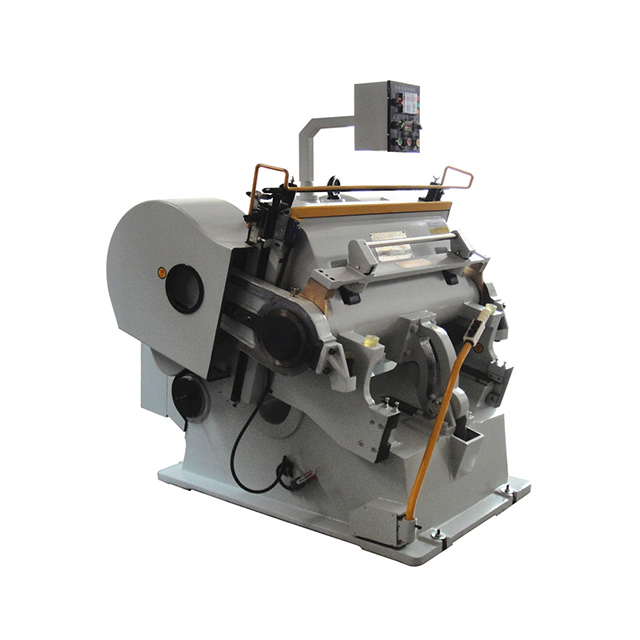

[JT-ML750] Die-cutting paper creasing machine

Product details
Applicable industries:manufacturing plant, printing plantAfter Warranty Service:Online support, on-site maintenance and repair services
Video external inspection:ifCertification:Chief Executive
Main selling point:high productivityHealth status:new
Supply capacity:20 sets per monthWarranty:1 year, 1 year
Marketing Type:normal productPackaging Preview:
port:Paper creasing machine Ningbo or ShanghaiDimensions (L*W*H):1260*1350*1280mm
Production capacity:28±2 strands/minAfter-sales service provided:Engineers can repair machinery overseas, on-site maintenance and repair services, online support
Computerized:YesCore components:motor, gear
weight:2KGmaximum. Working width:750mm
Local service location:not anypayment terms:letter of credit, wire transfer
automation:manualShowroom location:not any
Voltage:380vProgrammable controller brand:Siemens
Mechanical test report:ifPackaging Details:Plastic wrap or wooden box for paper creasing machine
Name:Paper creasing machinetype:Die cutting machine
place of origin; place of origin:Zhejiang, Chinabrand:Jetta
Core Components Warranty:1 year
Product Description
Purpose:

Die-cut paper creasing machineIt is a special equipment for indentation and cutting of ordinary cardboard, corrugated cardboard, plastic, leather, etc. It is suitable for printing, packaging, decoration and plastic industries. This
The machine has the characteristics of compact structure, fine workmanship, high precision and convenient operation.

feature:

* The sliding bearing is made of high-quality alloy copper, which has the effect of reducing friction and vibration.
* The flywheel is under great force and pressure.
* The fuselage is made of first-class materials, which are integrally formed and have high strength.
* The single-plate electromagnetic clutch is sensitive and reliable.
* With single, continuous, open stop function, the stop range is adjustable.
* The operating position is reasonably arranged, and the mobile bed can be opened to the best state.
* Reliable safety system.

Specification

Model
maximum. Inner Chase Size
Speed ​​of work
Indentation length
Motor Power
weight
Dimensions
mm
stroke/min
mm
kilowatt
Ton
mm (L*W*H)
JT-ML750
750*520
28±2
<15
2.2
2.0
1260*1350*1280
JT-ML930
930*670
23±2
<25
4.0
3.0
1670*1670*1630
JT-ML1040
1040*720
23±2
<28
4.0
3.8
1760*1740*1650
JT-ML1100
1100*800
20±2
<32
5.5
4.5
1900*1780*1700
JT-ML1200
1200*830
20±2
<35
5.5
4.8
1920*2140*1920
JT-ML1300
1300*920
18±2
<40
7.5
6.0
2000*2140*2000
JT-ML1400
1400*1000
17±2
<45
7.5
6.8
2010*2400*1930
JT-ML1500
1500*1050
16±2
<45
7.5
7.5
2090*2400*1930
JT-ML1600
1600*1250
16±2
<50
11.0
11.0
2170*2560*2230
JT-ML1800
1800*1300
16±2
<62
15.0
13.5
2240*2800*2230
JT-ML2000
2000*1400
12±2
<65
15.0
15.5
3000*2500*2000
JT-ML2500
2500*1500
12±2
<67
15.0
18.0
3500*2800*2000

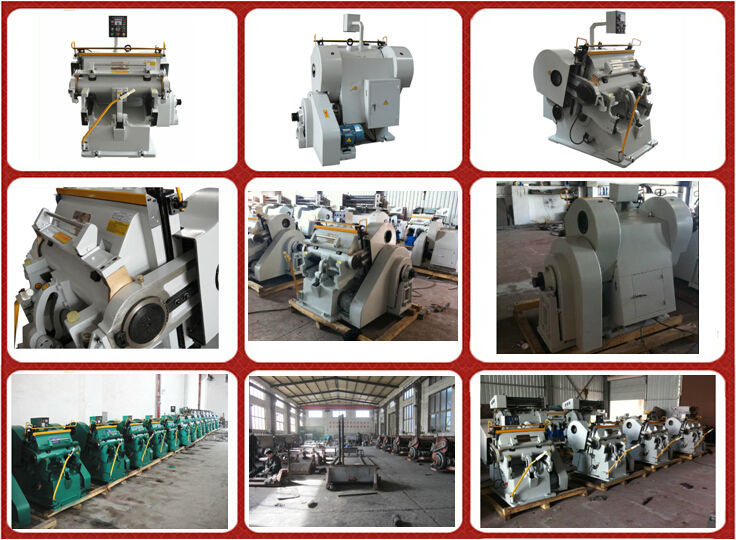

detailed picture
Product packaging
