YF-P11K Yeacomm 4g LTE CPE Outdoor Wi-Fi with SIM Card Slot

Supplier: Xiamen Yifan Communication Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Mark YU
Price: $88.00 / 1 - 99 units
$78.00 / 100 - 999 units
$68.00 / 1000 - 2999 units
$63.90 / >=3000 units
Min. Order: 1 unit

Click here to contact

Product details

LAN port:	1	Wired transfer rate:	10/100Mbps
Support WDS:	Do not	Function:	Firewall, QoS, VPN
maximum. LAN data rate:	150Mbps	With modem function:	Do not
type:	wireless	Wi-Fi transmission standard:	802.11n
Short message:	support	Dynamic Domain Name:	support
Support WPS:	Do not	2.4G Wi-Fi transfer rate:	150Mbps
color:	white	brand:	Yakang
product status:	spot, new	Sales unit:	single product
Certification:	CE FCC ROHS	Gross weight per piece:	1.200 kg
Packaging Details:	Gift Box + Carbon Box	Encryption type:	WPA2-PSK,WPA2
application:	enterprise	place of origin; place of origin:	Fujian China
Single package size:	38X17X12 cm	WAN port:	1
4G speed:	Cat 150MHz	Wi-Fi supported frequencies:	2.4G
Standards and Protocols:	Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n

Product Description

YF-P11K Yeacomm 4g LTE Outdoor Wi-Fi CPE

Overview

Yeacomm 4G WIFI KIT is a highly advanced CAT4 LTE outdoor multi-service product solution designed to meet the comprehensive data and Wi-Fi access needs of residential, commercial and enterprise users.

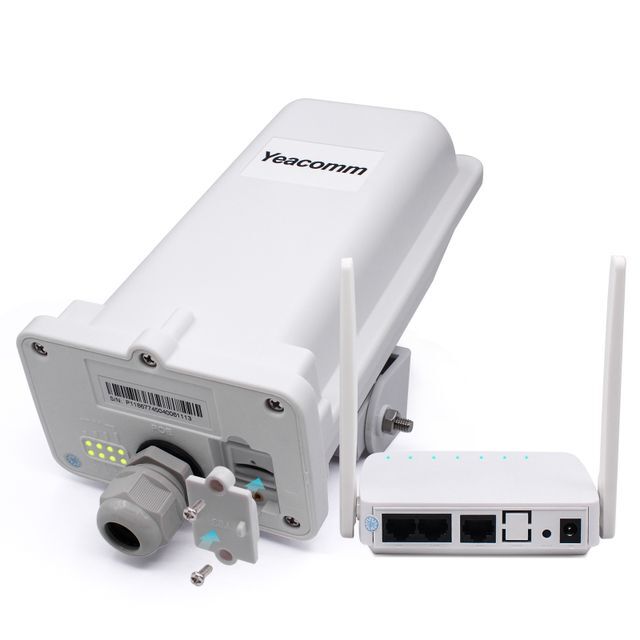

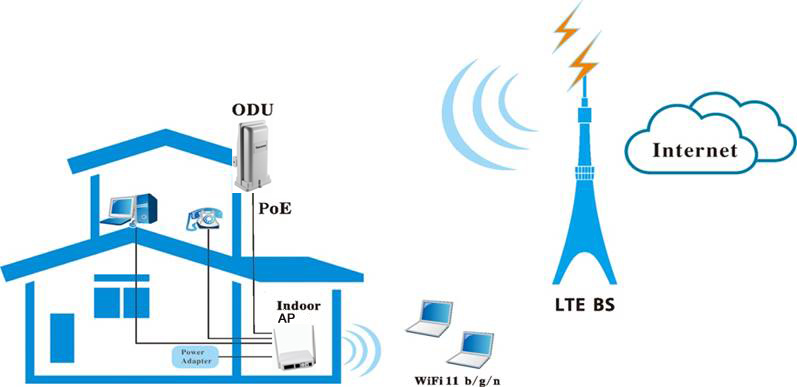

The product consists of an outdoor data CPE unit (ODU) and an indoor multi-service gateway unit (AP) supporting advanced networking and WLAN AP functionality. It supports broad service coverage and provides high data throughput and network capabilities for customers who require easy broadband access and Wi-Fi connectivity.

The outdoor unit

Cellular Specifications
frequency	FDD: B1/B2/B3/B5/B7/B8/B20, Second2/B3/B4/B5/B12/B17/B25/B26/B41, (optional, US version) B1/B2/B3/B5/B7/B8//B28, (optional, B28 version)
	TDD bands 38/39/40/41, B42/B43 (optional)
	WCDMA: 900/2100Mhz, 850/900/1900/2100Mhz (optional)
	GSM: 850/900/1800/1900Mhz
	Frequency can be customized according to your requirements
Speed (CAT4)	FDD - LTE Downlink: 150Mbps, Uplink: 50Mbps
	TDD-LTE: Downlink: 150Mbps, Uplink: 50Mbps
	HSPA+: 42Mbps (download speed) 5.76Mbps (upload speed)
	HSUPA: 5.76Mbps (upload speed) / HSDPA: 7.2Mbps (download speed:)
	UMTS: 384Kbps (download speed/upload speed)
motherboard
Chipset model	Sagitar 9341
speed	533MHz
ROM	SDRAM: 64MByte
ROM	Flash memory: 8MByte
4G module	embedded
Function
TR-069	CPE WAN Management Protocol
Dynamic DNS	support
up	support
NAT	support
DHCP	support
SMS function	support
firewall	file filter
	address filter
	virtual server
	system security
	Demilitarized Zone Setup
	Remote management
System Management	upload, NTP settings

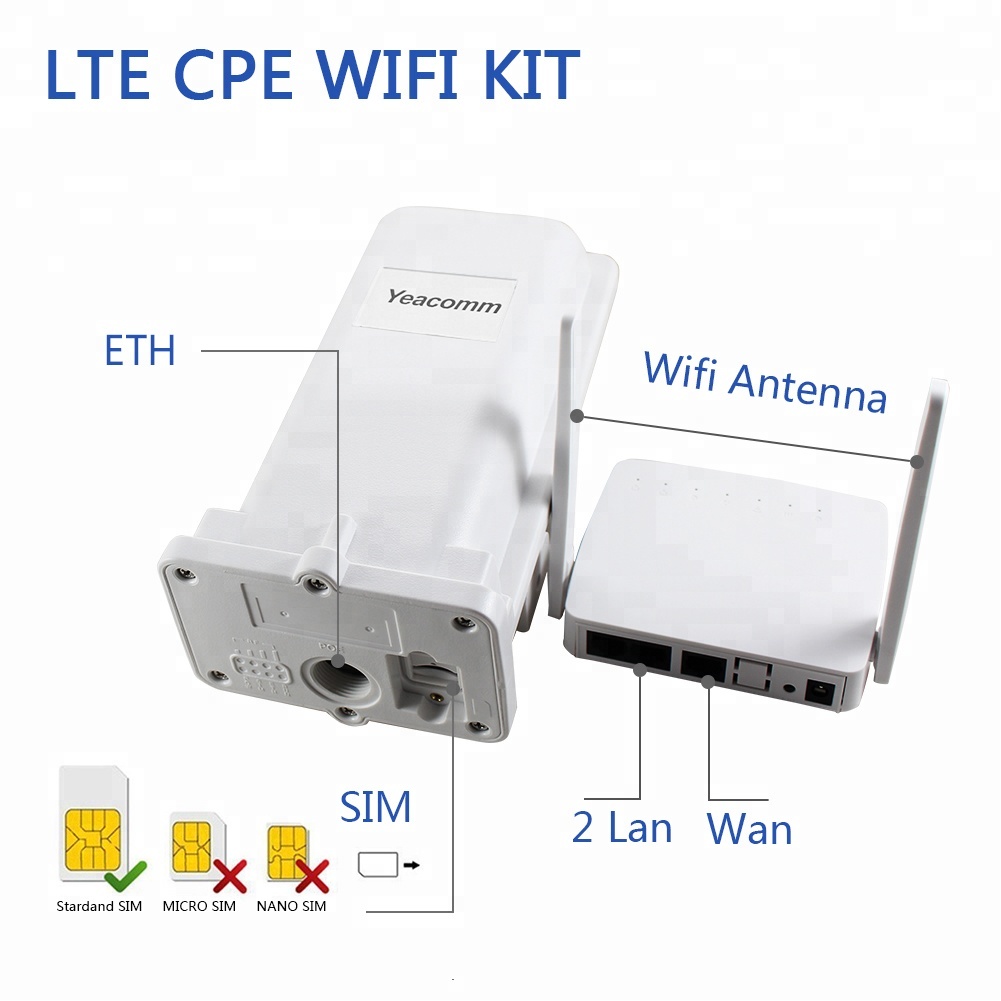

Interface Type
thing	content
local area network	1 x 10/100 Mbps Ethernet port (RJ45),
index	"Power", "Data", "Signal"
antenna	Cellular: Internal 8.0dbi
SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
strength	Standard 3-PIN power jack, reverse voltage and overvoltage protection
reset	Restoring the router to its original factory defaults
power supply
thing	content
Standard power	Input: 100V~240V, 50Hz~60Hz
	Output: 15V DC±10%
	Output: 500mA
Power range	5V---18V
physical properties
Operating temperature	-30~60℃
Storage temperature	-40~85℃
humidity	≤95%

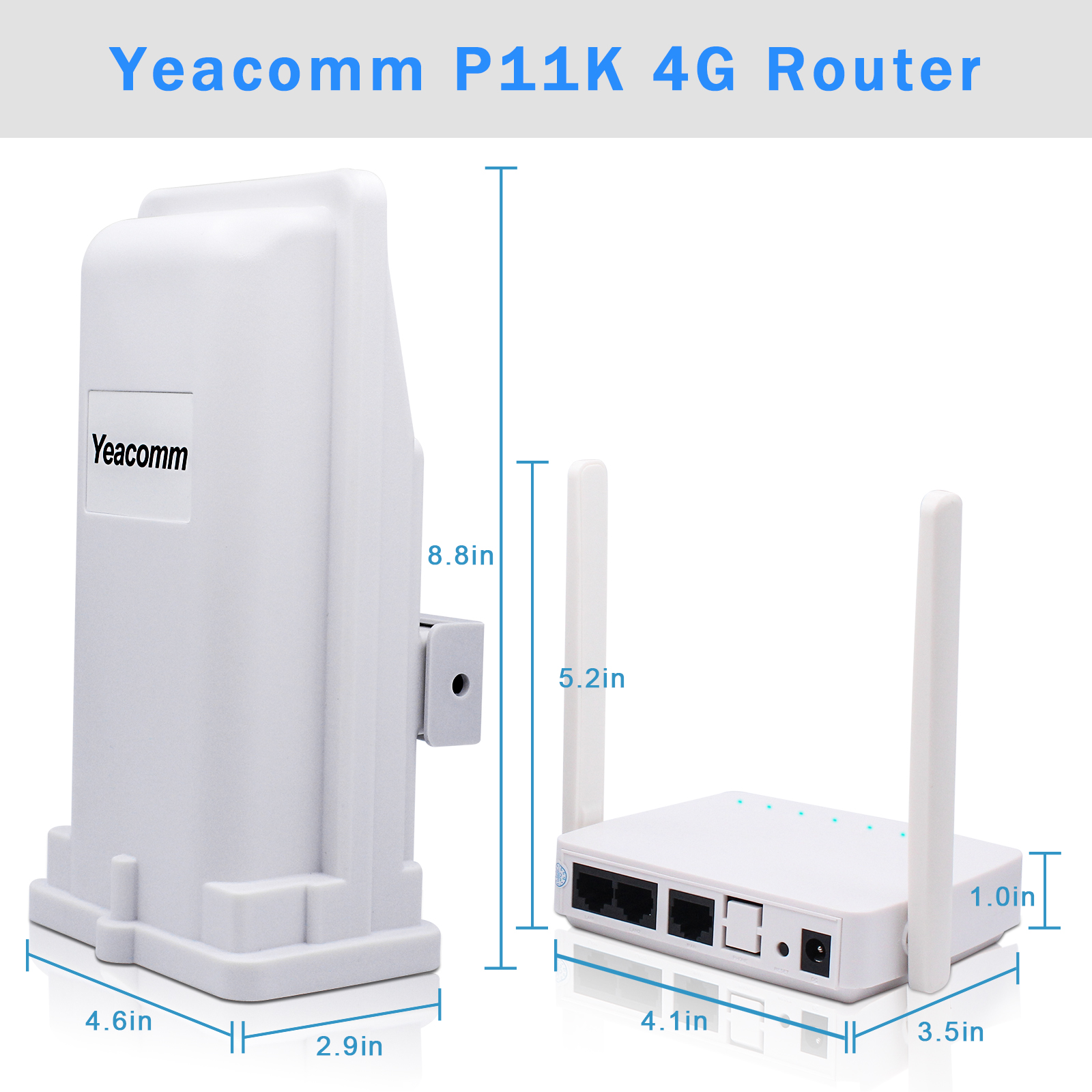

aspect	252x142x50mm
weight	about 570 grams
Waterproof and dustproof	IP65

Indoor access point:

Interface Type
Ten thousand	1 x 10/100 Mbps WAN port (RJ45)
local area network	2 x 10/100 Mbps Ethernet ports (RJ45)
antenna	2 x WIFI Antennas
strength	1 DC power adapter, DC15V/1A
reset	Restoring the router to its original factory defaults

physical
housing	plastic
aspect	105mm x 95mm x 20mm
weight	125 grams
