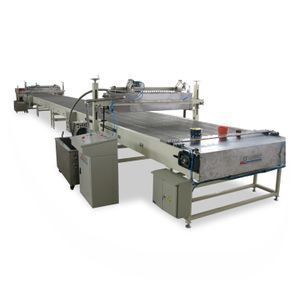

Candle Making Machinery Candle Filling Line

Supplier: Dandong Starlight Industrial Co., Ltd.
Region: Liaoning, China
Contact: Mr Adam foong
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Dimension (LxWxH):	net belt length+800+6500x1860mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Width of stainless steel net belt:	can be cusomized;
Packaging Detail:	naked package in container;	Colour:	Ivory;
Brand Name:	XG;	Container turn table motor power:	0.25kW;
Model Number:	XGCMMCFL;	Container net belt motor power:	0.37kW;
Place of Origin:	Liaoning China (Mainland);	Dimension(LWH):	conveyor length+80013501860mm;
Certification:	CE Certificate;	Warranty:	1 Year;
Port:	DaLian Port;	Maxium height of container:	250mm;
Container dial power:	0.25kW;	Machine Length:	can be cusomized;
Weight:	conveyor length/4*160kg;	Delivery Detail:	3 months;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Candle Making Machinery Candle Filling Line is specialized equipment in candle irrigation. This candle machine is controlled by PLC, independently complete the processes from placing the container, transportation, container pre-heating, filling, surface smooth and liquid wax cooling until finished candle product.

The number of the filler and the rows of nozzles can be customized.

Nozzle diameter

2 mm, 3mm, 5mm, 4mm or 7mm

Net belt width can be customized. (The width must be in multiples of 250mm)

Maximum height of container

40mm (through turn table)

250mm (Manual place containers)

Machine Length

Can be customized

Wax box electric heating tube power

1.5KW×2 (one wax tank)

Wax pump motor power

0.18KW (one wax tank)

Wax pump flow

10L/min (one wax tank)

Container preheating tube power

1.0KW×12

(Stainless Steel Net belt width is 1m)

Container preheating tube power

3.0KW X 6

(Stainless Steel Net belt width is 2m )

Diameter of turn table

1500mm

Turn table motor power:

0.25KW

Container dial power

0.25KW

Container net belt motor power

0.37KW

The length and width of the Automatic Candle Making Machinery Candle Filling Line is upon your request.Your any requests,we will try our best to satisfy .
