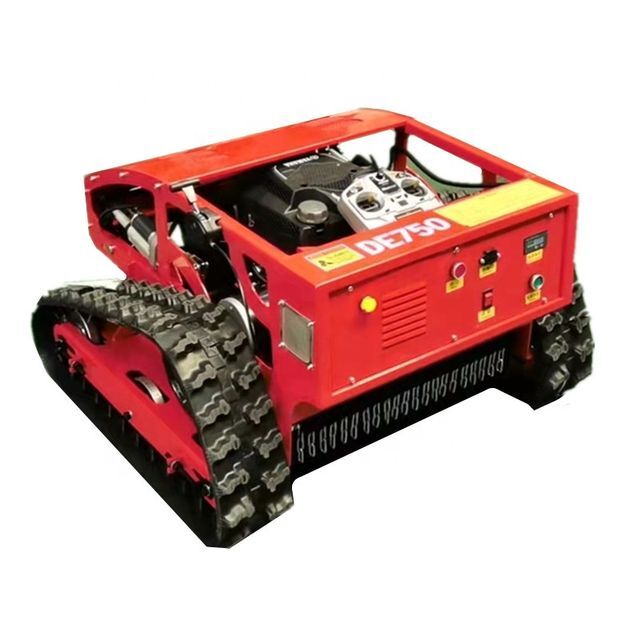

High Quality Robot Lawn Mower Mini Robotic Lawn Mower Automatic Lawn Mower Robot

Supplier: Shandong Degres Machinery Co.,Ltd
Region: Shandong, China
Contact: Mr Roy Lee
Price: $147.69 /piece
Min. Order: 1 piece

Click here to contact

Product details

model:	DE-750	Energy source:	Battery
Forward speed:	6 km/h	application:	lawn cutting
place of origin; place of origin:	Shandong China	feature:	2-stroke, 4-stroke, height adjustable handle, steel chassis, telescopic handle
Packaging Preview:		engine capacity:	196CC
Application range:	200M-800M	product name:	remote control lawn mower
brand:	De Grasse	Custom Support:	OEM
port:	Qingdao, Shanghai, Guangzhou	type:	crawler
Voltage:	24V, 28V, 48V, 36V	Packaging Details:	Wooden box 1100860950mm
grade:	DIY, Industrial	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Mower Type:	crawler	engine:	Yamaha/Loncin
color:	customer request	Warranty:	3 years
Minimum order quantity:	1	Supply capacity:	15200 pieces per week
Model:	DE-110/750/1500	Cutting height:	0-200mm

product name	remote control lawn mower
Machine size	930860580mm
Package dimensions	1060960810mm
cutting width	550mm
height adjustable	10-150mm
cutting height	20-150mm
Walking speed	0-6 km/h
working slope	0-30°
Minimum distance from the ground	20mm
engine	Loncin
strength	7.5HP
engine type	Vertical axis four-stroke

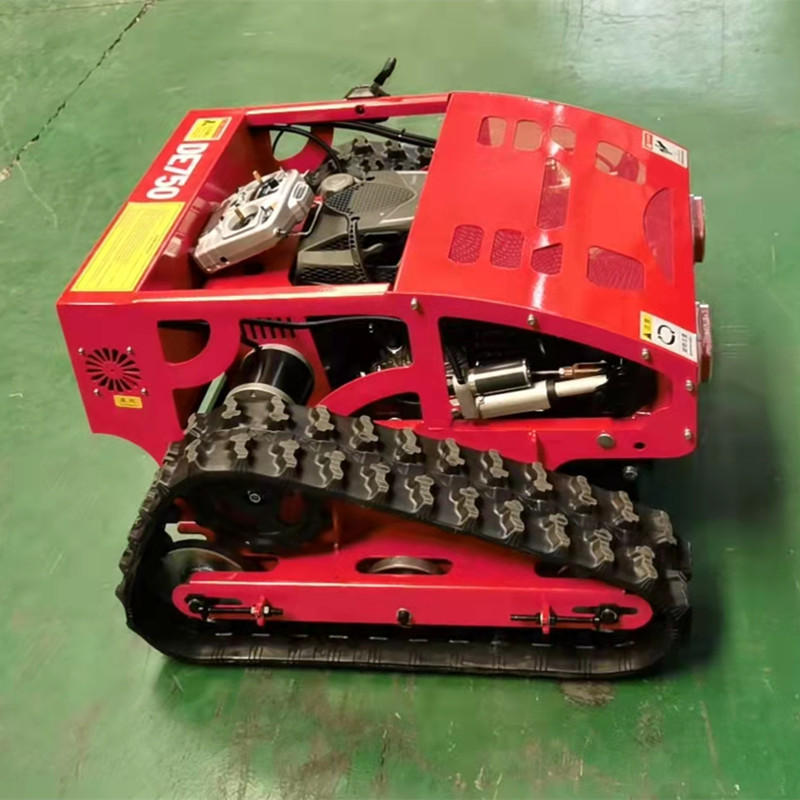

Mini remote control lawn mower, mainly used in orchards, gardens, lawns, wasteland, slopes and other places where the working space is narrow and inclined. The main feature is remote control walking, equipped with gasoline engine, and the cutter head can be raised and lowered. It is safer, more efficient, environmentally friendly and reduces noise.

Lawn Mower Instructions
1. Preparations before starting the remote control lawn mower
(1) Be sure to confirm the tightness of the screws in each part before starting the machine.
(2) Turn on the power key switch of the machine, pull the right lever back and hold it down, then press the switch key of the remote control to turn on the remote control.
(3) When the remote control is turned on, "Di Di" will appear, indicating that the machine matches the remote control normally.
(4) Engine start;
a. Release the brake on the right side of the engine (disconnect the flameout switch at the same time);
b. Turn the left throttle to the end counterclockwise (to open the engine throttle at the same time);
c. Pull the pull rope of the hand pull plate hard to start the engine;
d. After starting the engine, adjust the throttle to the appropriate speed in time;
e. Operate the remote control to cut grass.
2. Remote control description:
D/R switch (large and small rudder): Adjust the walking speed of the machine (the factory default is high speed) The left joystick controls the machine to move forward and backward, and the right joystick controls the left and right turns high.

Servo fine-tuning (left and right adjustment): When adjusting the walking speed of the machine, the electronic regulator in the machine will make a "beep" sound. Only then use the "rudder trim" button until the electronic adjustment in the machine is silent.

Throttle trim (up and down adjustment): the same principle as the "rudder trim" button.
Power switch: push up to turn on the remote control, pull down to turn off the remote control.
