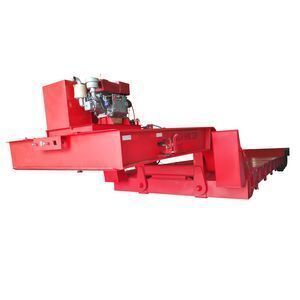

China Factory 6 Axles 80tons Stock Gooseneck Lowboy Low Load

Supplier: Qingdao East China CIMC Special Vehicle Co., Ltd.
Region: Shandong, China
Contact: Mr Edison guo
Price: $16600.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Tire:	1100R20 radial tires, 12 pieces;	Supply Ability:	1000 Unit/Units per Month;
Product name:	Removable Gooseneck Trailer;	Size:	13000x3000x1650mm;
type:	Semi-Trailer;	Place of Origin:	Shandong China (Mainland);
Payment Terms:	L/C,T/T;	OEM No.:	8082;
Packaging Detail:	Bare, bulk or ro-ro ships.;	Axle Number:	6;
Brand Name:	EAST CHINA CIMC;	Port:	Tianjin Port, Qingdao Port, Shanghai Port;
Traction Pin:	2"(50mm)or 3.5"(90mm)traction pin;	Max Payload:	45 - 80 Tons;
use:	Truck Trailer;

Product Description:

a) Hydraulic lift gooseneck low bed trailers are typically used to carry heavier large equipment such as excavators, transformers, special vehicles, and railway vehicles, mining machinery, forestry machinery, agricultural machinery (forklifts, loaders, pavers, cranes, etc.).

b) The strong technical R&D team allows our products to meet the complex needs of our customers and is recognized by both domestic and foreign. The low-bed trailers we developed include: heavy duty trailer, heavy duty semi-trailer, heavy duty low bed trailer,100 tonnes low bed trailer, multi axle low bed trailer.

c) We can provide customized products for our customers, For example, multi-axis and low load-bearing platforms ensure that all kinds of equipment and machinery can achieve the dual purpose of safe and legal transportation.

d) In order to cope with the complicated road conditions, we have adopted a reinforced gooseneck double main beam to provide safety for road transportation.

e) The removable gooseneck lowboy truck trailer capacity ranges from 30 tons to 120 tons with 3 to 8 axes.

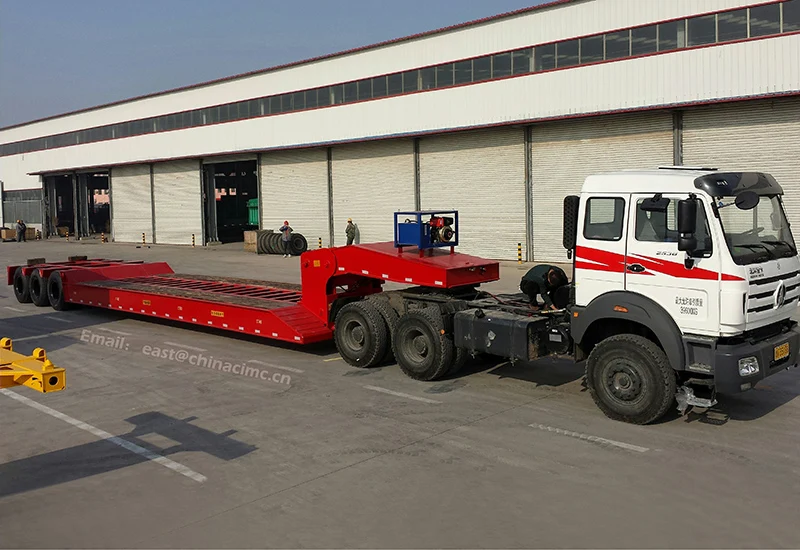

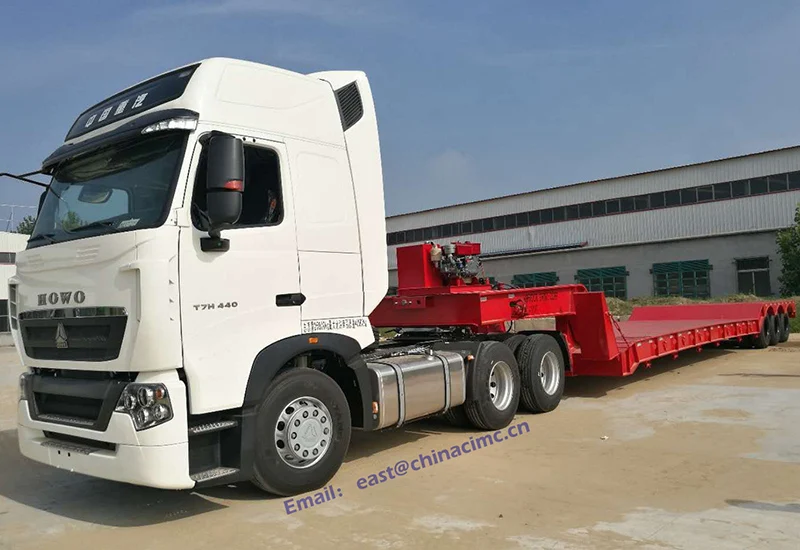

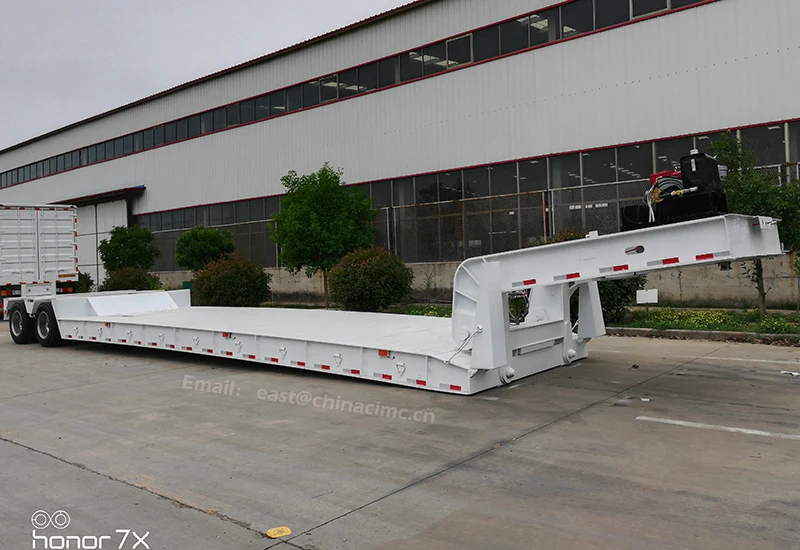

Front Loading Detachable Hydraulic Gooseneck Low Bed Trailer

Product Parameters:

Product Name	Heavy Duty Gooseneck Trailer
Dimensions (Lx W x H)	13000x3000x1650mm (can be customized)
Payload	80tons
Axle	6*13ton FUWA brand
Suspension	Mechanical suspension with 10/10/10
Main Beam	Height:500mm, upper plate is 18mm, down plate is 18mm, middle plate is 10mm.
Through beam and Side beam	10# channel steel, 14 U shaped steel or channel steel
Platform thickness	4.0mm thick chequer plate with supporting channe
Tire	Triangle brand, 12R22.5 (12pcs)
Traction Pin	2”(50mm)or 3.5”(90mm)traction pin
Landing Leg	28T load landing leg
Brake system	Dual Line braking system/Optional ABS
Brake chamber	Six double chamber
Electrical System	24v, 7core socket, LED lights (suitable for all market)
Painting	Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Remark: All the products we can customize for you, if you have any inquiries about our products, please contact us, we will give you the most reasonable price, the most perfect service, the fastest delivery time and best products!

Our Advantage

A. The professional design team provides customized customization according to the needs of customers. and manufacturing to your requirement.

B. Advanced production equipment, strict quality control, fast delivery, the most reasonable price.

C. 24 H service provide professional fast response.

D. The overseas engineer is in ready all the time against unexpected needs.

E. Regular visit to clients to help us understand the status of the vehicle. the company can offer reasonable tech proposals. Timely parts supply guarantee vehicles work continuously.

We dare to face the challenge and do what others dare not to try, We look forward to providing you with the best products and the most comprehensive product design.
