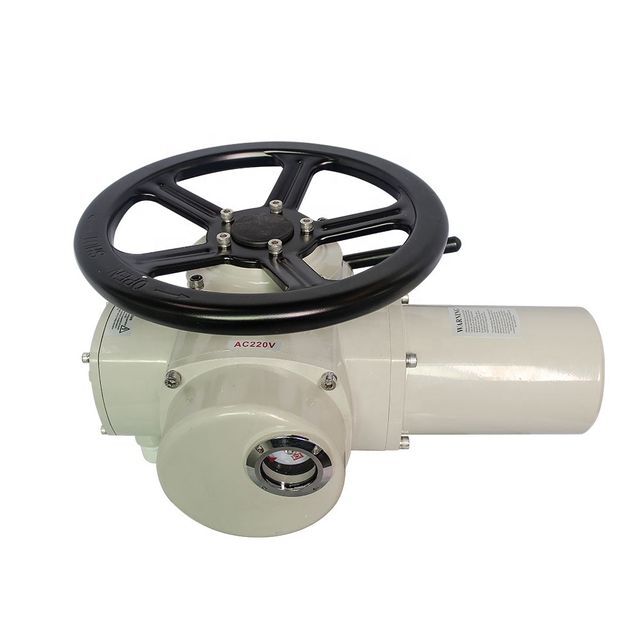

Multi-Turn Quarter-Turn IP68 Motor Valve Actuator

Supplier: Wenzhou COVNA Valve Co., Ltd.
Region: Zhejiang, China
Contact: Ms COVNA Echo
Price: $69.67 / 2 - 29 sets
$65.57 / 30 - 59 sets
$57.37 / 60 - 99 sets
$49.18 / >=100 sets
Min. Order: 2 sets

Click here to contact

Product details

Gross weight per piece:	5.000 kg	type:	Multi-turn electric actuator
Packaging Details:	COVNA 12V / 24V Mini Electric Damper Actuator	Custom Support:	OEM, ODM, OBM
place of origin; place of origin:	Guangdong, China	turn around:	Gate valve multi-turn electric actuator
Control valve:	Steam control valve with electric actuator	Components:	Limit electric actuator
Single package size:	20X15X15 cm	size:	Miniature Electric Actuator
strength:	Electric Motor Actuator	Sales unit:	single product
Quarter turn:	Quarter-turn electric valve actuator	Packaging Preview:
feature:	Rotary Actuator Electric	brand:	Kaufner
Partial turn:	Angular stroke valve electric actuator	IP68:	Electric ip68 actuator

Our advantage

Wenzhou COVNA aims to provide our customers with the highest quality products, the most competitive prices, on-time delivery and comprehensive warranty services.

•more than 20 yearsdrive valve manufacturers,mass customizationacceptable.

• 3 production bases, large inventory,short delivery time, same day delivery.

• Germany imported manufacturing equipment, 100% QC before shipment, quality is guaranteed. industry standard1 year (12 months)Warranty.

• ISO 9001 certification, additional certifications includeCE, TUV, RoHS, SGS, BV, explosion-proof and fireproof.

•OEM/ODMProvide services.

C-05 Electric Actuator

COVNA C-05 On/Off Electric Actuator Specifications
Model	C-05 \| C-10 \| C-16 \| C-30 \| C-60 \| C-125
output torque	50Nm \| 100Nm \| 160Nm \| 300Nm \| 600Nm \| 1250Nm
cycle	20s \| 30s \| 30s \| 30s \| 60s \| 100s
turn around	0-90°
Rated current	0.25A \| 0.48A \| 0.68A \| 0.8A \| 1.2A \| 2A
Motor Power	10W/F \| 25W/F \| 30W/F \| 40W/F \| 90W/F \| 100W/F
weight	3.0KG \| 5.0KG \| 5.5KG \| 8.0KG \| 8.5KG \| 15.0KG
Voltage options	AC110V/220V/380V, AC24V, DC24V
Insulation resistance	DC24V: 100MΩ/250V; AC110V/220V/380V: 100MΩ/500V
Pressure resistance	DC24V: 500V/min; AC110/220V: 1500V/min; AC380V: 1800V/min
Protection class	IP65
Electrical connections	G1/2 waterproof cable connector, power line, signal line
ambient temperature.	-30°C~+60°C
Control circuit	A: On/Off type with indicator signal feedback B: On/Off type with passive contact signal feedback C: On/Off type with resistance potentiometer signal feedback D: On/Off type with resistive potentiometer and neutral signal feedback E: Modulation type with servo control module F: 12V DC / 24V DC direct switch type G: AC380V three-phase passive signal feedback power supply H: AC380V three-phase power supply with resistance potentiometer signal feedback

Explosion-proof

with handwheel

multiple laps

IP68 waterproof

ISO 5211 Mounting Pad

Wiring diagram

left isOn/Off version (B) with passive contact signal feedbackand the right isModulation type (E) with servo control module.

Get a quick quote

About Wenzhou COVNA

Wenzhou Keweiner Valve Co., Ltd.

Wenzhou COVNA is one of the top manufacturers of quarter-turn actuators and actuated valve products in China with more than 20 years of experience. All COVNA products are designed and manufactured by experienced engineers to provide safe and reliable valves, actuators and solutions. COVNA aims to provide our customers with the highest quality products, the most competitive prices, on-time delivery and a comprehensive warranty.

our certificate

Global trust

Packaging Details

Packaging Details: Each valve will be packed in a carton or pallet with Styrofoam to ensure safety during shipping.

Mailing method: We offer a variety of express shipping methods, including DHL, Fedex, TNT, UPS, EMS, Airway, etc.

delivery time: Within 15 working days after the payment is due, the goods will be shipped on the same day.

Get a quick quote

common problem

1. When can I get the price?

We usually quote within 3 hours after receiving your inquiry. If you are in a hurry to get a price, please call us or let us know in your email so we can prioritize your inquiry.

2. How can I get samples to check your quality?

After the price is confirmed, you can ask for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you the sample for free as long as you can afford the express shipping cost.

3. How soon can I receive the samples?

The samples will be ready for delivery within 3-7 days after you pay for the samples and send us confirmation documents. Samples will be sent to you by courier and arrive within 3-5 working days. If you do not have an account, you can use your own courier account or prepay to us.

4. How long does the whole process take?

After placing the order, the production processing time is about 45-60 days. We need 15 days to prepare everything and then 30 days to manufacture.

5. How about the shipping and delivery date?

Usually we use shipping to transport goods. It takes about 25-40 days. It also depends on your country and port. It may be shorter if you need to send as in Asia.

If there is some emergency we can send the goods by air express, as long as you can afford the transportation.
