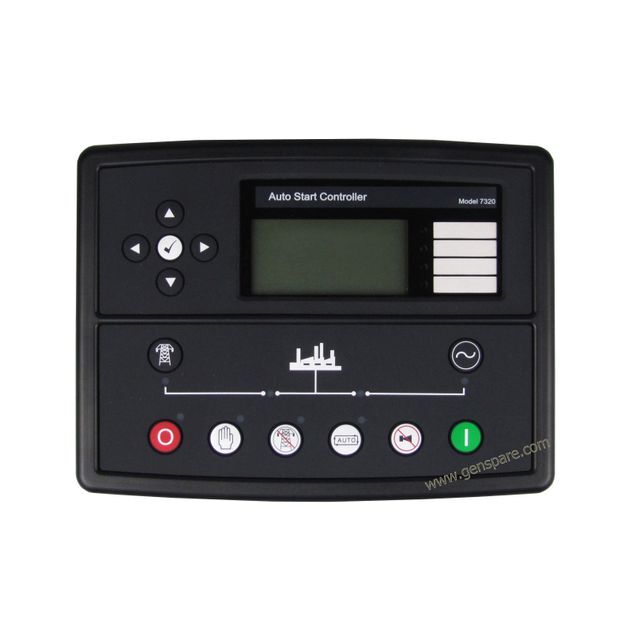

Replace Deep Sea DSE7320 DSE 7320 AMF Automatic Genset Controller

Replace Deep Sea DSE7320 DSE 7320 AMF Automatic Genset Controller

We have the DSE 7320 Generator Generator Set Controller in our regular inventory!

AMF / ATS / Automatic Power Failure Start Control Module / Generator AMF Controller

The brands mentioned here are for reference only, our parts can completely replace the original ones.

How to choose the right genset controller?

1.cheapGenerator Controllers: DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small generators)

2.More featuresGenerator controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS10, MRS16, AMF20, AMF25 (for high-power generators)

3.more languagesGenset Control: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS10, MRS16, AMF20, AMF25 (Available languages: English, Spanish, Portuguese, French, German, Russian, Thai, Arabic, Chinese, etc.)

4.AMF controller: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF20, AMF25 (automatic power failure generator control module)

5.Synchronization and load sharingDSE Genset Controllers: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6.Canbus ECU communicationGenerator Controller: MRS16, AMF25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII

7.ATS controller: DSE7220, DSE7320; AMF20, AMF25 (generator ATS controller - automatic transfer switch generator control module)

Supported languagesFor Deep Sea DSE 7320 Generator AMF Controller:

English/Russian/German/French/Arabic/Portuguese/Spanish/Swedish/Thai/Chinese

DSE7320DSE Genset Controlleris an automatic power (utility) fault control module for a variety of single, diesel or gas generator set applications. Monitoring a number of engine parameters, the module will display warning, shutdown and engine status information on a backlit LCD screen, illuminated LEDs, remote PC and text alerts via SMS (using an external modem).

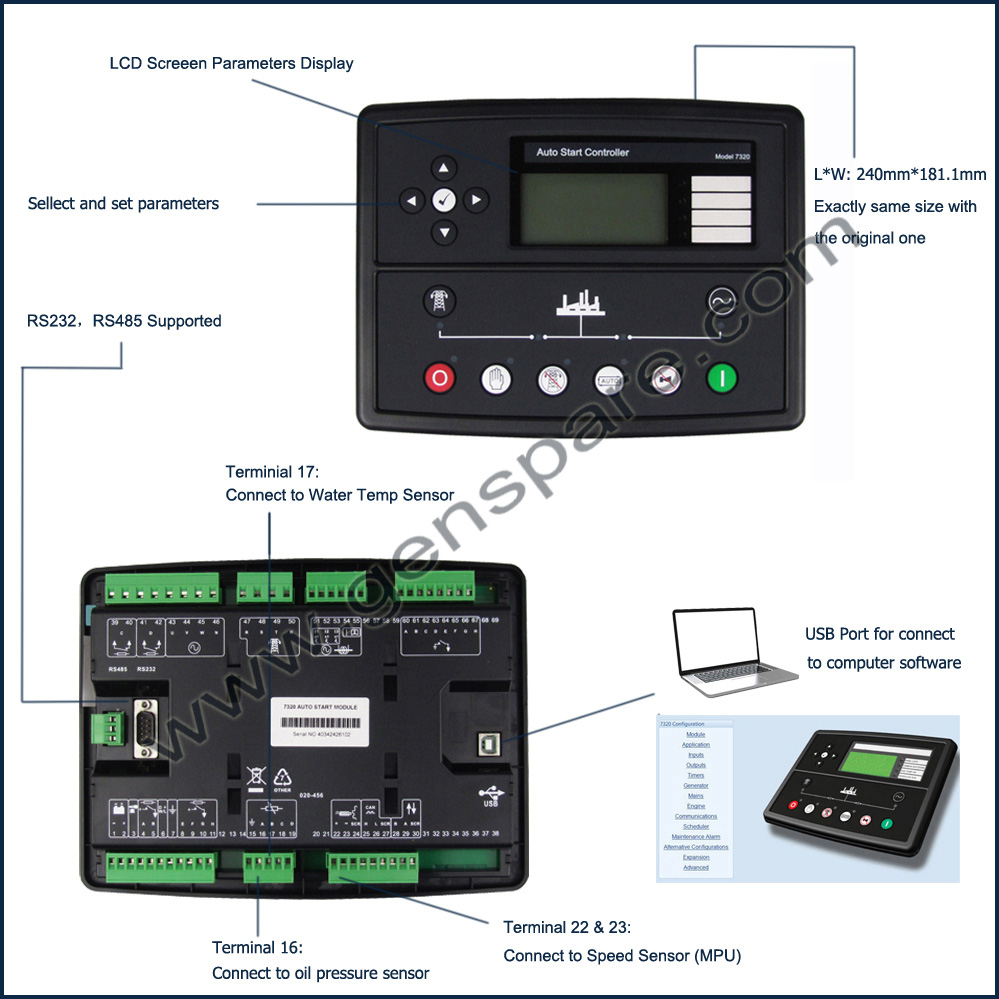

The Deep Sea 7320 generator automatic controller will also monitor the mains (utility) supply. These modules include USB, RS232 and RS485 ports and dedicated DSENet® terminals for system expansion.

Both modules are compatible with electronic (CAN) and non-electronic (magnetic sensor/alternator induction) engines and offer a large number of flexible inputs, outputs and extensive engine protection so the system can easily adapt to the most demanding industry requirements.

These modules can be easily configured using the DSE Configuration Suite PC software.

Selected front panel edits are also possible.

Key Features of the 7320 DSE Deep Sea ATS Generator Automatic Controller

• 4-line backlit LCD text display

• Five-button menu navigation

• Front panel editing with PIN protection

• LED and LCD alarm indication

• Customizable status screens

• Power saving mode

• Supports up to three remote display units

• 9 configurable inputs

• 8 configurable outputs

• Flexible sender input

• Configurable timers and alarms

• 3 configurable maintenance alerts

• Multiple date and time schedulers

• Configurable event log (250)

• Control logic facilities

• Easy access to diagnostic pages

• CAN and Magnetic Pickup/Alt. sensing

• Fuel usage monitoring and low fuel alerts

• Charging alternator failure alarm

• Manual speed control (on compatible CAN engines)

• Manual fuel pump control

• Engine exerciser

• "Disable protection" function

• kW overload protection

• Reverse power protection

• Power monitoring (kW h, kV Ar, kV A h, kV Ar h)

• Load switching (load shedding and dummy load output)

• Automatic Load Transfer (DSE7320)

• Unbalanced load protection

• Independent ground fault trip

• USB connection

• Backup real-time clock

• Fully configured via DSE Configuration Suite PC software

• Configurable display language

• Remote SCADA monitoring via DSE Configuration Suite PC software

• User selectable RS232 and RS485 communications

• Configurable Gencomm page

• AdvancedSMS messages (requires additional external modem)

• Start and stop functions via SMS

• Additional display screen to aid modem diagnostics

• DSENet® extension compatible

• Integrated PLC editor

Key Benefits of the 7320 DSE ATS Generator Automatic Genset Controller

• 132 x 64 pixel ratio display for clarity

• Real-time clock provides accurate event recording

• Multiple date and time schedulers

• Configurable set maintenance periods to maintain optimum engine performance

• Ethernet communication (via DSE860/865 modules) for advanced remote monitoring at low cost

• Modules can be integrated into Building Management Systems (BMS)

• Added input and output scalability via DSENet®

• License-free PC software

• IP65 rating (with gasket provided) for increased water resistance

• PLC editor allows user to configure functions to meet specific application requirements
