DPP-140 150 High Speed ​​Fully Automatic Flat Honey Blister Packaging Machine Olive Oil Mini Liquid Blister Packaging Machine

Click here to contact
Product details
Main selling point:easy to operateRequired compressed air:Air compressor above 0.3m3/min
Standard travel range:50-120mm (can be designed according to user requirements)Key words:Alu-PVC Capsule Blister Packaging Machine
Core Components Warranty:1 yearMechanical test report:if
application:Food, beverage, daily necessities, medicine, chemical industry, mechanical hardwareAuto grade:automatic
After-sale service:Online and on-site installation and commissioningPunch frequency:10-35 times/min
Supply capacity:25 sets of olive oil mini liquid blister packers per monthMarketing Type:New Products 2022
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpport:Shanghai, Ningbo
brand:grandWarranty:3 years
Drive Type:electricalweight:820kg
Production capacity:1200-4200 boards/hourDimensions (L*W*H):2315*635*1405mm (L*W*H)
maximum. Forming area and depth:130*100mm (standard depth does not exceed 15mm), max. Depth 26mmplace of origin; place of origin:Zhejiang, China
payment terms:L/C,Western Union,T/T,MoneyGramVoltage:220V/380V (customizable)
Packaging Details:DPP-140 150 High Speed ​​Fully Automatic Flat Honey Blister Packaging Machine Olive Oil Mini Liquid Blister Packaging Machine is packed in standard export wooden boxes.air pressure:0.4-0.6Mpa
Applicable industries:Manufacturing Plants, Mechanical Repair Shops, Food and Beverage Plants, Farms, Food Stores, Energy and Mining, Food and Beverage Stores, Pharmacies, Cosmetics, Hardware and Electronicstype:Blister Packaging Machine
Showroom location:Egypt, United States, France, Vietnam, Saudi Arabia, Indonesia, Spain, Thailand, Morocco, United Arab Emirates, Colombia, Algeria, Romania, South Africa, Ukraine, Greece, Jordan, Tunisia, etc.Standard board size:80*57mm (can be designed according to user requirements)
Packaging Preview:Video external inspection:if
Health status:newproduct name:Liquid Blister Packaging Machine

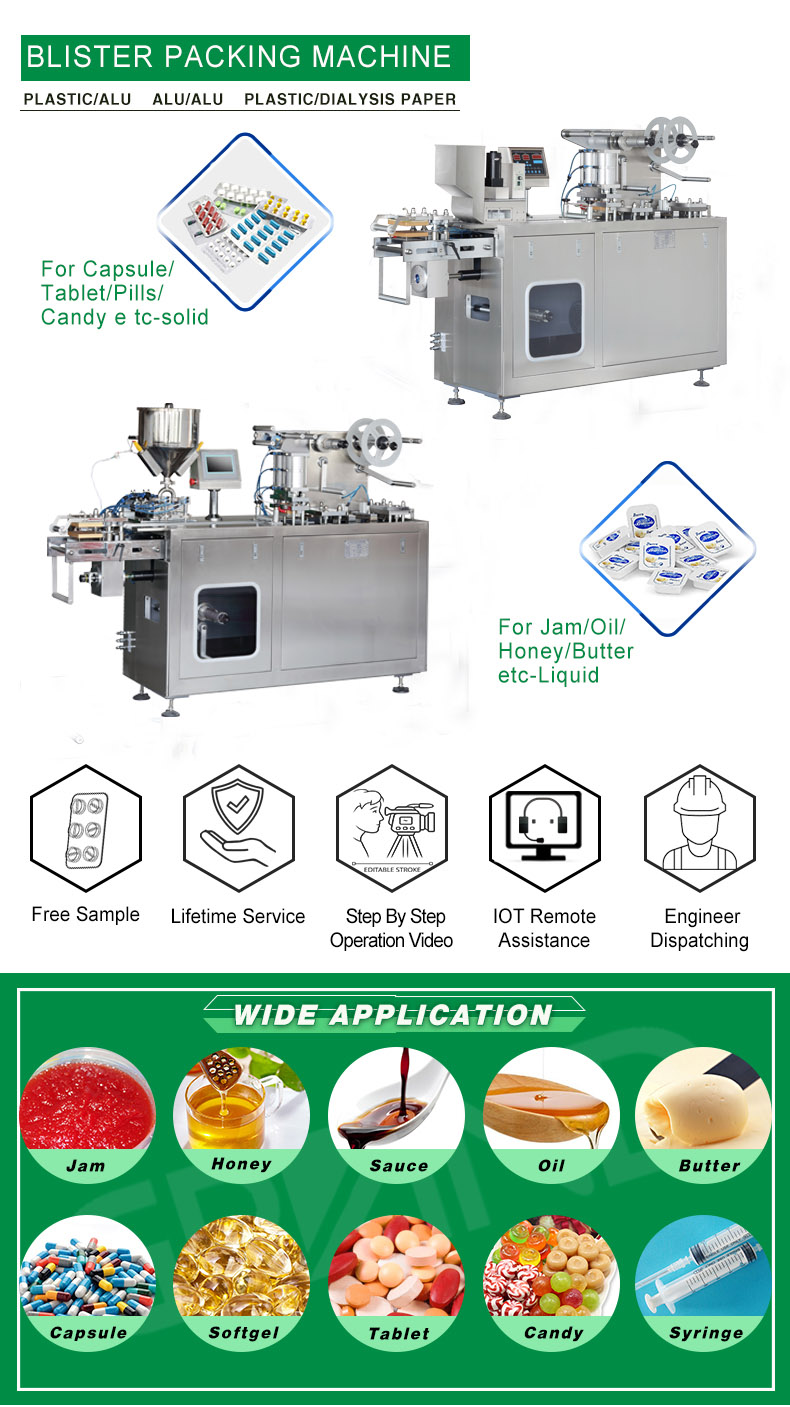

DPP-140 150 High Speed ​​Fully Automatic Flat Honey Blister Packaging Machine Olive Oil Mini Liquid Blister Packaging Machine
Product Description
The main technical parameters
Model
DPP-80
DPP-150
DPP-180
DPP-260
Frequency of punching
10-33 times/min
10-35 times/min
10-35 times/min
10-40 times/min
maximum. forming area
105*70mm
145*110mm
175*110mm
250*140mm
Maximum forming depth
26mm or customized
range of travel
30-80mm
50-120mm
50-120mm
40-140mm
air pressure
0.4-0.6MPa
main switch
(customizable)
220V 50Hz, 2.8KW
380V 50Hz, 3.8KW
380V 50Hz, 3.8KW
380V 50Hz, 8.5KW
PVC hard film
(0.15-0.5)*110mm
(0.15-0.5)*150mm
(0.15-0.5)*180mm
(0.15-0.5*250mm
PTP aluminum film
(0.02-0.035)*110mm
(0.02-0.035)*150mm
(0.02-0.035)*180mm
(0.02-0.035)*250mm
Dialysis paper
50-100g*110mm
50-100g*150mm
50-100g*180mm
50-100g*250mm
mold cooling
Tap water or circulating water
Dimensions
(L*W*H)
1840*590*1100mm
2315*635*1405mm
2550*640*1600mm
3250*710*1700mm
machine weight
450KG
820KG
870KG
1400KG
price
Click to get the best price
notes:If you are an Alibaba APP user, please click"Send Enquiry"In the bottom right corner, you will get the best price.

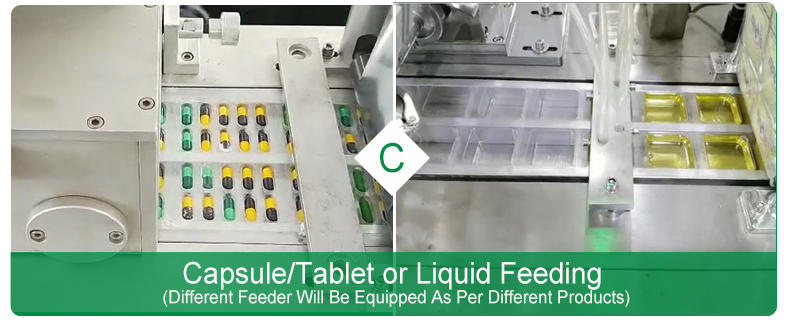

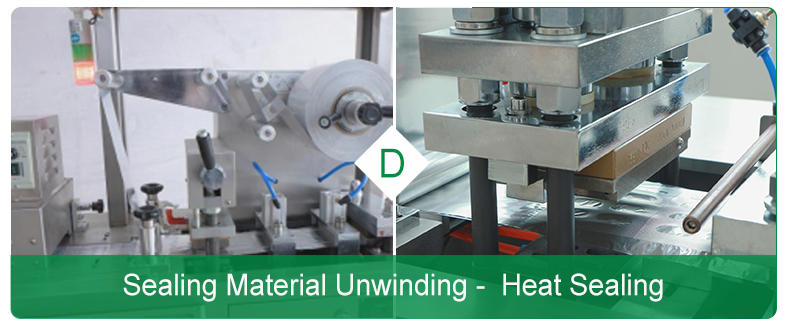

work process
Click me for more production details and videos.
Note: If you are an APP user, please click"Send Enquiry"Get the above information in the lower right corner.
Click the image above to view the corresponding product information.
our service

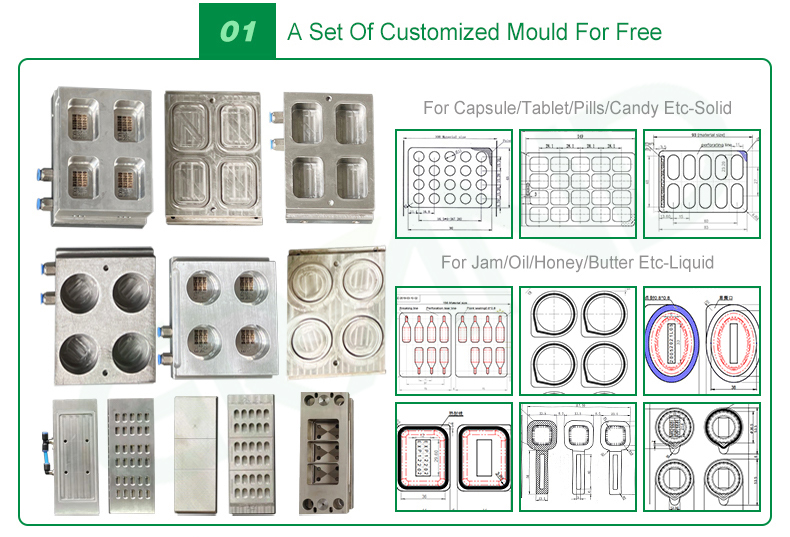

Click me to ask how to get the mold design plan.
Note: If you are an Alibaba APP user, click "Send Inquiry" in the lower right corner to get the mold design plan.

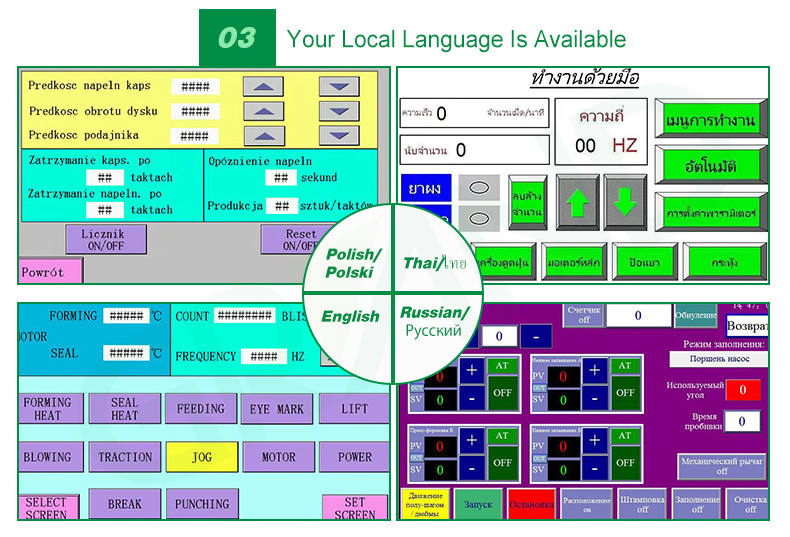

Click me to learn about custom language/IoT remote systems.
notes:If you are an APP user, click "Send Query" in the lower right corner to obtain the above information.
